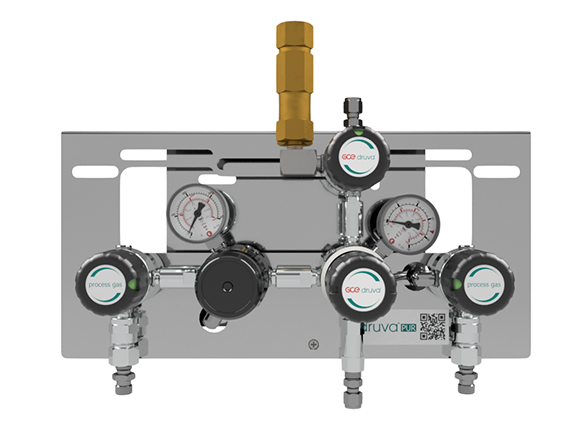

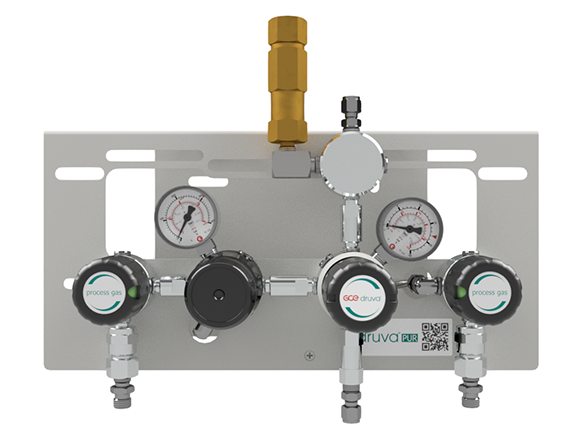

LOW FLOW RANGE - DUAL STAGE - HIGH PRESSURE VALVE

MANIFOLD FOR PURE GAS SUPPLY SYSTEMS, Two sources, Manual change over system, High pressure shut-off valve

The manifold used in gas supply systems for pure, inert, flammable, oxidizing gases and gas mixtures. Not usable for corrosive and/or toxic gases and gas mixtures. Maximum gas purity is 6.0.

TECHNICAL SPECIFICATION

  • Switching between two sources by the manual valve actuation
  • Regulator and Valves - Hastelloy/Elgiloy diaphragm tighting system to atmosphere
  • Compact design
  • Excellent pressure adjustment
  • Valves - designed and approved in accordance with relevant sections of EN ISO 10297:2015 (including O2 - ignition test for the main valve)
  • Regulator - designed and approved regarding ISO 7291 (including O2 - ignition test)
  • A relief valve in the delivery pressure side
  • Manifold with process inlet shut-off valve
  • Available with a shut-off valve at outlet, safety valve at outlet, check valve at the inlet
  • Electrostatic chargeabitlity test
    • Fulfils requirements according to DIN EN ISO 80079-36, IEC TS 60079-32-1 and German TRGS 727
    • Usable in Ex-areas zones 1 and 2 for gases with explosion risk group I, IIA, IIB, IIC

SPECIAL FEATURES OF MANIFOLD

  • Splitted plates of the manifold
    • Separated mounting of the ground plate
    • Easy mounting of the manifold to ground plate and fix with one screw only
  • Front plate cutout for in-field gauge replacement

TECHNICAL DATA

Working temperature: -20°C to +60°C
Material: Brass chrome plated or Stainless steel
Material bracklet: Stainless steel
Flow nominal: 20m3/h (N2) according to ISO 7291 at 20 bar outlet pressure and 41 bar inlet pressure
Pressure rates manifold:
   Max. inlet pressure: 300 bar
   Delivery pressure: 2/3/6/10/14 bar

Technical datasheets

MPLHXMDS-EN
MSLHXMDS-EN

Direct link to druva product configurator

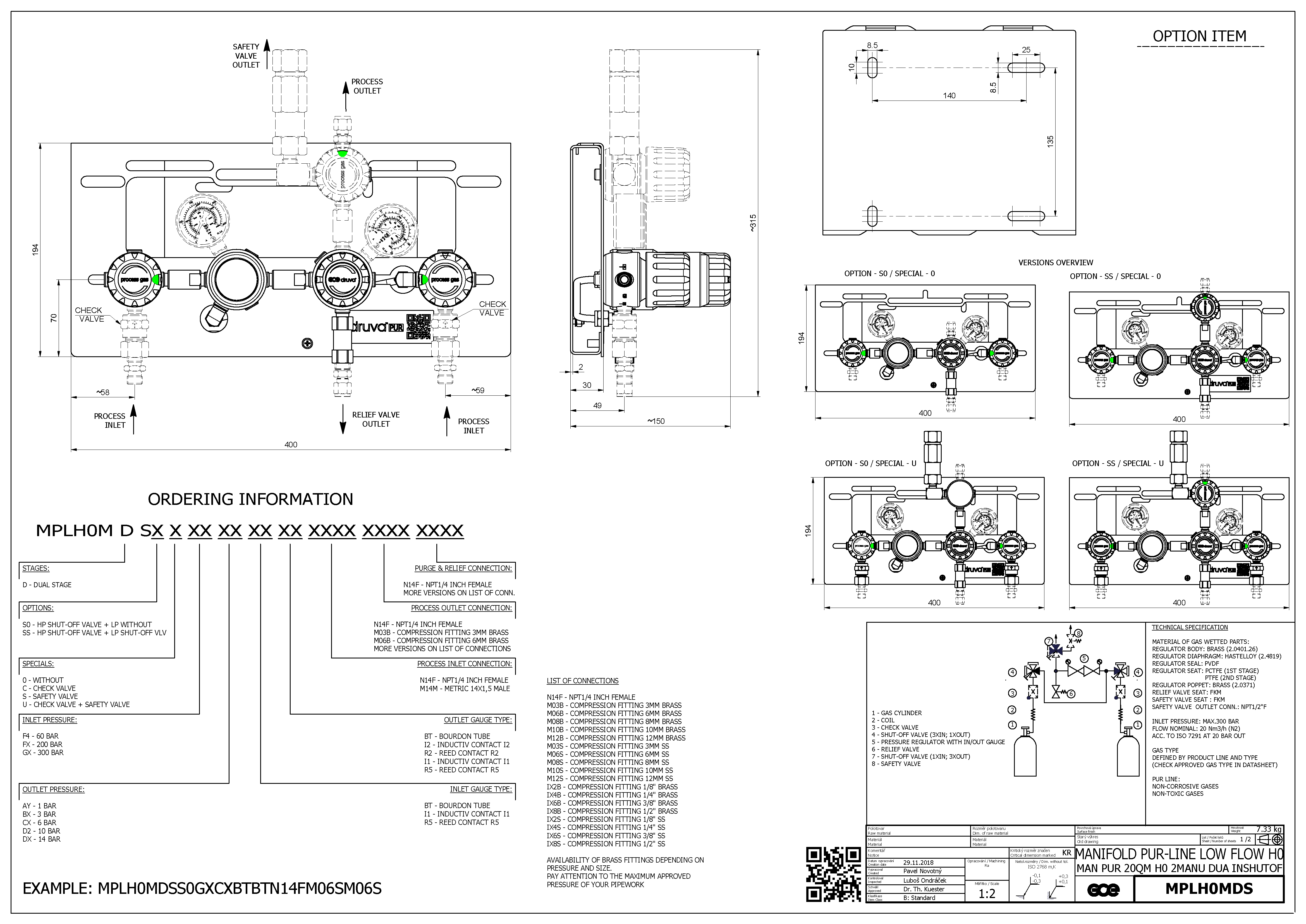

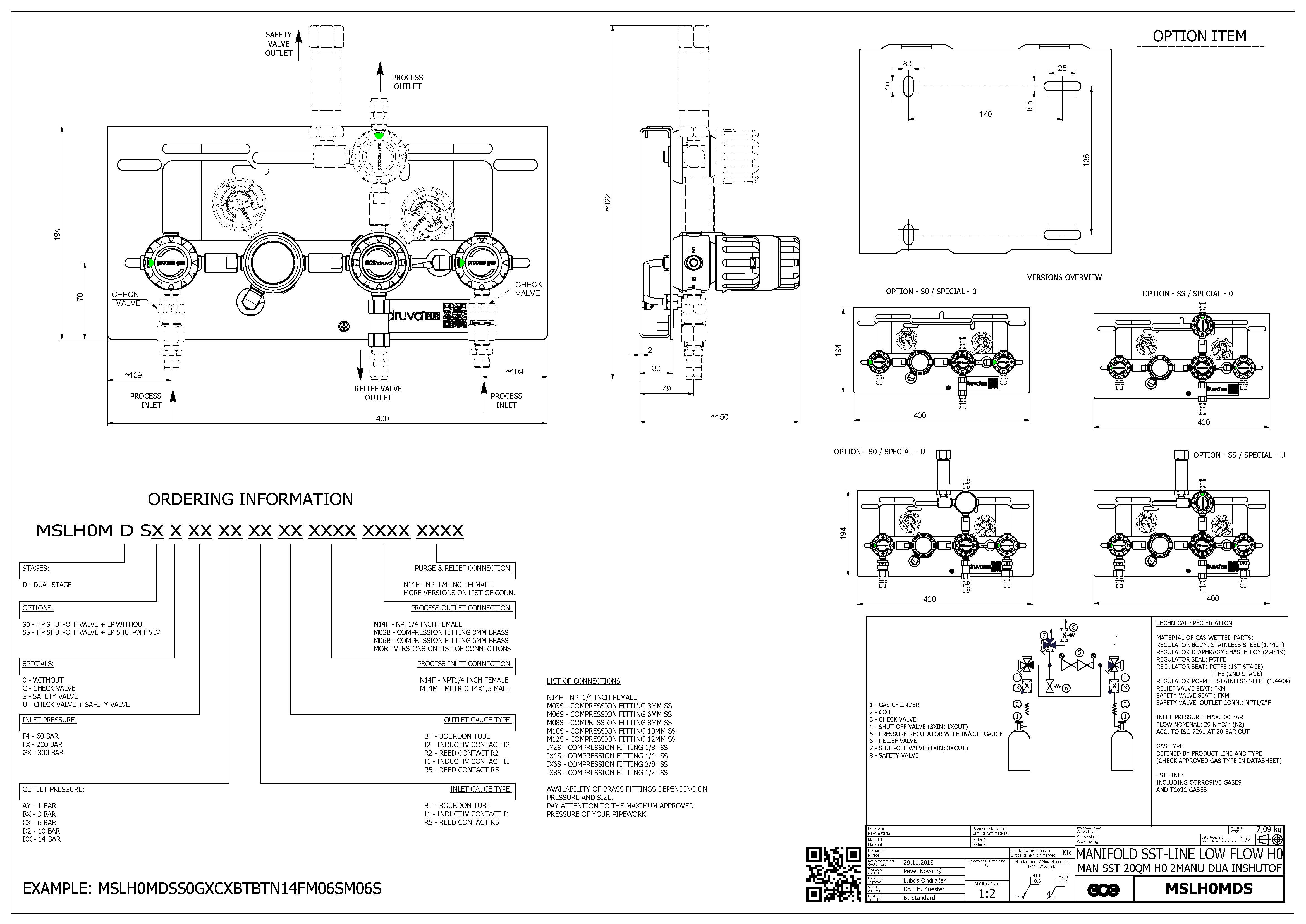

Technical Drawings Top

Download Technical Drawings

Acrobat Logo MPLH0MDS_drawings.pdf Acrobat Logo MPLHEMDS_drawings.pdf Acrobat Logo MSLH0MDS_drawings.pdf Acrobat Logo MSLHEMDS_drawings.pdf
Downloads Top

Additional Downloads for this Product

Acrobat Logo IFU-MXLHXMD_web.pdf
