CUTTING NOZZLE ASF, HIGH SPEED

Group Number: 2551

ASF is unique Tool-free, high speed machine cutting nozzle to be used with cutting torch GCE FIT+®. Nozzle is desiged for acetylene. Both cutting and heating nozzles are chrome plated. The package of cutting nozzles contains 5 pieces, heating nozzle GSF 1 piece.

Art. Nr. Type
 Cutting range (mm)
0769923 cutting nozzle 3 - 5
0769924 cutting nozzle 6 - 10

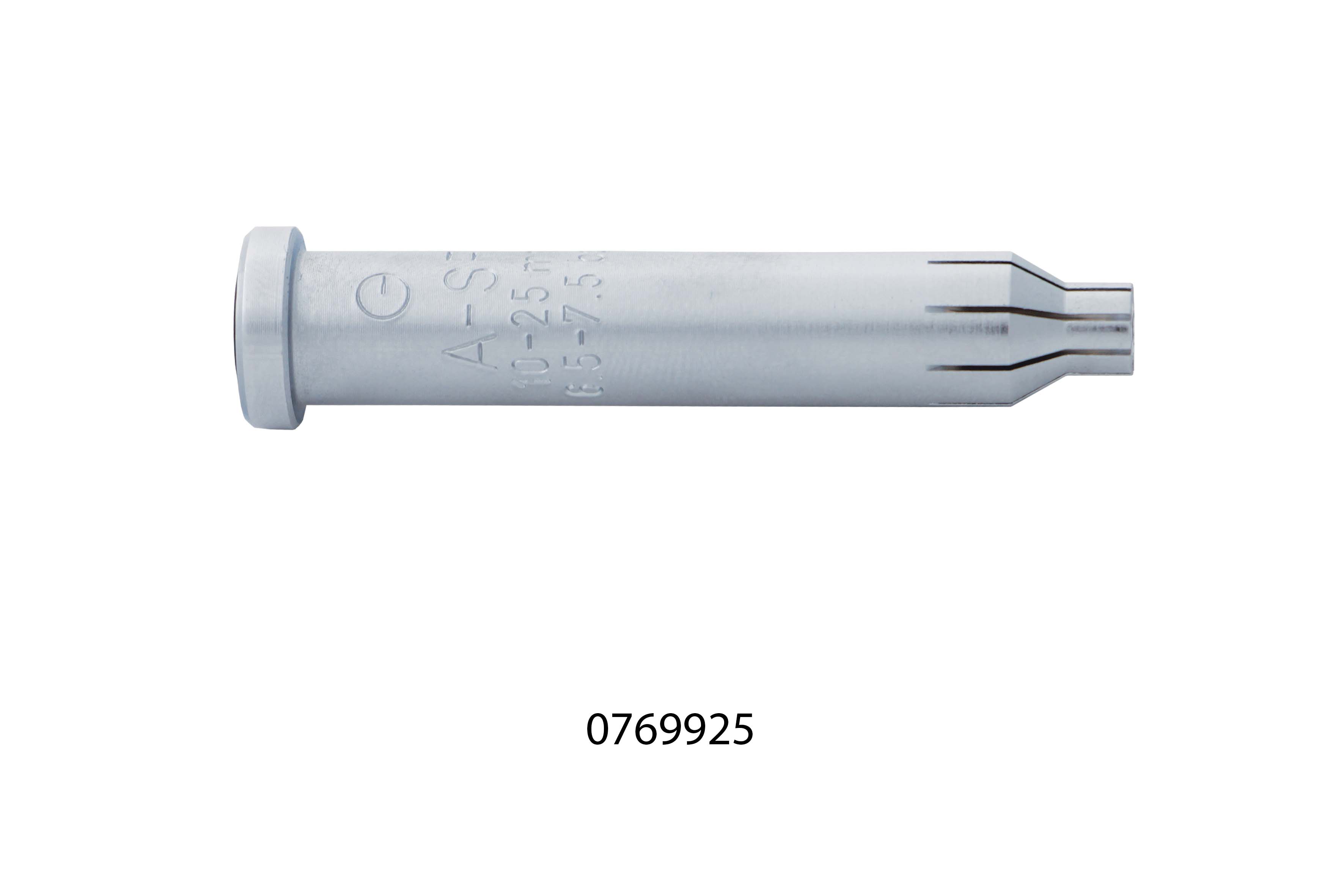

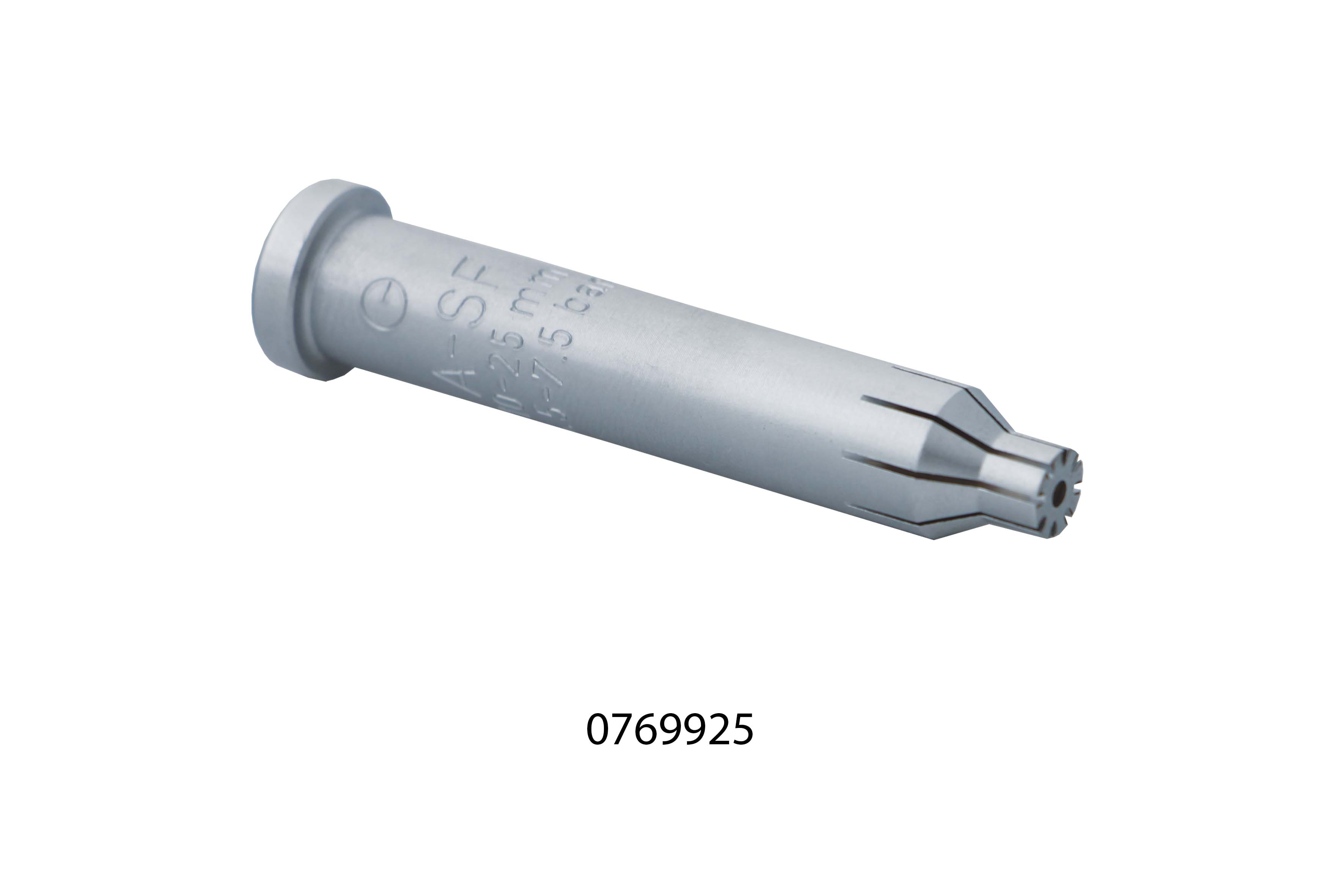

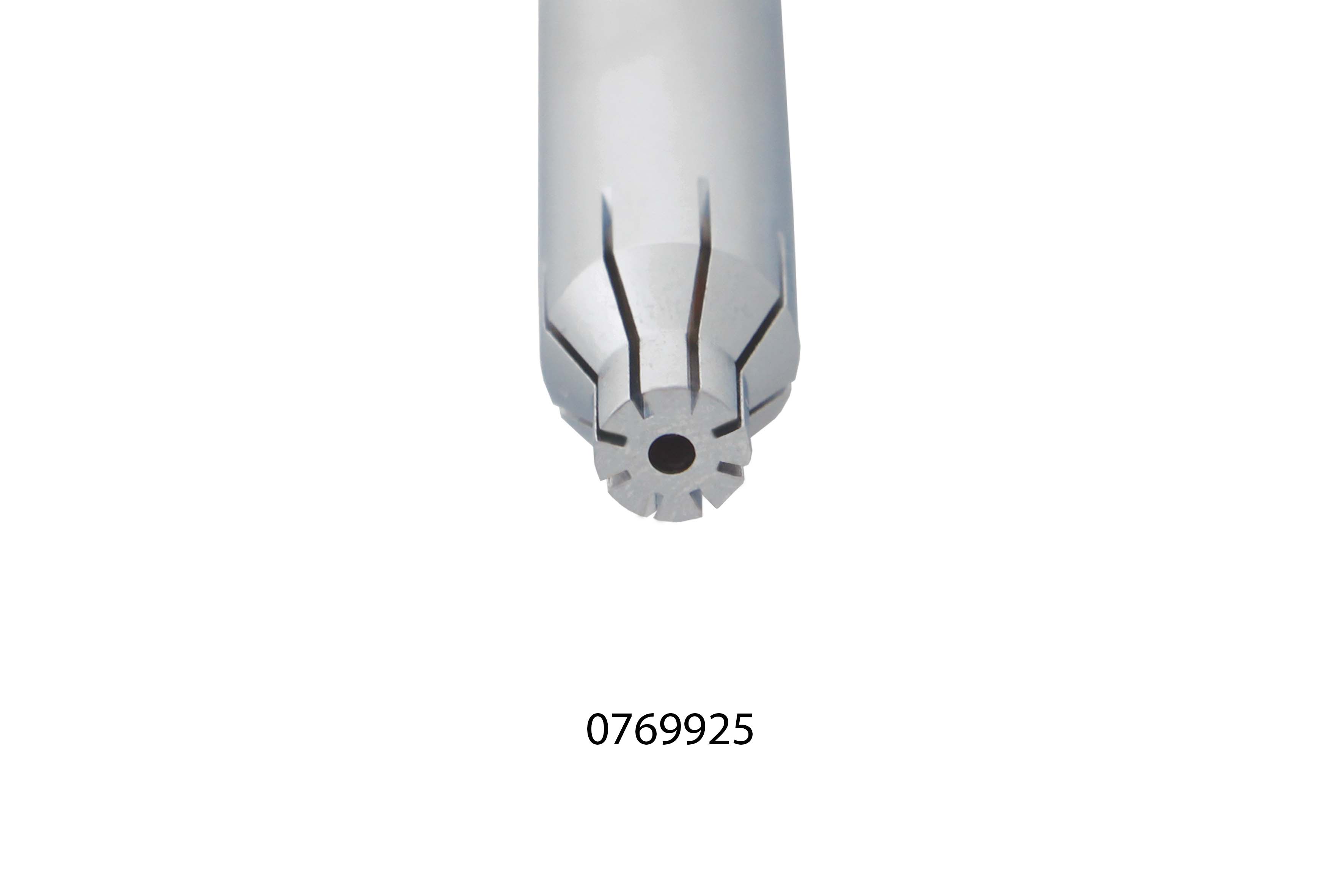

0769925 cutting nozzle 10 - 25
0769926 cutting nozzle 25 - 40
0769927 cutting nozzle 40 - 60
0769928 cutting nozzle 60 - 100
0769929 cutting nozzle 100 - 150
0769930 cutting nozzle 150 - 230

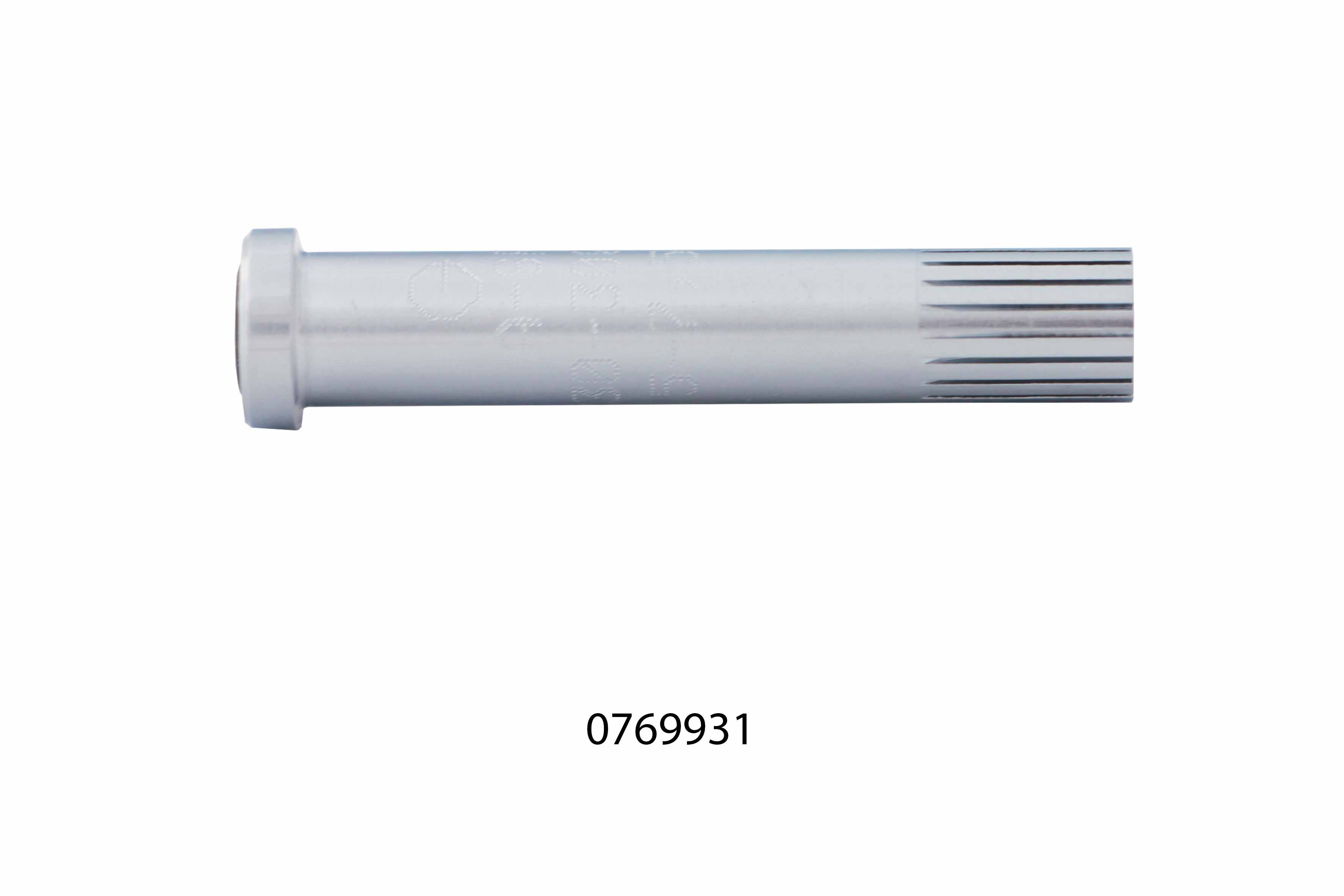

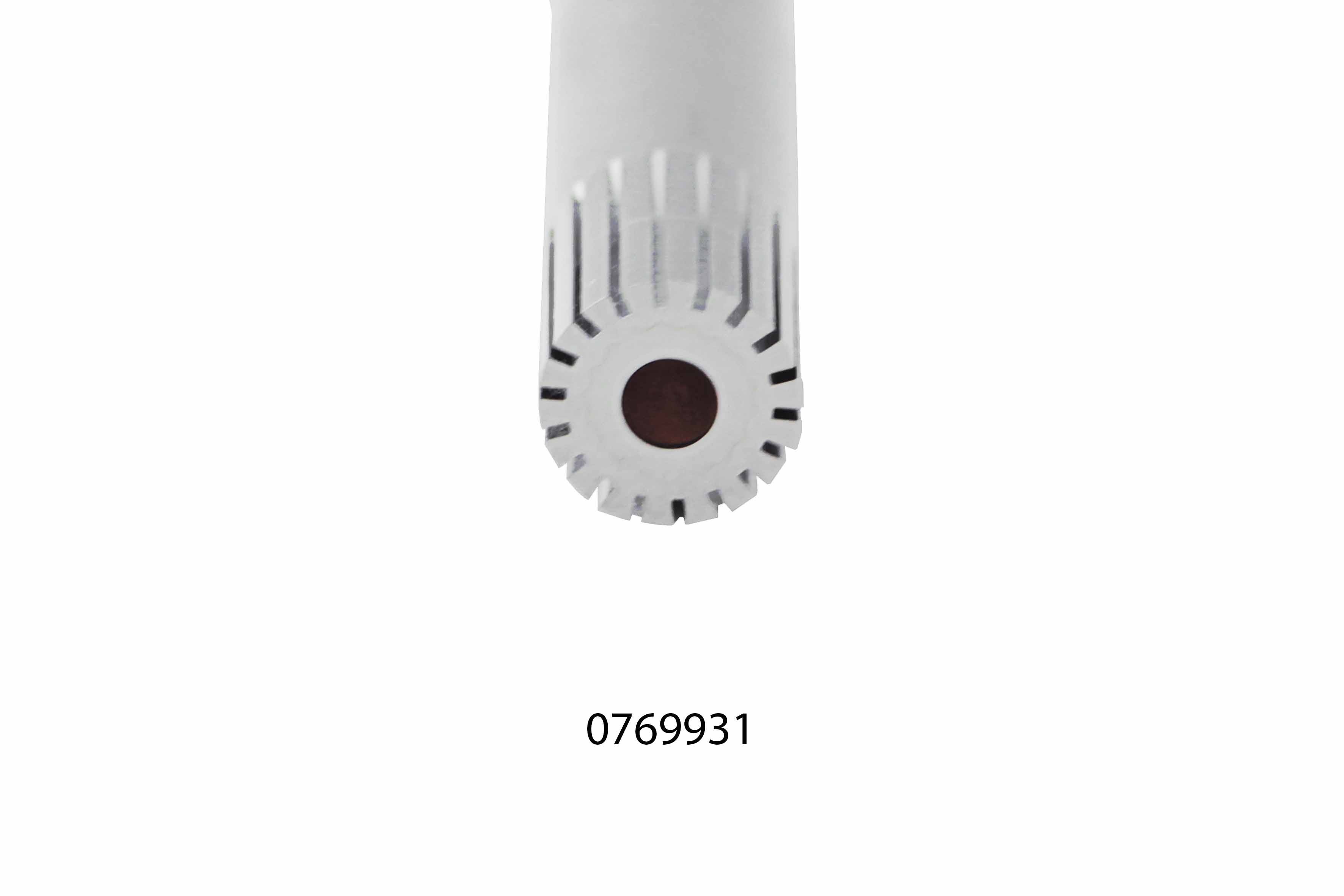

0769931 cutting nozzle 230 - 300

GENERAL CONDITIONS FOR HIGH QUALITY AND EFFICIENT CUTTING

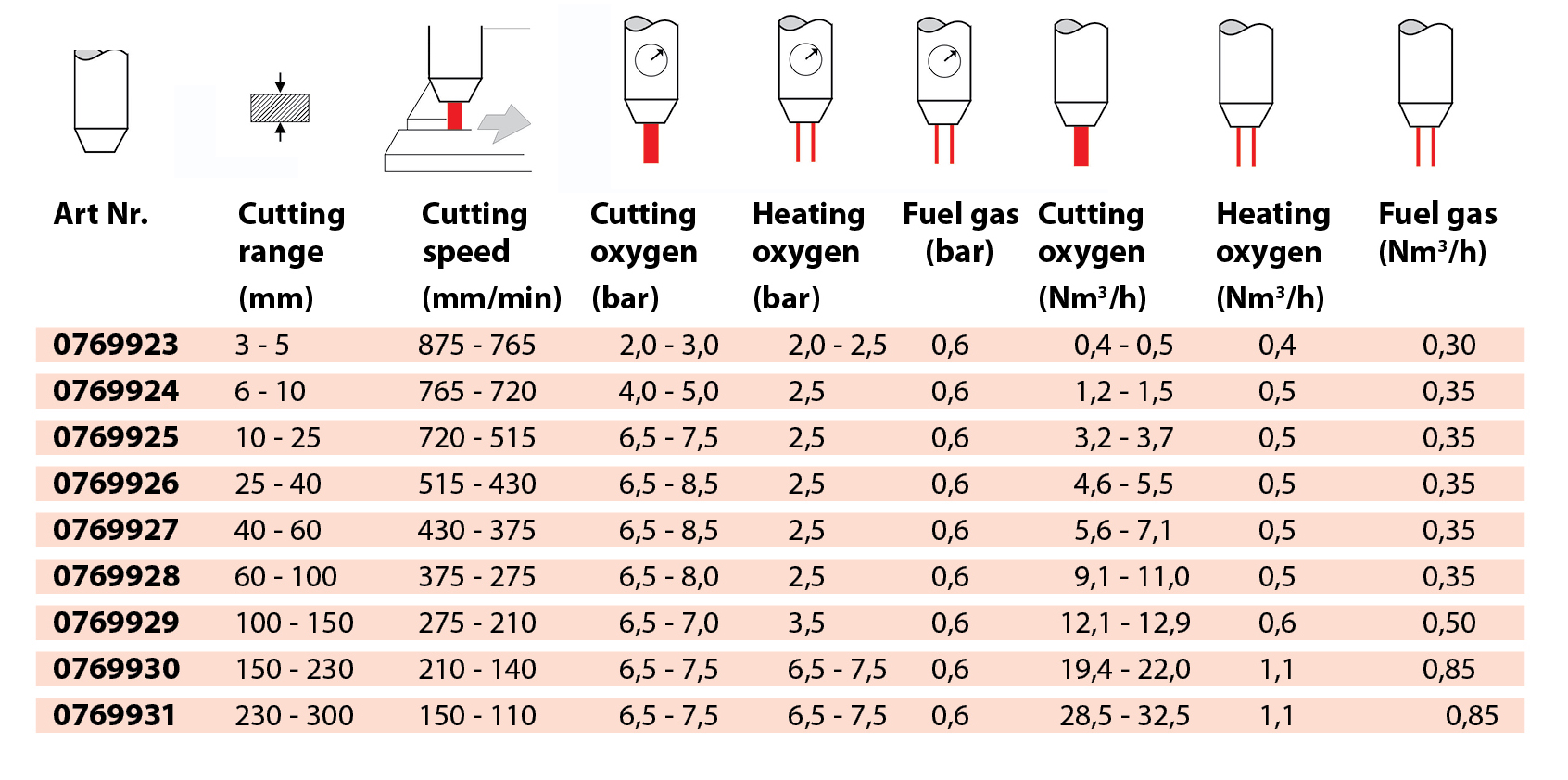

GCE machine cutting nozzles are designed to reach the cuts of quality level 1 according to EN ISO 9013. It is possible to reach maximal cutting speed by setting-up recommended cutting parameters of particular nozzles shown below, cutting of straight cuts, by using of clean metal sheet surface, oxygen with purity 99,5 % or better. Correct values of gases pressures are to be measured at the torch inlet. Parameters are prepared for mild steel with maximal carbon content of 0,25 %. Quality cutting machine with proper gas supply system, original GCE cutting equipment and new, undamaged, original cutting and heating nozzles are to be applied.

Technical Datasheets Top

Download Technical Datasheets

Downloads Top

Additional Downloads for this Product

Acrobat Logo 735100001420_Cutting_parameters_FIT_PLUS_GCE_EN_REV6_web.pdf
