CUTTING NOZZLE K50/K70 PUZ

Group Number: 2551

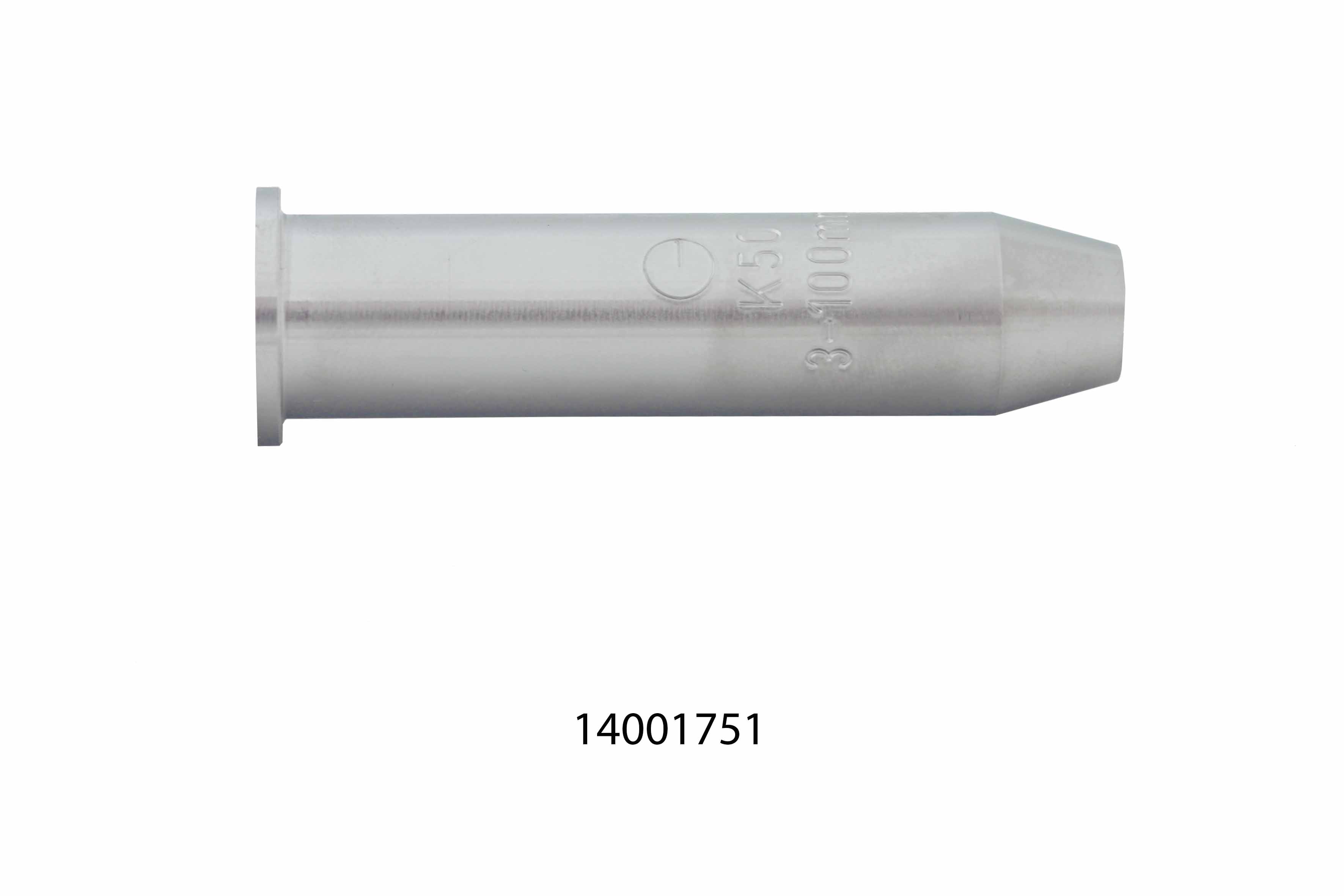

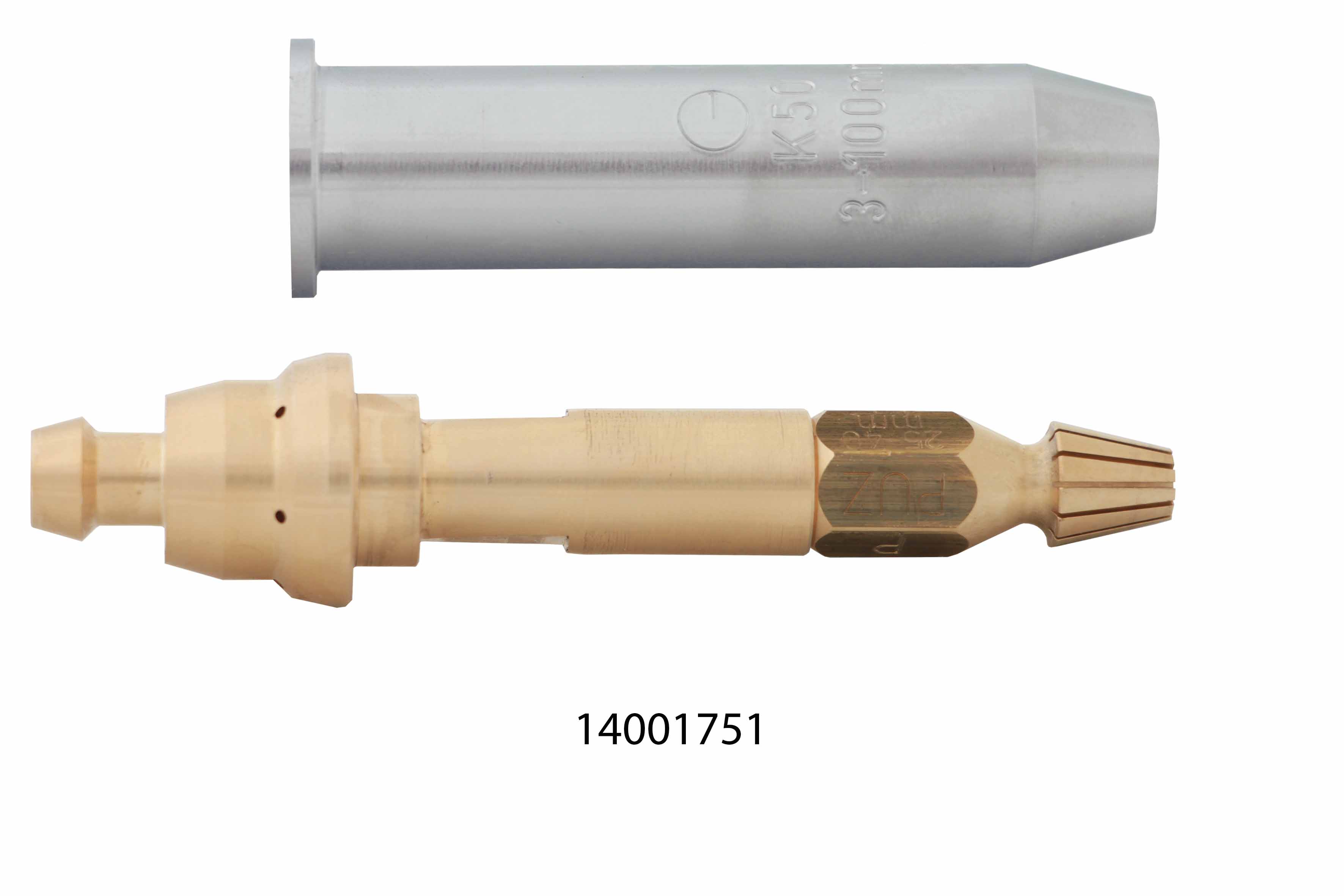

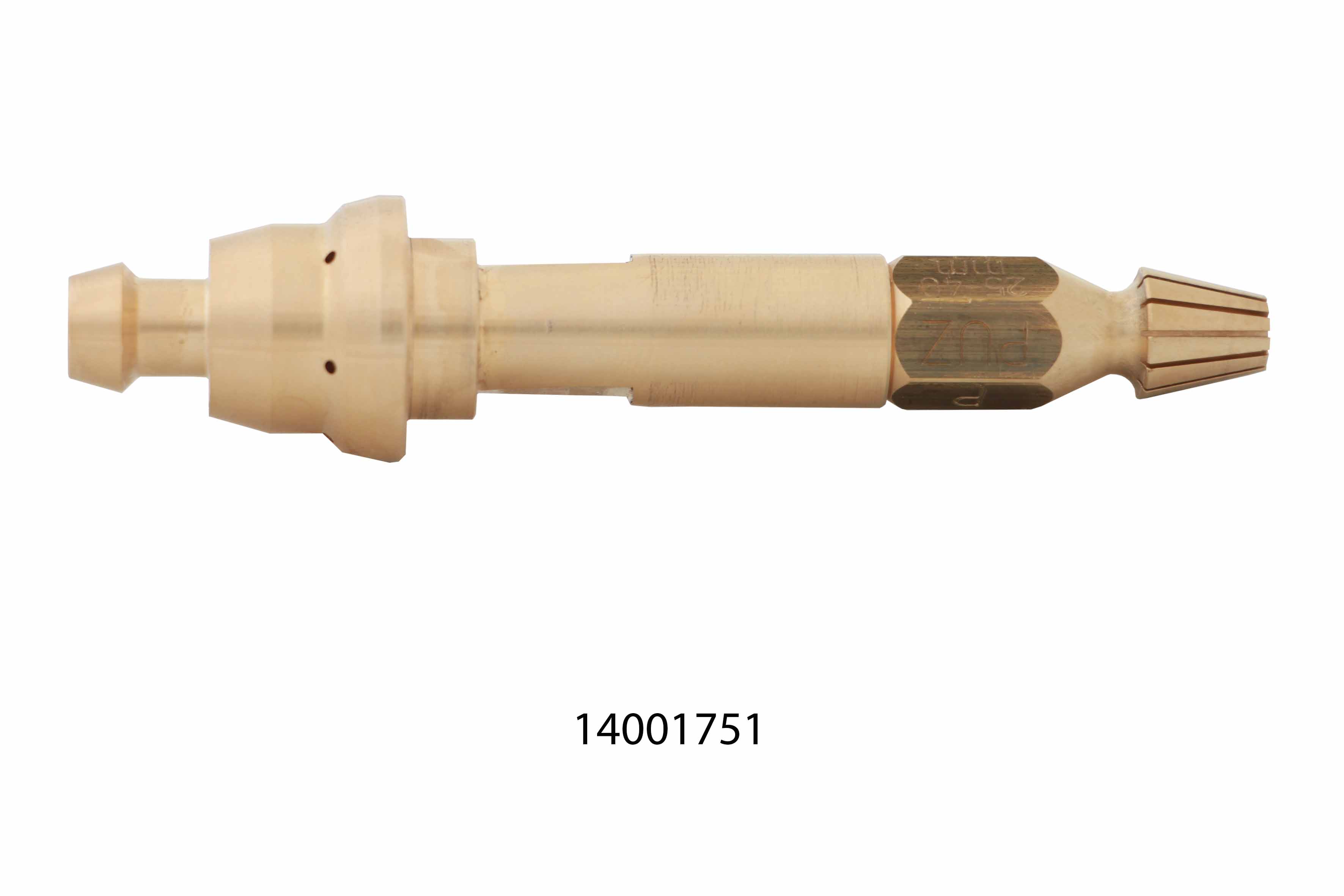

K50/K70 PUZ are standard mixing cutting nozzles to be used with machine cutting torch BGR™/X541 and portable cutting machines. Inner cutting nozzle is made of 2 parts. Outer heating nozzle is chrome plated for longer life time. Nozzle is desiged for propane and natural gas. Both cutting and heating nozzles are delivered assembled as one item. K50 is for cutting up to 100 mm, K70 for cutting of 100-300mm steel plate thickness.

Art. Nr. Type

Cutting range (mm)

14001749 Cutting nozzle K50 3 - 10
14001750 Cutting nozzle K50 10 - 25

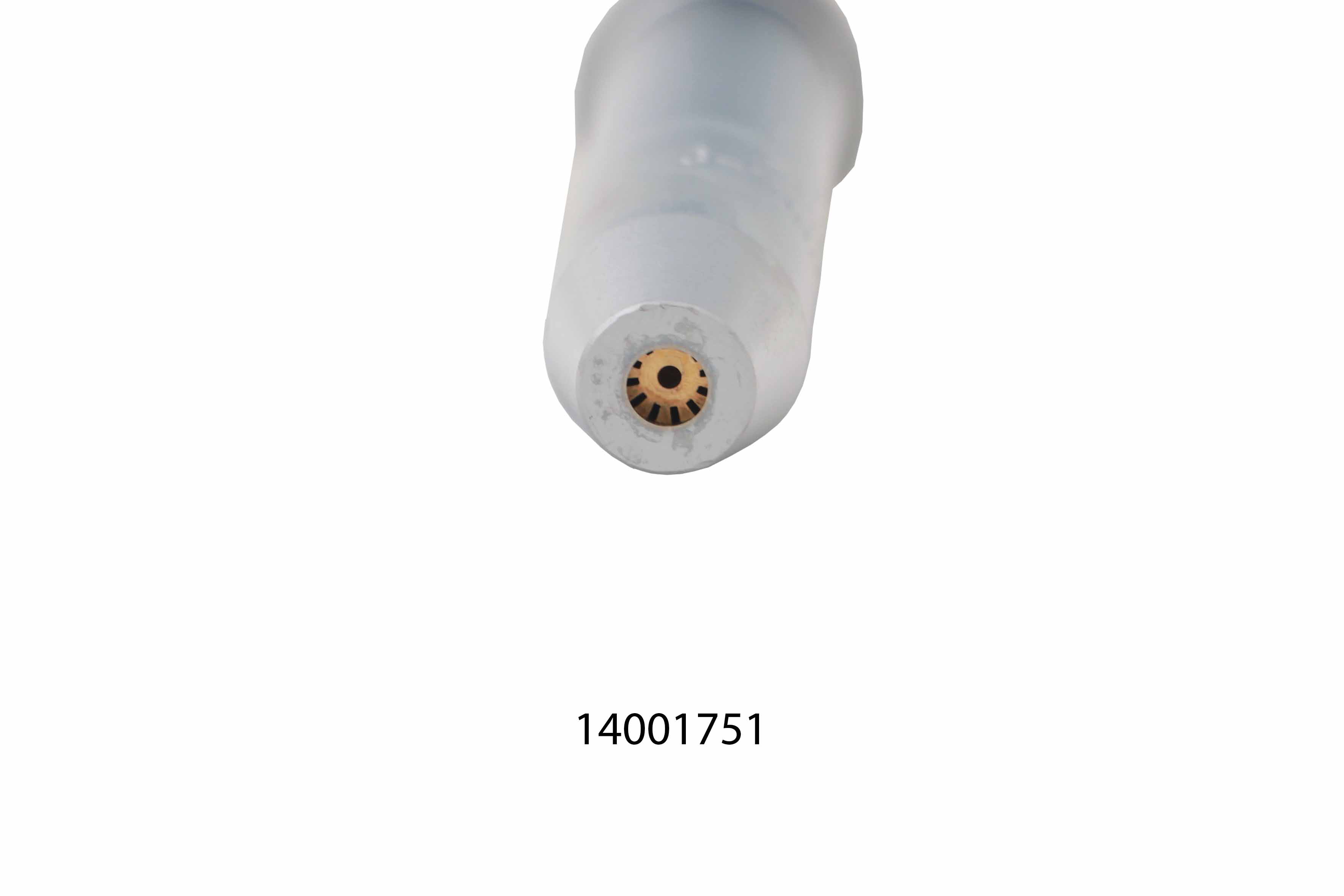

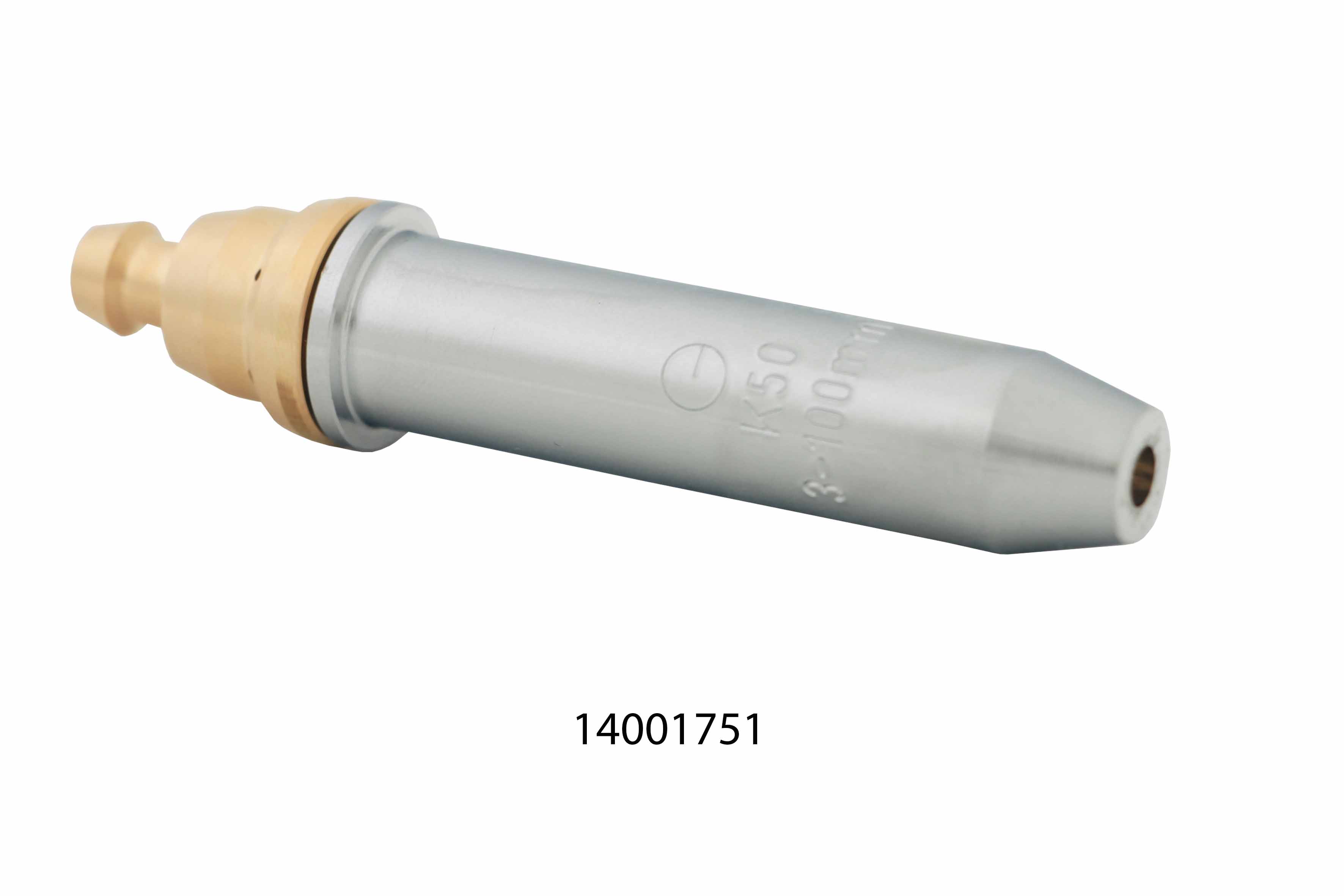

14001751 Cutting nozzle K50 25 - 40
14001753 Cutting nozzle K50 40 - 60
14001755 Cutting nozzle K50 60 - 100
14001761 Cutting nozzle K70 100 - 200
14001762 Cutting nozzle K70 200 - 300

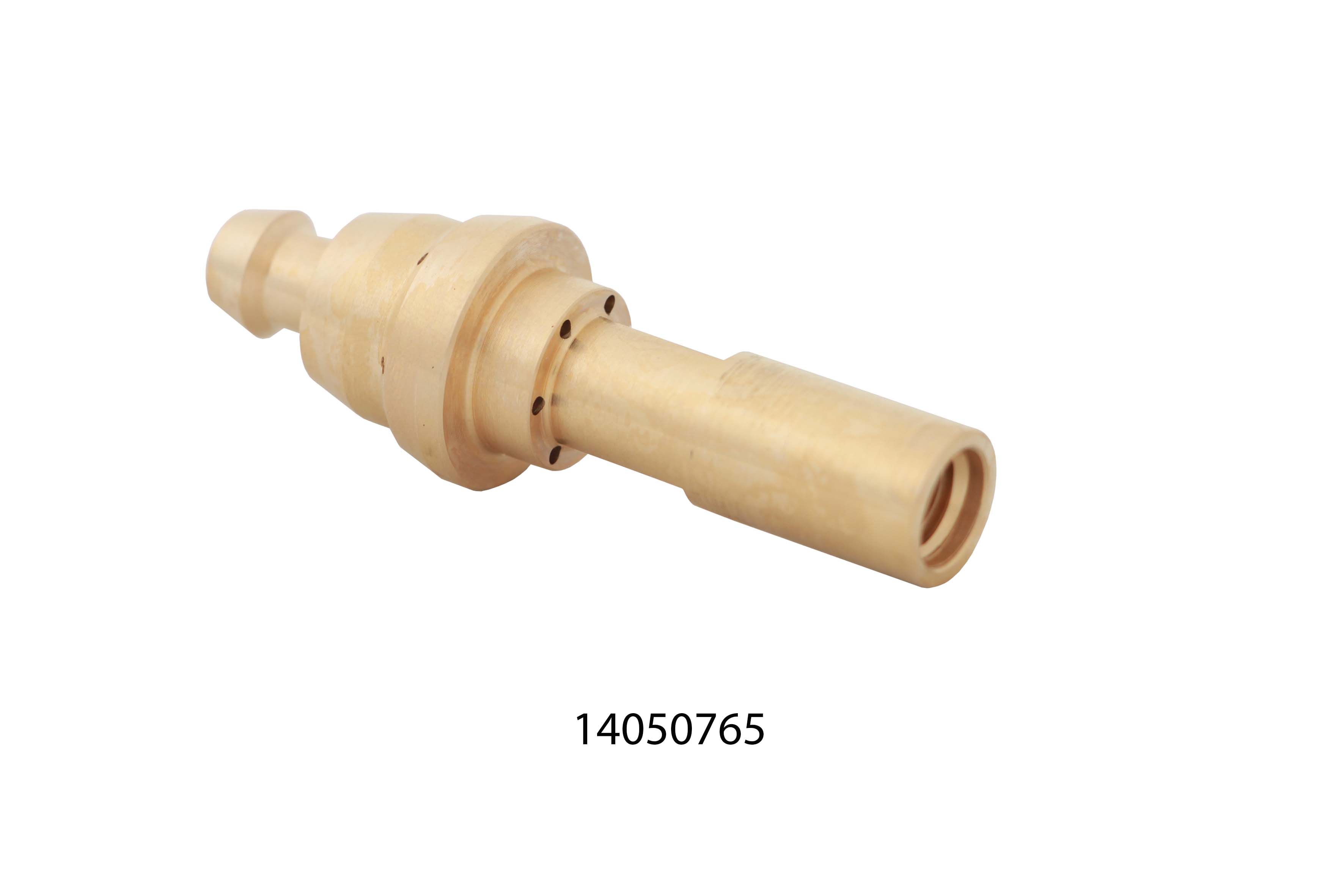

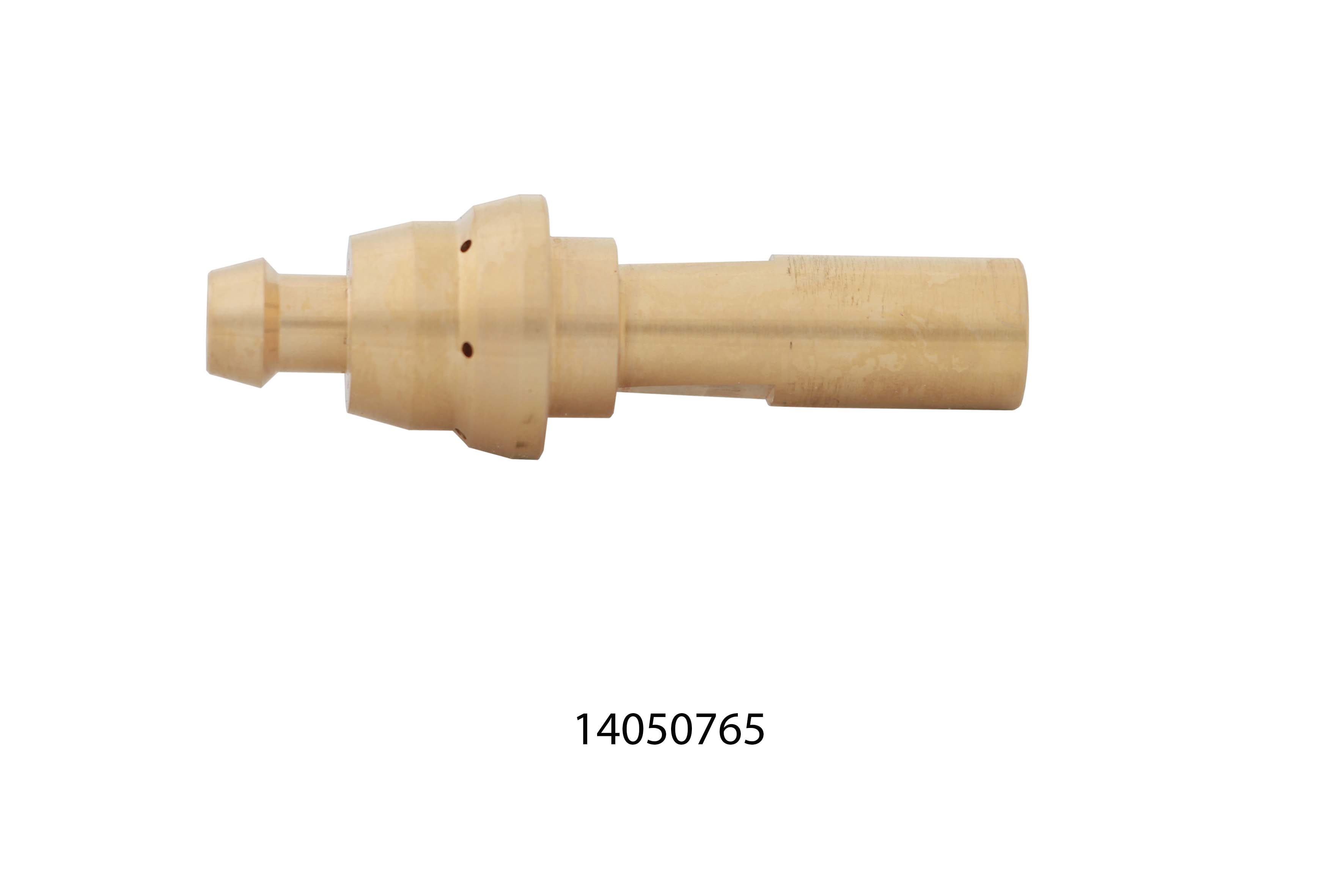

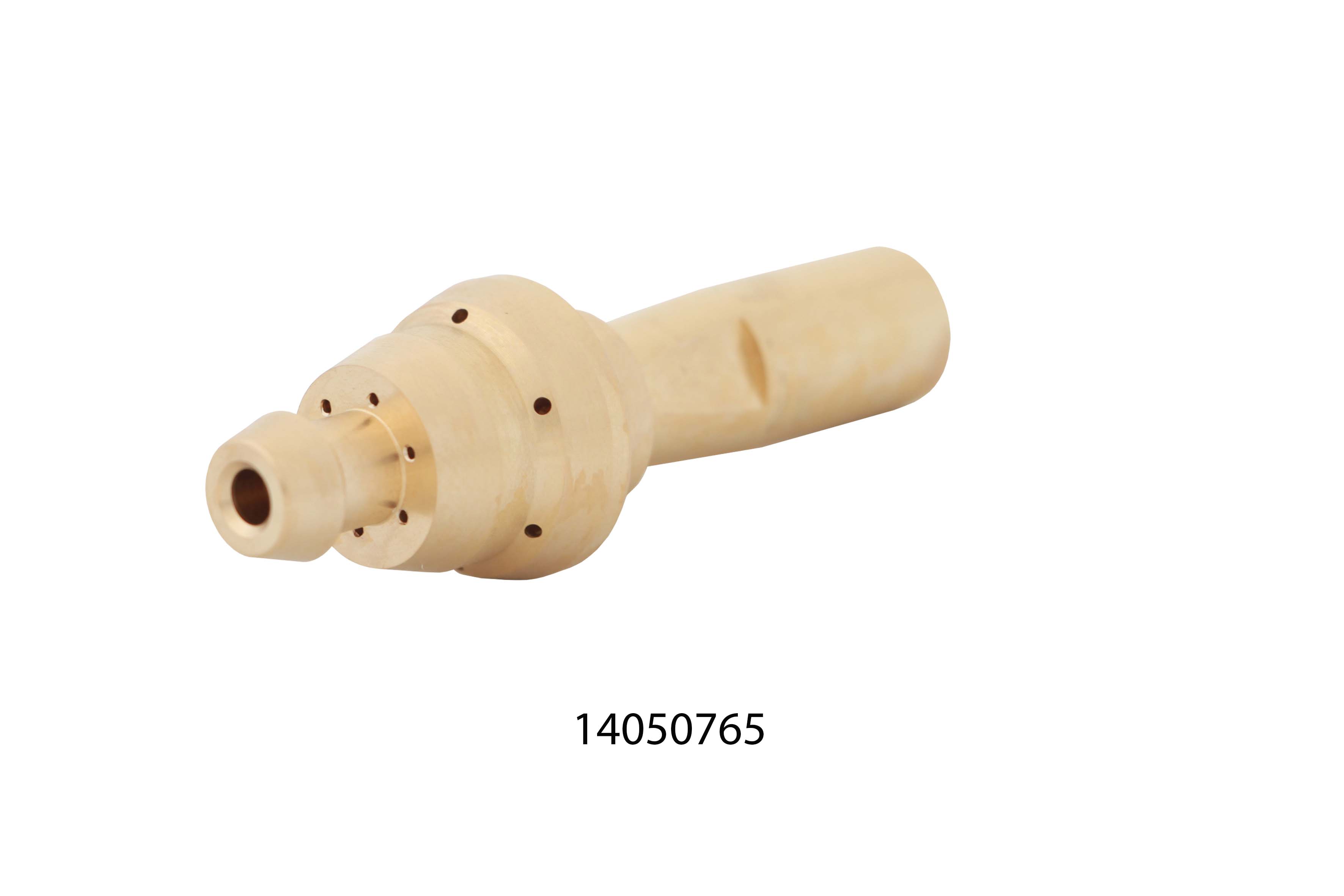

14050765 Cutting nozzle K70 Spare part, nozzle adapter

(3 cone, 30° International Cone)

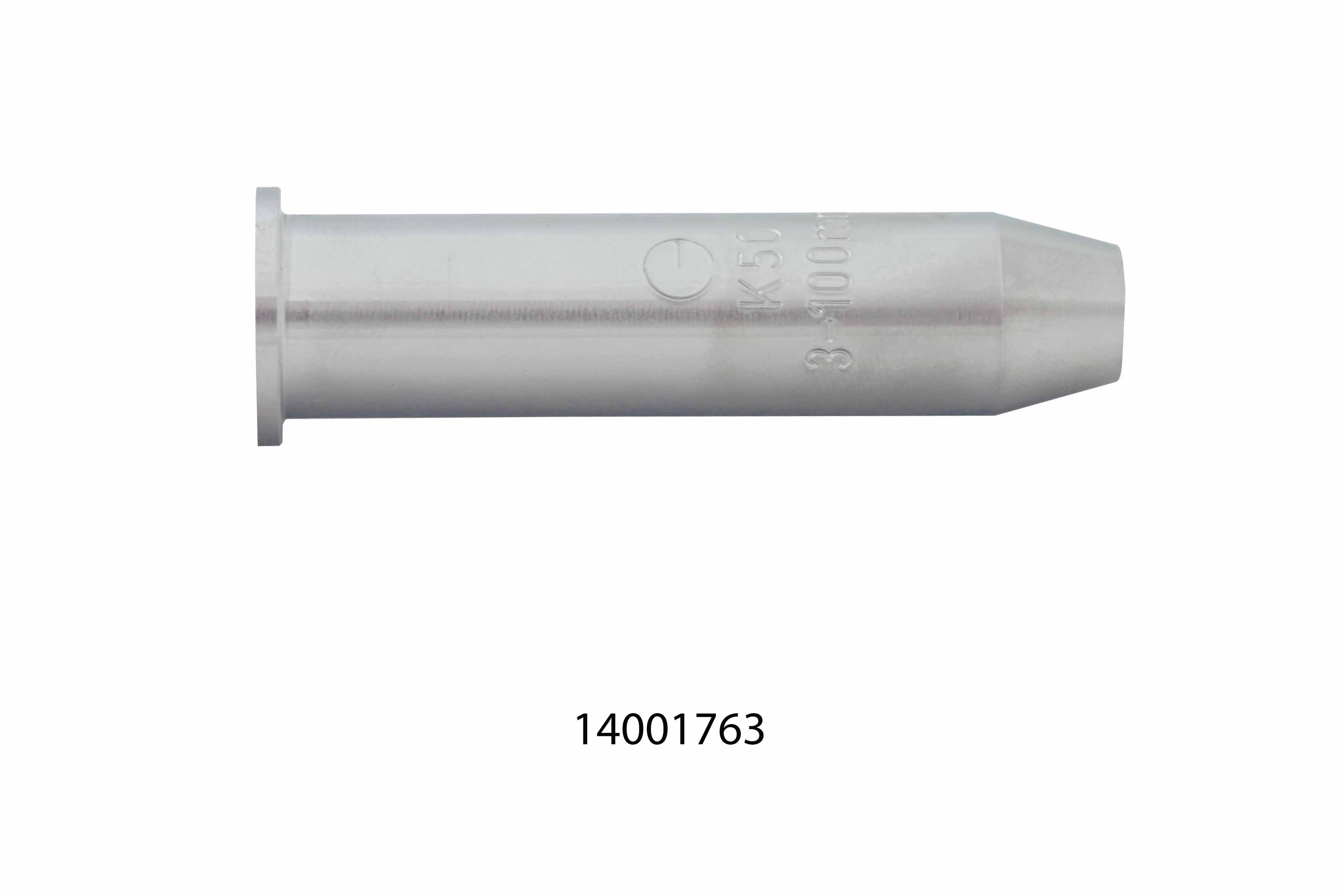

14001763 Cutting nozzle K70 Spare part, heating nozzle separate

GENERAL CONDITIONS FOR HIGH QUALITY AND EFFICIENT CUTTING

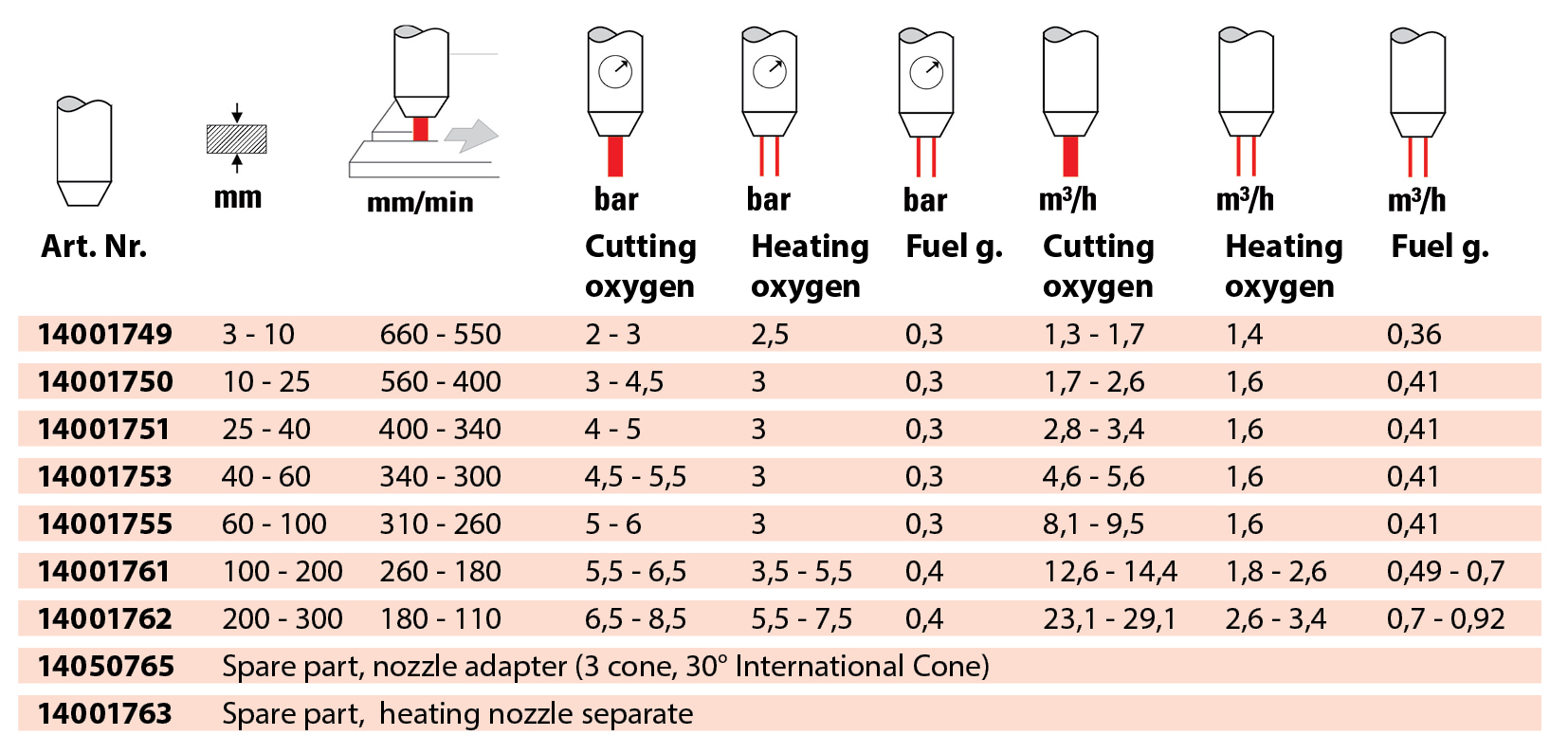

GCE machine cutting nozzles are designed to reach the cuts of quality level 1 according to EN ISO 9013. It is possible to reach maximal cutting speed by setting-up recommended cutting parameters of particular nozzles shown below, cutting of straight cuts, by using of clean metal sheet surface, oxygen with purity 99,5 % or better. Correct values of gases pressures are to be measured at the torch inlet. Parameters are prepared for mild steel with maximal carbon content of 0,25 %. Quality cutting machine with proper gas supply system, original GCE cutting equipment and new, undamaged, original cutting and heating nozzles are to be applied.
