POINT-OF USE REGULATOR EMD 404 STANDARD
Group Number: 4000Standard version regulator with gauge, inlet at rear, outlet downwards. May be combined with inlet shut-off valve MVA 400, wall connector, metering valve MVR 400G and MVR 400W, different gauges and diverse accessory (see previous pages).
APPLICATION

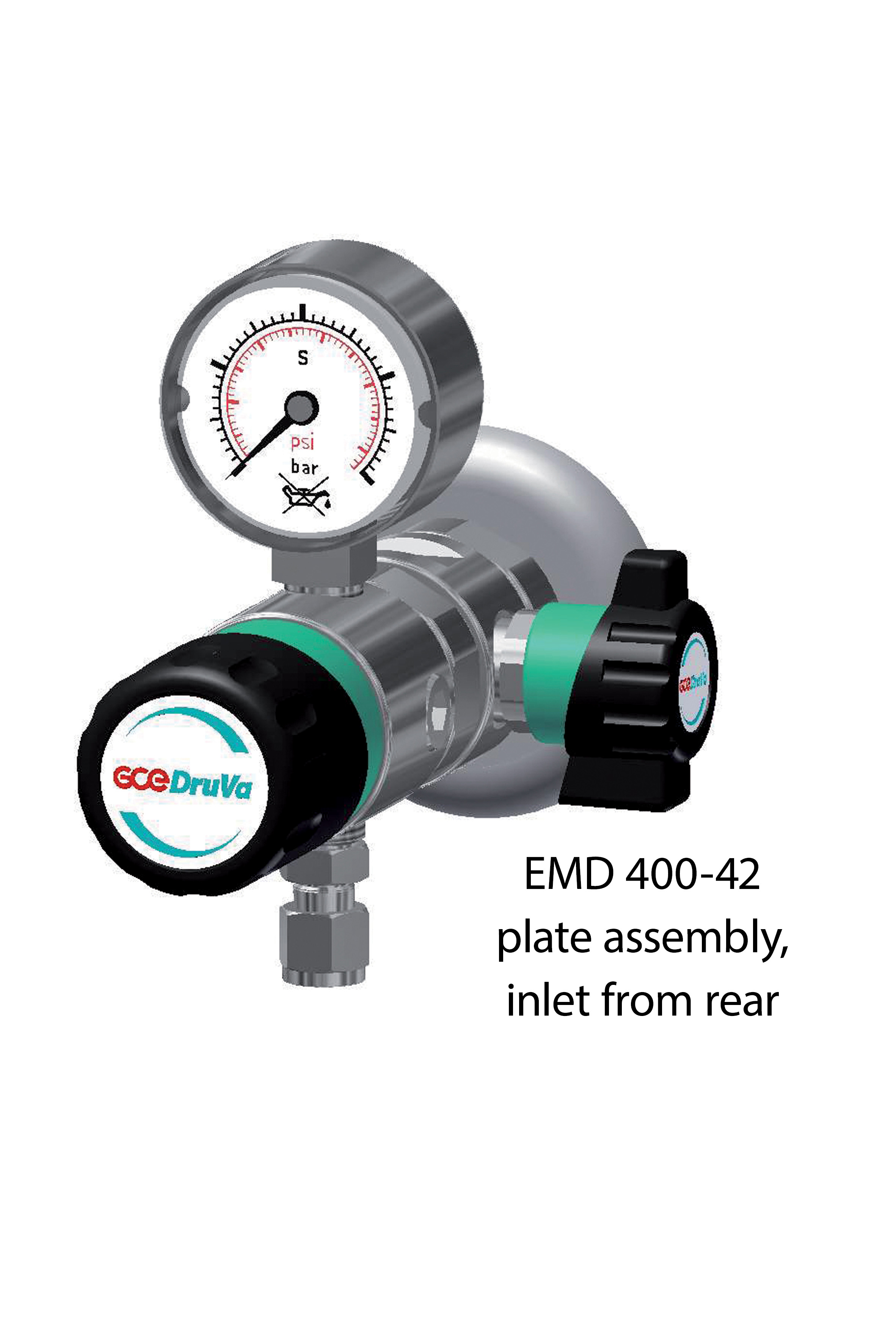

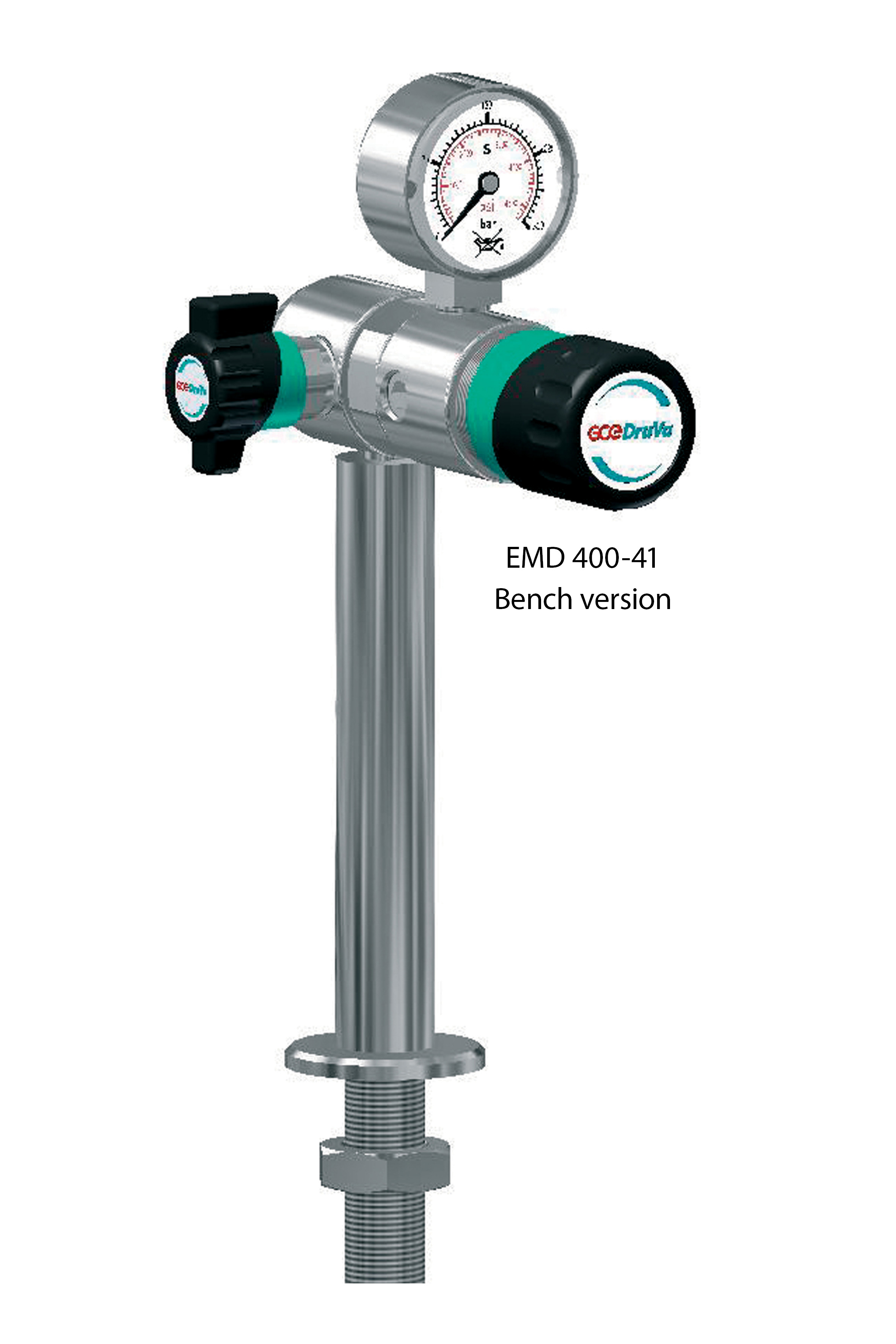

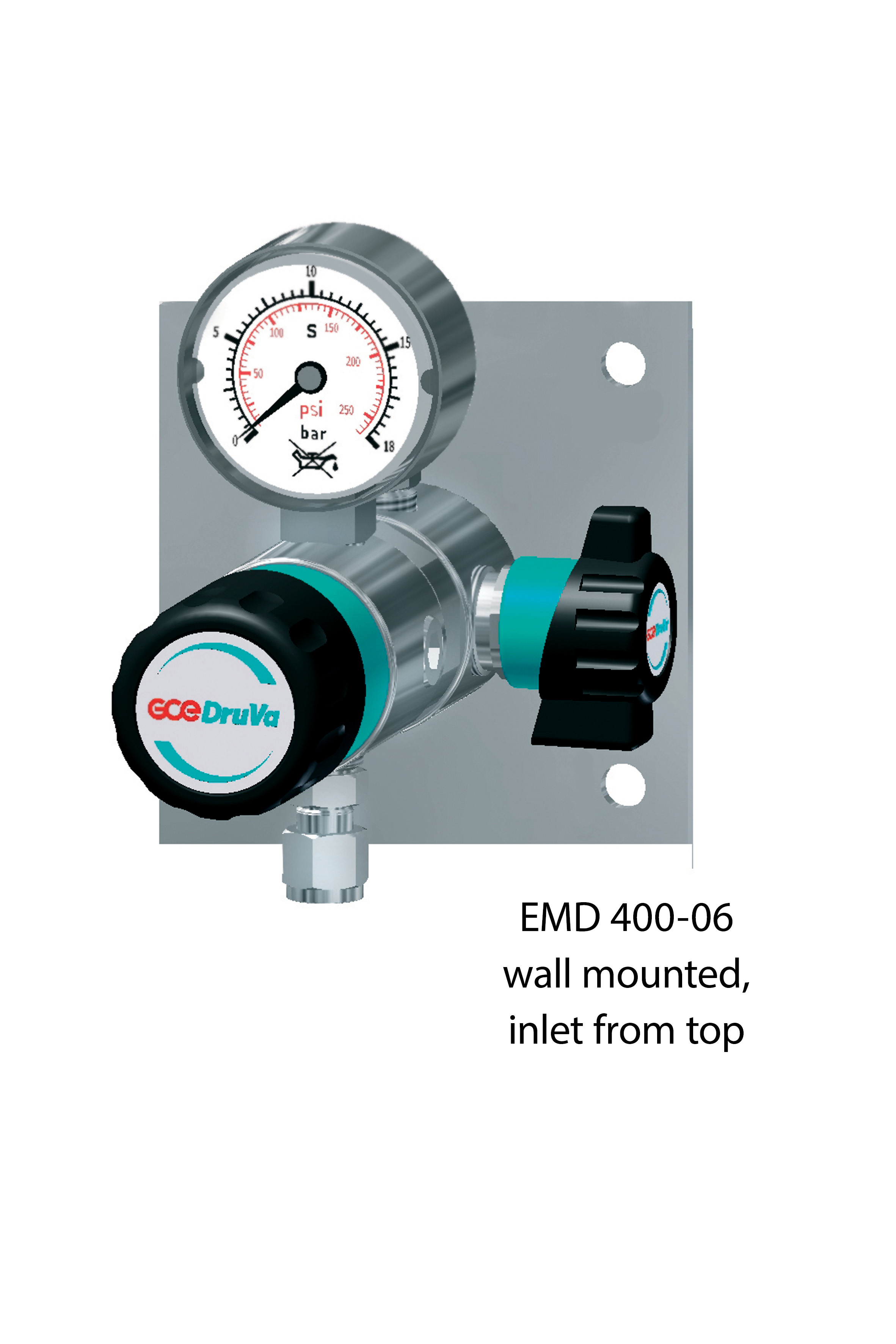

For wall, plate, suspended and bench mounting, with great variety of combinations, covering any laboratory gas
supply demand.
- ECD-suitable
- Great variety of assembly possibilities in laboratory furniture due to the modular design of the LabSystem
- Gas type specific colour indication labels according to DIN 13792
- Analysis version available
- For inert, reactive, flammable and oxidizing gases and gas mixtures
- Purity max. 6.0
Product Specification
Top
| Max Inlet Pressure | 40 bar / 600 psi |
|---|---|
| Max Outlet Pressure | 2,2 = 0,1 - 2,2 bar (1,5 - 32 psi) | 4 = 0,5 - 4 bar (7 - 60 psi) |
| Body Material Type | Brass, chrome plated or stainless steel |
| Inlet Connection | Modular - check datasheet |
| Outlet Connection | Modular - check datasheet |
Technical Datasheets
Top
Download Technical Datasheets
POINT-OF-USE_REGULATORS_EMD_400_404_datasheet_English.pdf
