CUTTING NOZZLE PSF, HIGH SPEED

Group Number: 2551

PSF is unique Tool-free, high speed machine cutting nozzle to be used with cutting torch GCE FIT+®. Nozzle is desiged for propane, natural gas and mixed fuel gases. Both cutting and heating nozzles are chrome plated. The package of cutting nozzles contains 5 pieces, heating nozzle GSF 1 piece.

Art. Nr. Type Cutting range (mm)
0769913 Cutting  nozzle 3 - 6
0769914 Cutting  nozzle 7 - 15

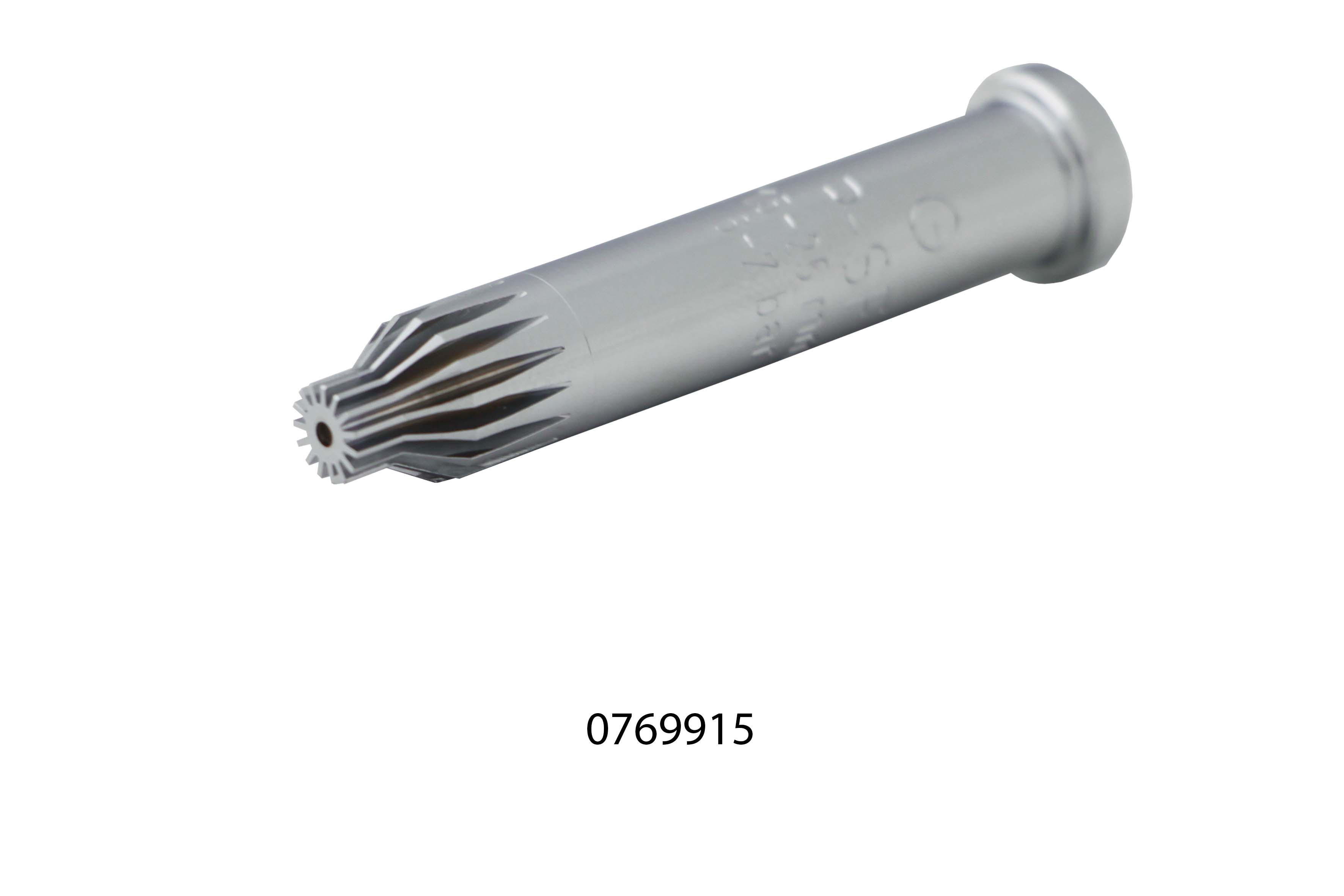

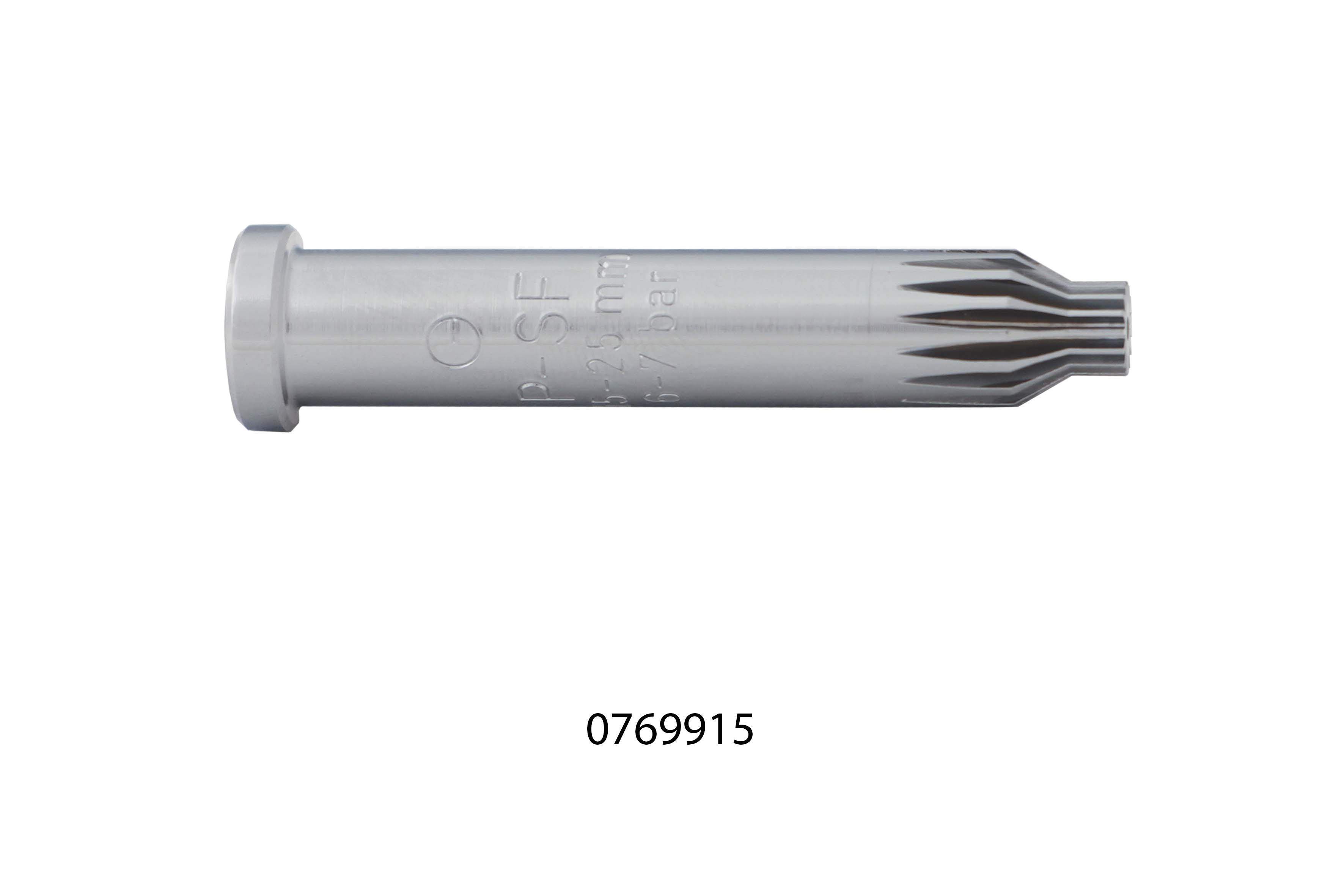

0769915 Cutting  nozzle 15 - 25
0769916 Cutting  nozzle 25 - 40
0769917 Cutting  nozzle 40 - 60
0769918 Cutting  nozzle 60 - 100
0769919* Cutting  nozzle 100 - 150
0769920 Cutting  nozzle 150 - 200
0769921 Cutting  nozzle 200 - 250

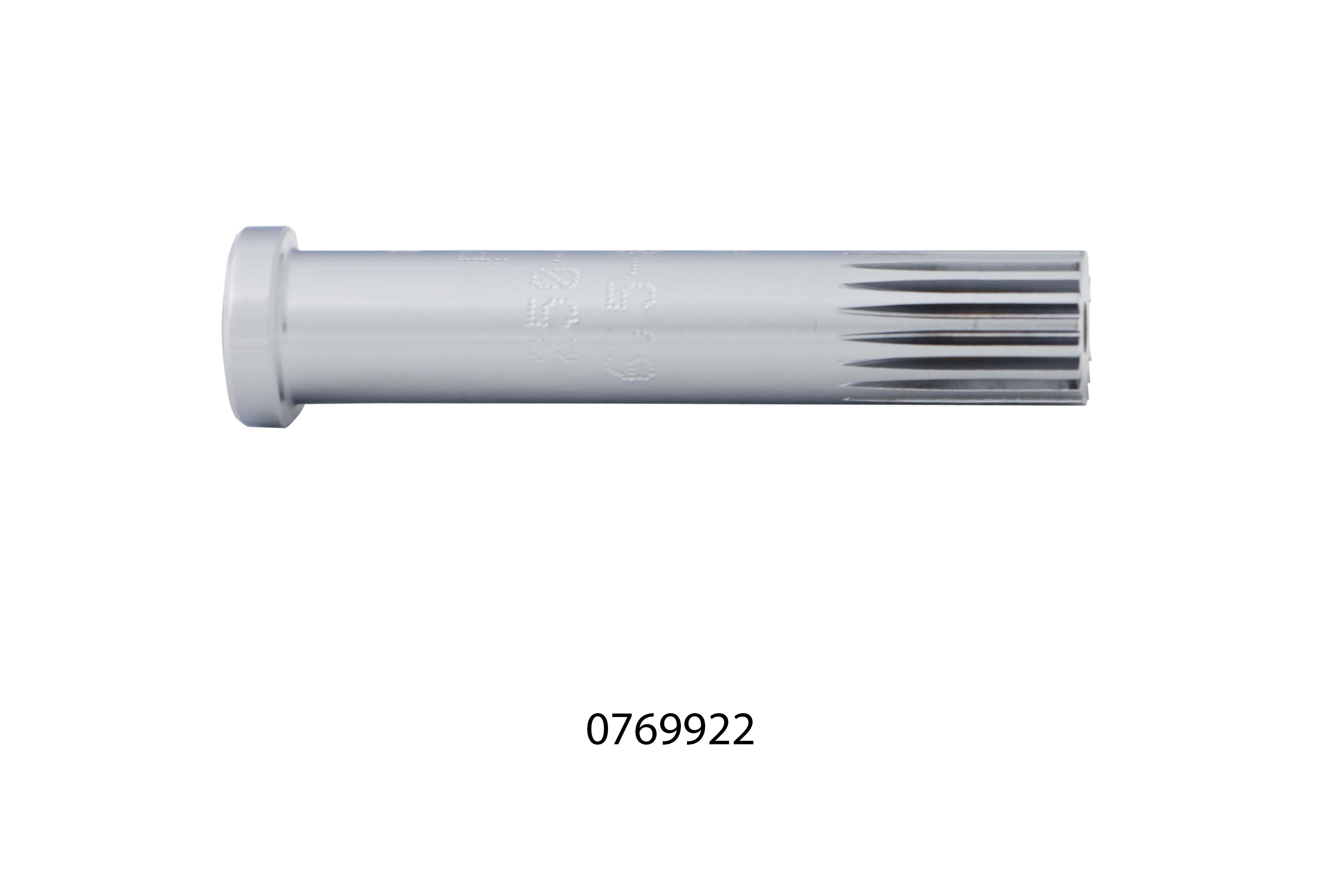

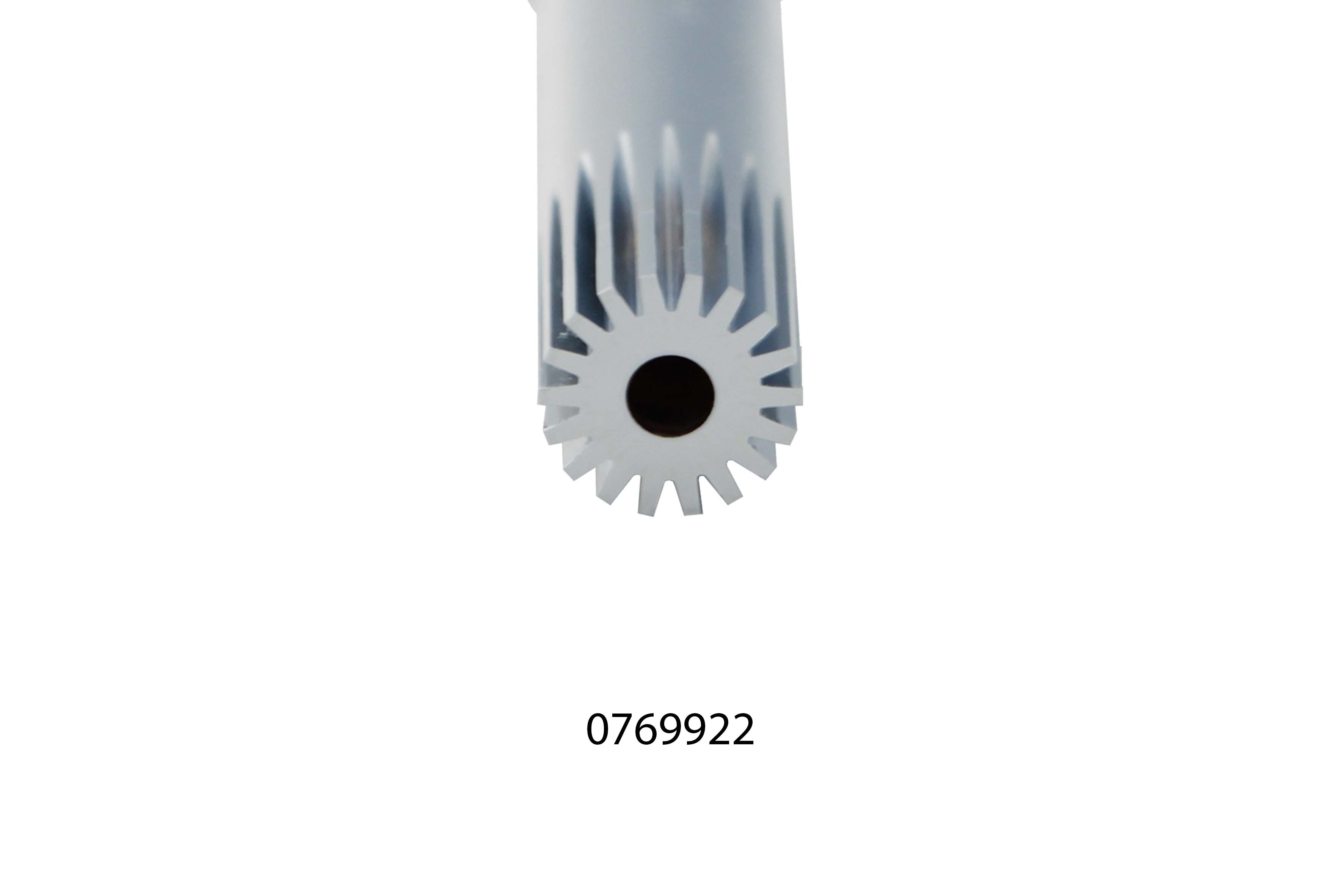

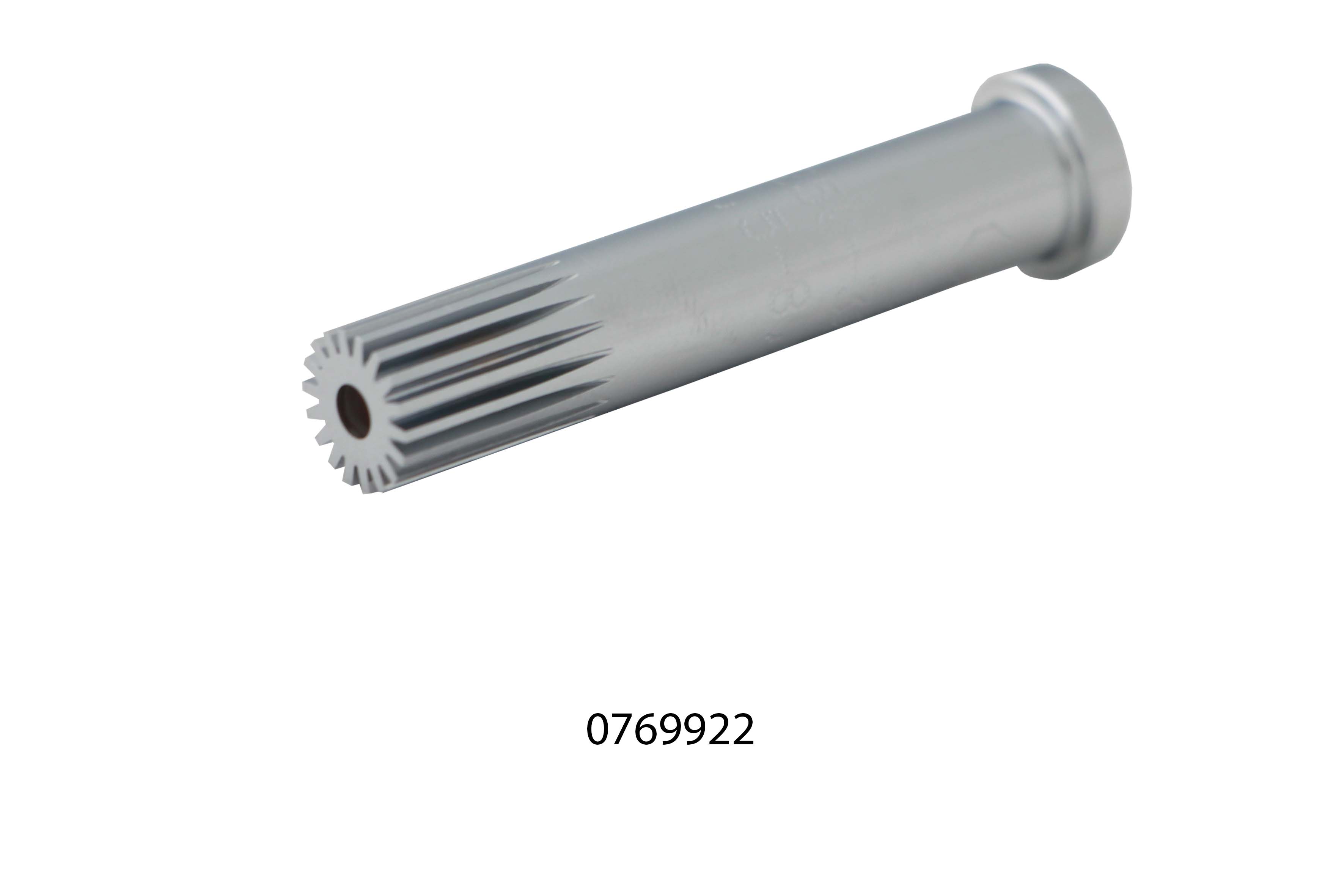

0769922 Cutting  nozzle 250 - 300

* It is special nozzle designed for effective hole piercing. It is to be used in combination with GSF 3-100 mm.

GENERAL CONDITIONS FOR HIGH QUALITY AND EFFICIENT CUTTING

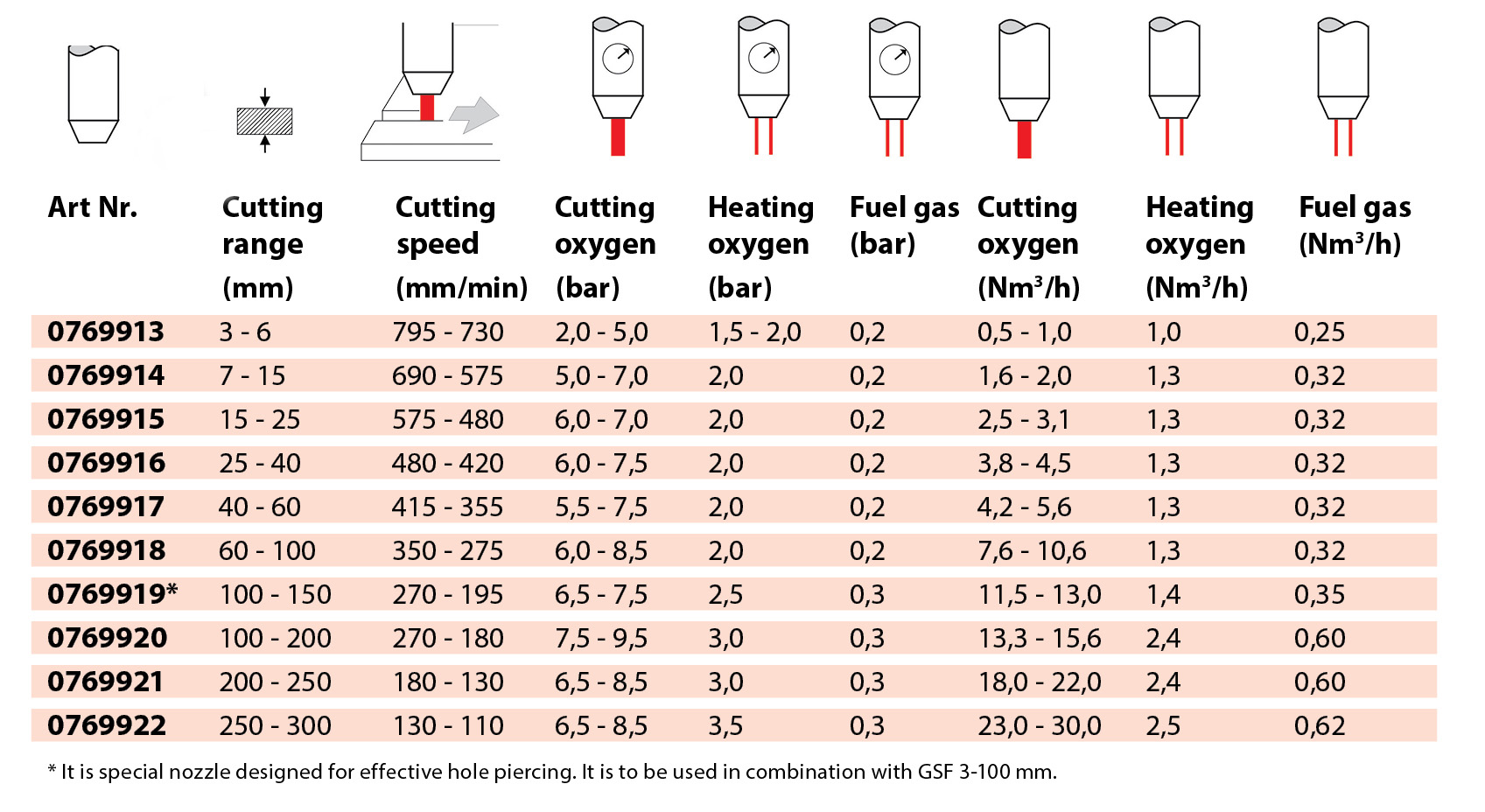

GCE machine cutting nozzles are designed to reach the cuts of quality level 1 according to EN ISO 9013. It is possible to reach maximal cutting speed by setting-up recommended cutting parameters of particular nozzles shown below, cutting of straight cuts, by using of clean metal sheet surface, oxygen with purity 99,5 % or better. Correct values of gases pressures are to be measured at the torch inlet. Parameters are prepared for mild steel with maximal carbon content of 0,25 %. Quality cutting machine with proper gas supply system, original GCE cutting equipment and new, undamaged, original cutting and heating nozzles are to be applied.
