AMBULANCE PANEL SYSTEM

Whole medical range is available on

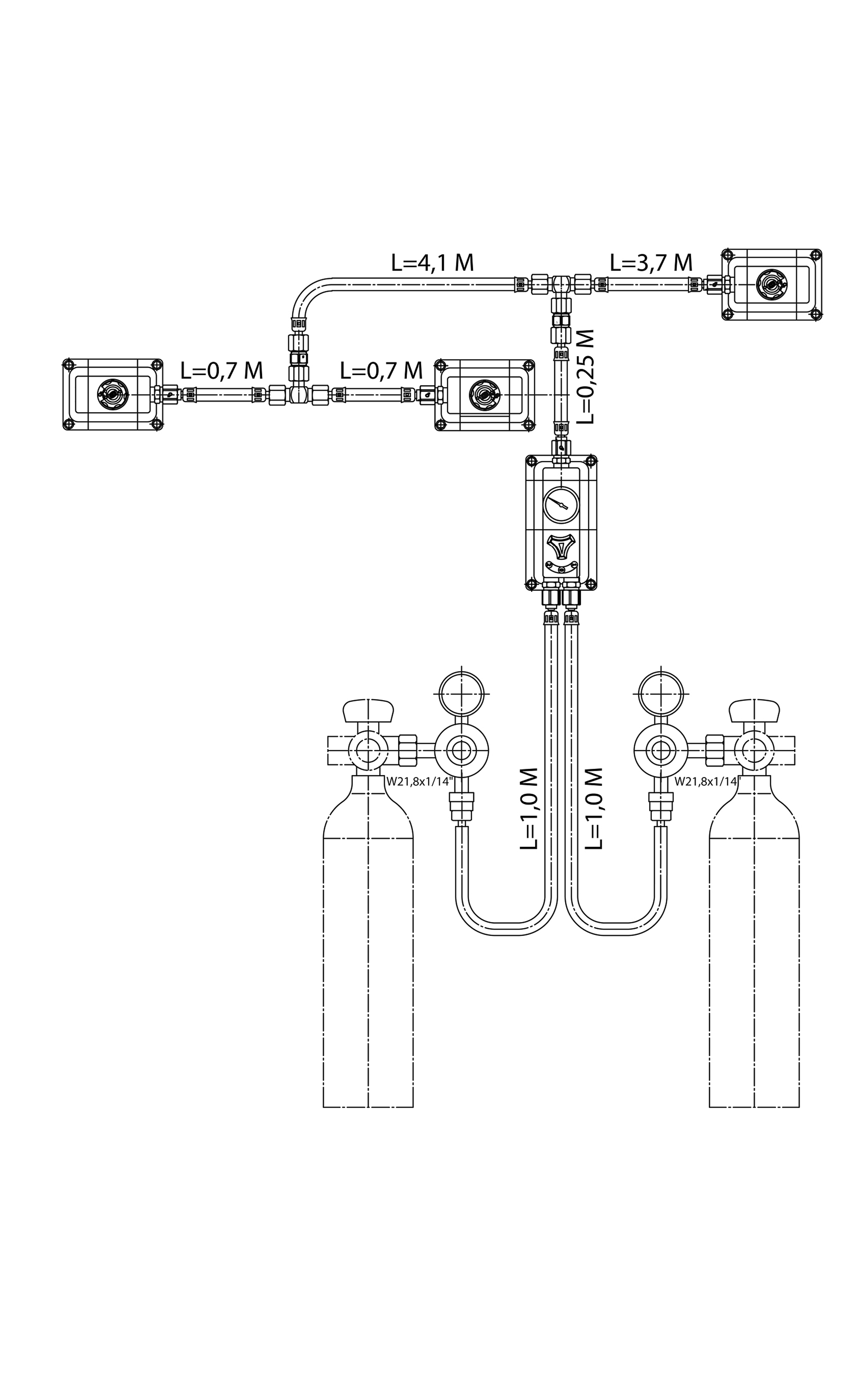

The Ambulance Panel System is a system according to the custumer requirements, containing an ambulance panel, hoses and regulators ready to be mounted in an ambulance. Ambulance Panel System complies with EN 1789.

The Ambulance Panel System has three main components: regulators, hose assemblies and panels. The modular design of the individual components means that they are infinitely variable. The individual components can then be combined in many different configurations giving the end user total flexibility.

735100000589 Ambulance Panel System leaflet EN

AMBULANCE REGULATORS

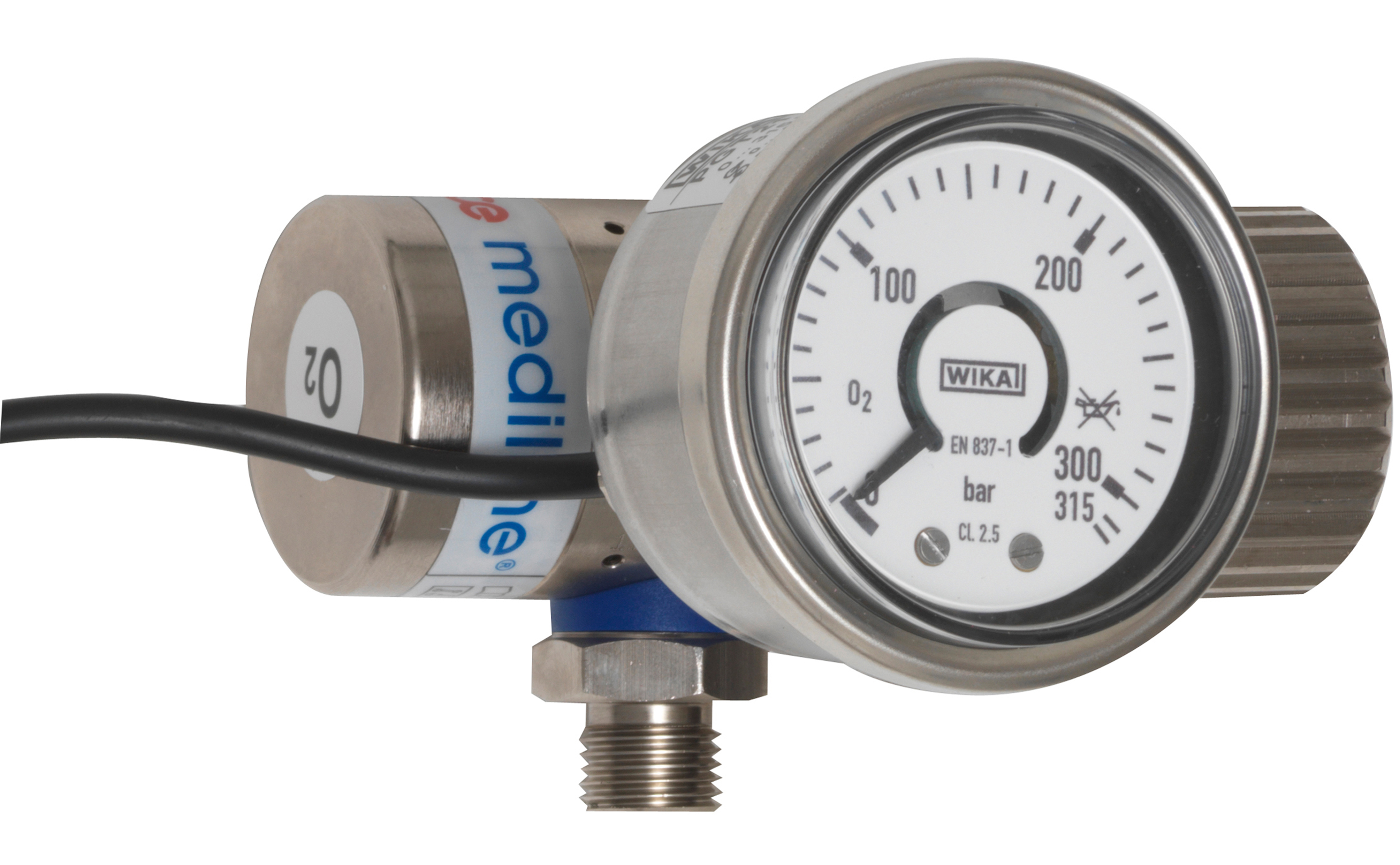

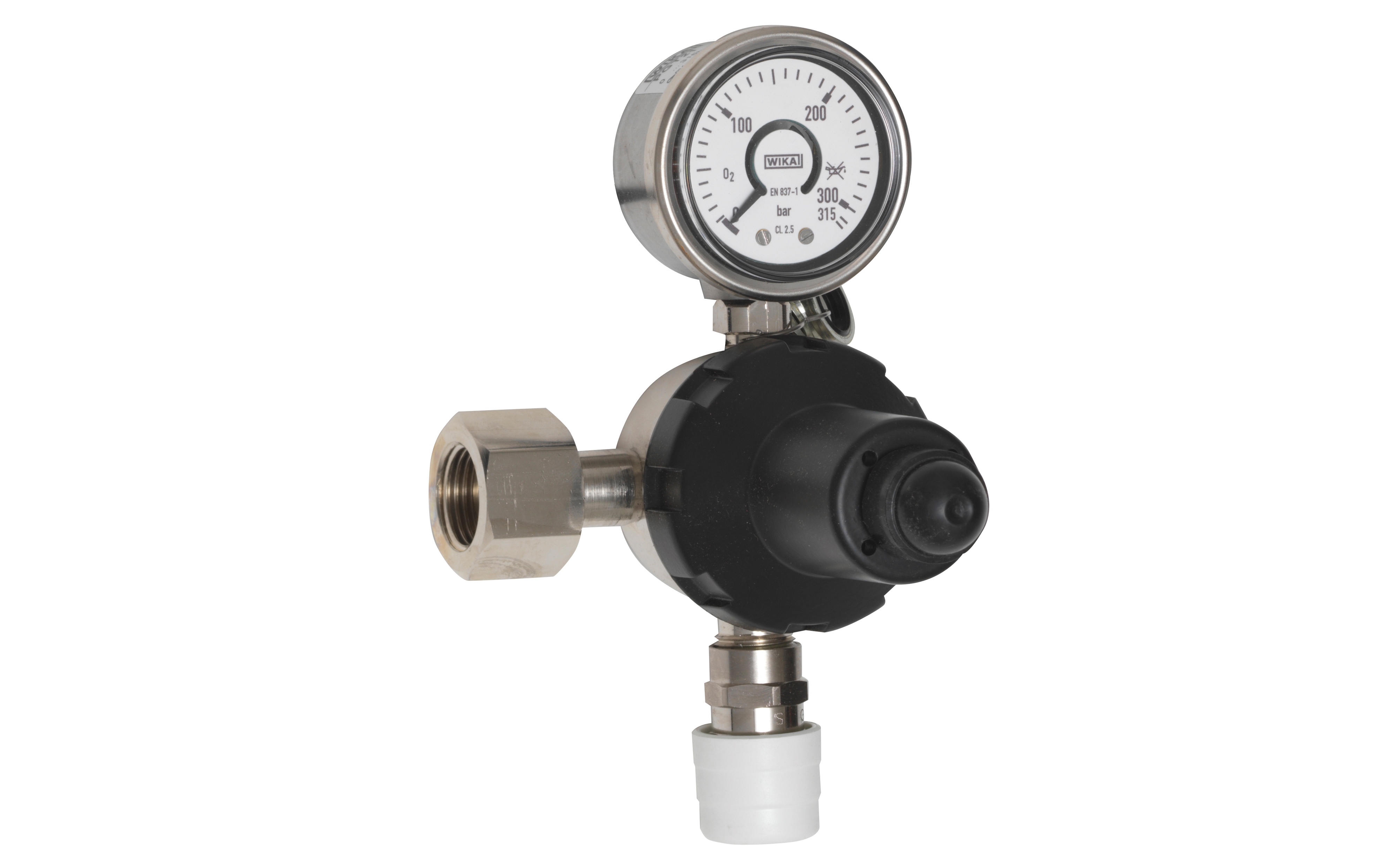

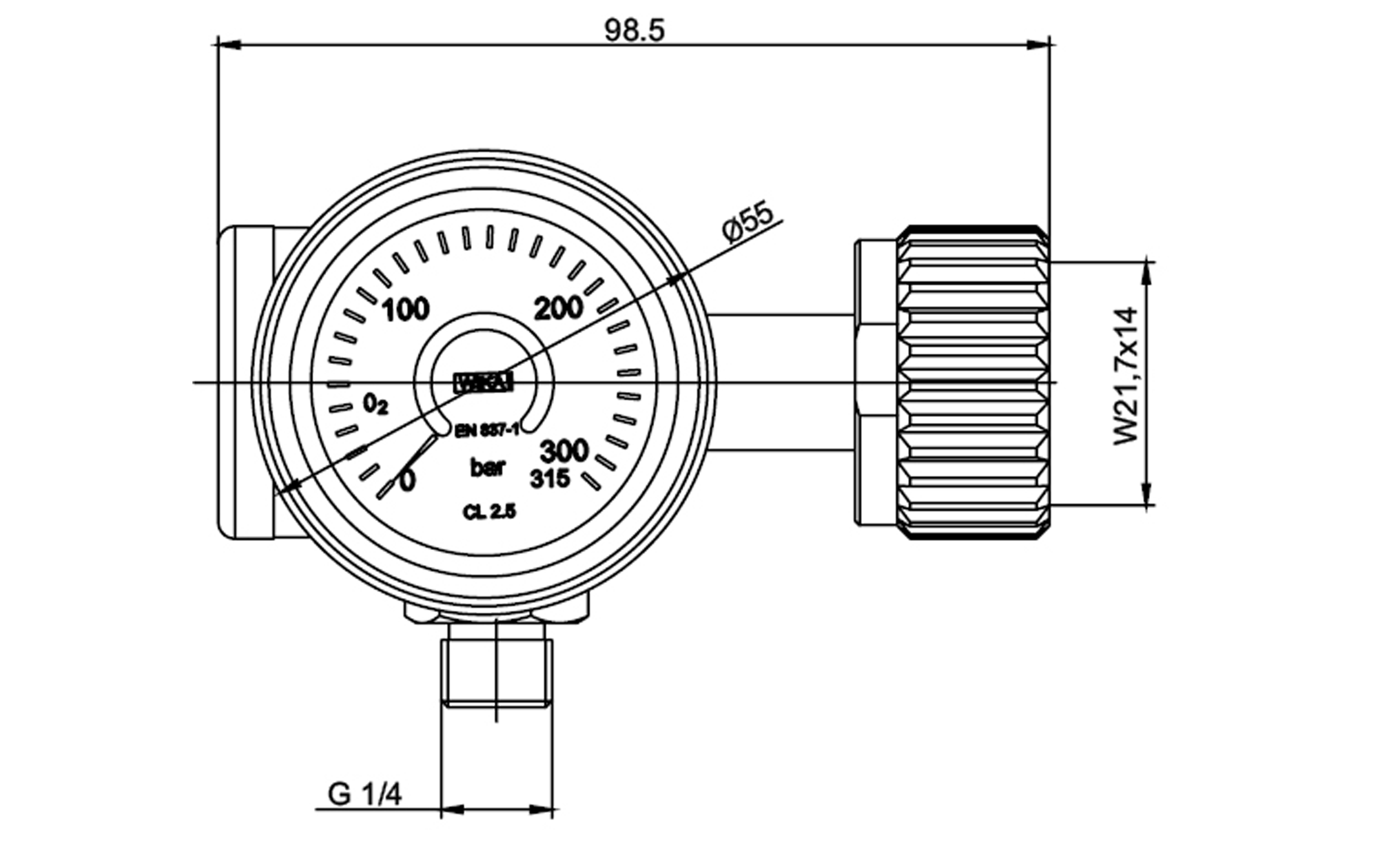

The Ambulance Panel System can be delivered with two types of ambulance regulators, Medireg and Varimed. The Ambulance Panel System can also be used with combi valves*. Generally, Medireg is for lower capacity and Varimed for higher capacity and this capacity is determined by the equipment that is used in the ambulance. The ambulance regulators are designed to withstand the conditions in the road ambulance and are manufactured according to EN ISO 10524-1. The ambulance regulators are delivered with either standard 3/8” connections or quick connectors. The Varimed and Medireg can be delivered with an electronic signal gauge to be connected to the ambulance monitoring or gas monitoring systems.

*Some restrictions regarding pressure monitoring when Ambulance Panel II includes electronic monitoring system.

Type: Varimed, Medireg
Gas: O2
Inlet: acc. to national stds
Outlet: G 1/4”, QC acc. national stds
Gauge: Standard, Electronic

AMBULANCE HOSE

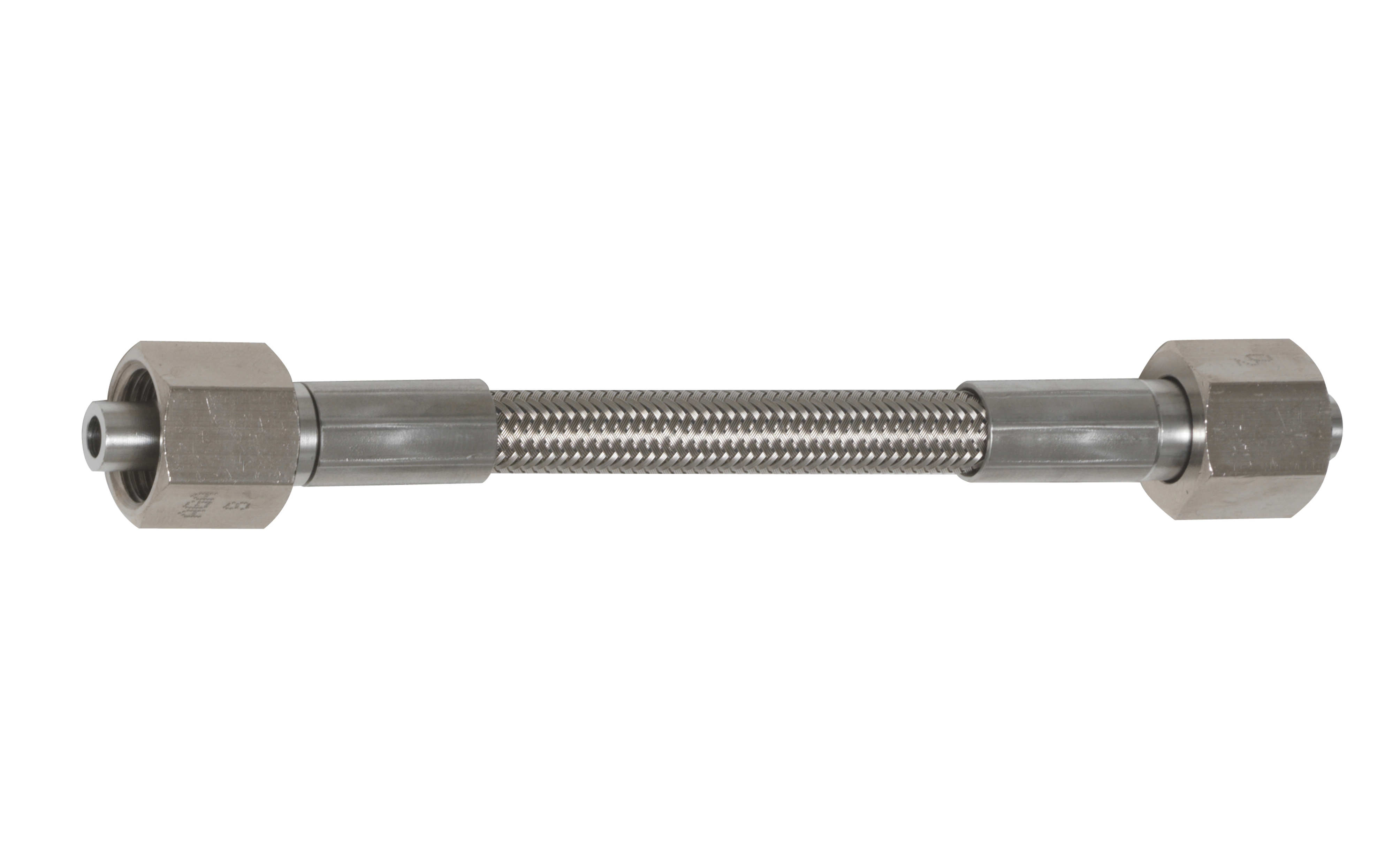

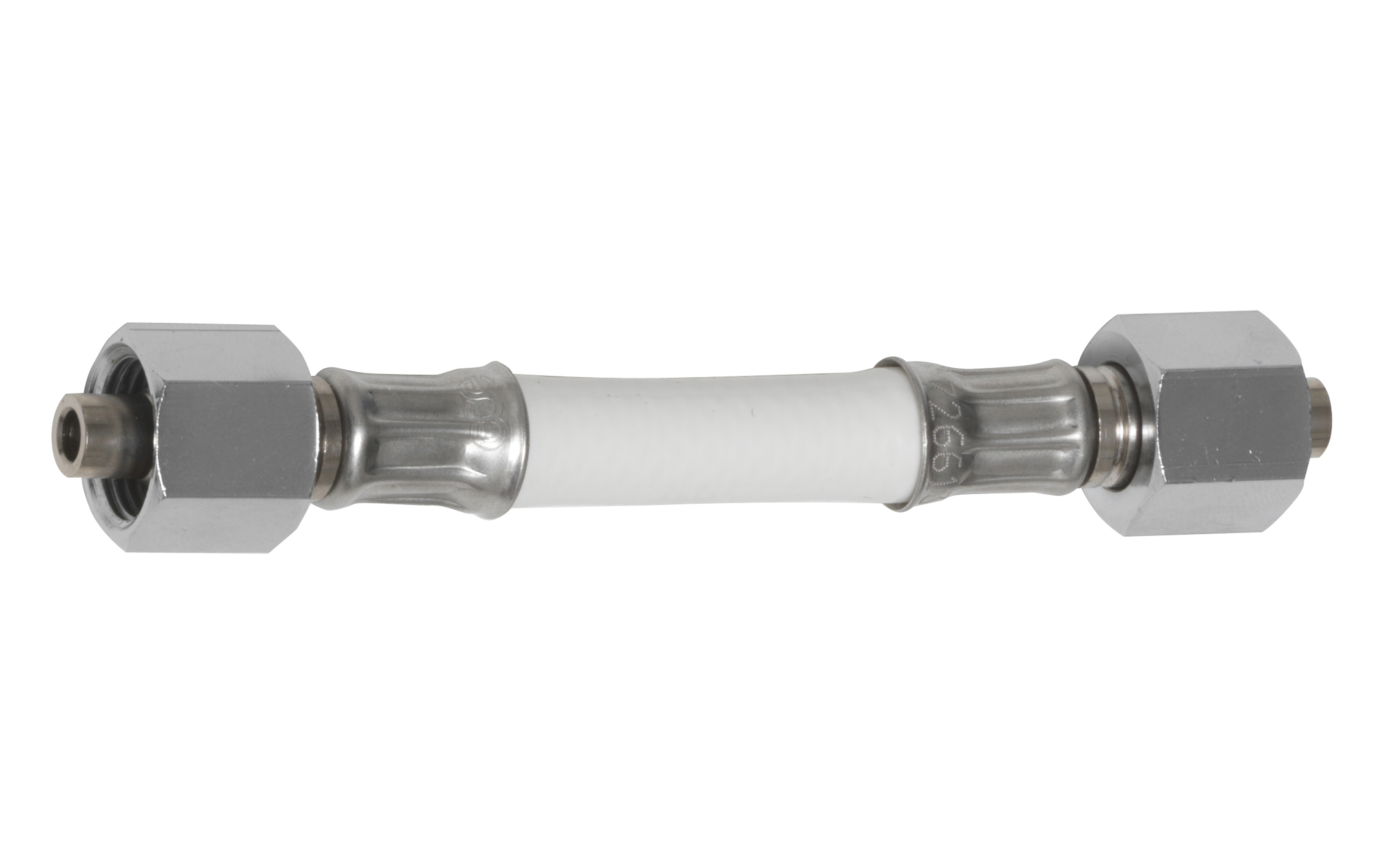

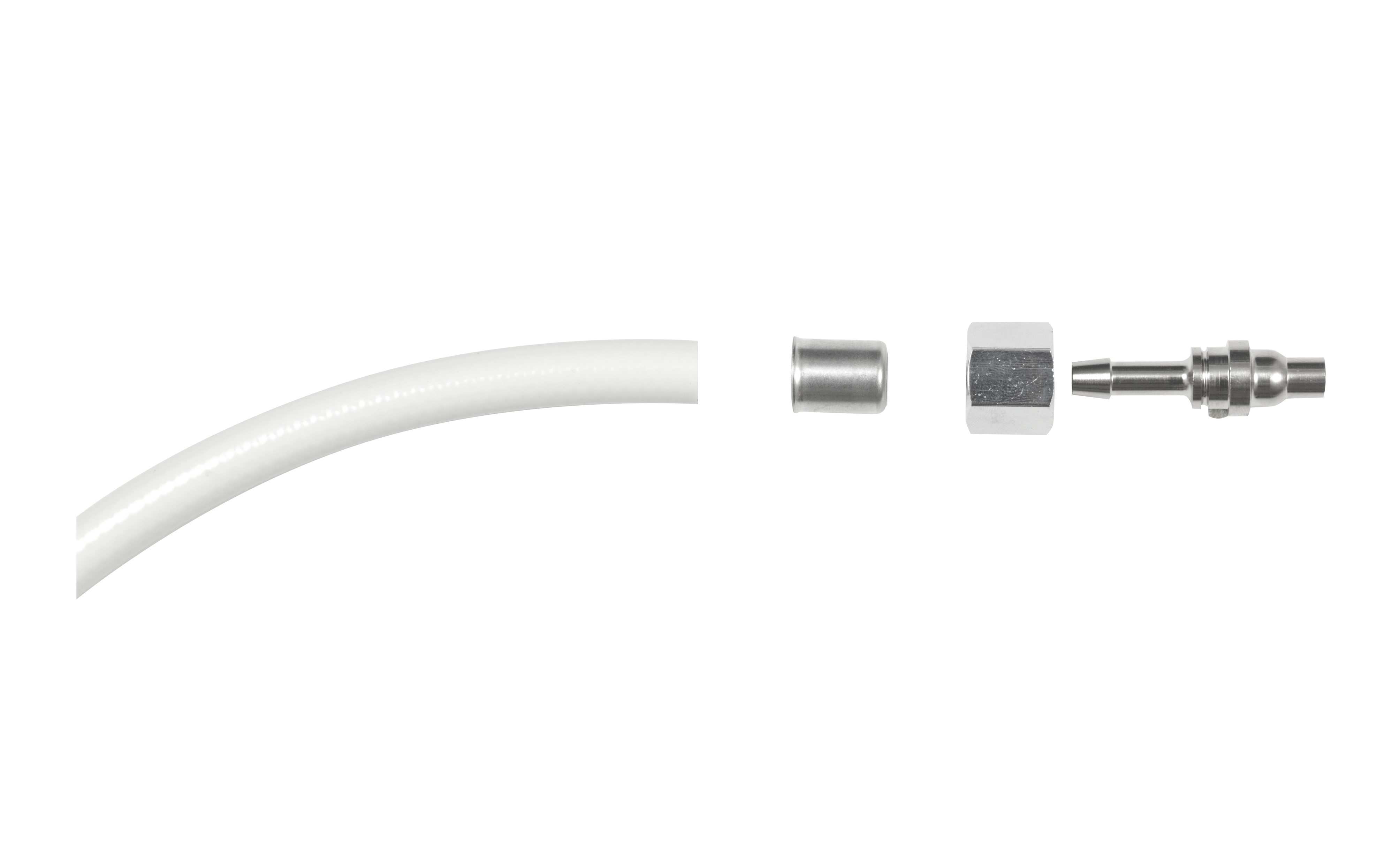

The hoses connect to the regulators and the panels. The hoses are made up to individual specifications and are clamped and tested ready to install in the ambulance. The hoses can be delivered static or antistatic. The standard connection is 3/8”. The low pressure hoses can also be delivered stainless steel reinforced.

Type: Ambulance Hose, Steel reinforced, SMART Fit
Gas: O2
Inlet: G3/8", G1/4", QC acc. national stds
Outlet: G3/8", G1/4", QC acc. national stds

AMBULANCE PANEL

The new ambulance panel range from GCE offers unrivalled flexibility in its installation and design. The modular concept uses common components leading to shorter lead times for manufacture and installation. Modules are infinitely variable and can incorporate gauges, switchovers, outlets or integral flow selectors and suction. Low profile back plates ensure close fitting to the ambulance wall whilst rounded edges avoid patients being exposed to sharp corners. The clear and simple gauge and switchover system allow easy surveillance and visibility by ambulance staff.

TECHNICAL DATA

Gas: O2, Air, N2O/O2
Cylinder pressure: 20-200 bar
Working pressure/flow: see separate information about regulators
Capacity Medireg: Recommended max 2 QC outlets
Capacity Varimed: Recommended max 5 QC outlets
QC outlet variants: SS, DIN, NF, BS, UNI, CZ
Capacity QC: 60 l/min*
Capacity FLS: 0-15, 0-25 l/min
Capacity suction: 25 l/min
Connection: G3/8” (female)
Connection hoses: G3/8”, G1/4”, SS, DIN, NF, BS, UNI, CZ
Hoses: static, antistatic, stainless steel reinforced
Working Temperature: -20 °C - +60 °C
Standards: Complies with EN1789:2008
Manufacturer: GCE, s.r.o., Žižkova 381, 583 01 Chotebor, CZ

*at 0,5 bar pressure drop
