BUNDLE VALVES

Group Number: 1700

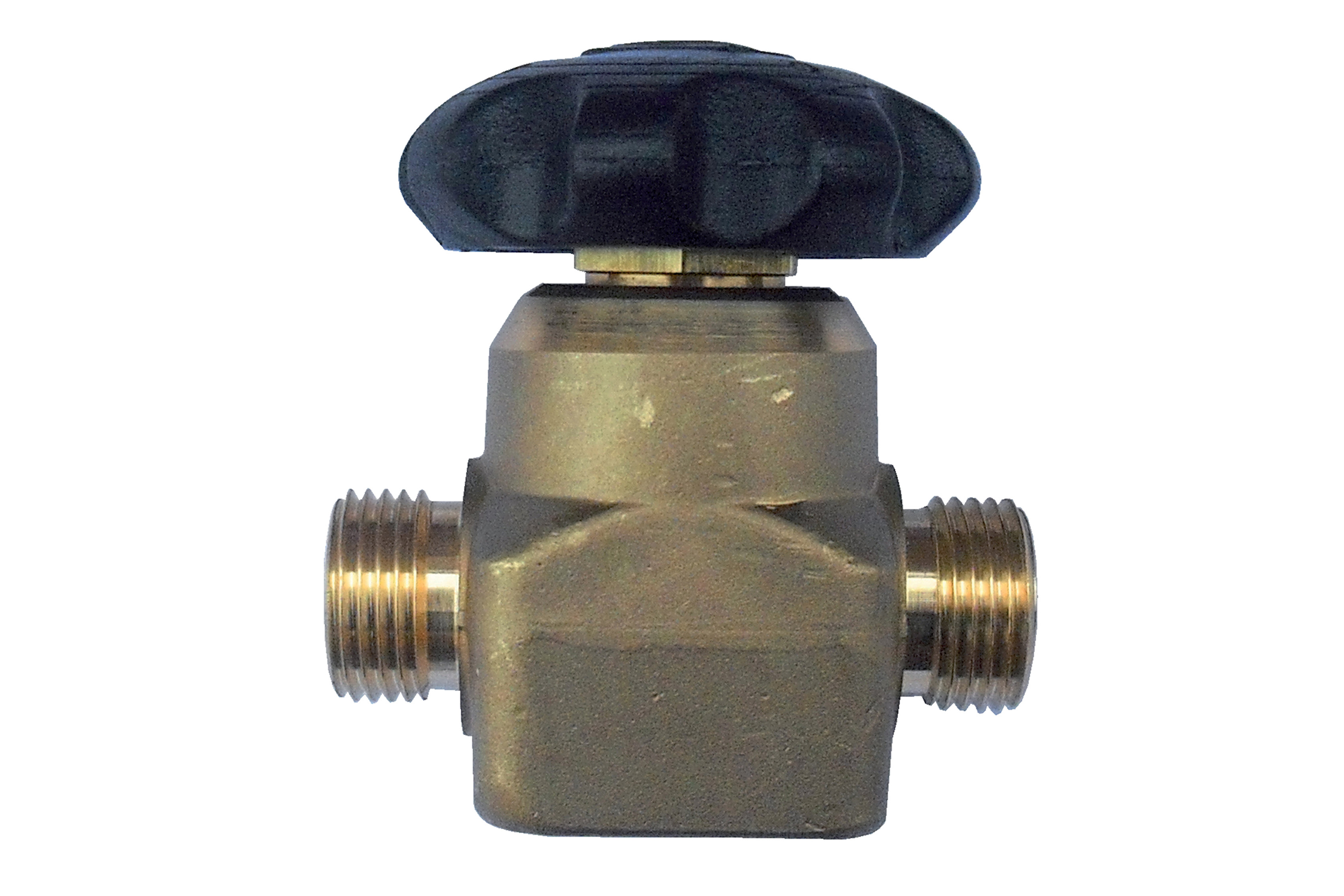

BV type valves are the latest generation of GCE bundle valves. Compact design with rotating design opening mechanism benefits make the product good for using as main valve in bundles.

  • Can be used for oxygen and other technical gases, working pressure 200 and 300 bar
  • 6 and 8 mm seat diameter
  • 2 and 3 ports

APPLICATION

Bundles of cylinders for technical gases 200 and 300 bar working pressure including oxygen.

TECHNICAL DATA

Working pressure: up to 300 bar
Working temperatura: from -20°C to 65°C
Storage and transportation: from -40°C
Seat diameter: 8 mm
Number of ports: 2 or 3
Fixation to bundle: by screws

MATERIAL AND COMPONENTS

Only top quality materials and components produced by selected and approved suppliers are used for manufacturing process.

All materials used were checked against respective gases compatibility.

Our suppliers are qualified and approved by periodical audits and permanent monitoring of quality level.

MANUFACTURING

Cylinder valves are manufactured In GCE factory located In Czech Republic.

Manufacturing process is ISO 9001 certified. GCE valve design was tested in independent laboratories of Bundesanstalt für Materialforschung und prüfung and Det Norske Veritas, according to European Standards for transportable pressure equipment. Type tests are according to EN ISO 10297. Our valves are approved to be marked with π mark according to Directive 2010/35/EU.

Each valve is pressure tested, whole production process is strictly monitored.
