CELTIC AML1, RGCL - DIRECT REGULATORS (FIRST STAGE REGULATOR)
The CELTIC range can be used with all common non-corrosive industrial gas. As for regulation, these products are very accurate.
APPLICATION
- First stage regulation for propane at the outlet of a cistern (RGCL-N)
- Pressure limiting device (AML1 with RD05)
PRODUCT ADVANTAGES
- Watertightness in case of bad weather
- All components comfortably accessible
- Easy and fast dismantling
- Simple and heavy-duty
- Low pressure closing
- Stainless steel adjustment screw
- Flange with turning end-plate (for DN 50)

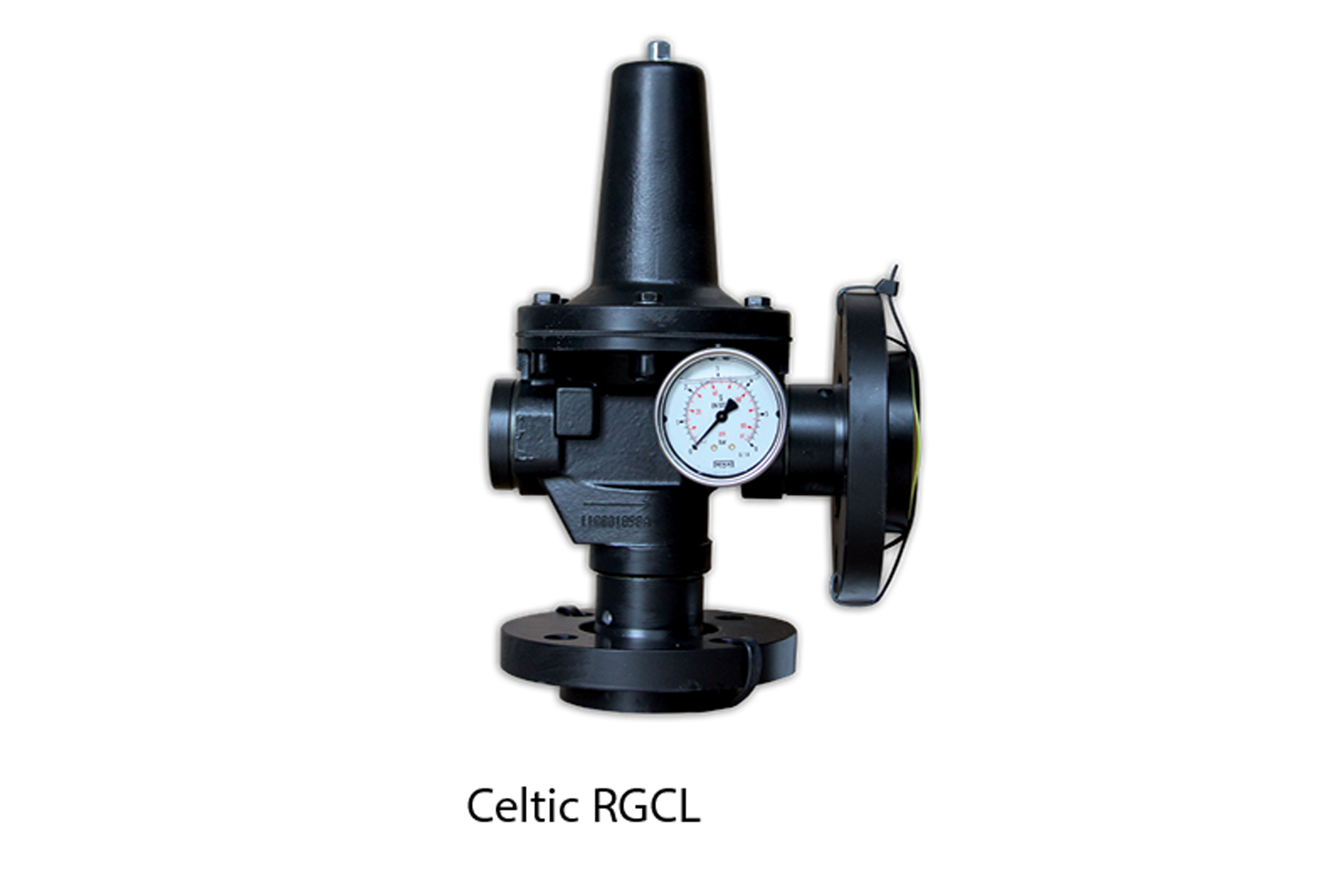

CELTIC RGCL-N
| Art. Nr. |
Connection | Gas |
Max.inlet pressure bar (psi) |
Outlet pressure bar (psi) |
Flow air Nm3/h |
Flow propane kg/h |
| I130420SL | Flanged DN 50* | N, M, P | 20 (300) | 0,8-5 (12-70) |
190-680 | 295-1050 |
*Version with gauge
CELTIC AML1-N
| Art. Nr. |
Connection | Gas |
Max.inlet pressure bar (psi) |
Outlet pressure bar (psi) |
Flow air Nm3/h | Flow propane kg/h |
| I130551SL | G1"1/2"F | N, M, P | 20 (300) | 0,8-5 (12-70) |
190-680 | 295-1050 |
| I130552SL | Flanged DN 50* | N, M, P | 20 (300) | 0,8-5 (12-70) |
190-680 | 295-1050 |
| I130553SL | G1"1/2"F | O | 20 (300) | 0,8-5 (12-70) |
190-680 | 295-1050 |
*Version with gauge

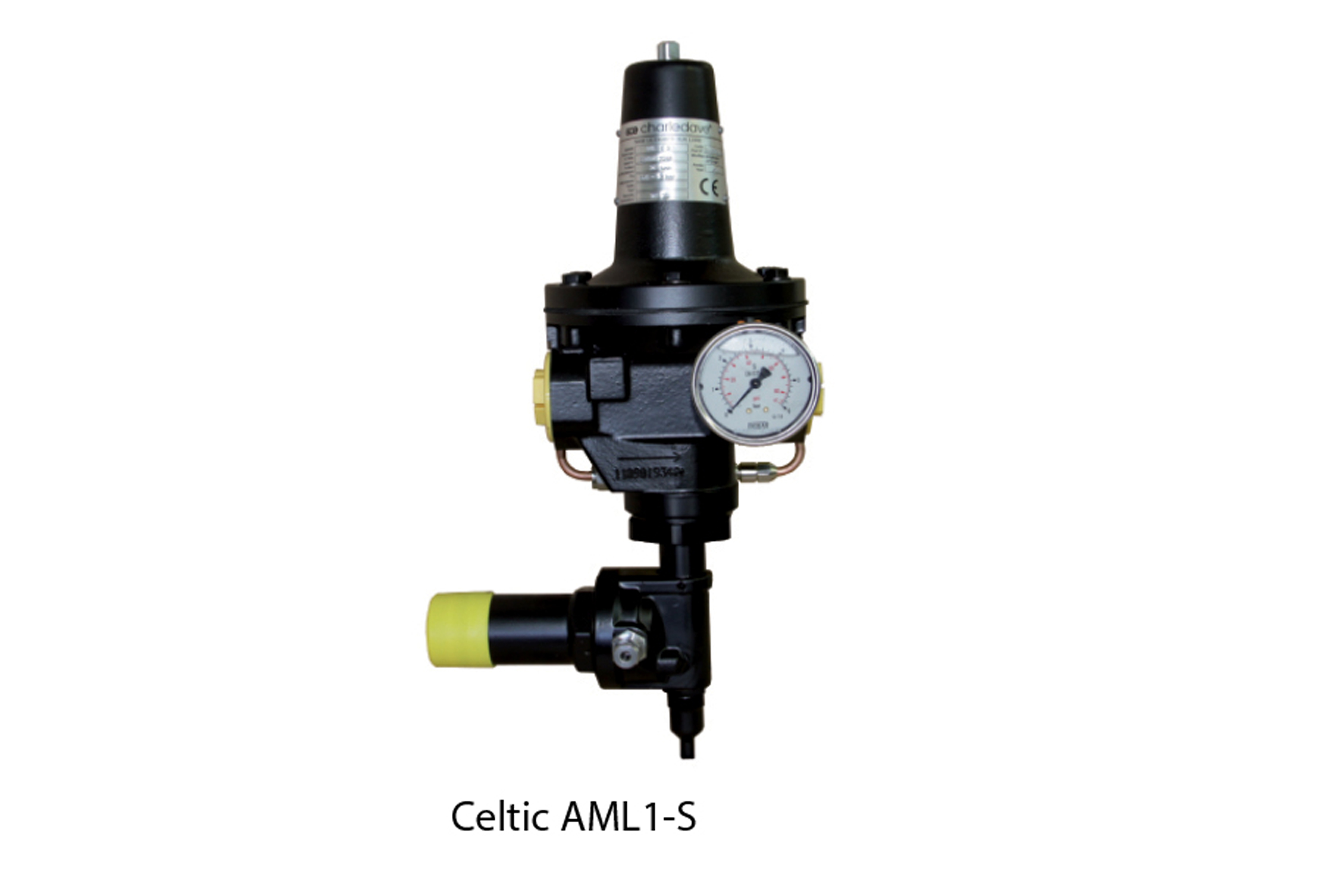

CELTIC AML1-S (AML1 with RD05)
| Art. Nr. | Connection | Gas |
Max.inlet pressure |
Outlet pressure bar (psi) |
Flow air Nm3/h |
Flow propane |
| I130561SL | G1"1/2"F* | N, M, P | 20 (300) | 0,8-2 (12-30) |
190-350 | 295-540 |
| I130562SL | G1"1/2"F* | N, M, P | 20 (300) | 1,3-5 (20-70) |
250-680 | 390-1050 |
| I130563SL | Flanged DN 50* | N, M, P | 20 (300) | 0,8-2 (12-30) |
190-350 | 295-540 |
| I130564SL | Flanged DN 50* | N, M, P | 20 (300) | 1,3-5 (20-70) |
250-680 | 390-1050 |
| I130565SL | G1"1/2"F | O | 20 (300) | 0,8-2 (12-30) |
190-350 | 295-540 |
| I130566SL | G1"1/2"F | O | 20 (300) | 1,3-5 (20-70) |
250-680 | 390-1050 |
*Version with gauge
SPARE PARTS
Maintenance kit for models with spring used with non-corrosive gas.
| Art. Nr. |
Model | Contents |
| I291281 | CELTIC AML1, RGCL-N | 1 diaphragm, 1 diaphragm washer (for AML2), 1 complete regulating valve, 3 washers (plug, valve), 1 blind nut |
| I291288 |
CELTIC AML1, RGCL-N |
Flanges (2x) + Neck (2x) |
| I303348P |
CELTIC AML1, RGCL-N |
Pressure gauge 6 bar |
| I291205 | CELTIC AML1, RGCL-N | Counter flange (1x) + DN 50 + Bolts (4x) + Washer |
| I291263 |
Previous model of CELTIC AML1, RGCL-N |
1 diaphragm, 1 diaphragm washer (for AML2), 1 complete regulating valve, 3 washers (plug, valve), 1 blind nut |
ACCESSORIES
Outlet security kit for N-models not having outlet security device, GCE propose a security kit.
| Art. Nr. |
Model | Outlet pressure | Name |
| I291300 | CELTIC AML1-N | 0,3 to 0,8 bar | Kit RD05 - C AML |
| I291302 |
CELTIC AML1-N |
0,5 to 2 bar |
Kit RD05 - B AML |
| I291301 |
CELTIC AML1-N |
1,3 to 5 bar |
Kit RD05 - A AML |
The installation of the security device has to be done in our workshop.
TECHNICAL DATA
| Max. inlet pressure: | 20 bar |
| Material: | Aluminium alloy body |
| Connection: | CELTIC AML 1 - RGCL-N: inlet and outlet with flange DN50 PN 40 or thread G 1"1/2"F (40 x 49) |
| Operating temperature range: | from -20 to + 60°C |
