CELTIC AML2 - DIRECT REGULATORS (SECOND STAGE REGULATOR)
The CELTIC range can be used for all common non-corrosive industrial gas. As for regulation, these products are very accurate.
APPLICATION
- Second stage regulation to supply furnaces
- Inertness (cisterns, pipes)
- Pressure limiting device (AML2 with RD05 = "S")
PRODUCT ADVANTAGES
- Watertightness in case of bad weather
- All components comfortably accessible
- Easy and fast dismantling
- Simple and heavy-duty
- Low closing pressure
CELTIC AML2-N
| Art. Nr. |
Connection | Gas |
Max.inlet pressure |
Outlet pressure bar (psi) |

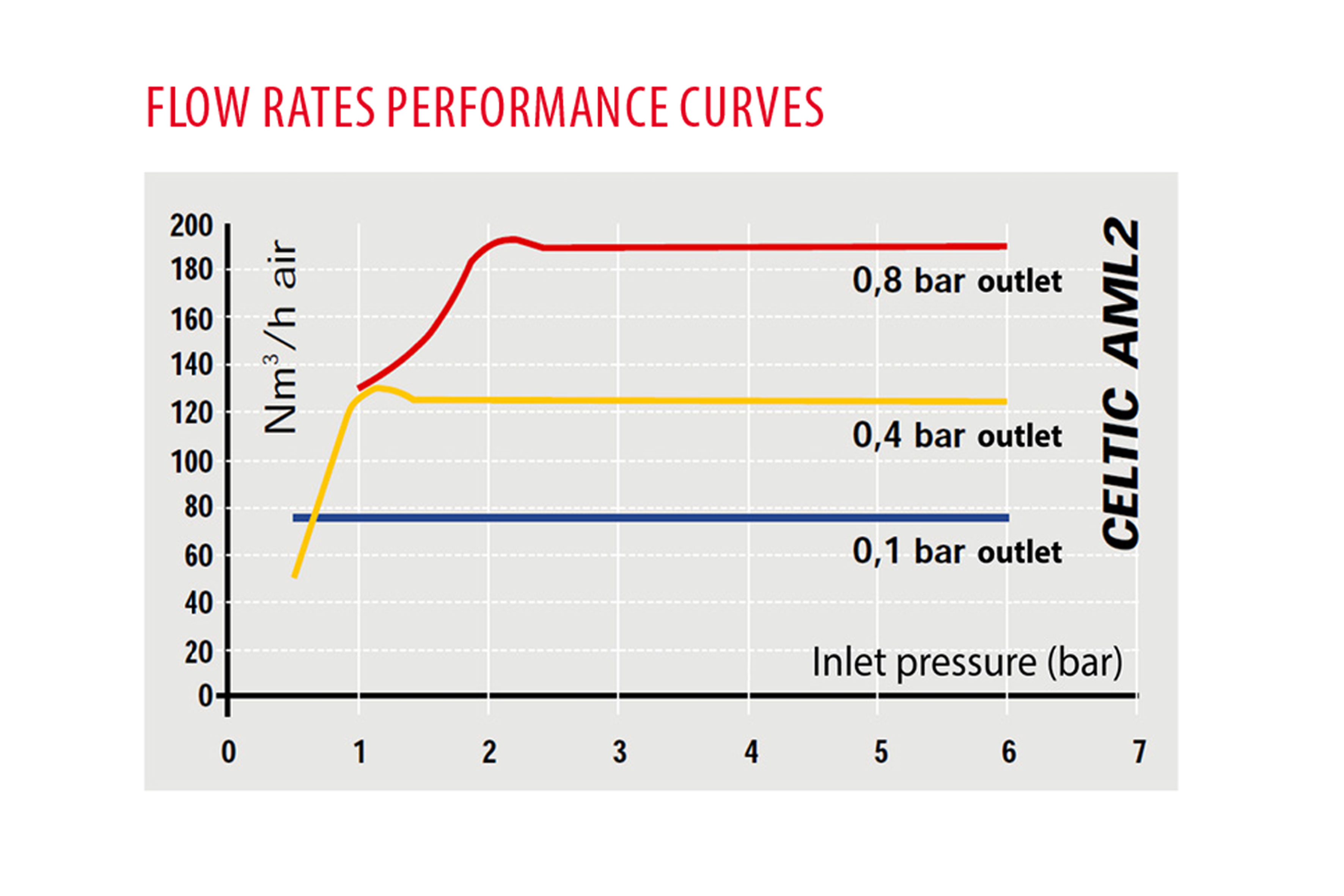

Flow air Nm3/h |
Flow propane kg/h |
| I130621 | G1"1/2"F | N, M, P | 8 (120) | 0,1-0,8 (2-12) | 70-190 | 100-290 |

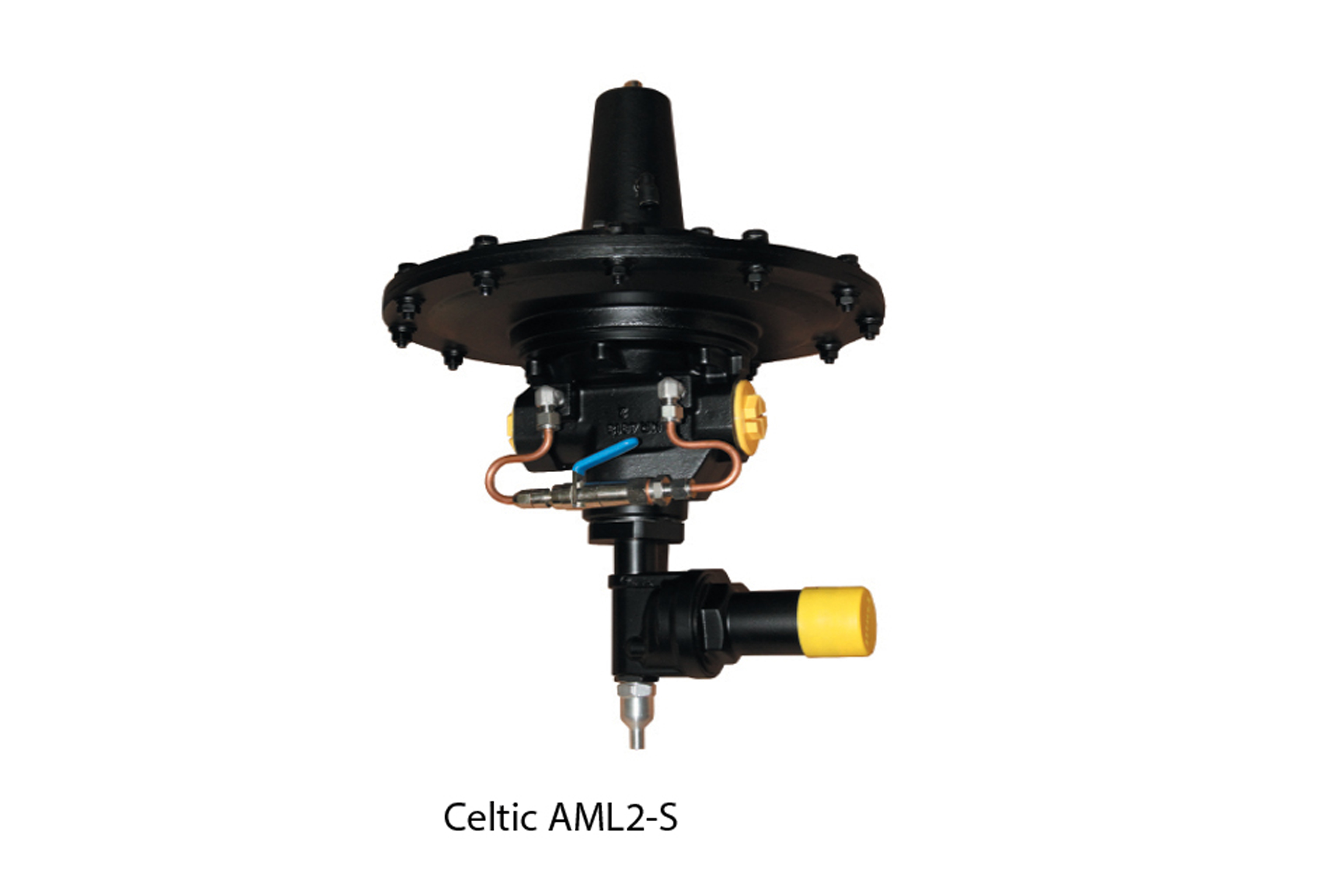

CELTIC AML2-S (AML1 with RD05)
| Art. Nr. |
Connection | Gas |
Max.inlet pressure |
Outlet pressure bar (psi) |
Flow air Nm3/h |
Flow propane kg/h |
| I130623 | G1"1/2"F | N, M, P | 8 (120) | 0,3-0,8 (4-12) | 70-190 | 100-290 |
SPARE PARTS
Maintenance kit for models with spring used with non-corrosive gas.
| Art. Nr. |
Model | Contents |
| I291282 | CELTIC AML2-N | 1 diaphragm, 1 diaphragm washer (for AML2), 1 complete reagulating valve, 3 washers (plug, valve), 1 blind nut |
| I291264 |
Previous model of CELTIC AML2 |
1 diaphragm, 1 diaphragm washer (for AML2), 1 complete reagulating valve, 3 washers (plug, valve), 1 blind nut |
ACCESSORIES
Outlet security kit for N-models not having outlet security device, GCE propose a security kit.
| Art. Nr. |
Model | Outlet pressure | Name |
| I291303 | CELTIC AML2-N | 0,3 to 0,8 bar | Kit RD05 - C AML |
The installation of the security device has to be done in our workshop.
TECHNICAL DATA
| Max. inlet pressure: | 8 bar |
| Material: | Aluminium alloy body |
| Connection: | Threaded inlet and outlet G 1“1/2"F (40x49) |
| Operating temperature range: | from -20 to + 60°C |
