CUTTING NOZZLE AC

Group Number: 2551

AC is standard machine cutting nozzle to be used with cutting torch BIR+™, manual cutting torches and portable cutting machines. Nozzle is desiged for acetylene. Both cutting and heating nozzles are chrome plated. The package of cutting nozzles contains 5 pieces, heating nozzle 1 piece.

Art. Nr. Type Cutting range
(mm)
14001010 Cutting nozzle 3 - 10

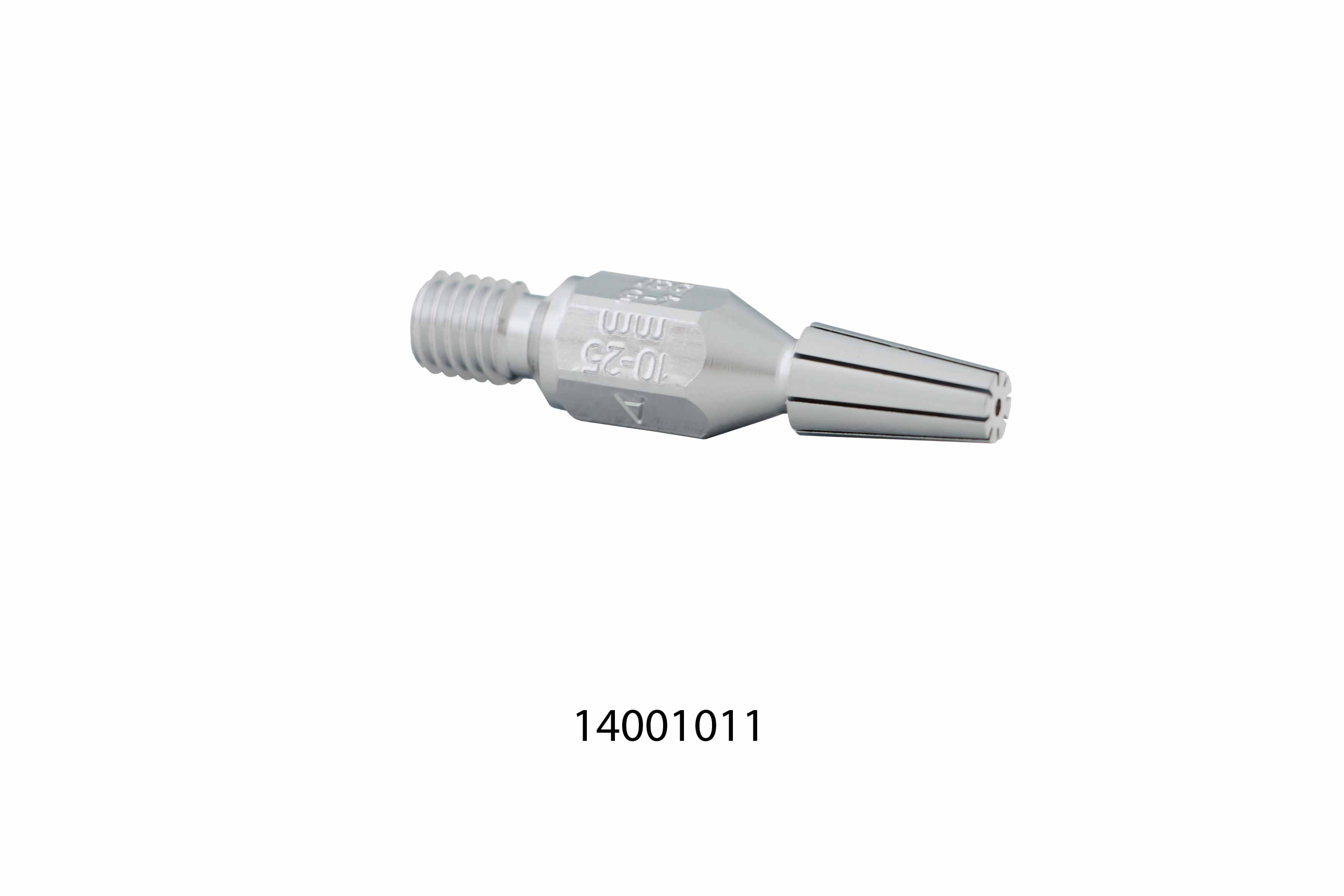

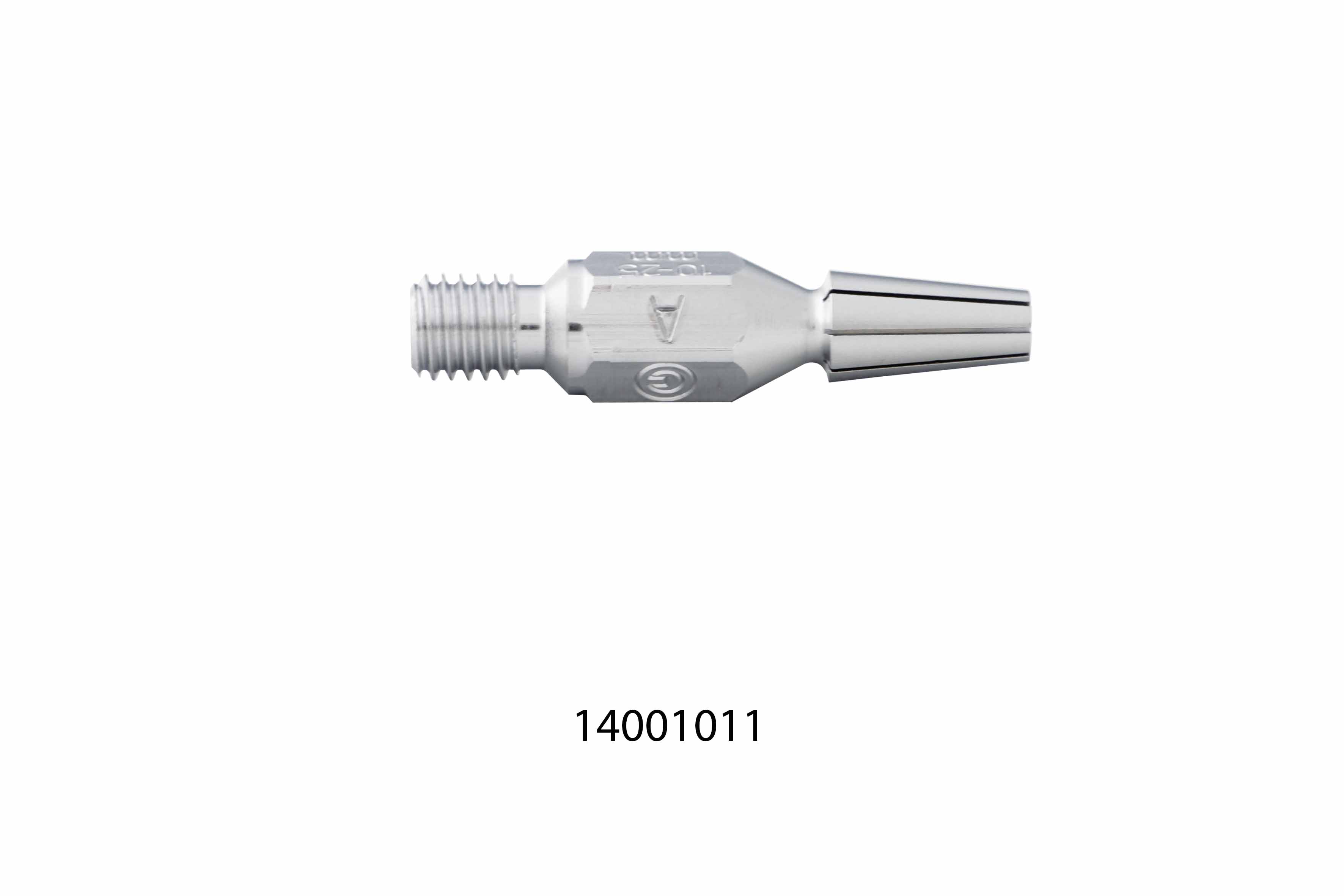

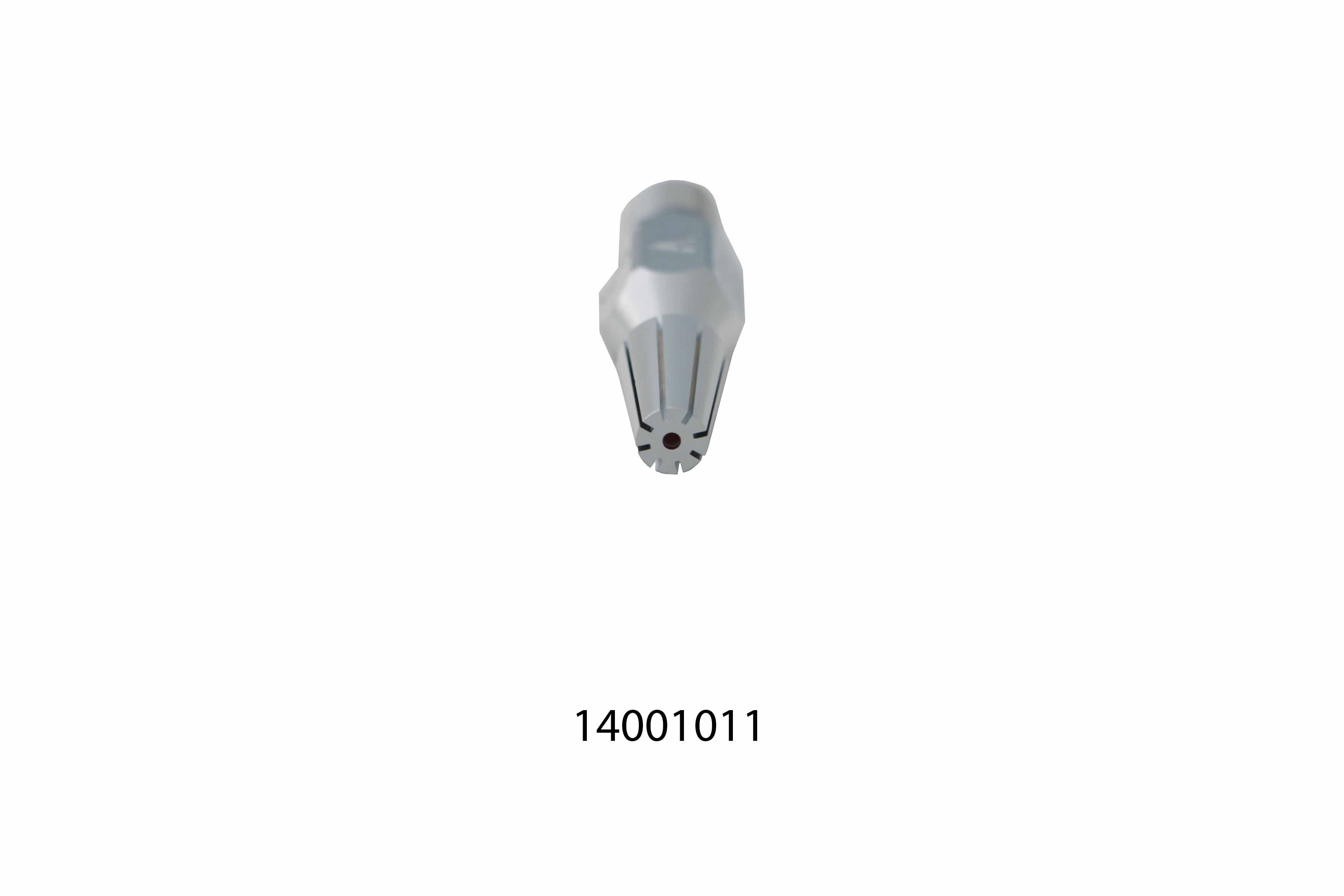

14001011 Cutting nozzle 10 - 25
14001012 Cutting nozzle 25 - 40
14001013 Cutting nozzle 40 - 60
14001014 Cutting nozzle 60 - 100
14001015 Cutting nozzle 100 - 200

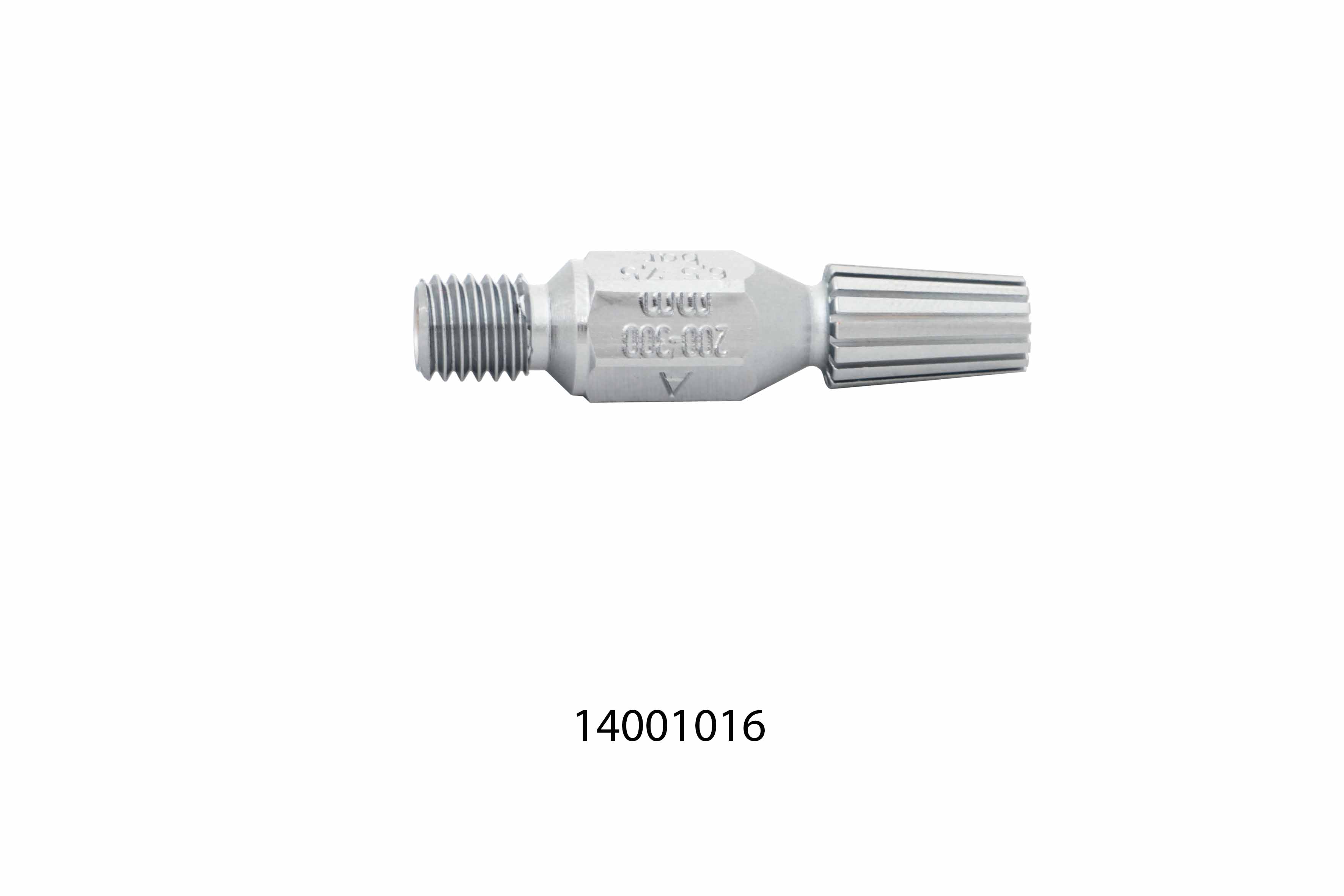

14001016 Cutting nozzle 200 - 300

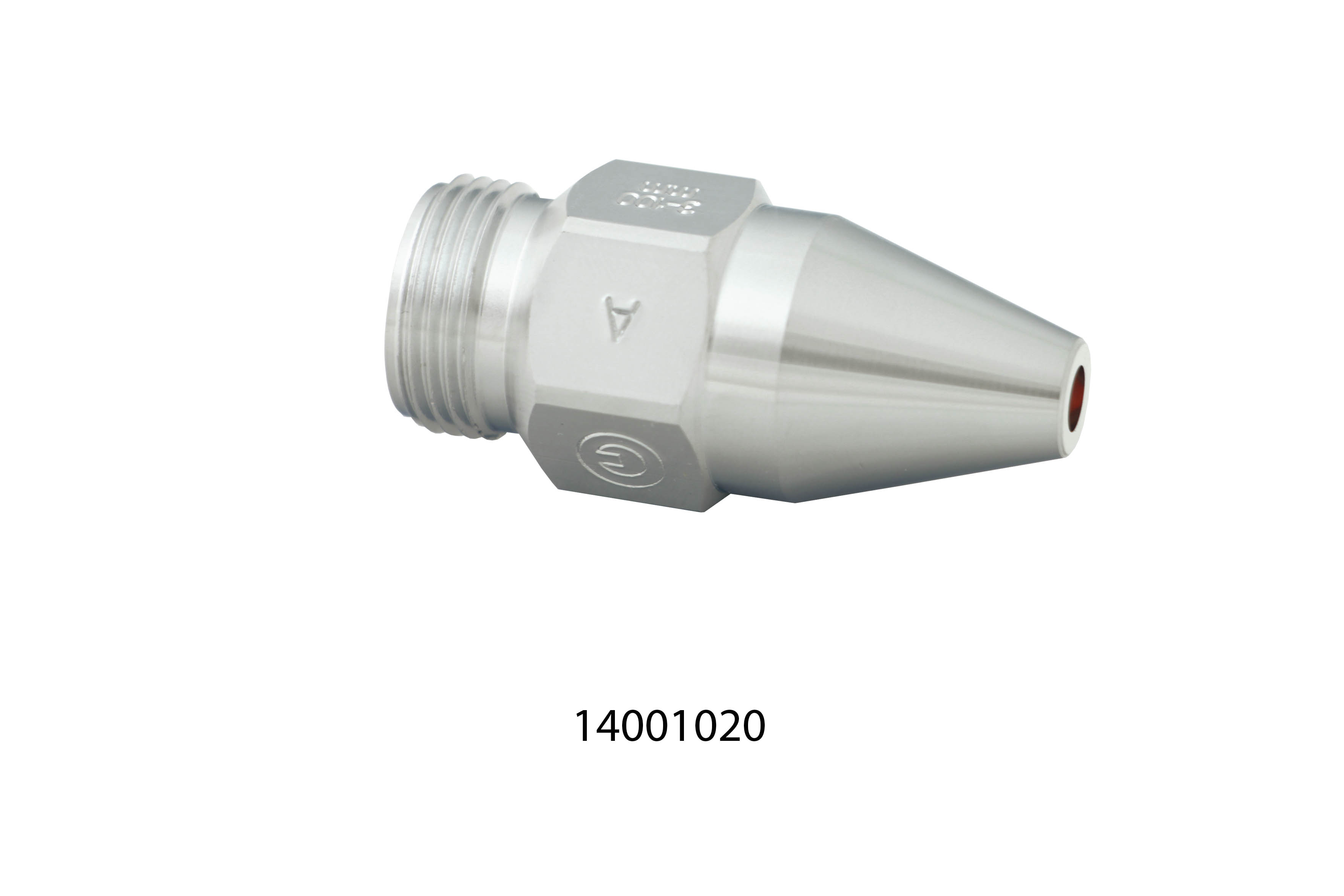

14001020 Heating nozzle 3 - 100
14001021 Heating nozzle 100 - 300

GENERAL CONDITIONS FOR HIGH QUALITY AND EFFICIENT CUTTING

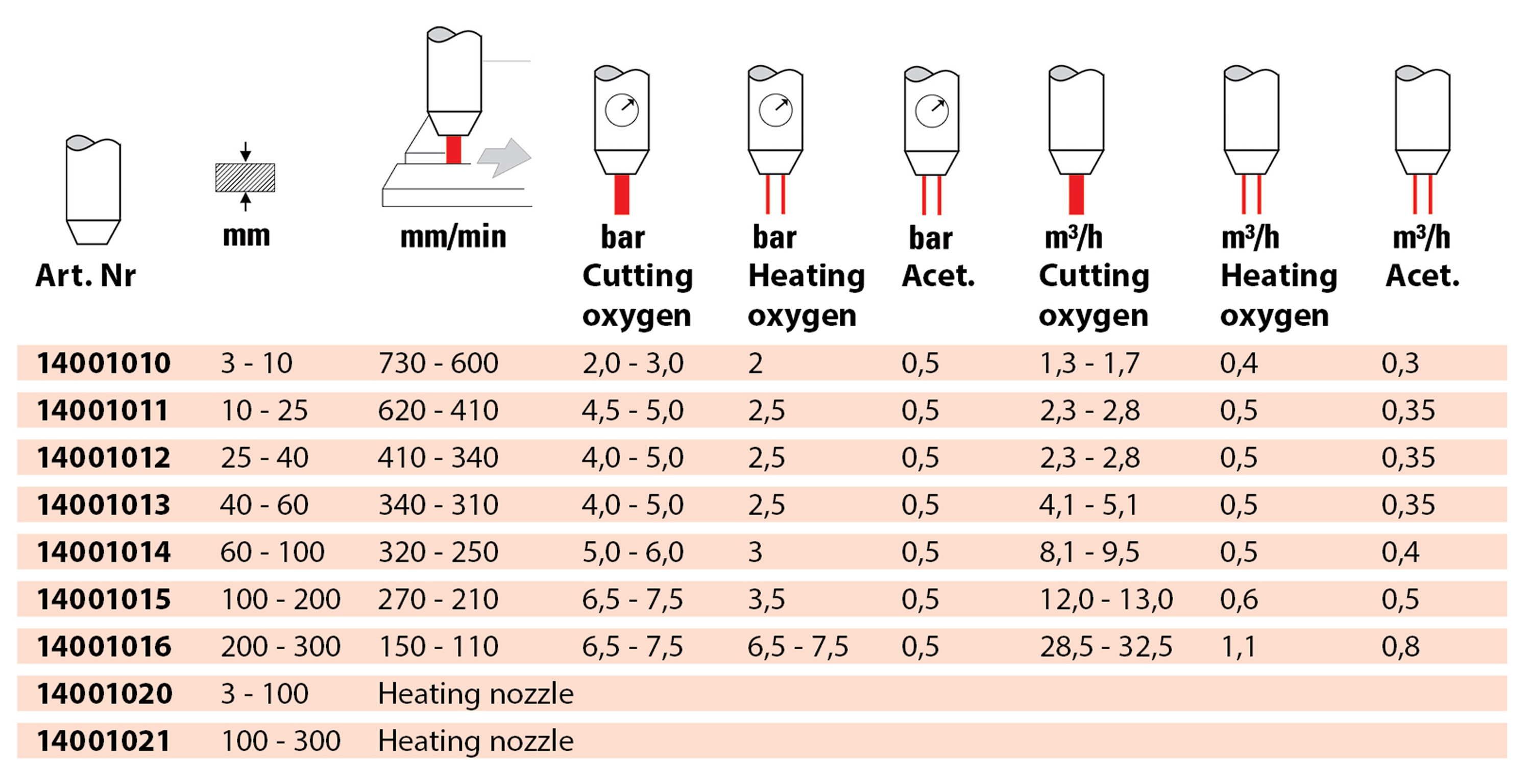

GCE machine cutting nozzles are designed to reach the cuts of quality level 1 according to EN ISO 9013. It is possible to reach maximal cutting speed by setting-up recommended cutting parameters of particular nozzles shown below, cutting of straight cuts, by using of clean metal sheet surface, oxygen with purity 99,5 % or better. Correct values of gases pressures are to be measured at the torch inlet. Parameters are prepared for mild steel with maximal carbon content of 0,25 %. Quality cutting machine with proper gas supply system, original GCE cutting equipment and new, undamaged, original cutting and heating nozzles are to be applied.

Technical Datasheets Top

Download Technical Datasheets
