CUTTING NOZZLE PSD, HIGH SPEED

Group Number: 2551

PSD is high speed machine cutting nozzle to be used with cutting torch BIR+™. Nozzle is desiged for propane, natural gas and mixed fuel gases. Both cutting and heating nozzles are chrome plated. The package of cutting nozzles contains 5 pieces, heating nozzle 1 piece.

Art. Nr. Type Cutting range (mm)
14001227 Cutting nozzle 3 - 6
14001228 Cutting nozzle 7 - 15

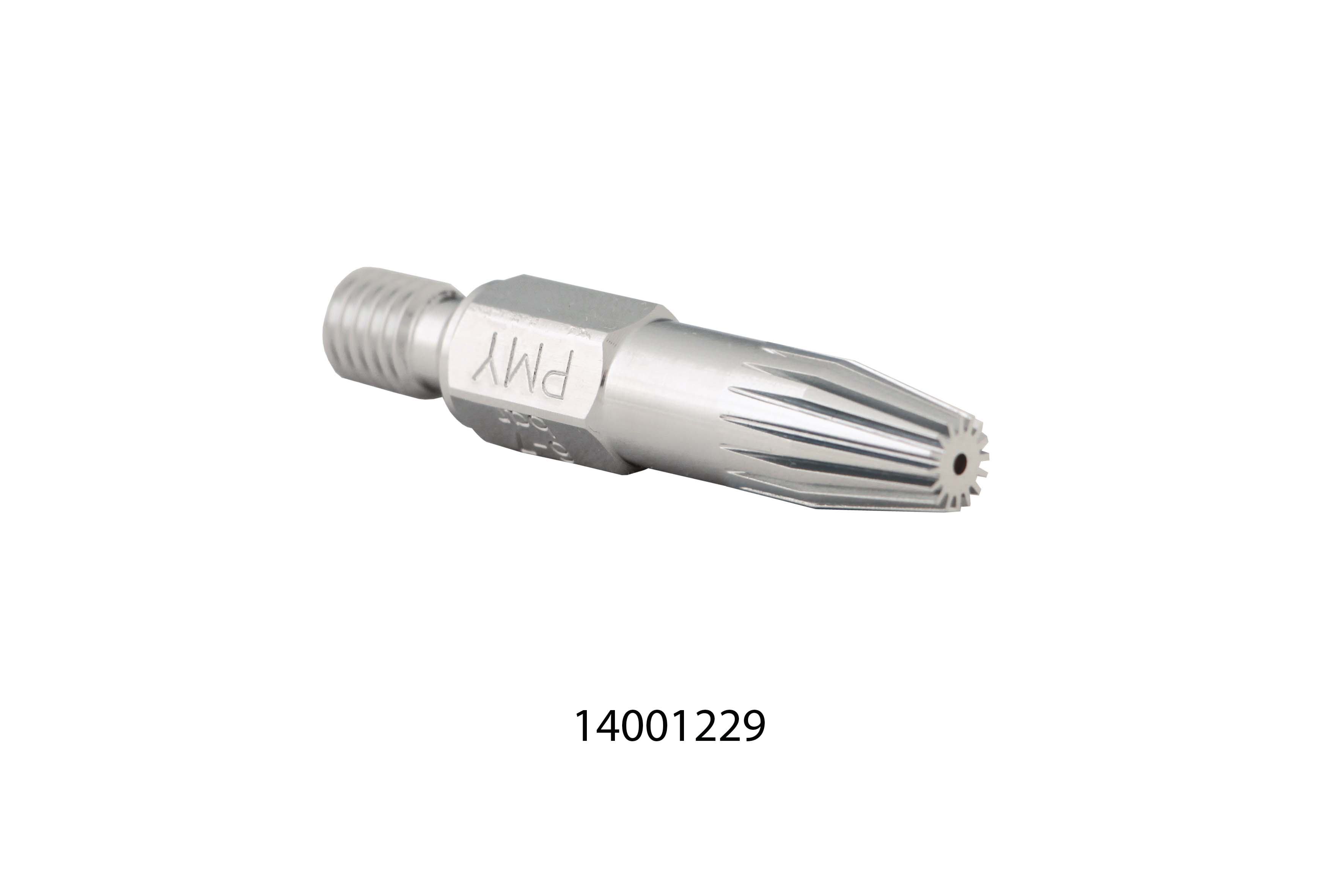

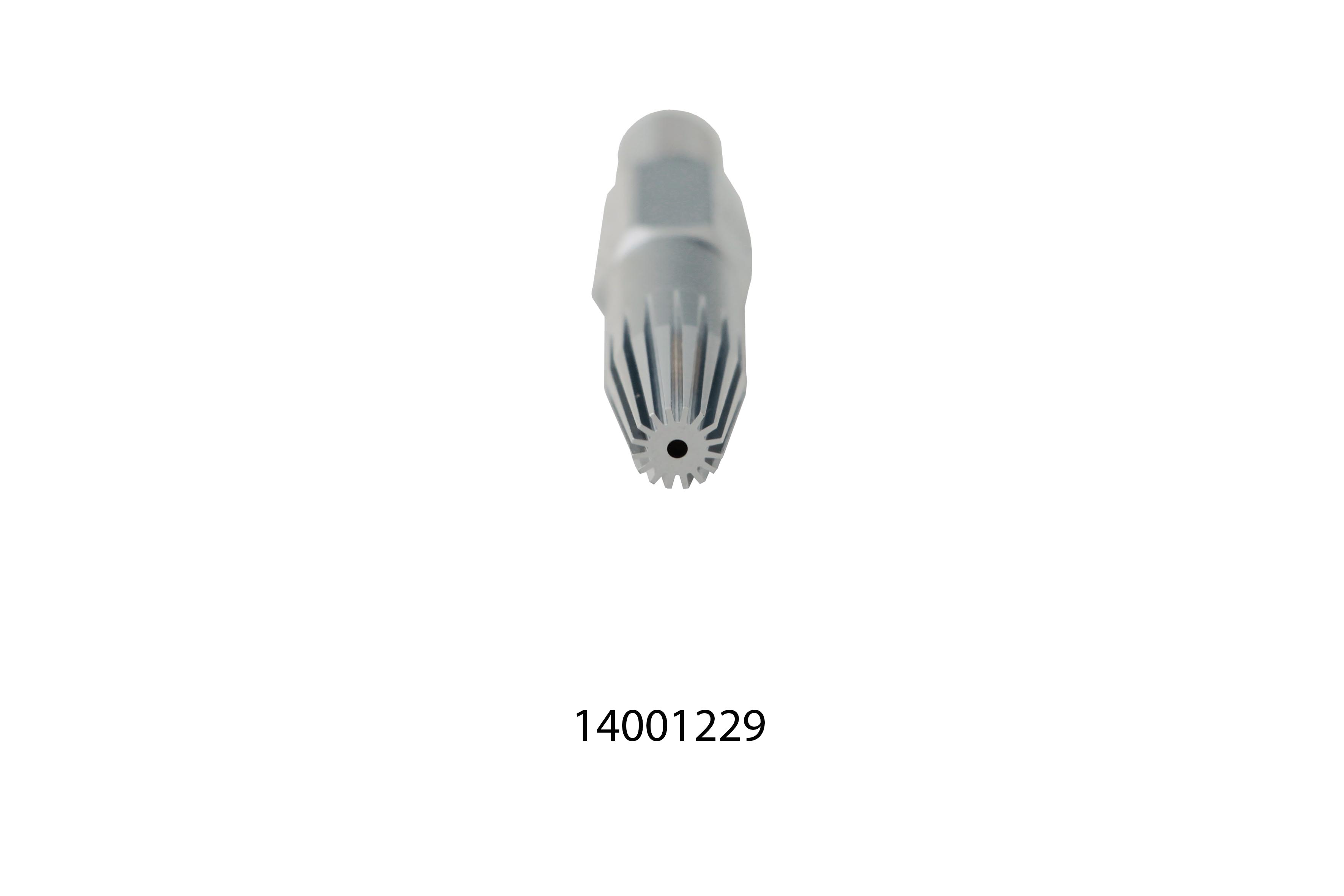

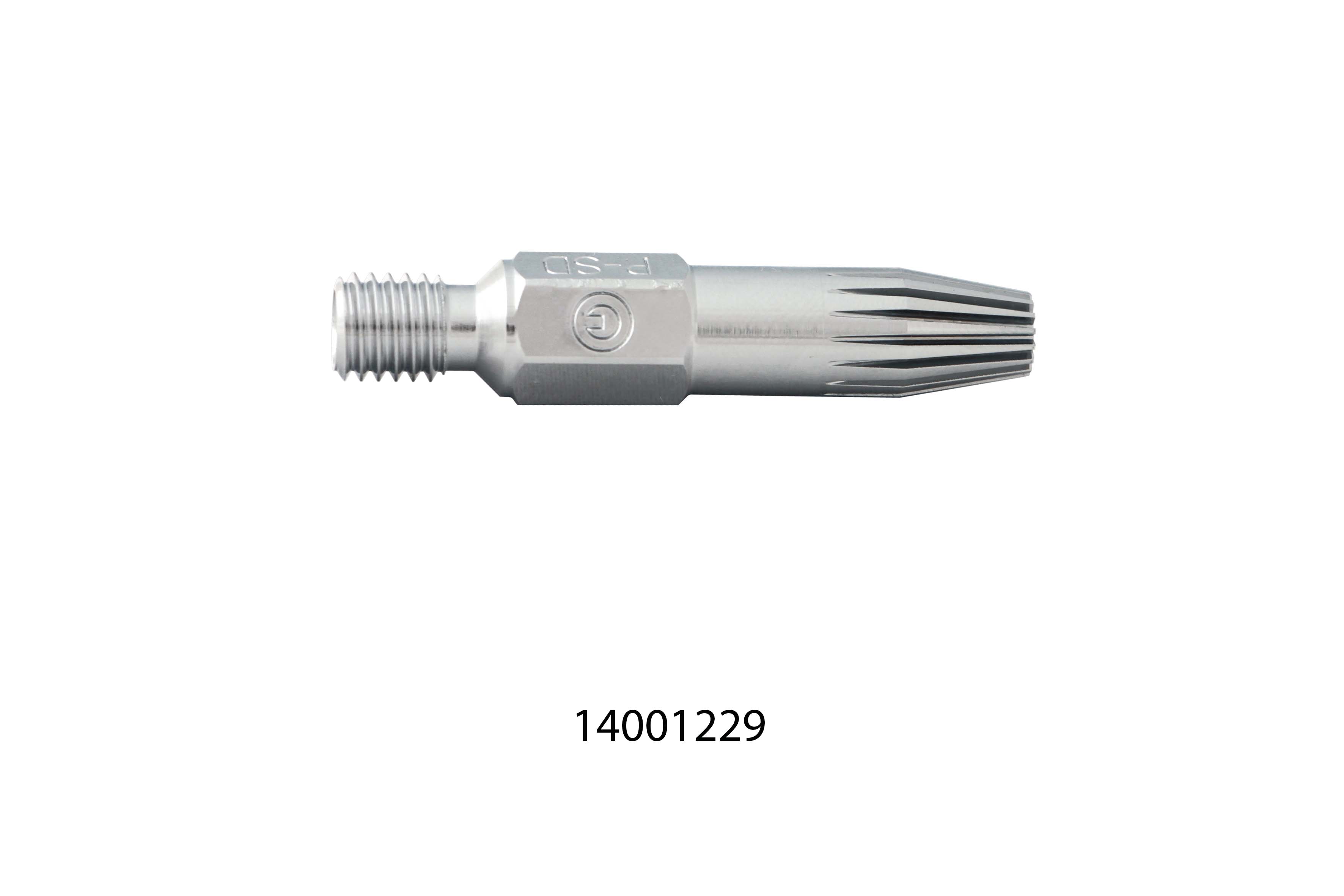

14001229 Cutting nozzle 15 - 25
14001230 Cutting nozzle 25 - 40
14001231 Cutting nozzle 40 - 60
14001232 Cutting nozzle 60 - 100
14001250* Cutting nozzle 100 - 150
14001233 Cutting nozzle 100 - 200
14001234 Cutting nozzle 200 - 250

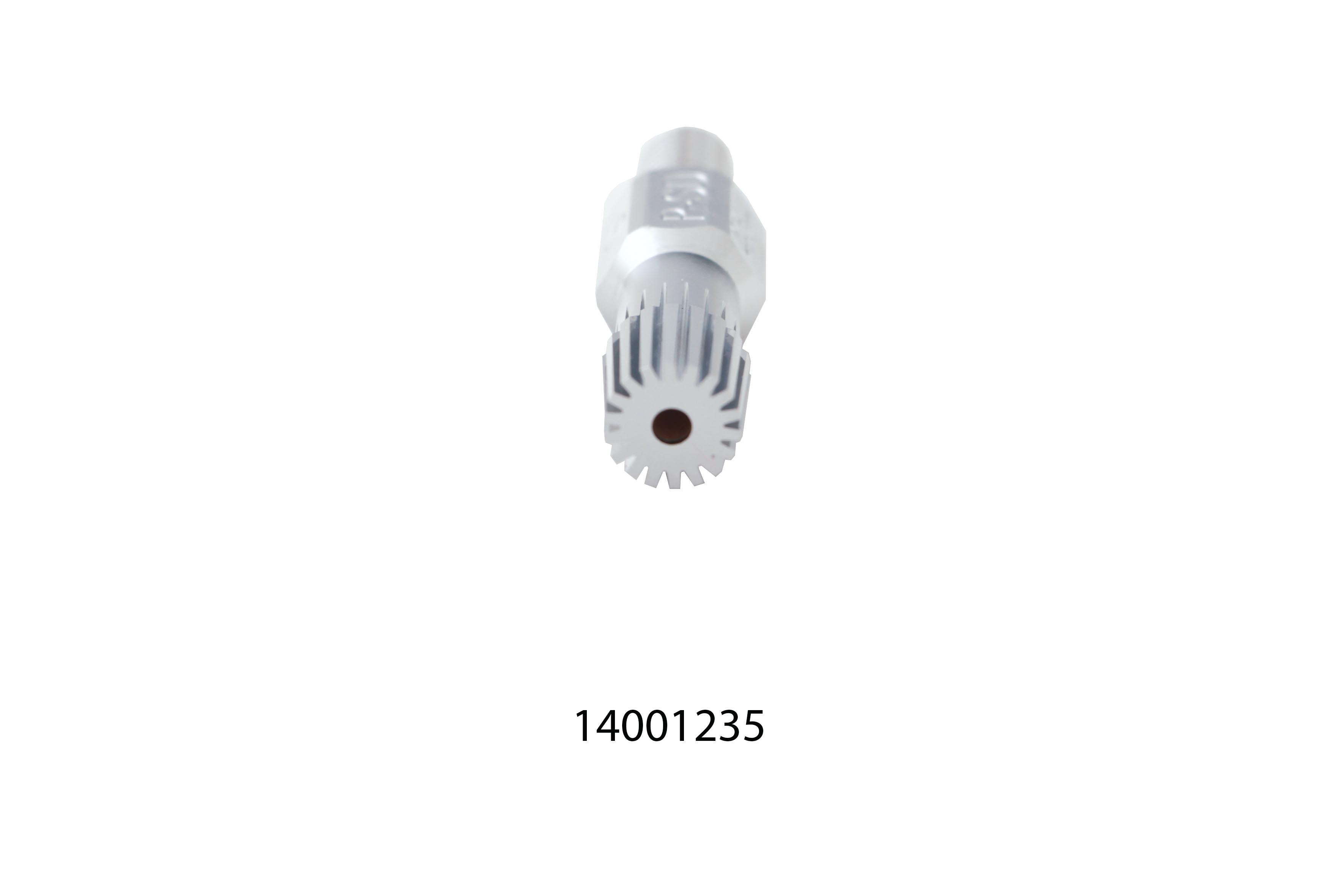

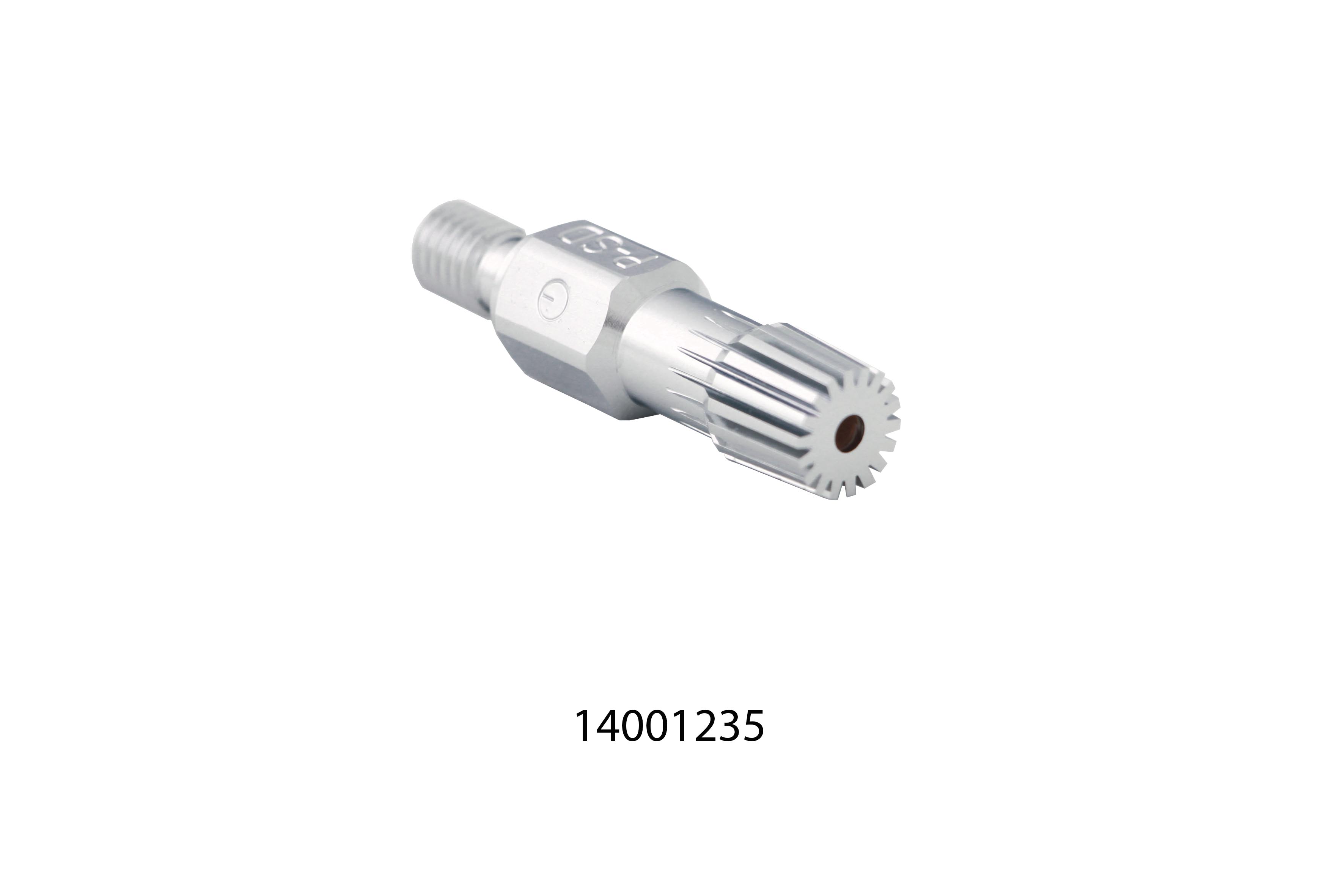

14001235 Cutting nozzle 250 - 300

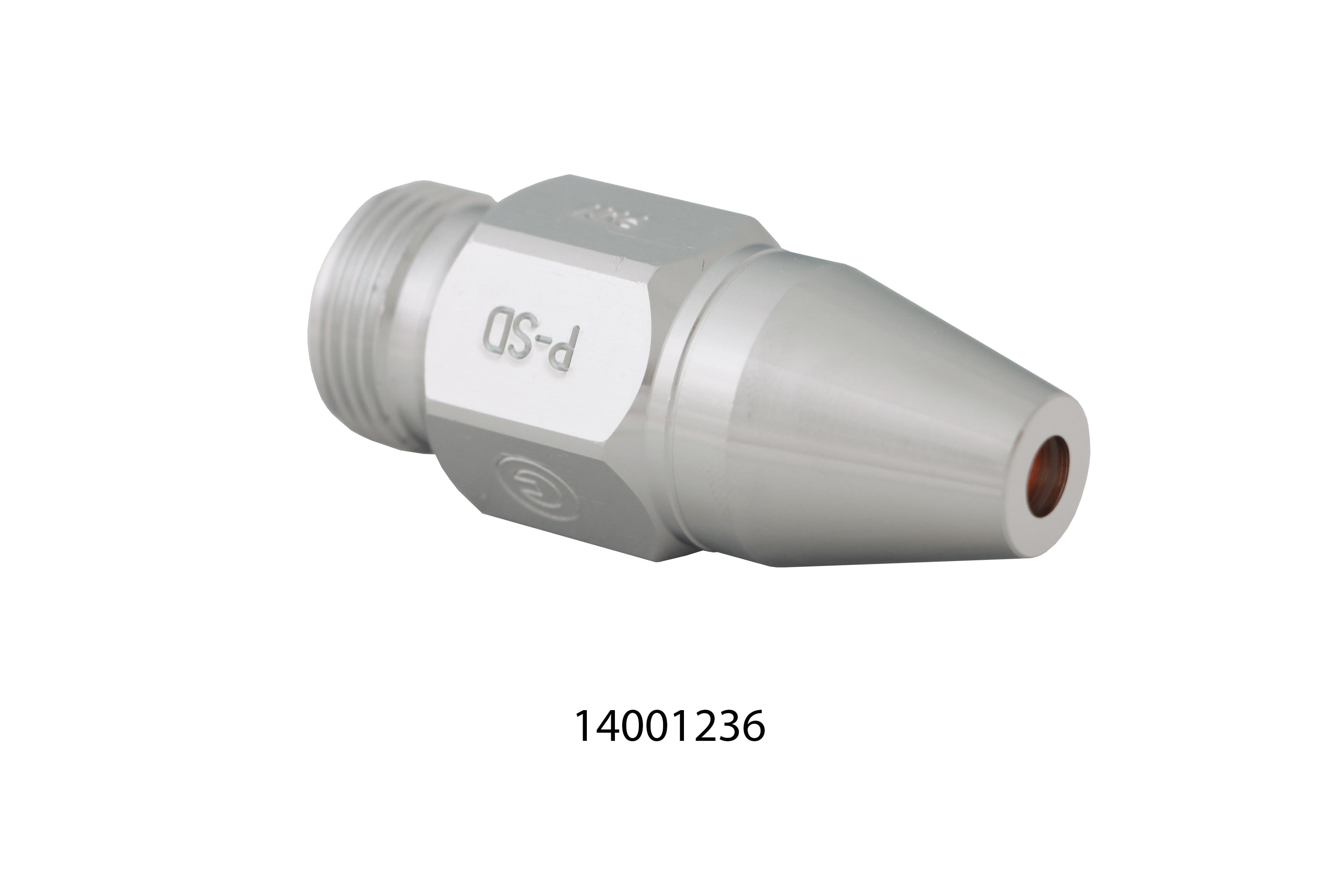

14001236 Heating nozzle 3 - 100
14001237 Heating nozzle 100 - 300

*Cutting nozzle 14001250 preferable for hole piercing. Please use it only together with heating nozzle 14001236 !


GENERAL CONDITIONS FOR HIGH QUALITY AND EFFICIENT CUTTING

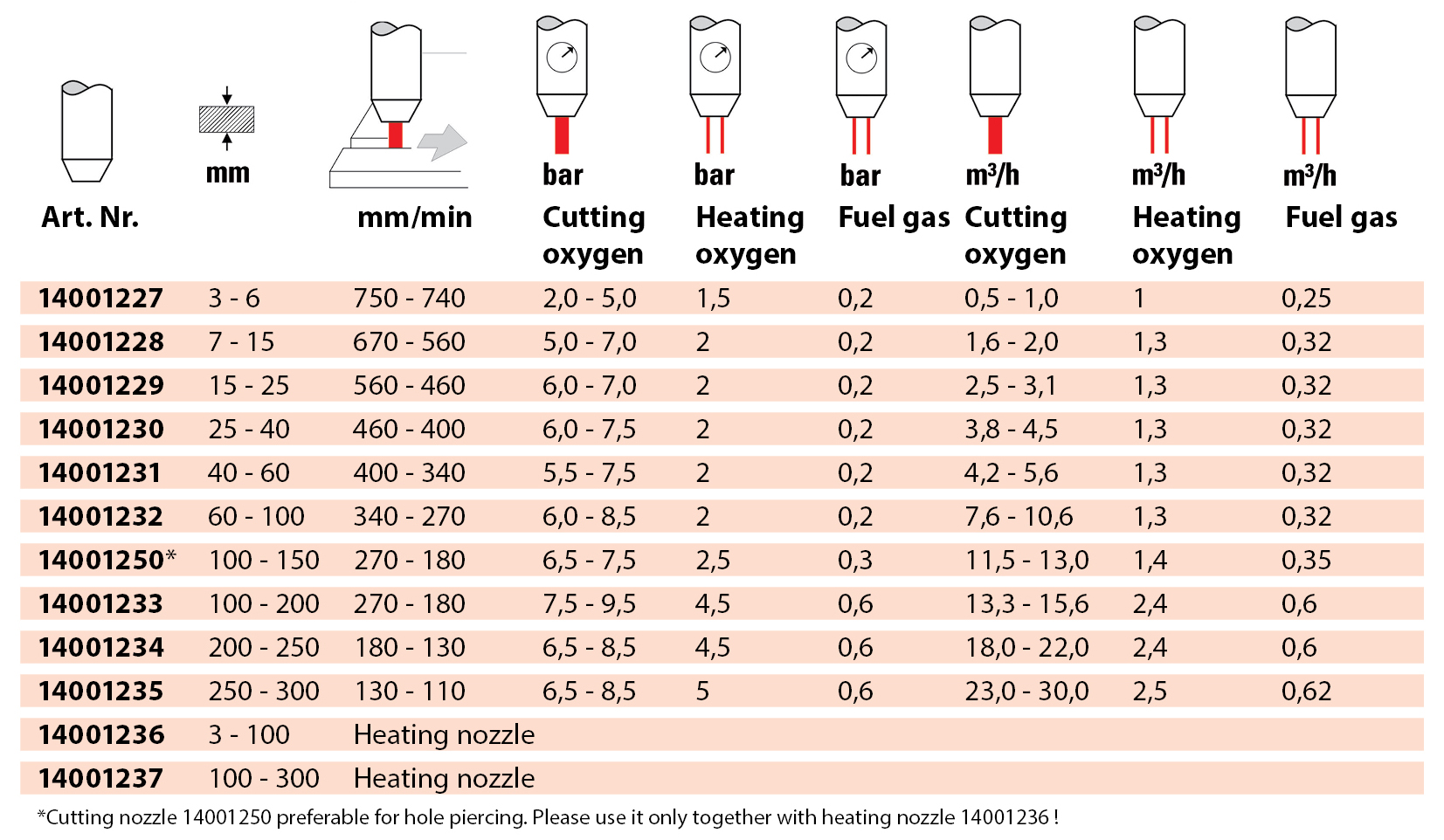

GCE machine cutting nozzles are designed to reach the cuts of quality level 1 according to EN ISO 9013. It is possible to reach maximal cutting speed by setting-up recommended cutting parameters of particular nozzles shown below, cutting of straight cuts, by using of clean metal sheet surface, oxygen with purity 99,5 % or better. Correct values of gases pressures are to be measured at the torch inlet. Parameters are prepared for mild steel with maximal carbon content of 0,25 %. Quality cutting machine with proper gas supply system, original GCE cutting equipment and new, undamaged, original cutting and heating nozzles are to be applied.
