CYLINDER VALVES FOR SMALL CYLINDERS

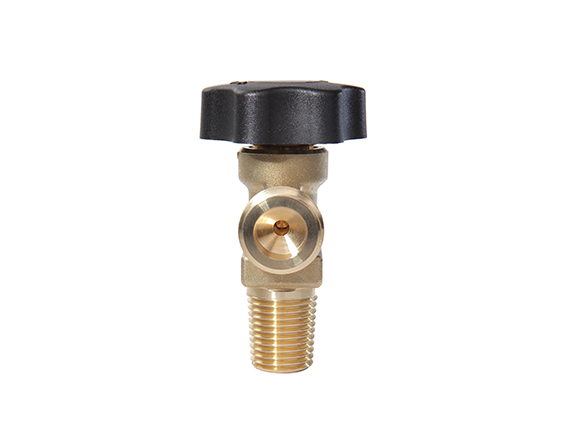

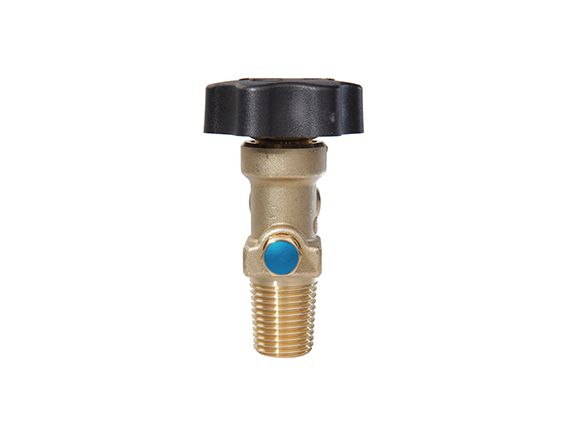

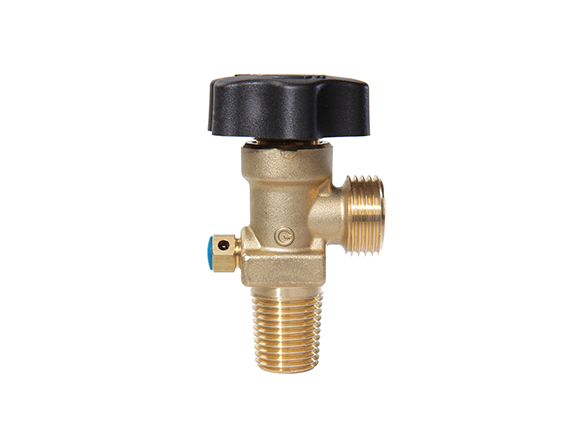

New GCE Carbon dioxide cylinder valve is ideal for small cylinders.
Key features:
- Reliable design
- Easy operation
- Ergonomic handwheel
- Equipped with safety burst disc and signal disc to indicate burst disc activation
| Art. Nr. | Description |
| 2777001 | Carbon Dioxide Valve |

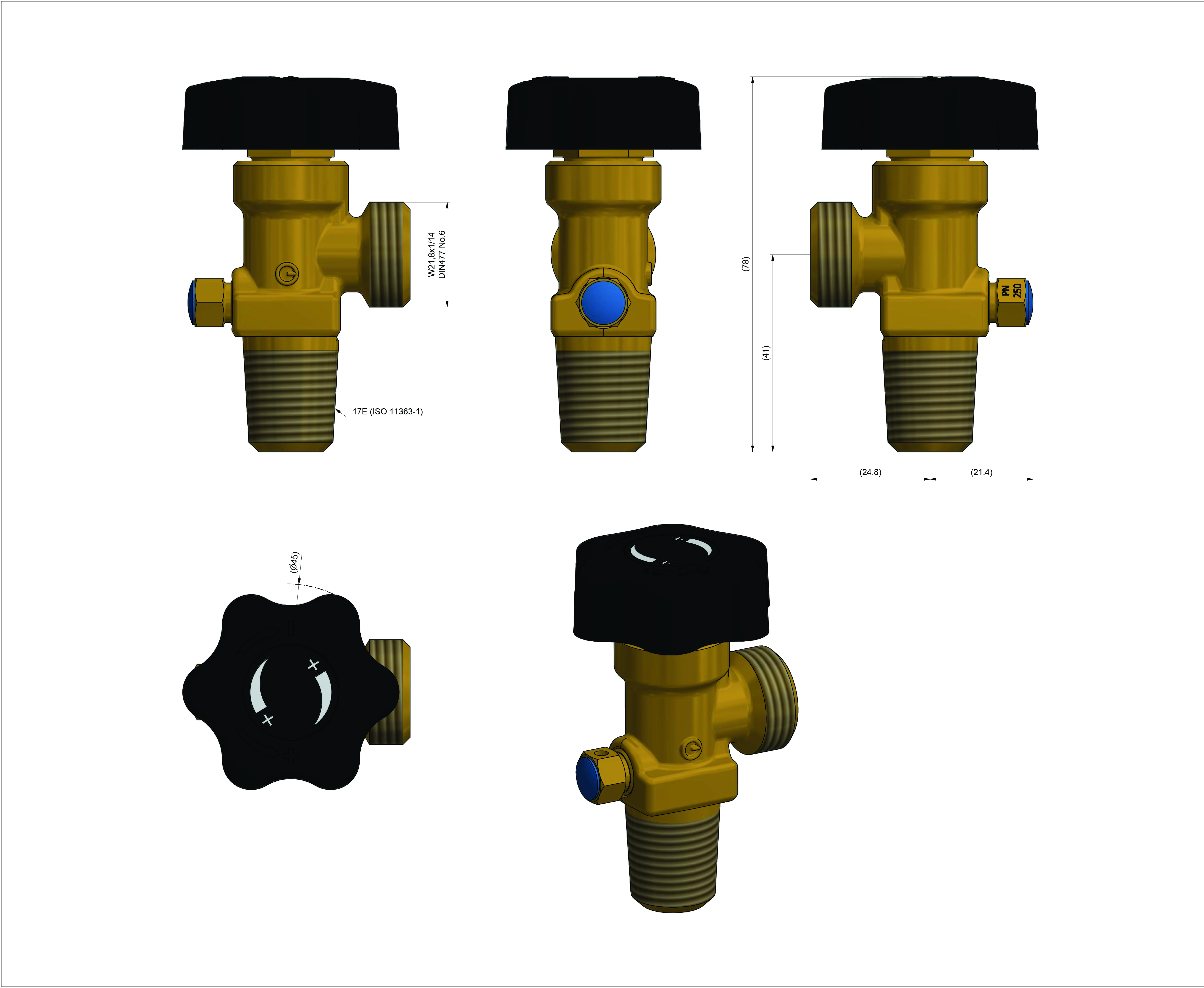

TECHNICAL DATA
| Inlet: | variants |
| Outlet: | CGA 320 |
| Dip tube thread: | 1/4 NPT |
| Seat diameter: | 0 5/32 inch |
| Bursting disc: | 3600 bar |
| Signal disc: | blue |
Small CO2 valve_US.pdf
