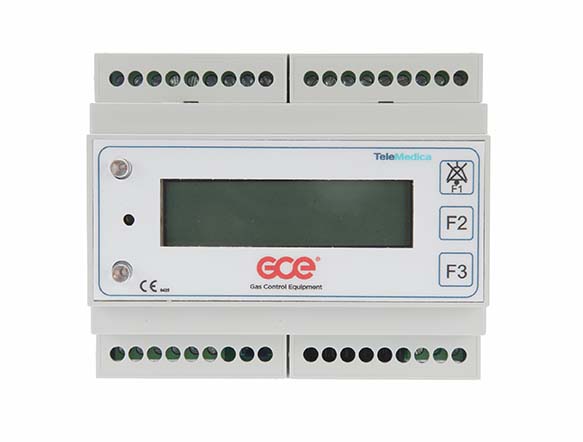

GAS ALARM TMA6703

Whole medical range is available on

TMA6703

Alarm device that manage up to 16 digital ON/OFF inputs.
This system can be connected to pressure switches, vacuum switches and contact gauges (maximum and minimum alarm).
It can monitor up to 8 gases.
When the pressure goes over or below a threshold a LED flashes (red LED), the ringer starts, and the fault is described in the text on the LCD display.

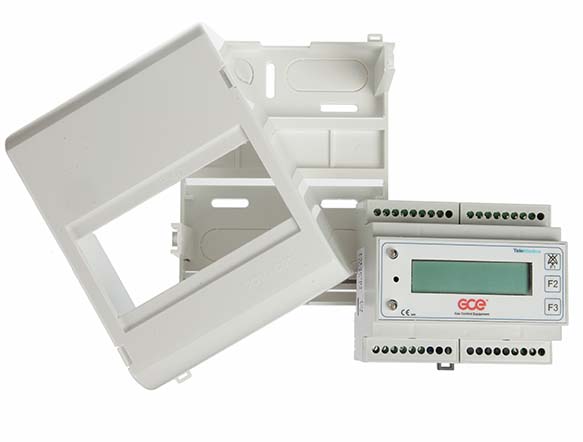

This equipment is supplied with an IP40 box for external installation. External IP65 or recessed IP40 are available as a spare part.
The device has integrated RS 485 interface for MODBUS-RTU protocol.
There are 1 output relays to report the alarm signals or to control external devices.
All inputs can be fully customized according to their needs.
The alarm can be set at either Master or Slave.
All the parameters are easily configurable via pc-software or by push buttons on the alarm.

USED FOR:

  • Pressure watches / Shut of valve boxes with pressure switches or contact gauges.
  • Manifolds with pressure switches or contact gauges.
  • Any equipment using NO/NC technology.

735100001394 TMA6703 leaflet EN

TECHNICAL DATA

Power supply: 24 VAC 50/60Hz +-15% / 6 VA max
Inputs: 16 Digital inputs (NO/NC)
Output relay: 1 (500mA Max 24V)
Output power: +12V
Data transfer: RS485 Modbus RTU
Cable use power: 0,75mm
Cable use switches: At least 0.5mm (max 3m)
Alarm activation: Configurable for both NO and NC input
Dimensions: 125mm x 160mm x 71mm
Housing: DIN box for 6 modules
Standards: ISO 7396-1 Medical gas pipeline systems
ISO 60601-1-8 Medical electrical equipment

GAS ALARM TMA6703

Art. Nr. Denomination
SPK36410005 Gas alarm TMA6703 GCE, trafo 24VAC, box exposed IP40

ACCESSORIES

Art. Nr. Denomination
SPK36410011 Cable and software for TMA6703

SPARE PARTS

Art. Nr. Denomination
SPP36410001 Sp-Alarm TMA6703 GCE

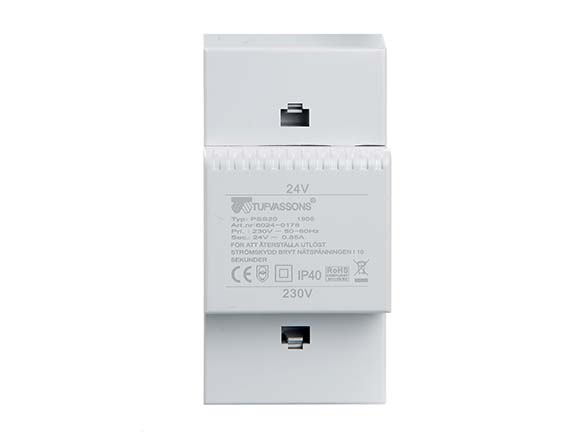

SPP36410007 Sp-Trafo 24VAC for alarms
SPP36410009 Sp-Box exp. IP40 for TMA6703
SPP36410011 Sp-box exp.IP65 for TMA6703
SPP36410013 Sp-box recessed for TMA6703
