GAS ALARM TMA9705

Whole medical range is available on

TMA9705-ETH

Alarm device that manage up to 16 digital ON/OFF inputs and 6 analogue inputs (4-20mA).
It is possible to set up to 2 thresholds for each analogue input.
The device has integrated RS 485 interface for Modbus, Ethernet interface for Modbus TCP/IP.
All the parameters are easily configurable via USB-mini and a pc-software or by push buttons on the alarm.
All inputs can be fully customized according to their needs.
The alarm can be set as either Master or Slave.

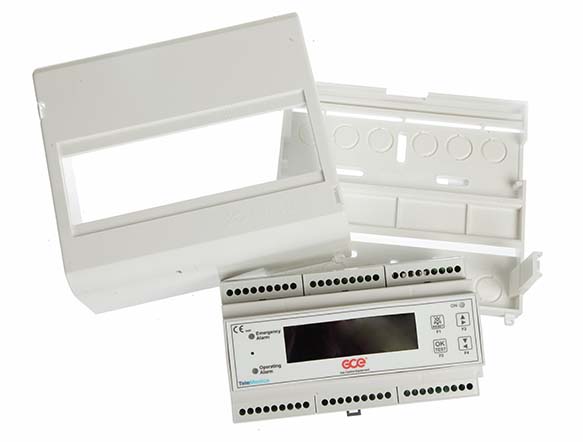

This equipment is supplied with an IP40 box for external installation.
External IP65 or recessed IP40 are available as a spare part.
There are 2 output relays to report the alarm signals or to control external devices.

USED FOR:

  • Pressure watches/Shut of valve boxes with sensors (4-20mA)
  • Manifolds with sensors (4-20mA) - Updated MC80
  • Any equipment using sensors (4-20mA) or NO/NC technology

735100001395 TMA9705 leaflet EN

TECHNICAL DATA

Power supply: 24 VAC 50/60Hz +-15% / 6 VA max
12 VDC External Battery (Optional)
Inputs: 16 Digital inputs (NO/NC)
6 Analogue inputs (4-20mA)
Outlet relay: 2 (1A Max)
Outlet power: +12V
Data transfer: RS485 Modbus RTU
Modbus TCP/IP
Cable use power: 0.75mm
Cable use switches: Modbus RTU
Alarm activation: Swedish, Norwegian, Danish, Finnish, English and Hungarian
Dimensions: 178mm x 160mm x 71mm
Housing: DIN box for 9 modules
Standards: ISO 7396-1 Medical gas pipeline systems
ISO 60601-1-8 Medical electrical equipment

GAS ALARM TMA9705-EHT

Art. Nr. Denomination
SPK36410006 Gas alarm TMA9705-ETH GCE, trafo 24VAC, box exposed IP40

ACCESSORIES

Art. Nr. Denomination
SPK36410012 Cable and software for TMA9705

SPARE PARTS

Art. Nr. Denomination
SPP36410008 Sp-ext.Battery for TMA9705-ETH
SPP36410004 Sp-alarm TMA9705-ETH GCE
SPP36410007 Sp-trafo 24VAC for alarms

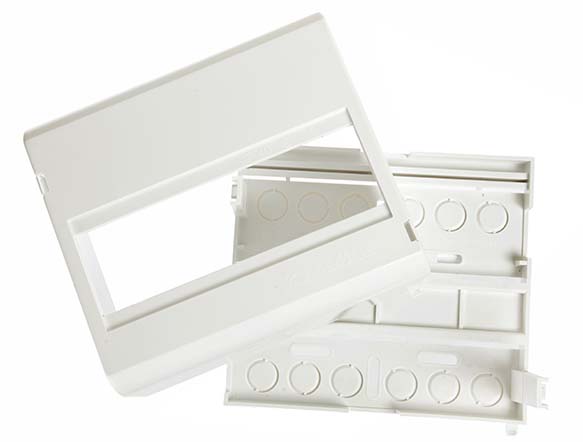

SPP36410010 Sp-box exp. IP40 for TMA9705-ETH
SPP36410012 Sp-box exp. IP65 for TMA9705-ETH
SPP36410014 Sp-box recessed for TMA9705-ETH
