GCE proFIT® SLM, PORTABLE STRAIGHT LINE CUTTING MACHINE

Group Number: 2581

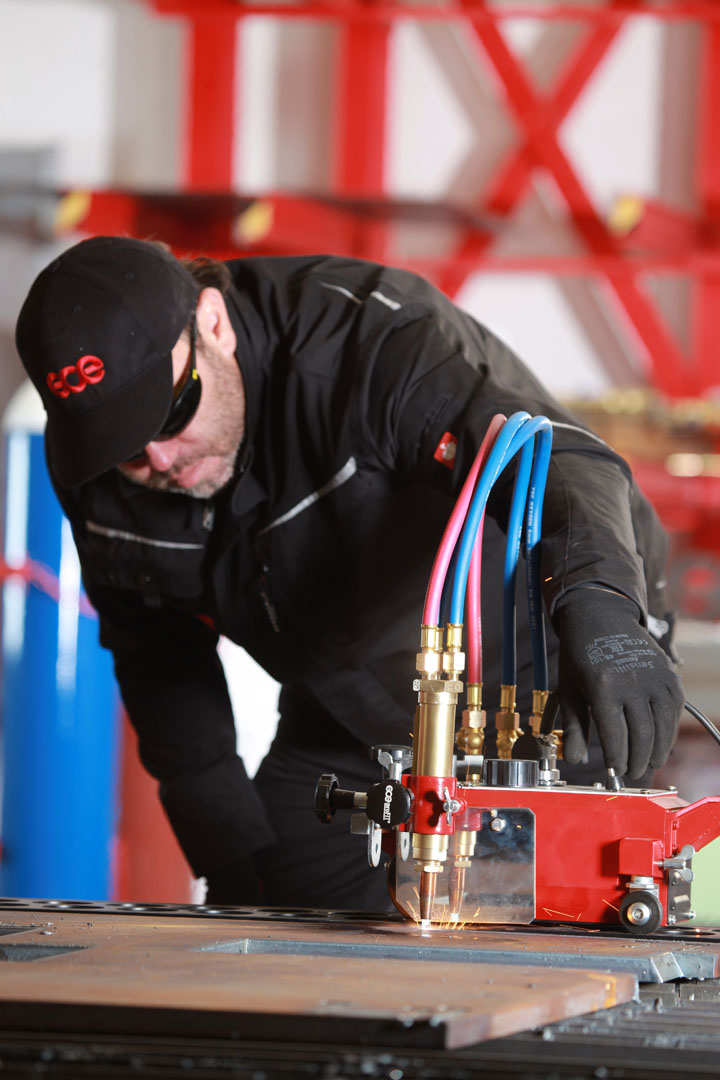

GCE proFIT® SLM is a universal cutting machine with lightweight design mainly for oxy-fuel cutting applications up to 150 mm metal sheet thickness (up to 100 mm with two cutting torches). It is a rugged but precise portable machine which has many features and benefits. For example, it can be used for straight cuts guided by the rail, manually-guided shape cuts, circular cuts and Strip Cutting when using two torches. The cutting torch can be fixed in a vertical position or angled for bevel cutting of metal sheet edges. The machine is ideal for small workshops or as an additional tool to a gantry machine. It can be used indoor but also due to its flexibility it can be used outdoors on the construction sites.

FEATURES

  • Lightweight portable machine for one-hand manipulation
  • Easy installation and operation
  • Interlocking, 1,8 m long guide rail
  • All common fuel gases service
  • Nozzle mixing (IC 30° cone) cutting torches or BIR+, an injector cutting torch technology
  • Basic one-torch configuration can be extended for two-torch operation
  • Strip cutting and bevel cutting with two torches
  • The precise drive system is ensuring constant cutting speed
  • Exact adjustment of the torch position
  • High speed of motor drive enables the machine to be used also for plasma cutting

Instruction for Use GCEproFIT SLM

TECHNICAL DATA

Cutting capacity: up to 150 mm with one torch, up to 100 mm with two torches
Cutting speed: 50 - 1600 mm/min
Operation: forward and reverse with variable speed
Power supply: 230V AC / 50 Hz
Oxygen inlet connection: G1/4“, up to 8 bar, hose min. DN8
Fuel gas inlet connection: G3/8“LH, up to 1 bar, hose min. DN8
Body dimensions: 175 x 350 x 140 (W x L x H)
Weight: 9,5 kg (with one torch configuration)
Rail: Zn-coated, 1,8 m



Art. Nr. Description Nozzles to be ordered
0870613 GCE proFIT SLM 230V with nozzle-mixing cutting torch ANME, PNME
0870614 GCE proFIT SLM 230V without cutting torch
0870615 GCE proFIT SLM 110V with nozzle-mixing cutting torch ANME, PNME
0870617 Rail track 1,8m, Zinc coated
0870618 Rail track 1,2m, Zinc coated
F25310012* Cutting torch BIR+ 110/32PMY, G1/4, G3/8, G3/8LH PUZ
F25310013* Cutting torch BIR+ 110/32A, G1/4, G3/8, G3/8LH AC
F25310014* Cutting torch nozzle mixing, G1/4, G3/8, G3/8LH ANME, PNME
F25310015* Cutting torch nozzle mixing, 9/16 UNF ANME, PNME

* One of these torches has to be selected and ordered for the machine item 0870614

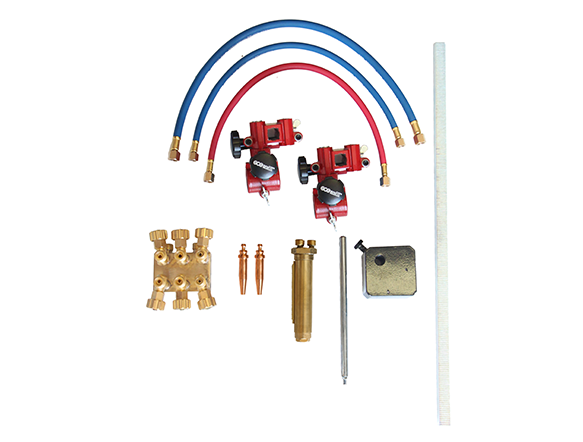

BASIC MACHINE PACKAGE INCLUDES:

  • Equipment for one torch-cutting application
  • One nozzle mix cutting torch
    (The basic package of machine 0870614 does not include cutting torch and nozzle. To be selected and ordered separately.)
  • Torch holder, torch bar, a stainless steel heat shield
  • Internal gas hoses, gas manifold with shut-off valves
  • Power cable 8m with plug DIN
    Guide rail and cutting nozzle are not included, to be ordered and delivered separately.

 ACCESSORIES AND TOOLS

Art. Nr. Description
0870616 Extension kit for 2-torches
0870665 Circle cutting kit
14008157 Brass cleaning brush
14056010P Cleaning needle for cutting oxygen channels
14008263 Flashback arrestor heating oxygen
14008278 Flashback arrestor fuel gas
14008408 Flashback arrestor cutting oxygen
