HelmeTec WIND
AUTODARKENING WELDING HELMET WITH TILTING FRONT AND POWERED RESPIRATOR

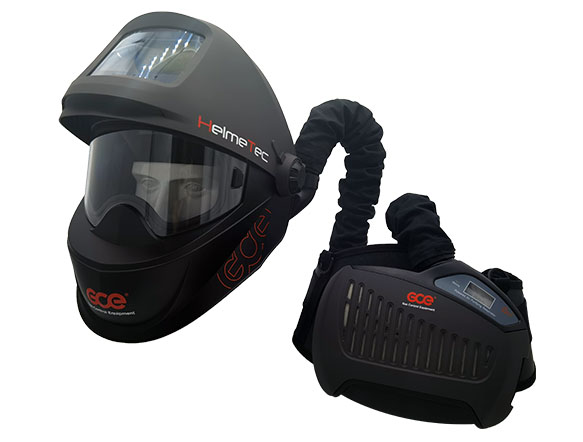

HelmeTec is an integrated protection system that combines a ventilation unit (PAPR) with a high efficiency TH3 particle filter for respiratory protection and an LCD filter with ColorView optics for eye protection that allows you to see the workpiece in natural colors. Simply safe even when welding in the worst conditions.

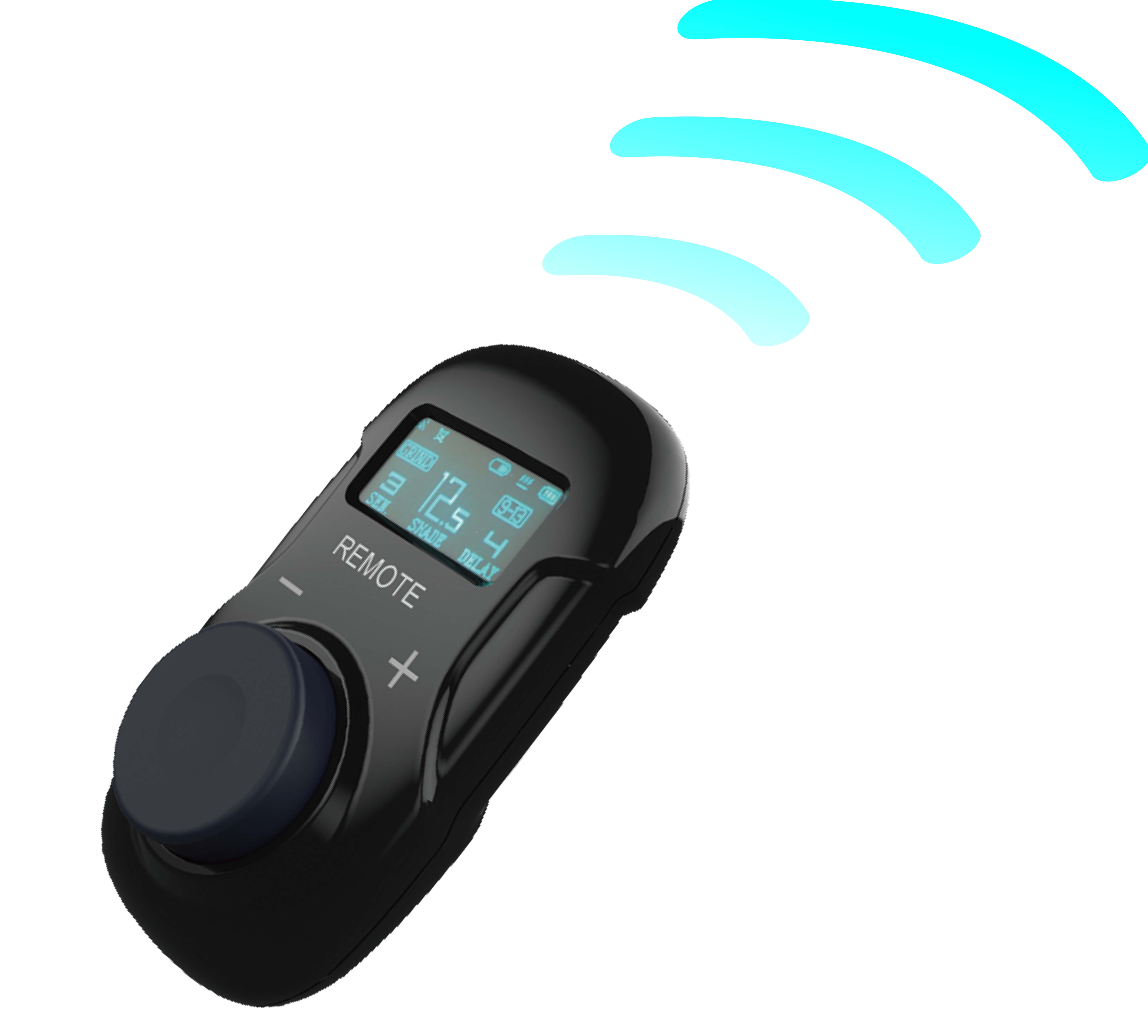

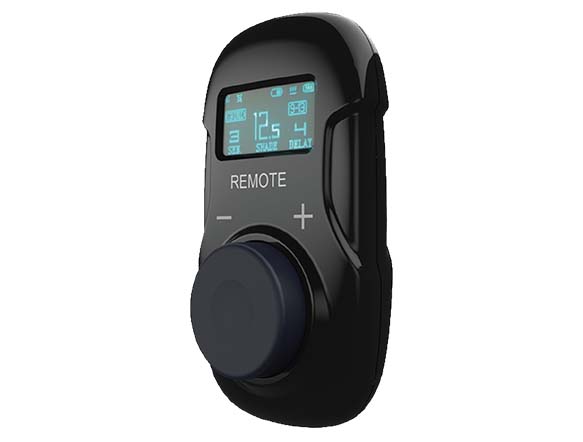

Remote-controlled.
| Art. Nr | Description |
| AD020004 | Mask LCD HelmeTec Wind - DIN 5-13 ColorView |
HelmeTec leaflet EN
HelmeTec Operational manual EN
HelmeTec Operational manual DE
HelmeTec Operational manual HU
HelmeTec Operational manual FR
HelmeTec Operational manual IT
BLOWER UNIT FEATURES
- High Efficiency P3 Filter (99,996%)
- 3 airflow levels
- Continuous filtered air
- Warning alarms (visual, audible, vibration)
- Up to 10 hours operating time
TECHNICAL DATA
| Airflow | 170 l/MIN, 200 l/MIN, 230 l/MIN |
| Automatic System | Constant stable clean air |
| Alarms | Low battery Clogged filter Motor stuck/damaged High battery temperature |
| High filter efficiency | 99.996%@ 0.3um |
| Filtration level | TH3 PRSL |
| Weight | Complete device: 1,9 kg - Blower only: 1,1 kg |
| Battery operating time | Level 1: >10h Level 2: >8h Level 3: >6h |
| Charging time | 3.5h |
| Battery lifetime | >500 charges |
| Operating temperature | From -5°C to +55 °C |
| Standards | Manufactured according to EN 12941: 1998 + A2: 2008 |

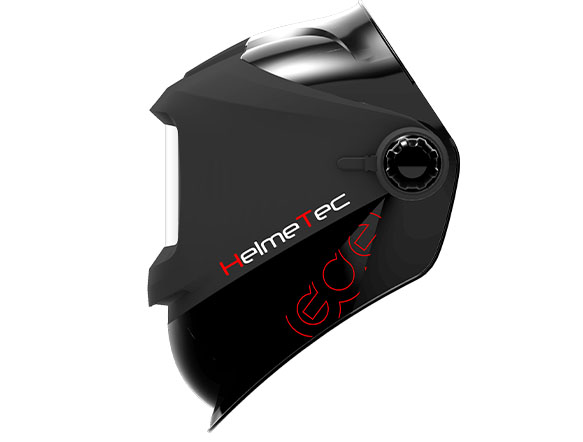

HELMET AND LCD FILTERS FEATURES
- ColorView technology
- Viewing area 100 x 60 mm
- Optical class 1/1/1/1
- Remote control
- Tilting front
TECHNICAL DATA
| Optical Class | 1/1/1/1 |
| ColorView | Yes |
| Viewing Area | 100*60 mm |
| Arc Sensing | 4 sensors |
| Shade Range | 4# / 5-9 #/ 9-13# |
| Power Off shade | 4# |
| Power On/Off | Fully Automatic |
| Control | remote |
| Switching Time | 0.08 ms |
| Grinding Function | Yes |
| Cutting Function | Yes (5#-8#) |
| Low Amperage TIG Rated | >2A |
