IVC

• Robust and reliable design
• Compact size
• EN ISO 22435 and CGA V-9 compliant
• Oxygen adiabatic shock-tested up to 5200 psi
• Filling port with non-return valve
• Residual Pressure Device (RPD)
• Pressure gauges for cylinder content and delivery pressures
• OPTIONS: Safety Relief Burst Disc, dip tubes and acetylene fusible plugs
• VIPR guard tested to ISO 11117

TECHNICAL DATA

GCE combination valve design is supported over hundred years of exploitation experience worldwide.

Manufactured according to Directive 2010/35/EU for Acetylene, Argon/CO₂, Oxygen, 2900 and 4400 psi technology. Features include:

• residual pressure device,
• pressure relief valve,
• variety of possible connections,
• variety of filling ports with non-return function.

The GCE combination valve is ready to be used in variety of industrial applications. Just connect your equipment directly to IVC outlet and adjust flow settings.

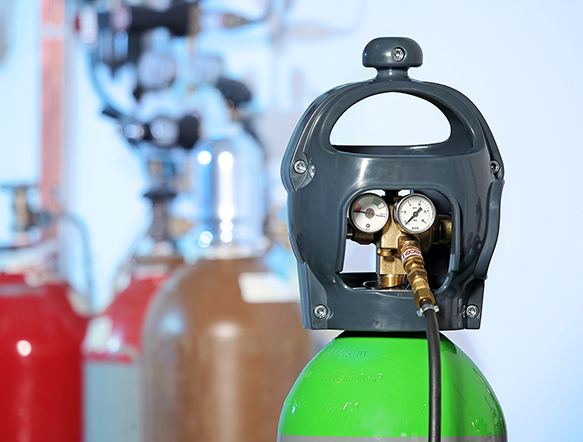

Special GCE plastic or metal guards protect the combination valve from damage during transportation and operation. The special shape of the guard makes cylinder transportation easier and safer.

CONNECTION

GCE combination valve is one step further in gas control compared with a simple cylinder valve. This much more technically advanced product connects in one brass body features of both cylinder valve and pressure regulator. This gives the possibility of constant control and fluent adjustment of gas flow and outlet pressure.
