LABORATORY PRESSURE REGULATORS EMD 3100 - BUILT-IN VERSIONS D AND Z

Group Number: 4440

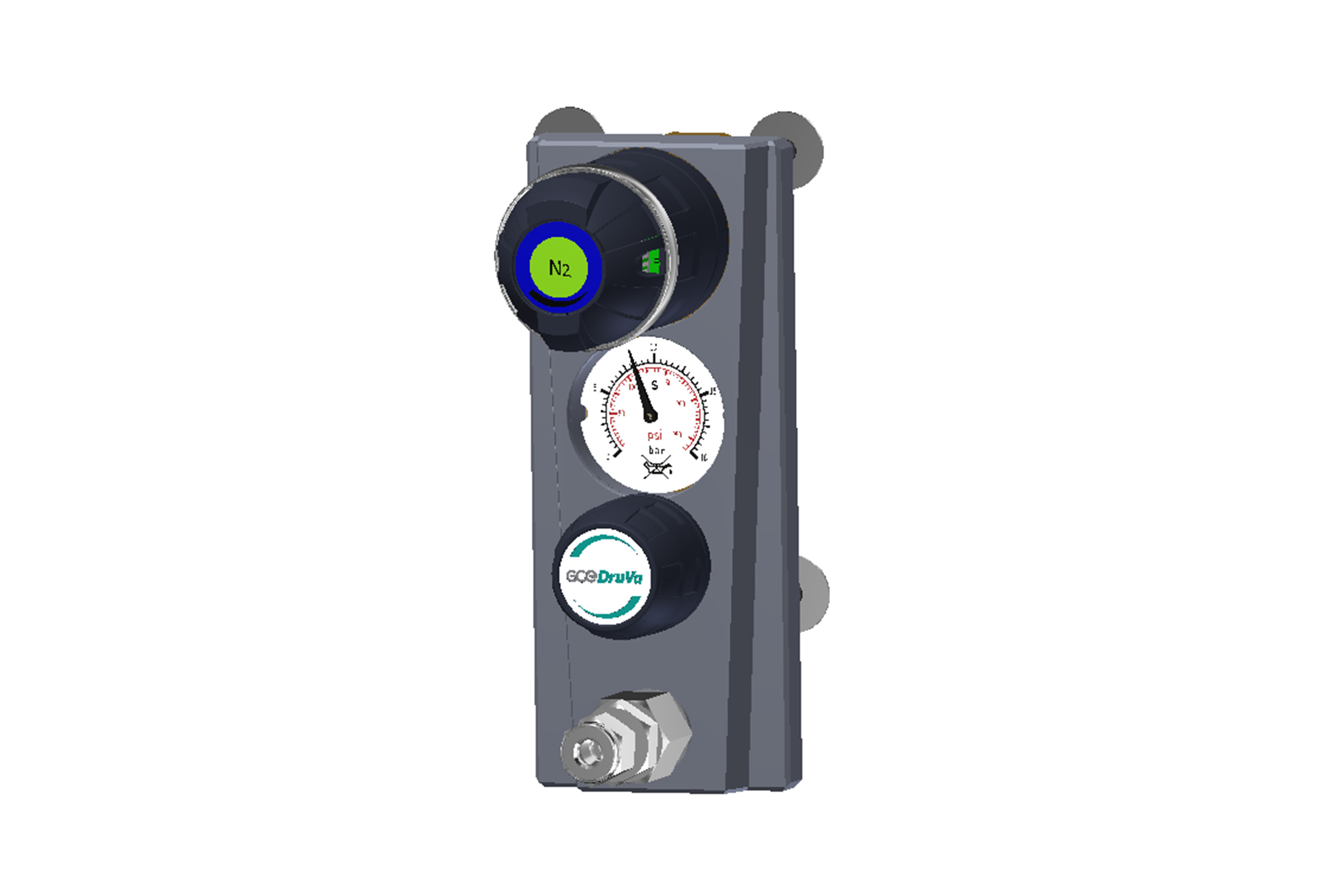

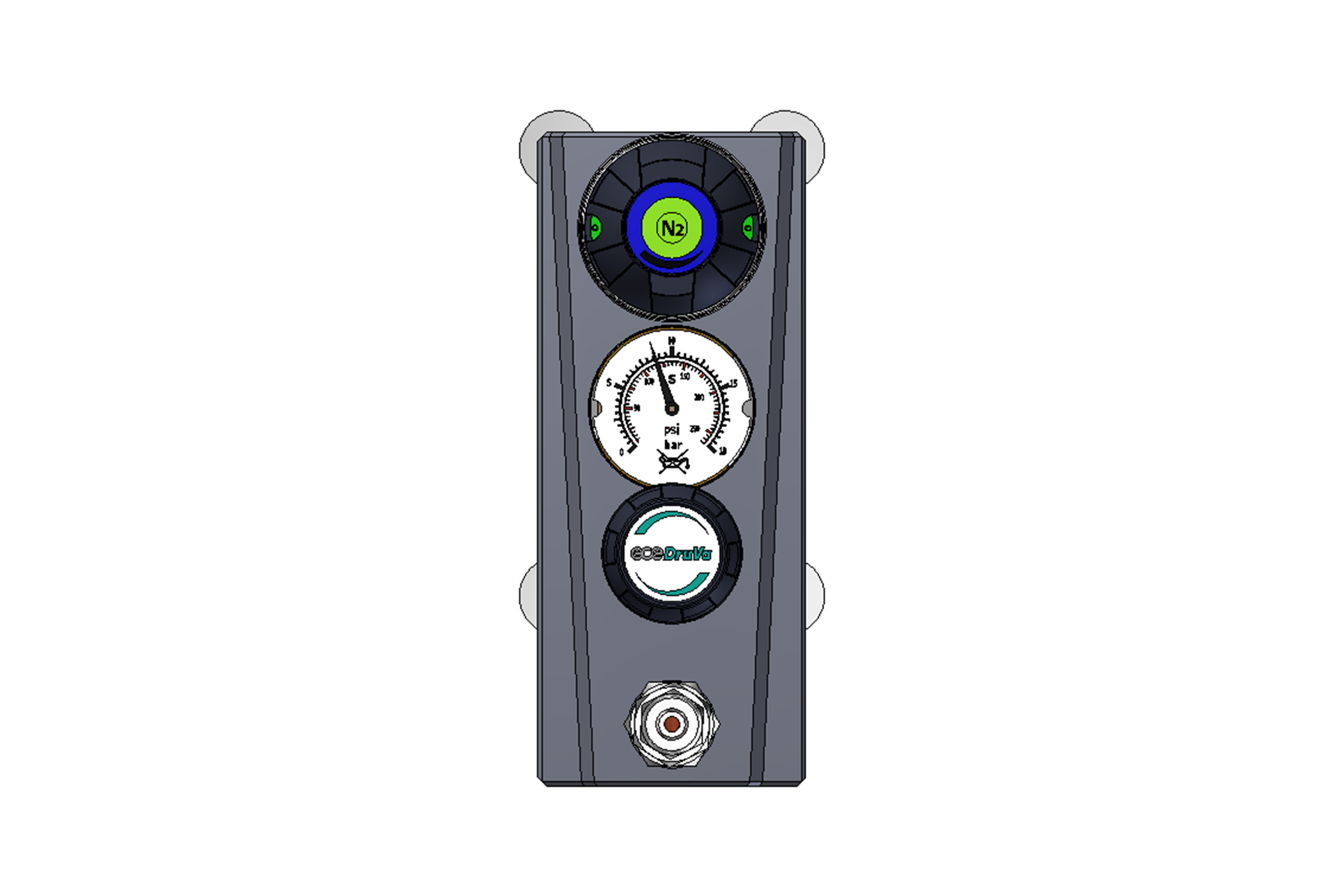

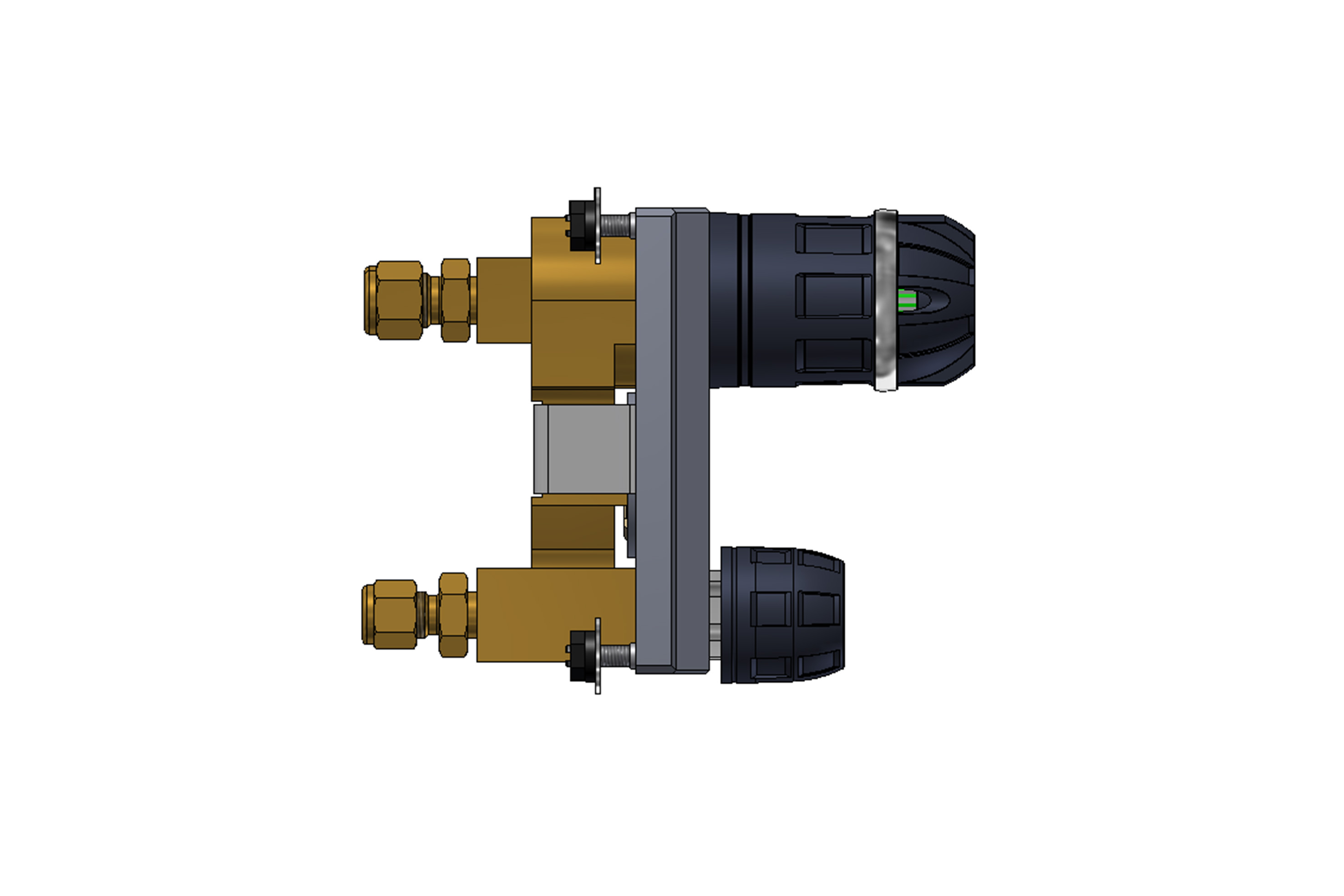

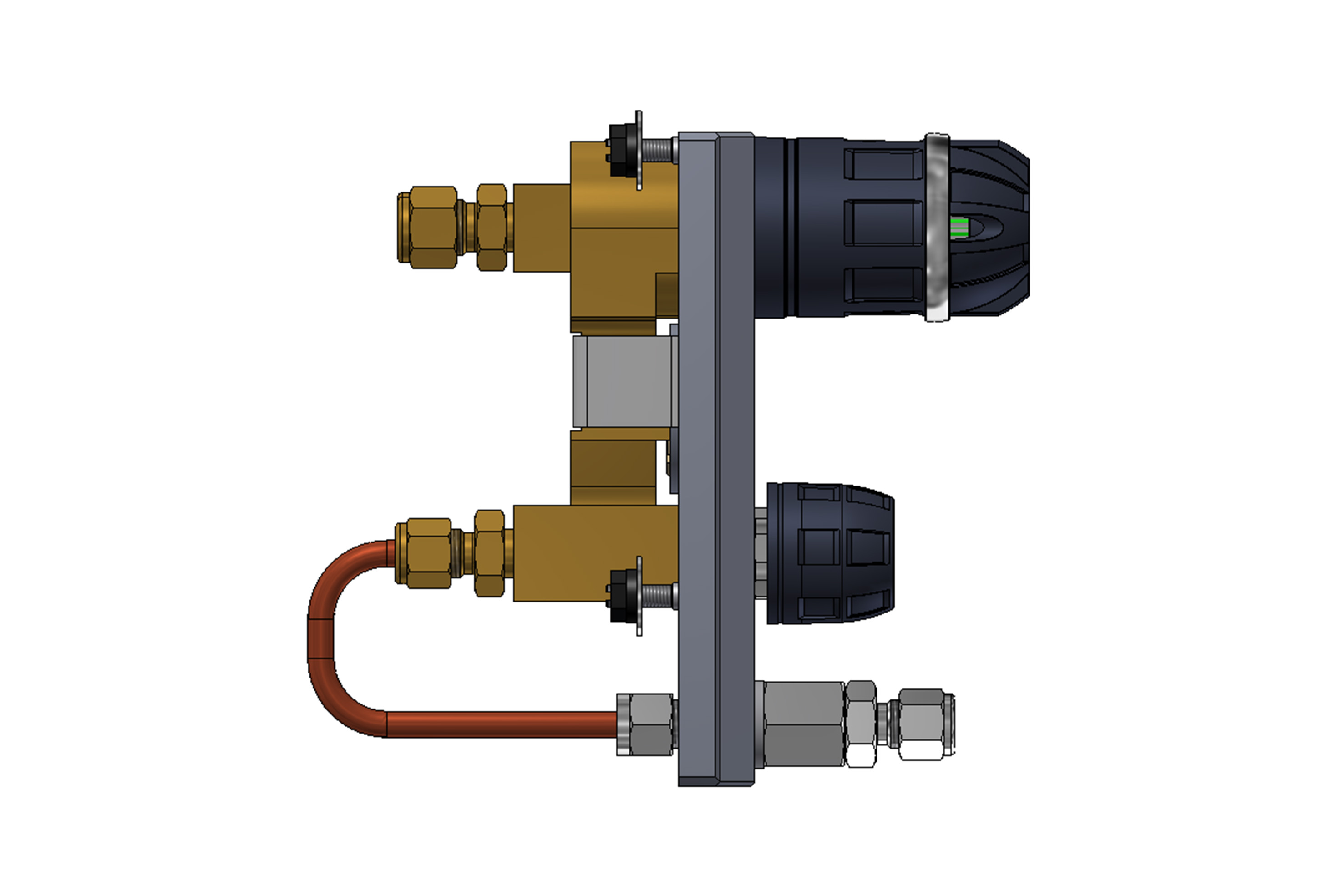

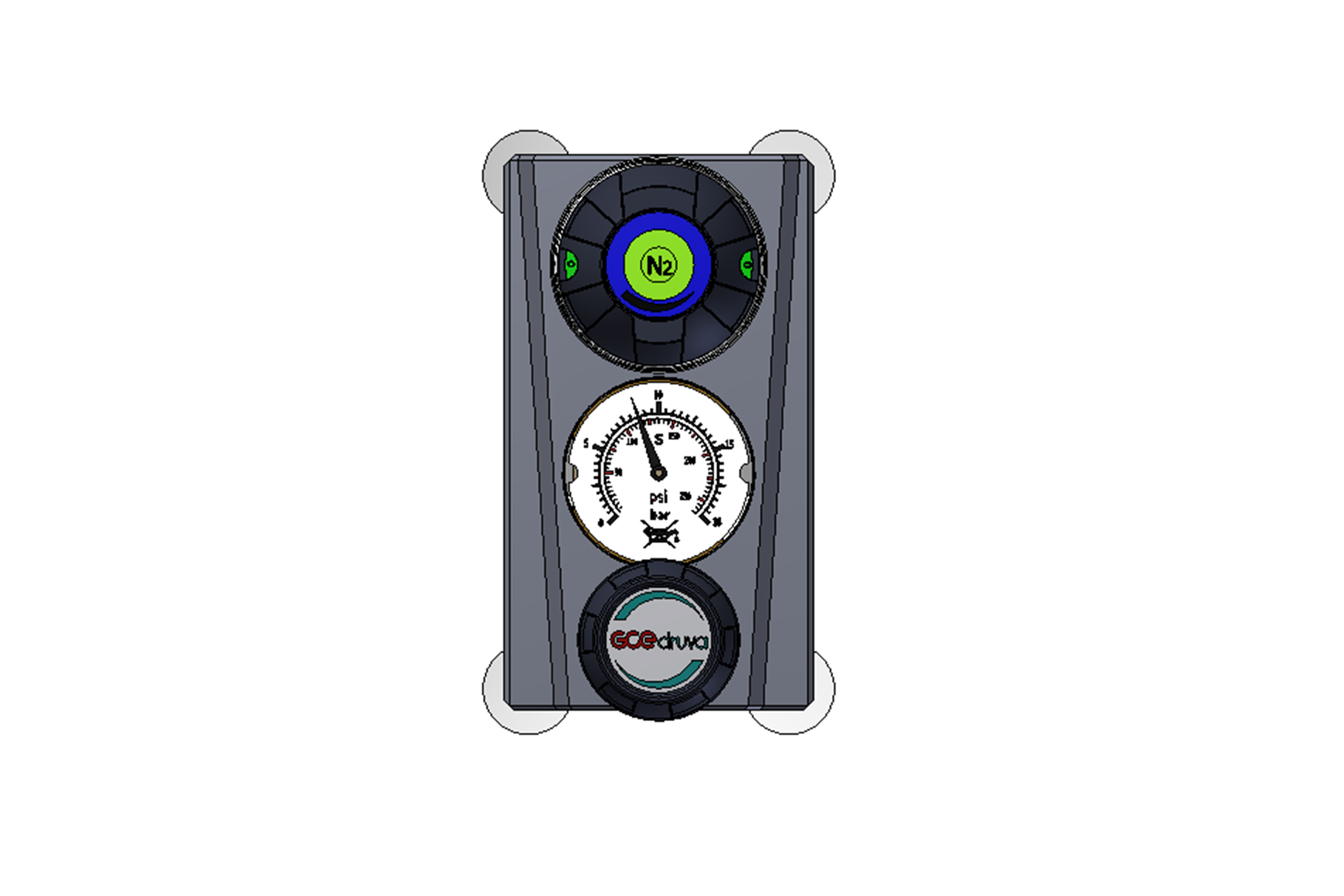

The built-in version is made of a single body mounted on a metal plate. It includes an integrated quick-closing function (shut-off), a regulating valve and a gauge that are all covered by a panel. Four different mounting orientation variants are available (gauge position rotated by 90° for better readability). With the most compact “Version D” the gas is supplied (inlet and outlet) from behind the cover plate. Version Z allows for Gas supply from behind as well, while the outlet is at the front and integrated in the cover panel.

APPLICATION

This highly compact, space saving built-in version of the EMD3100 point-of-use regulator is designed to fit into walls, gas channels, fume hoods and all laboratory furniture systems. An analytic version (LAB 3104) is specially designed for low pressure applications and offers extremely fine adjustment possibilities for pressure and flow rate.

  • Pressure regulator with integrated shut-off function
  • Coloured identification of shut-off positions
  • Highly compact form
  • ECD-compliant
  • Ergonomic positioning of the operational elements
  • User-friendly system solutions for laboratory applications components
  • Adjustment knob with gastype identification according to DIN EN 13792
  • Analytic version optionally available
  • Easy to install
  • Single-stage, for inert, reactive, flammable and oxidizing gases and gas mixtures
  • Purity max. 6.0
Product Specification Top
Max Inlet Pressure 12 bar
Max Outlet Pressure 1,5 = 0,2 - 1,5 bar | 4 = 0,2 - 4 bar | 10 = 0,5 - 10,5 bar
Body Material Type BC= Brass SS=Stainless steel
Inlet Connection Modular - check datasheet
Outlet Connection Modular - check datasheet
Technical Datasheets Top

Download Technical Datasheets

Acrobat Logo 735100000826_DRUVA_EMD_3100_EN_02092014_2_2014.pdf

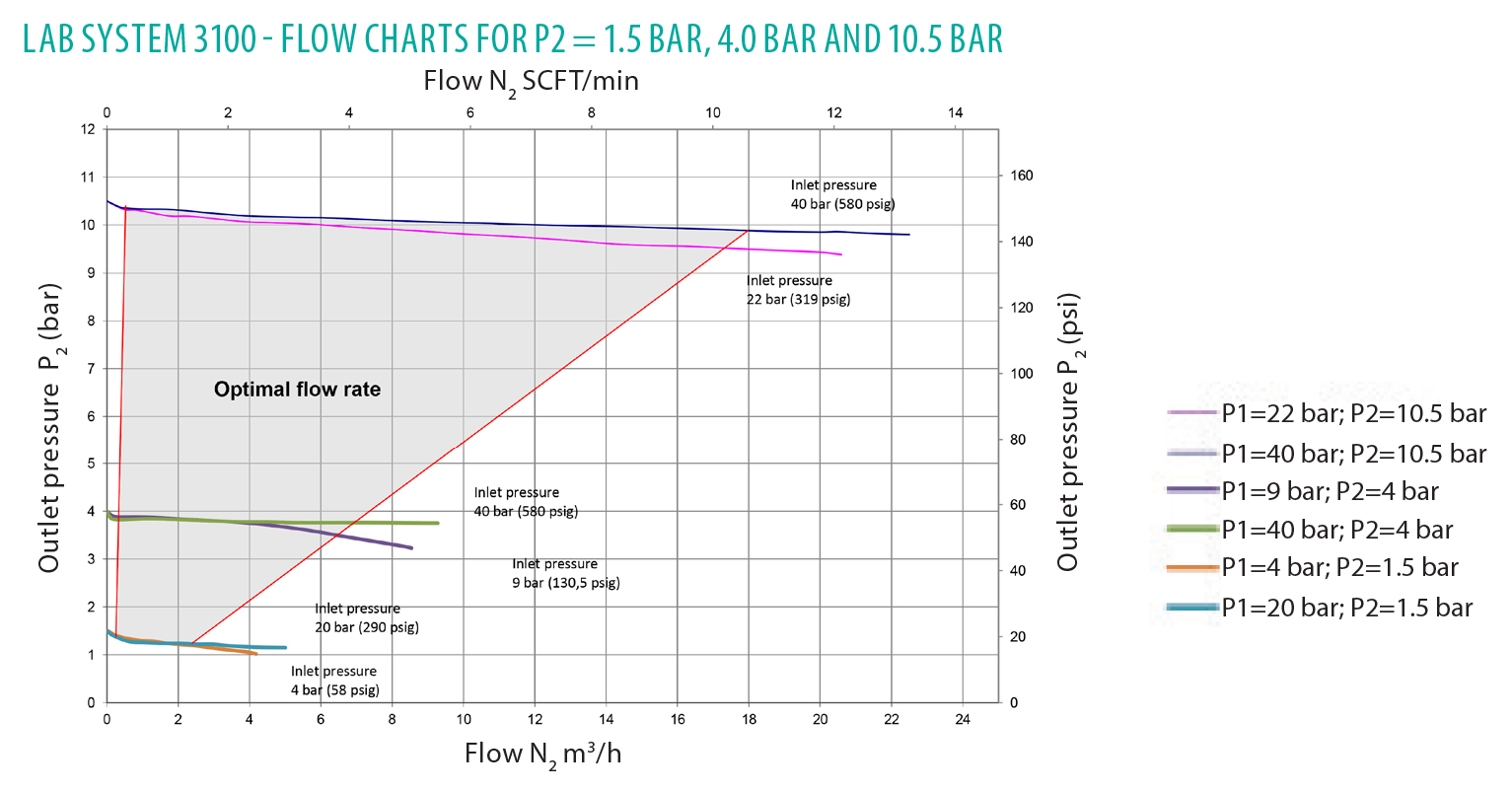

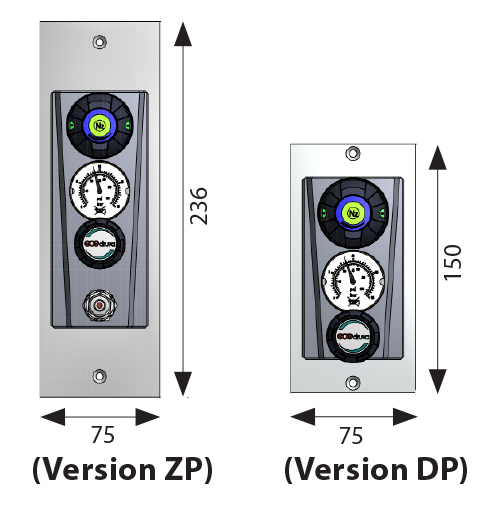

Technical Drawings Top

Download Technical Drawings

Downloads Top

Additional Downloads for this Product

Acrobat Logo V000049_IFU_LAB3100_DE_EN_rev_01.pdf
