LOW FLOW RANGE - DUAL STAGE - SIX PORT VERSION

LINE REGULATOR FOR USE IN PURE GAS SUPPLY SYSTEMS, Low pressure range

6-port dual stage line regulator is used in gas supply systems for pure, inert, flammable, oxidizing, corrosive gases and/or toxic gases and gas mixtures. Maximum gas purity is 6.0.

SPECIAL FEATURES

  • Hastelloy diaphragm tighting system to atmosphere
  • Compact design
  • Excellent pressure adjustment
  • Designed and approved regarding ISO 7291
  • Relief valve in delivery pressure side available
  • Electrostatic chargeability test
    • Fulfils requirements according to DIN EN ISO 80079-36; IEC TS 60079-32-1 and German TRGS 727
    • Usable in EX-areas zones 1 and 2 for gases with explosion risk group I; IIA; IIB; IIC

TECHNICAL DATA

Working temperature: -20°C to +60°C
Flow nominal: 3 m3/h
Material: Brass chrome plated or Stainless steel
Pressure rates line regulators:
   Max. inlet pressure: 300 bar
   Delivery pressure: 1 bar/2 bar

Direct link to druva product configurator

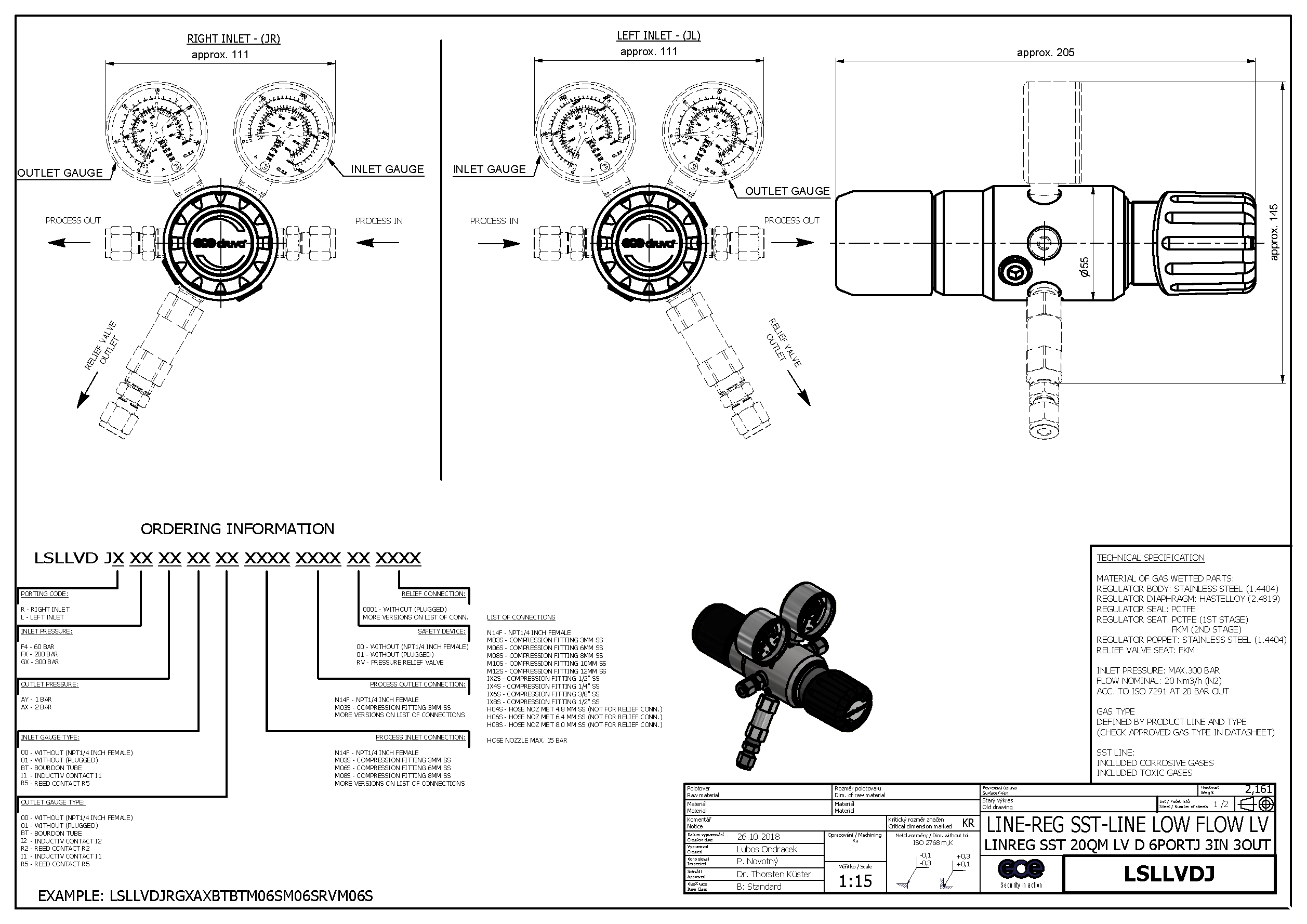

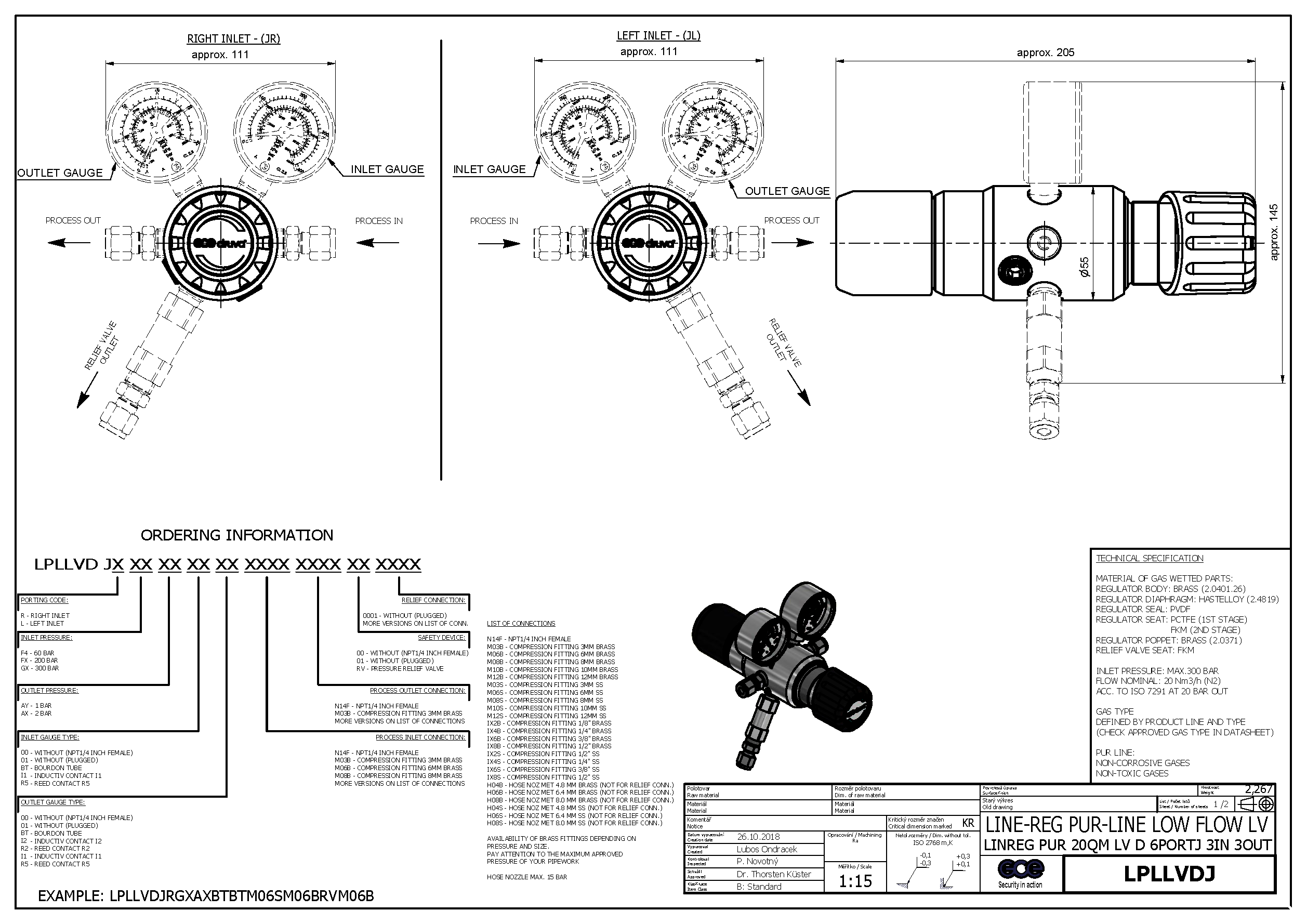

Technical Drawings Top

Download Technical Drawings

Acrobat Logo LPLLEDJ_drawings.pdf Acrobat Logo LPLLVDJ_drawings.pdf Acrobat Logo LSLLEDJ_drawings.pdf Acrobat Logo LSLLVDJ_drawings.pdf
Downloads Top

Additional Downloads for this Product

Acrobat Logo Instruction_for_use_LXLLX_EN-DE.pdf
