LOW FLOW RANGE - SINGLE STAGE - SIX PORT VERSION

CYLINDER REGULATOR FOR USE IN PURE GAS SUPPLY SYSTEMS, High pressure range

6-port single stage cylinder pressure regulator is used in gas supply systems for pure, inert, flammable, oxidizing, corrosive gases and/or toxic gases and gas mixtures. Maximum gas purity is 6.0.

SPECIAL FEATURES

  • Hastelloy diaphragm tighting system to atmosphere
  • Available with several options (shut-off valve, regulating valve, purge valve, etc.), see data sheets
  • Available with several international cylinder connections, see top level drawing
  • Compact design
  • Excellent pressure adjustment
  • Designed and approved regarding ISO 7291 (including O2 ignition test for brass chrome plated version)
  • Relief valve in delivery pressure side available
  • Electrostatic chargeability test
    • Fulfills requirements according to DIN EN ISO 80079-36; IEC TS 60079-32-1 and German TRGS 727
    • Usable in EX-areas zones 1 and 2 for gases with explosion risk group I; IIA; IIB; IIC

TECHNICAL DATA

Working temperature: -20°C to +60°C
Inlet port: Cylinder connection according to national/international directives
Flow nominal: 20 m3/h (N2) according to ISO 7291 at 20 bar out
Material: Brass chrome plated or Stainless steel
Pressure rates cylinder regulator:
  Max. inlet pressure: 300 bar
  Delivery pressure: 2/3/6/10/14/28/50/100/200 bar

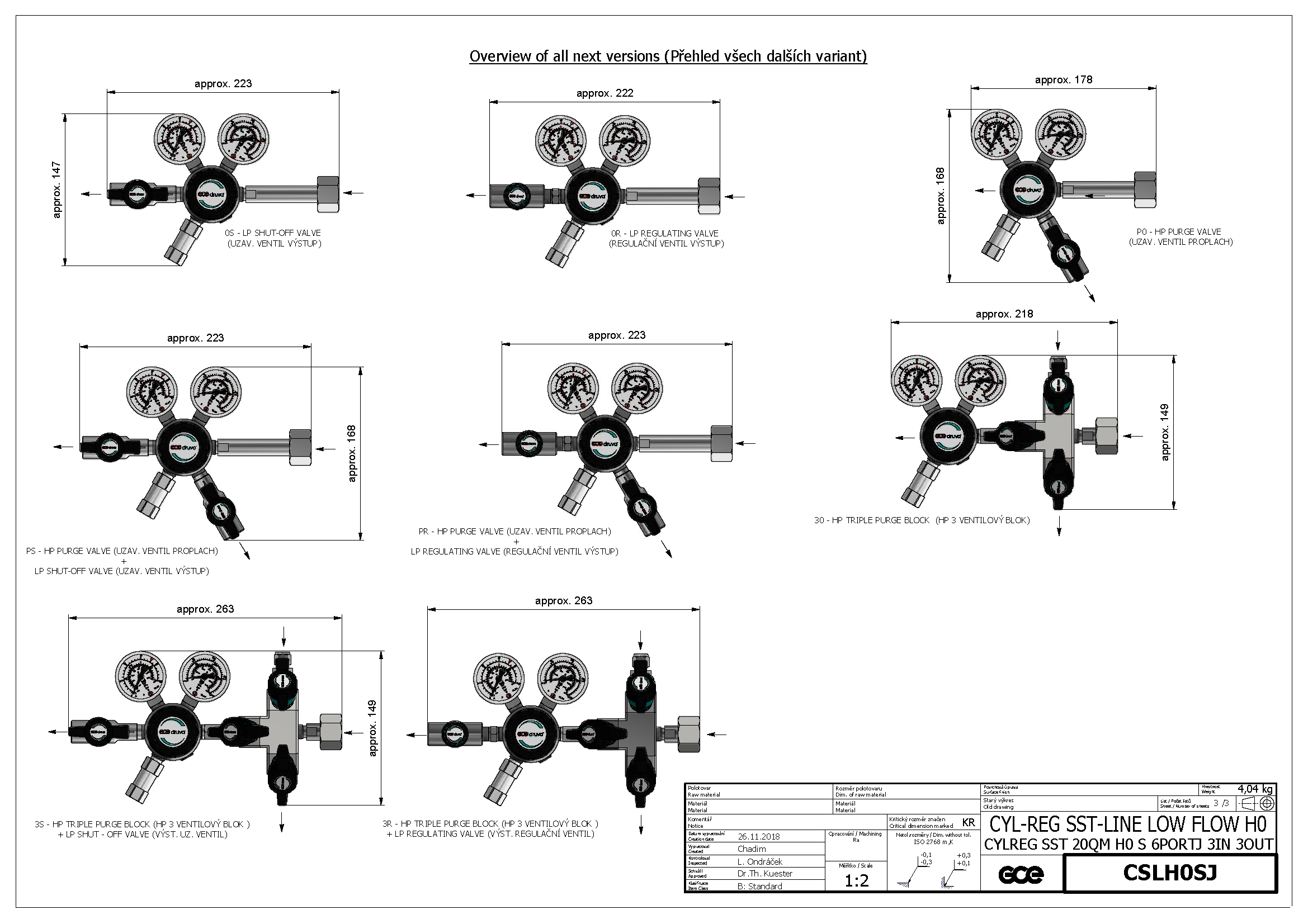

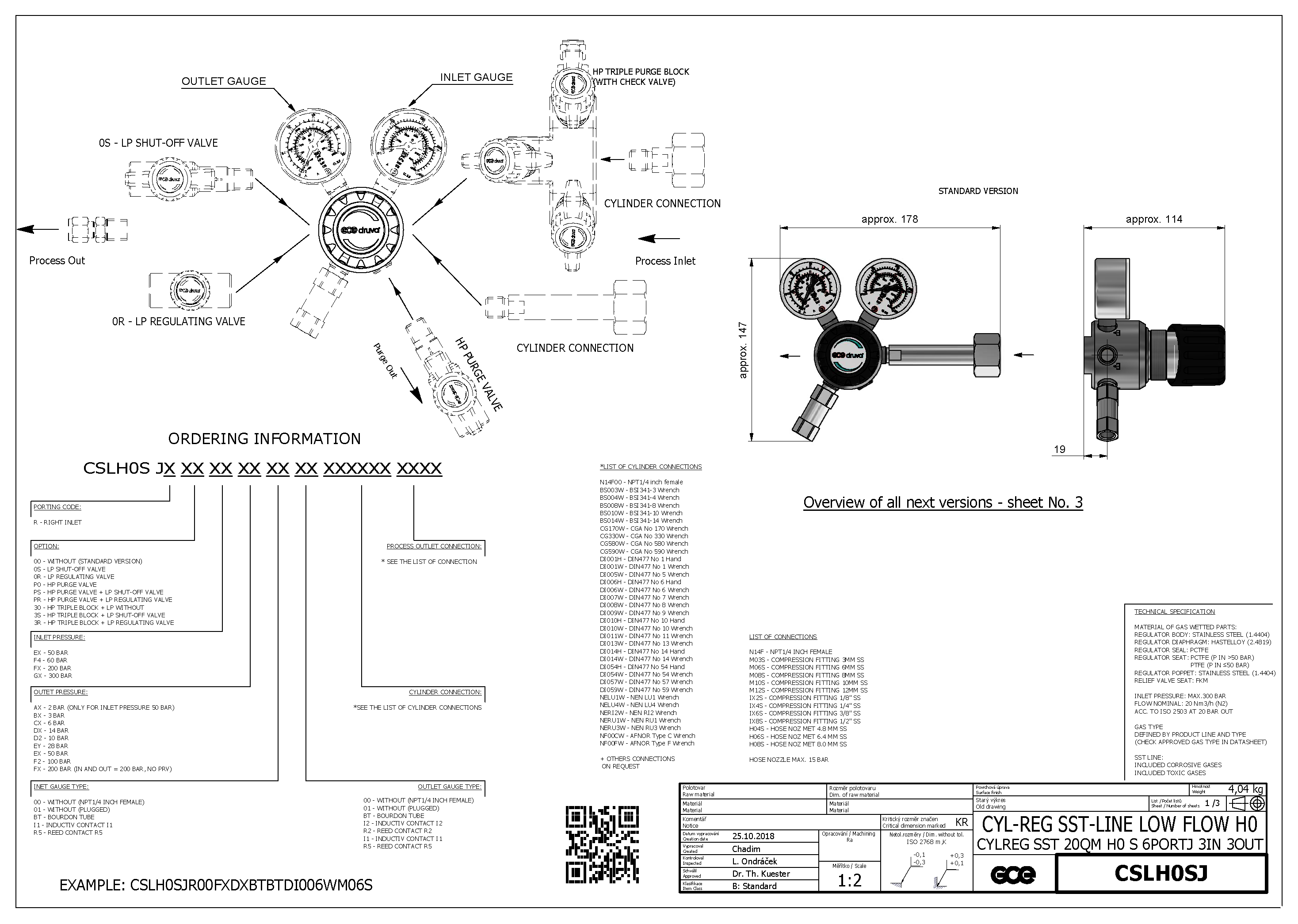

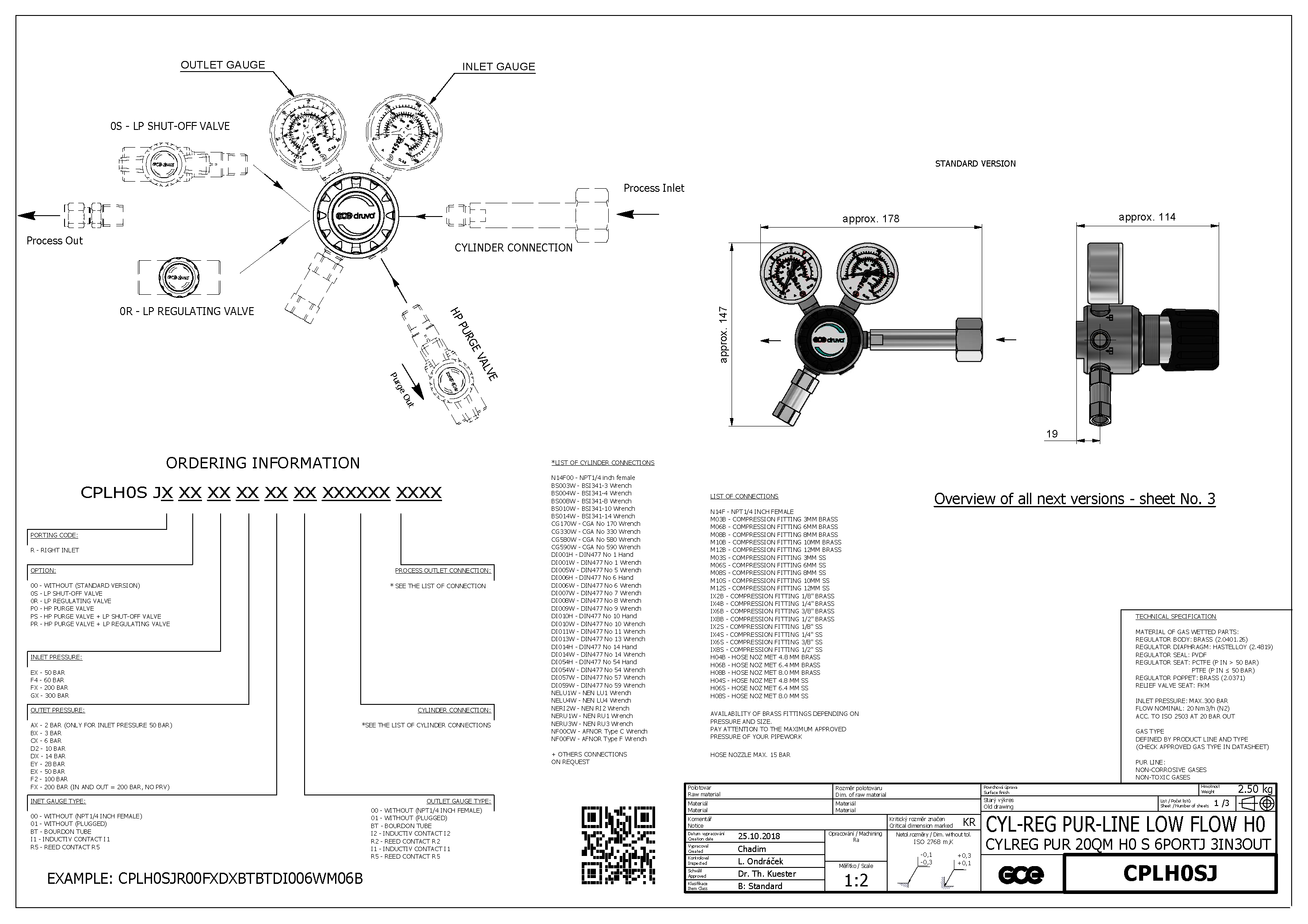

Technical Drawings Top

Download Technical Drawings

Acrobat Logo CPLH0SJ_drawings.pdf Acrobat Logo CPLHESJ_drawings.pdf Acrobat Logo CSLH0SJ_drawings.pdf Acrobat Logo CSLHESJ_drawings.pdf
Downloads Top

Additional Downloads for this Product

Acrobat Logo Instruction_for_use_CXLHX_EN-DE.pdf
