LOW FLOW RANGE - TWO PORT VERSION

VALVE FOR USE IN PURE GAS SUPPLY SYSTEMS, Diaphragm regulating valve with shut-off function

2-port metal diaphragm regulating valve with shut off function is used in supply systems for pure, inert, flammable, oxidizing, corrosive, toxic gases and gas mixtures. Maximum gas purity is 6.0.

SPECIAL FEATURES

  • Elgiloy diaphragm tighting system to atmosphere
  • Compact design
  • Designed and approved in accordance with relevant sections of EN ISO 10297:2015
  • Electrostatic chargeability test
    • Fulfils requirements according to DIN EN ISO 80079-36; IEC TS 60079-32-1 and German TRGS 727
    • Usable in EX-areas zones 1 and 2 for gases with explosion risk group I; IIA; IIB; IIC

TECHNICAL DATA

Working temperature: -20°C to +60°C
Max. working pressure 50 bar
Material: Brass chrome plated or Stainless steel

Direct link to druva product configurator



Technical Drawings Top

Download Technical Drawings

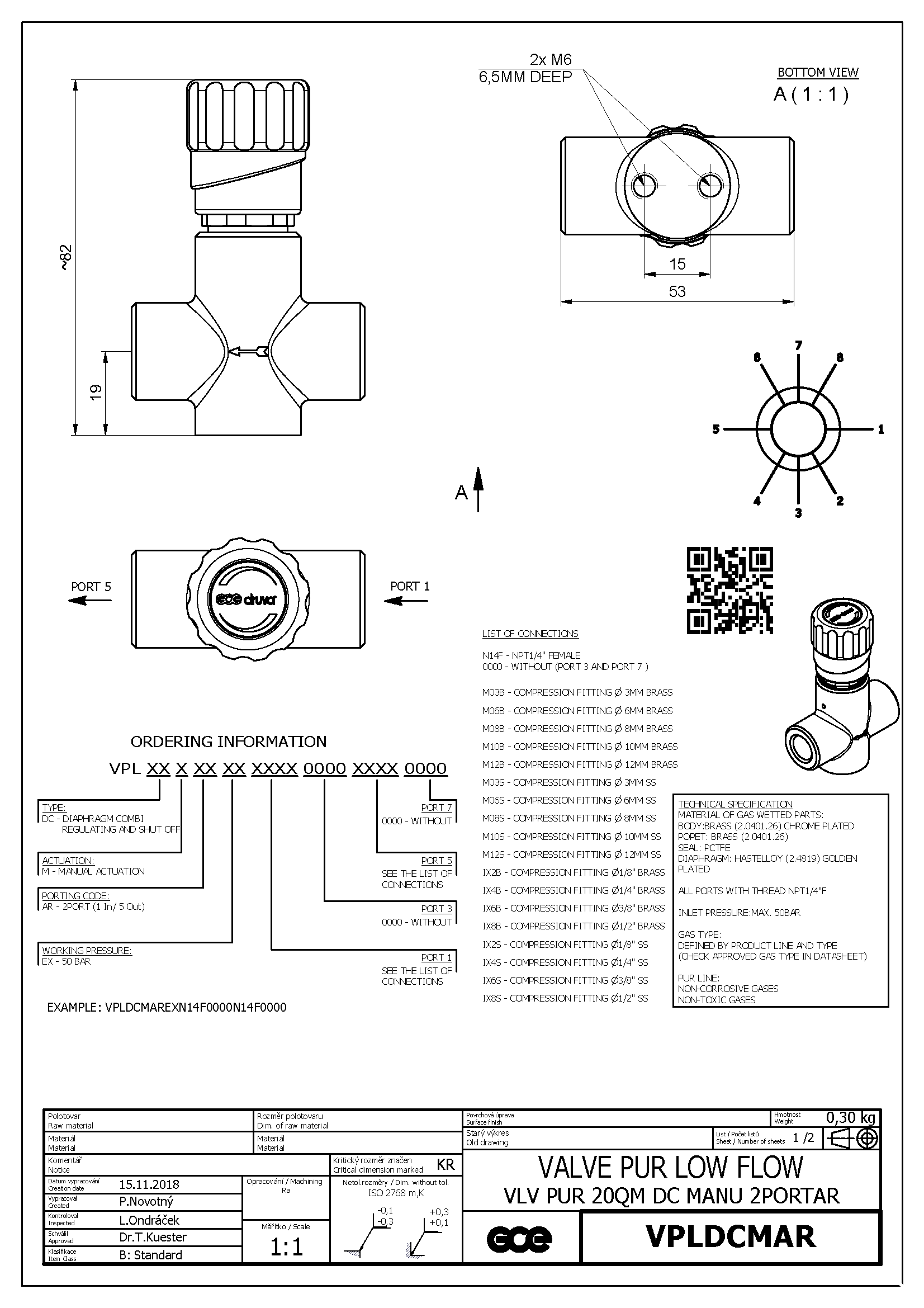

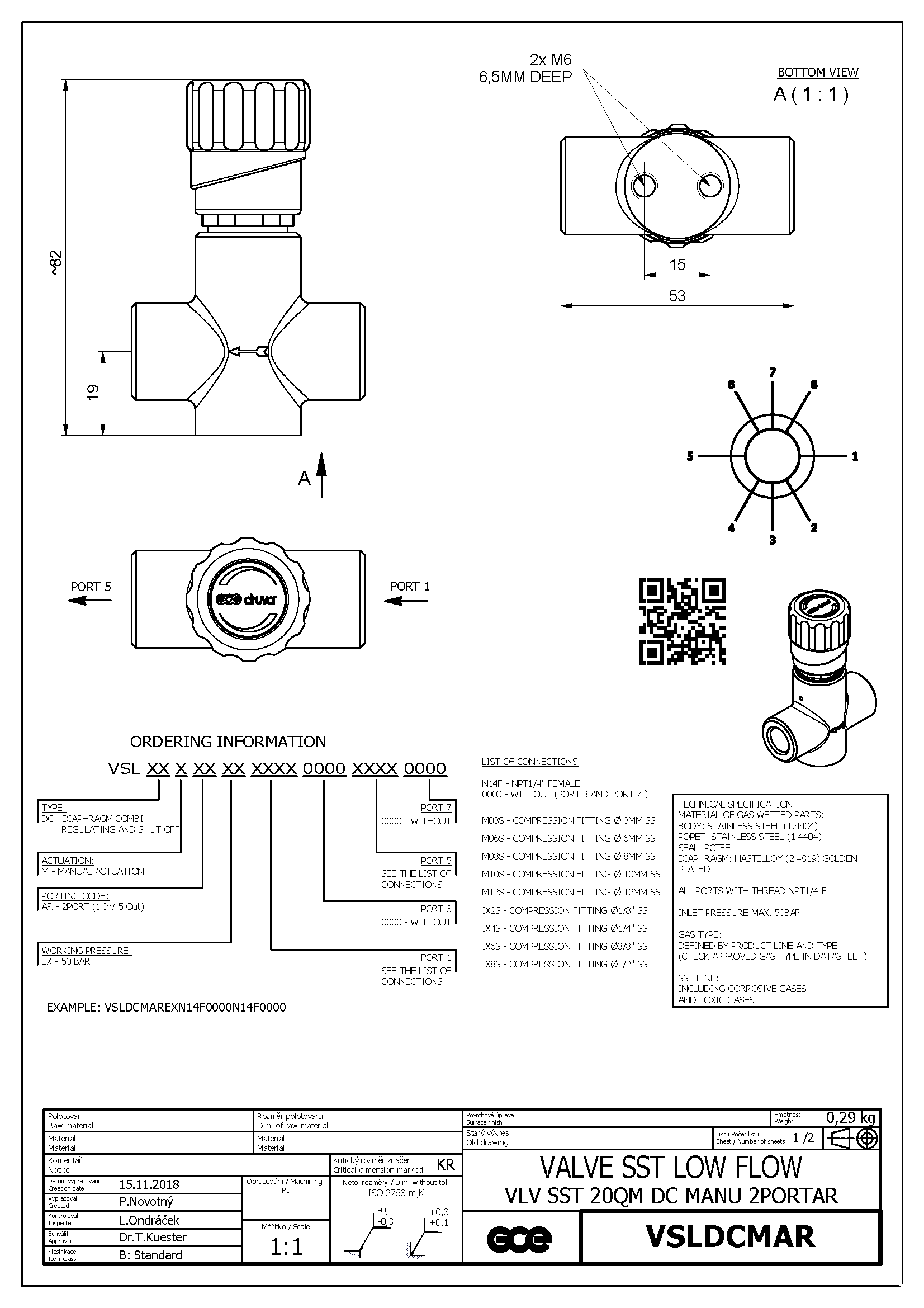

Acrobat Logo VPLDCMAR.pdf Acrobat Logo VSLDCMAR.pdf
Downloads Top

Additional Downloads for this Product

Acrobat Logo Instruction_for_use_VXLDCM_EN-DE.pdf
