S151

Group Number: 2722

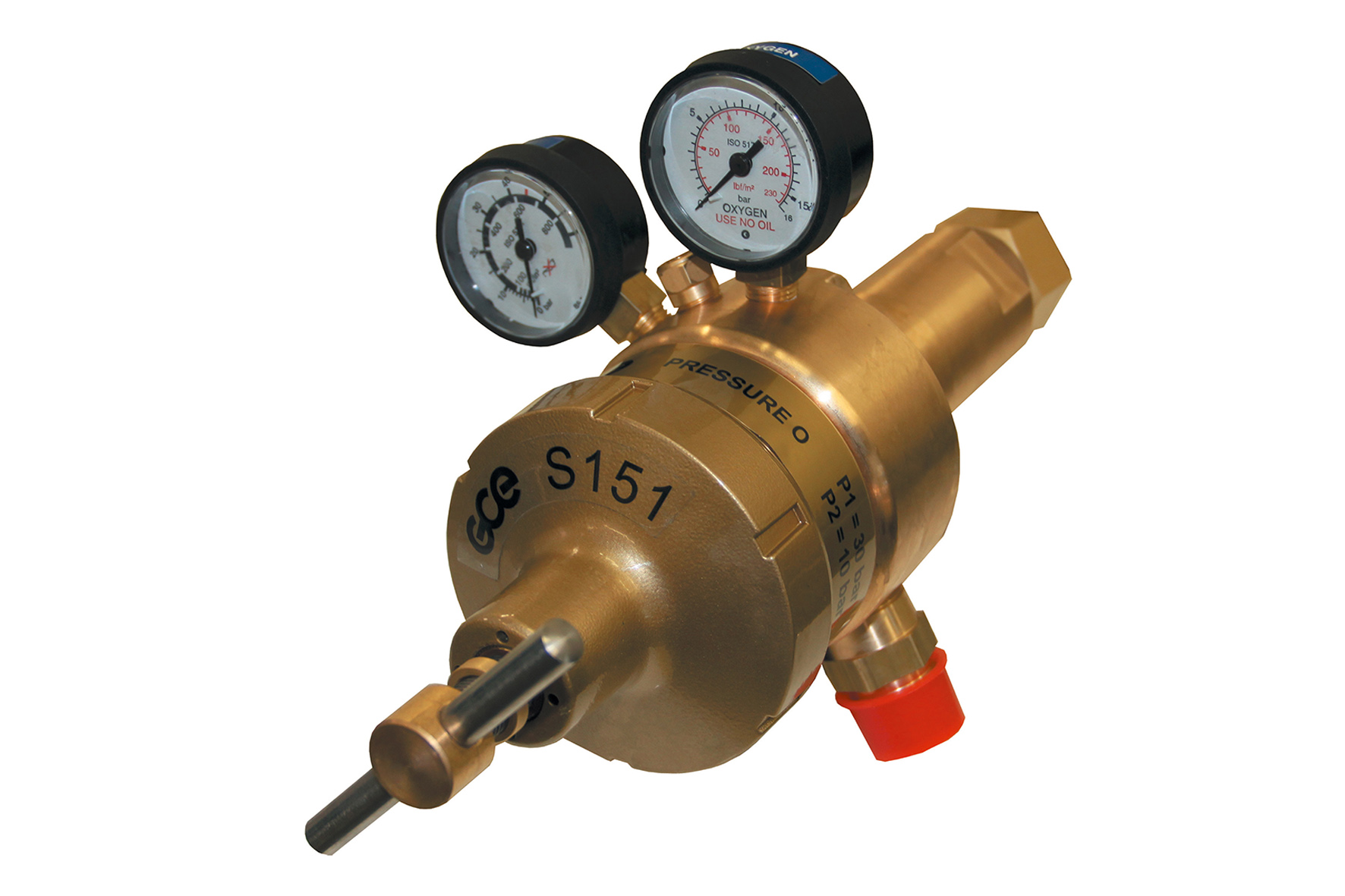

  • S151 is low pressure high flow regulator for industrial applications
  • Oxygen and inert gas service up to 600 Nm3/h
  • 90° connectors (rear entry, bottom outlet) for direct in-line mounting as the tapping point regulator
  • It is pneumatic controlled (dome loaded) regulator with integrated pilot regulator. This design feature is stabilizing outlet pressure at the high flow
  • Integrated inlet filter ensures reliable function of the regulator even with old or dirty upstream pipeworks
  • It can be used in many low pressure applications where is requested high-flow outlet with constant delivery pressure
  • Typical applications: Oxy-fuel cutting and other various oxy-fuel processes, laser process gas service, arc welding shielding gas pressure stabilizing

TECHNICAL DATA

Bodies and bonnet material: Brass
Main diaphragm material: EPDM
Pilot diaphragm material: NBR
Seat sealing: PA
Inlet filter: 37,5 μm, bronze
Connectors & fittings: Brass
Inlet connection: G1“
Outlet connection: G3/4“
Maximal inlet pressure for oxygen: 30 bar
Maximal inlet pressure for inert gases: 40 bar
Outlet pressure range: 0-10 bar
Temperature range: from -20 °C to 60 °C
Coefficient „i“: 0,042
Coefficient „R“: 0,090
Weight: 6,9 kg

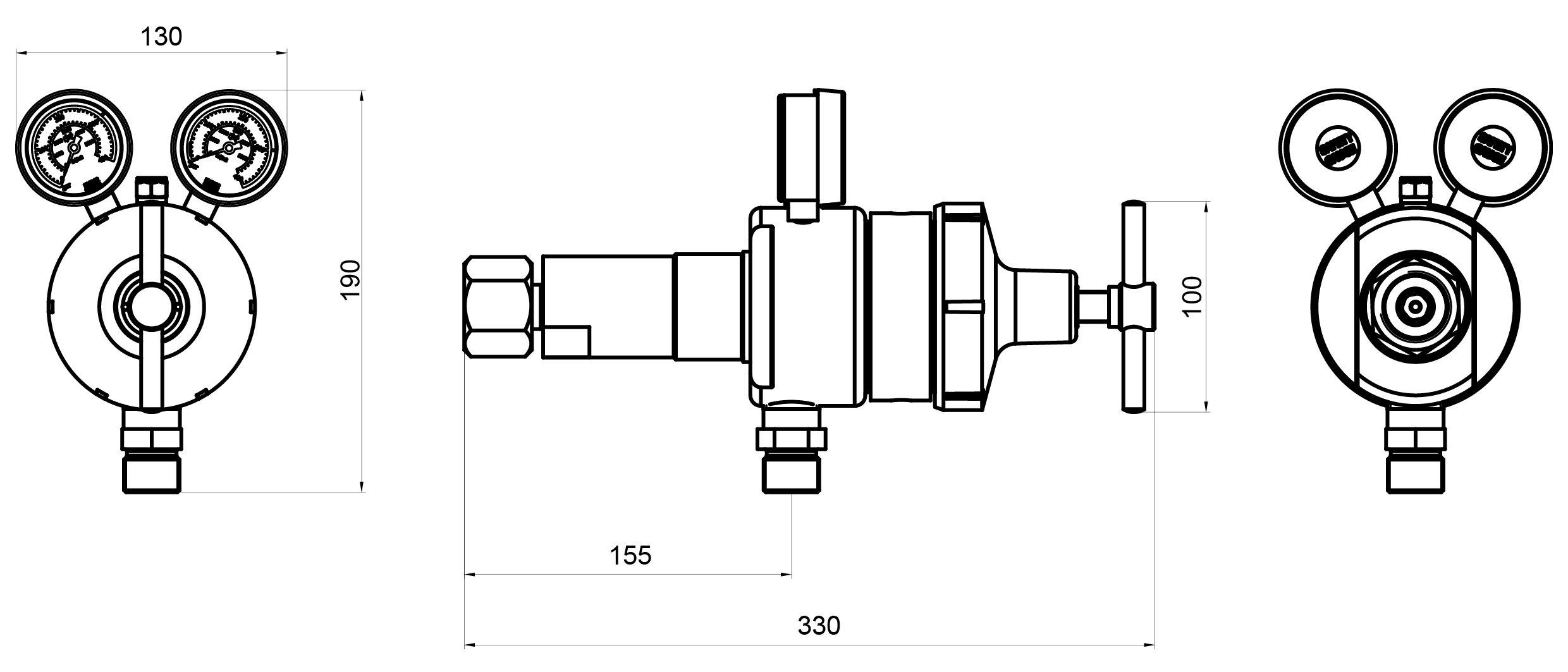

Technical Drawings Top

Download Technical Drawings
