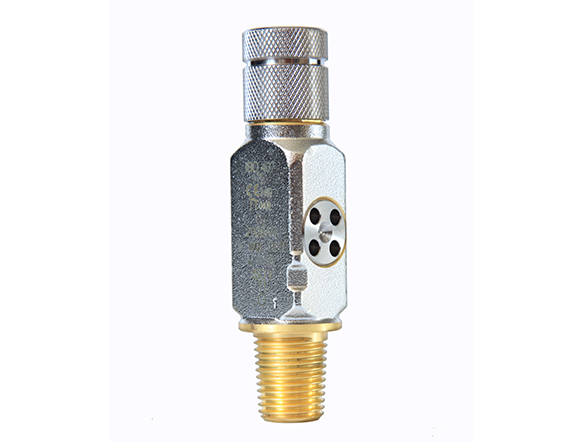

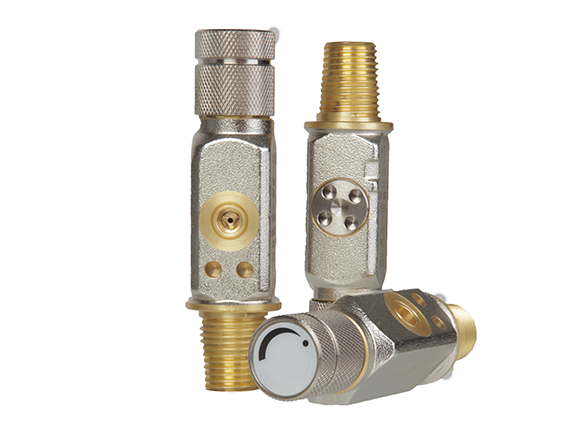

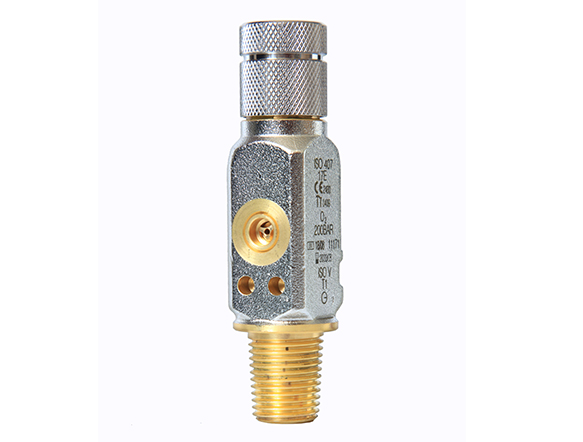

PIN-INDEX VALVES

Whole medical range is available on

GENERAL:

  • Available in all of the common inlet connections
  • For all medical gases
  • Variants with RPD and burst disc
  • Ergonomic brass handwheel
  • Body made from forged brass
  • Low torque handwheel operation
  • Clean room assembly
  • Durable laser marking
  • 15 years life time for RPD valves

735100001391 Pin-Index EN leaflet

TECHNICAL DATA

Gas: O2, Air, N2, Ar, CO2, N2O. He and others
Inlet pressure: Up to 200 bar (3000 psi)
RPD closing: > 2 bar
Inlet connection: Tapered or parallel threads

17E, 25E, M18x1,5, 3/4"-16 UNF-2A, 1/2" NGT or per customer specification
Outlet connection: According to CGA V-1/ISO 407
Materials: Nickel plated brass
Burst disc: 190, 216, 250, 300 bar, for CO2 and N2O, other gases optional
Operating temperature: -20°C to +65°C
Storage and transport temperature: -40°C to +65°C

Regulatory status:

Complies with MDD 93/42/EEC
Complies with TPED 2010/35 EU
Complies with EN ISO 10297
Complies with EN ISO 15996
Production according to EN ISO 9001 and EN ISO 13485
Classification: IIb
Manufacturer: GCE s.r.o., Žižkova 381, 583 81 Chotebor, Czech Republic

PIN-INDEX VALVES

STANDARD PIN-INDEX VALVES

Art. Nr. Gas Inlet connection Burst disc
0714014 O2 25E -
0714002 O2 17E -
0714015 AIR 25E -
0714016 AIR 17E -
0714006 O2/N2O 25E -
0714017 O2/N2O 17E -
0714007 N2O 25E 216 bar
0714018 N2O 17E 216 bar
0714019 CO2 25E 250 bar
0714020 CO2 17E 250 bar
0714021 HE 25E -
0714022 HE 17E -

PIN-INDEX VALVES WITH RPD

Art. Nr. Gas Inlet connection Burst disc
0714000 O2 25E -
0714001 O2 17E -
0714013 AIR 25E -
0714012 AIR 17E -
0714005 O2/N2O 25E -
0714023 O2/N2O 17E -
0714024 N2O 25E 216 bar
0714025 N2O 17E 216 bar
0714026 CO2 25E 250 bar
0714027 CO2 17E 250 bar
0714028 HE 25E -
0714029 HE 17E -

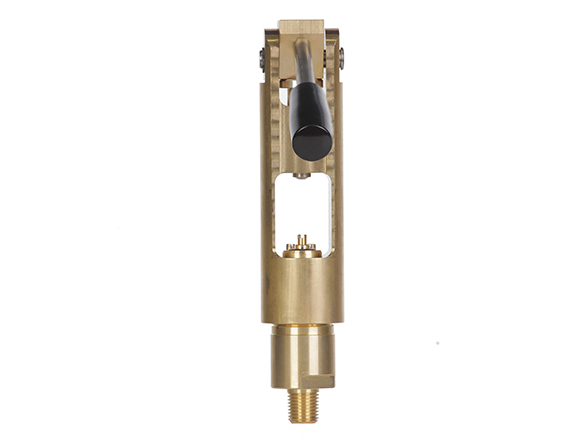

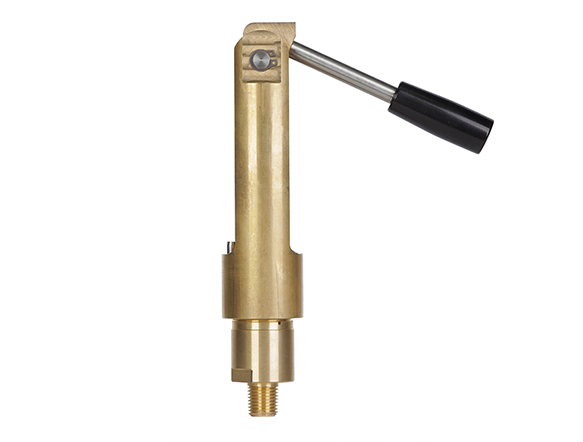

Filling adaptors are used for both types of valves, with/without RPD.
Item number upon request with the specification of the connection part.

ACCESSORIES

Art. Nr. Description
on request Filling adaptor
