MEDIUNIT SS TYPE

Group Number: 3655

Whole medical range is available on

Medical terminal units provide a quick and easy connection of hospital ward gas equipment to the hospital gas source. The type of medical gas outlets are decided by national standards in each country and sometimes from local requests in each hospital. GCE complies with ISO 7396 and national installation standards with secure products where every product is fully tested in production. Our Medical gas outlets are in accordance with the ISO EN 9170-1 international standard.

  • 10 years free of preventive maintenance except TU's intended for use of running surgical tools
  • All functional components are from brass
  • Simple installation

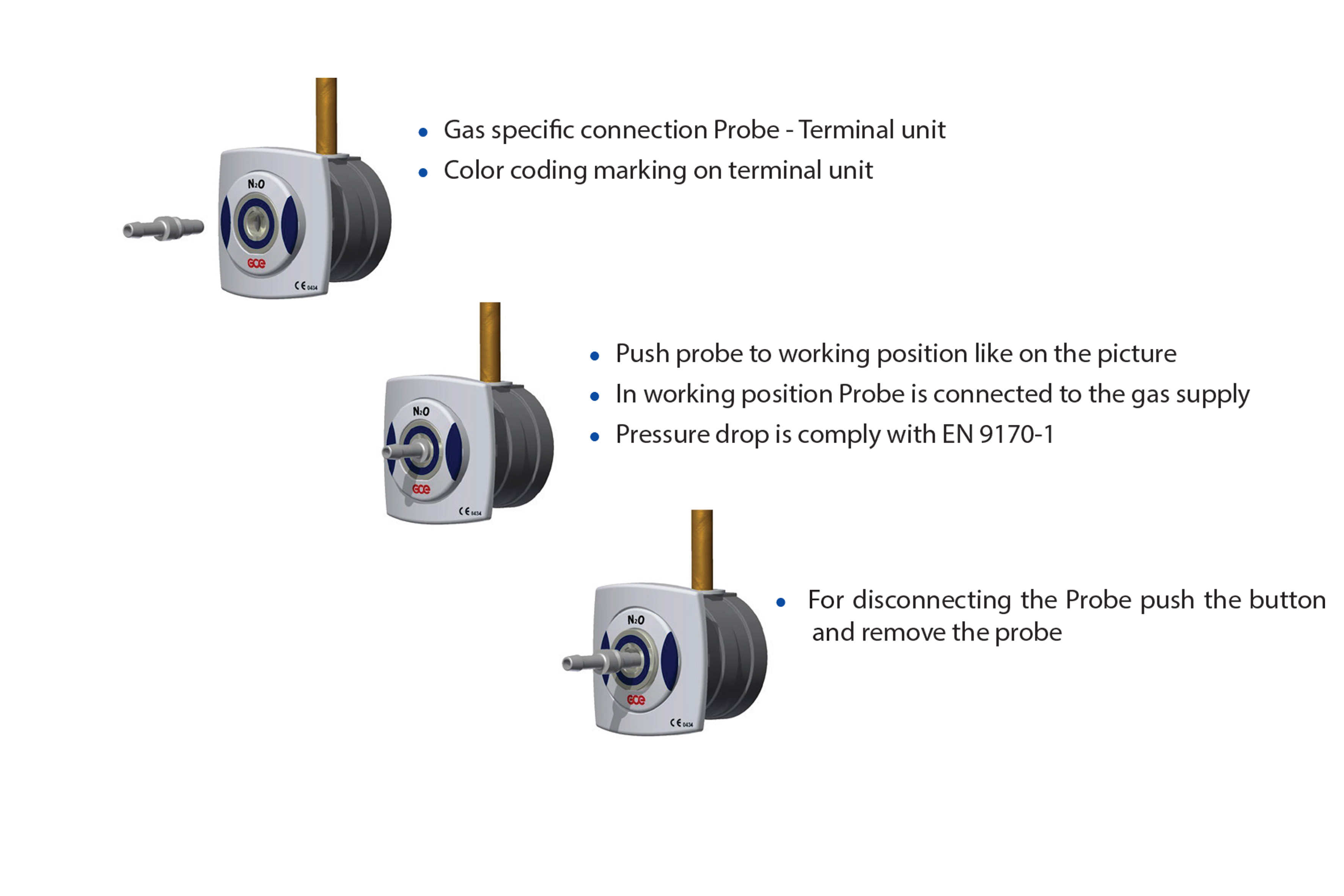

  • Fast connection and disconnection
  • Designed for the medical environment, small size and easy to clean
  • Complies with colour coding and description by standard
  • After 10 years it is possible to upgrade the units with a special upgrade pack
  • Recessed and exposed versions

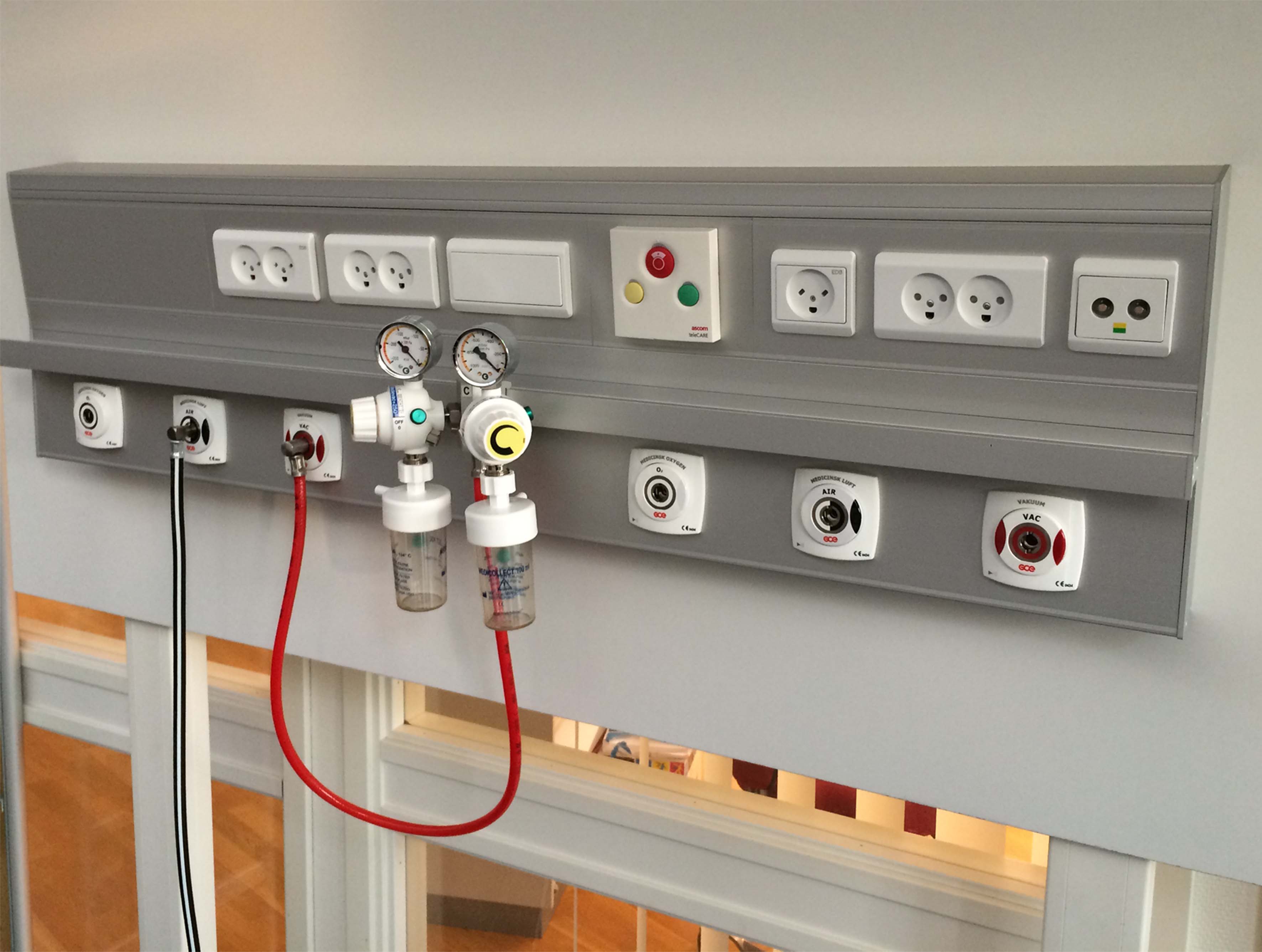

  • Bed head installation versions (customized solution on request)
Item No. Denomination Country Type
(mm)
Marking
0732200073 O2 – RECESSED SE Pipe ∅ 10 ANDNINGSOXYGEN

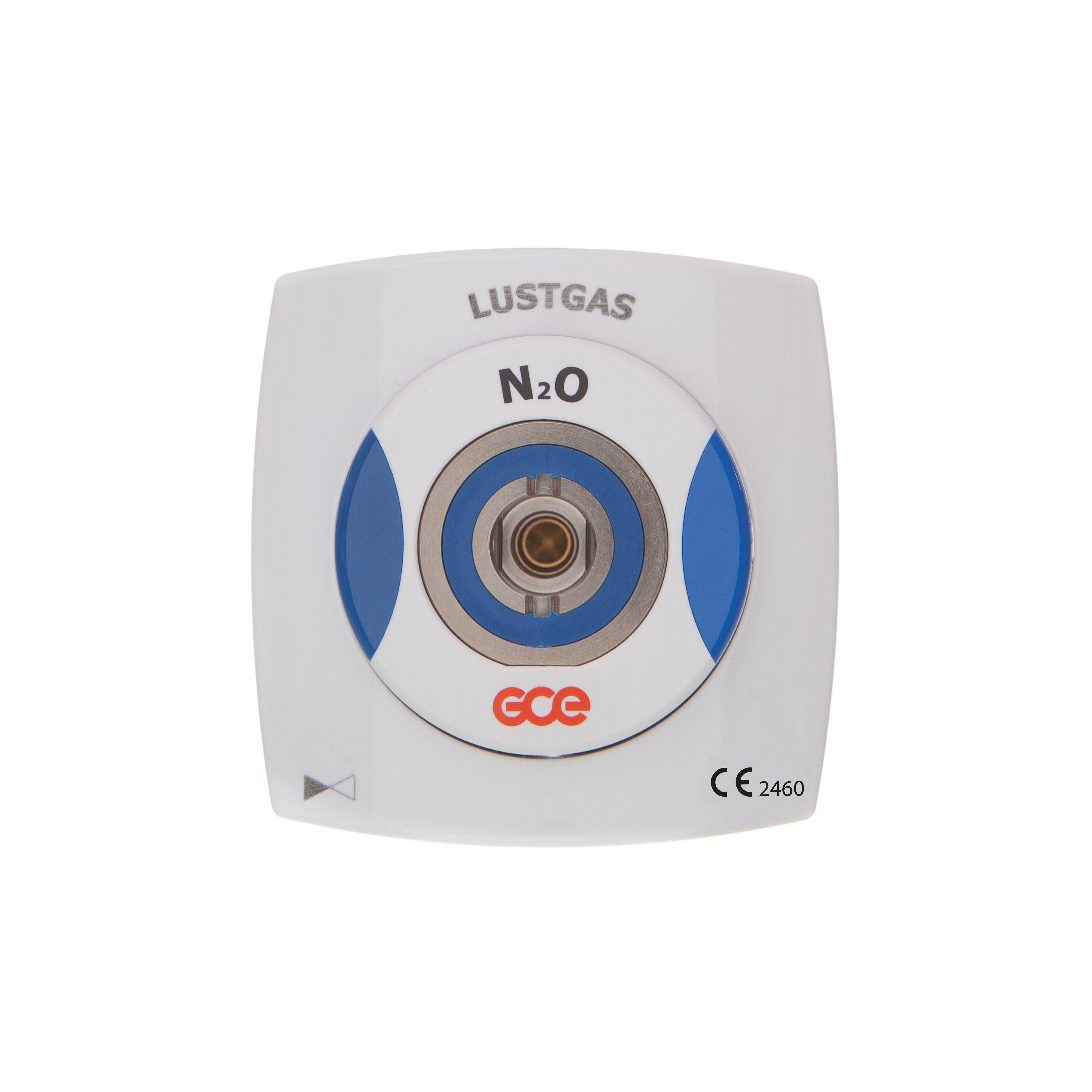

0732200076 N2O – RECESSED SE Pipe ∅ 10 LUSTGAS

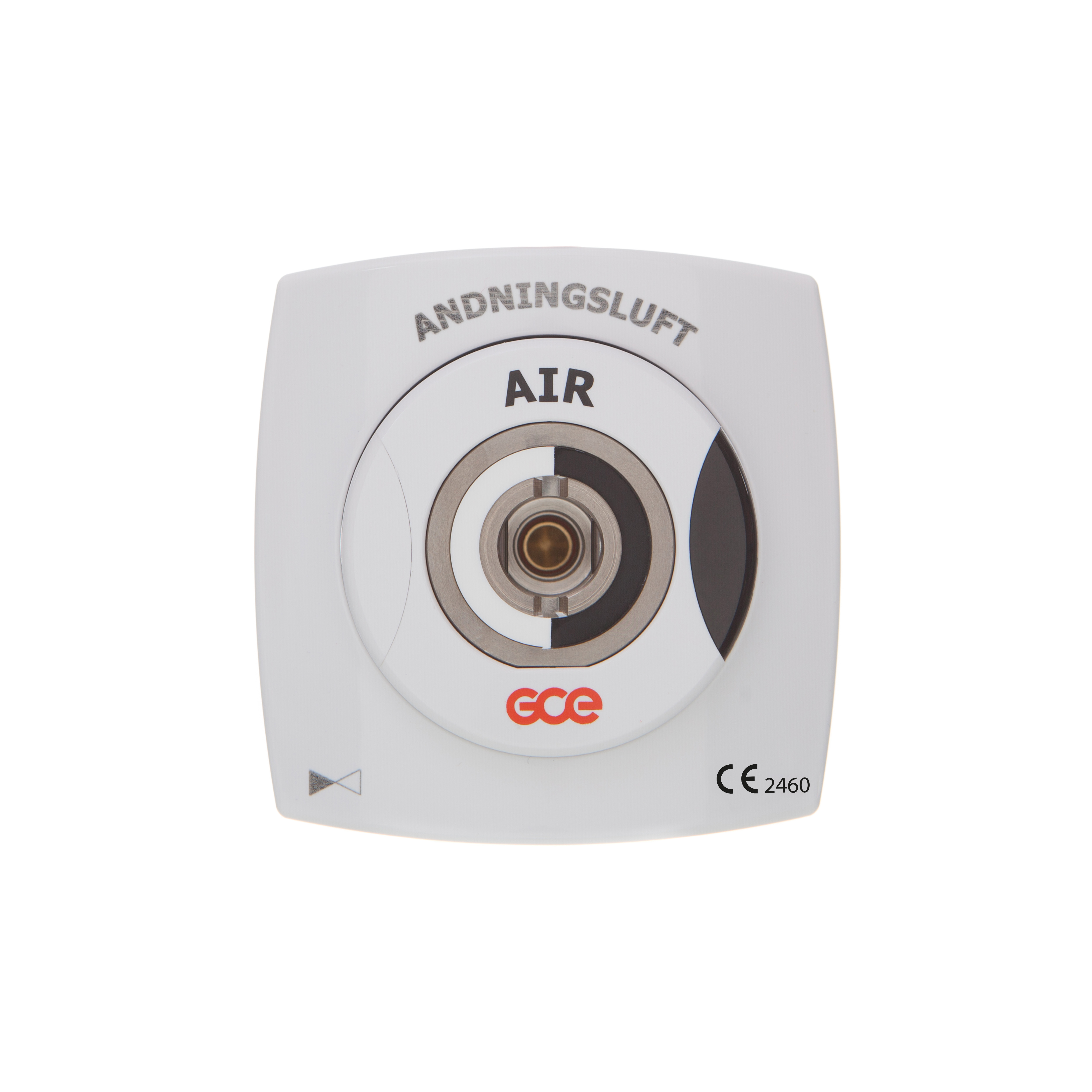

0732200074 AIR – RECESSED SE Pipe ∅ 10 ANDNINGSLUFT

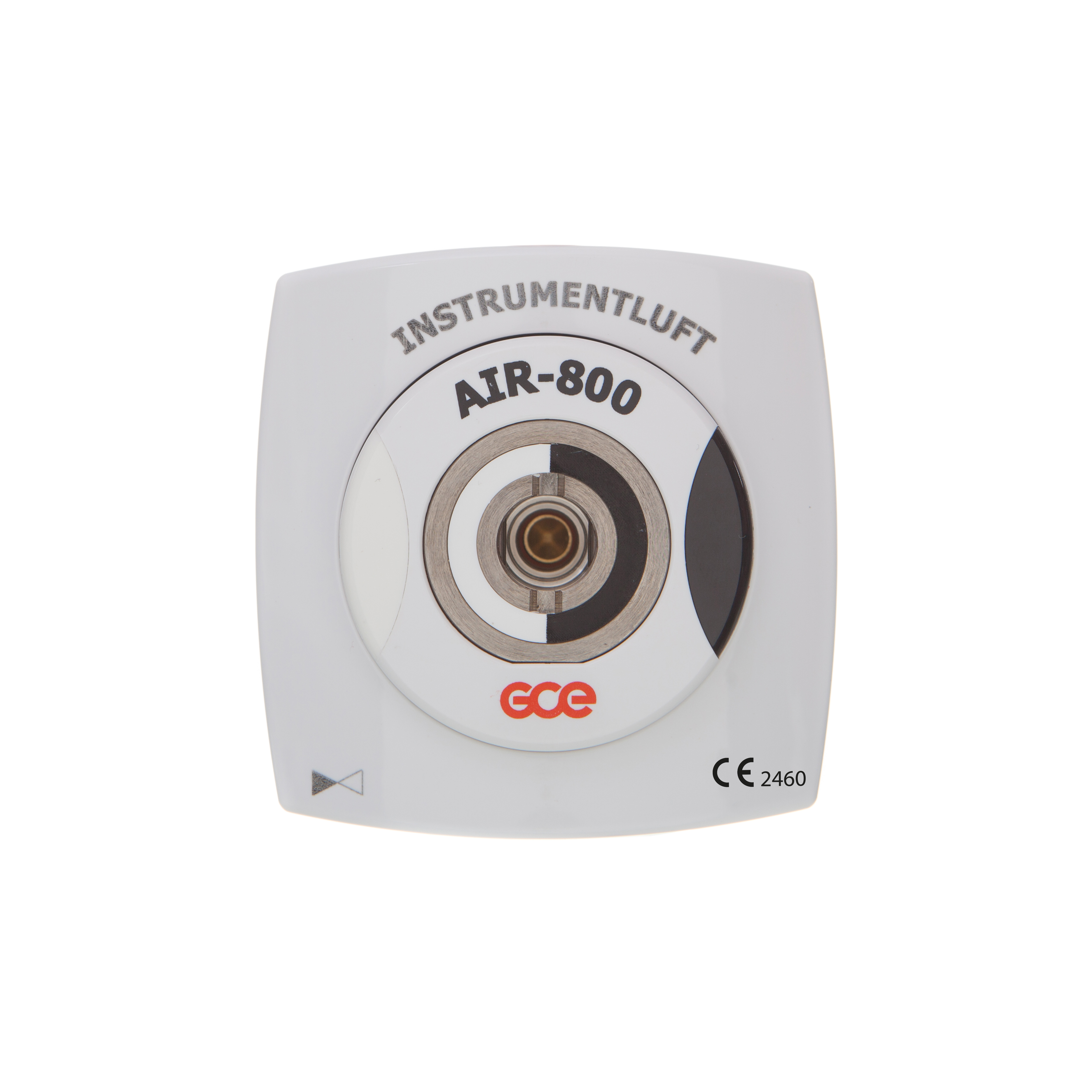

0732200078 AIR-800 – RECESSED SE Pipe ∅ 10 INSTRUMENTLUFT

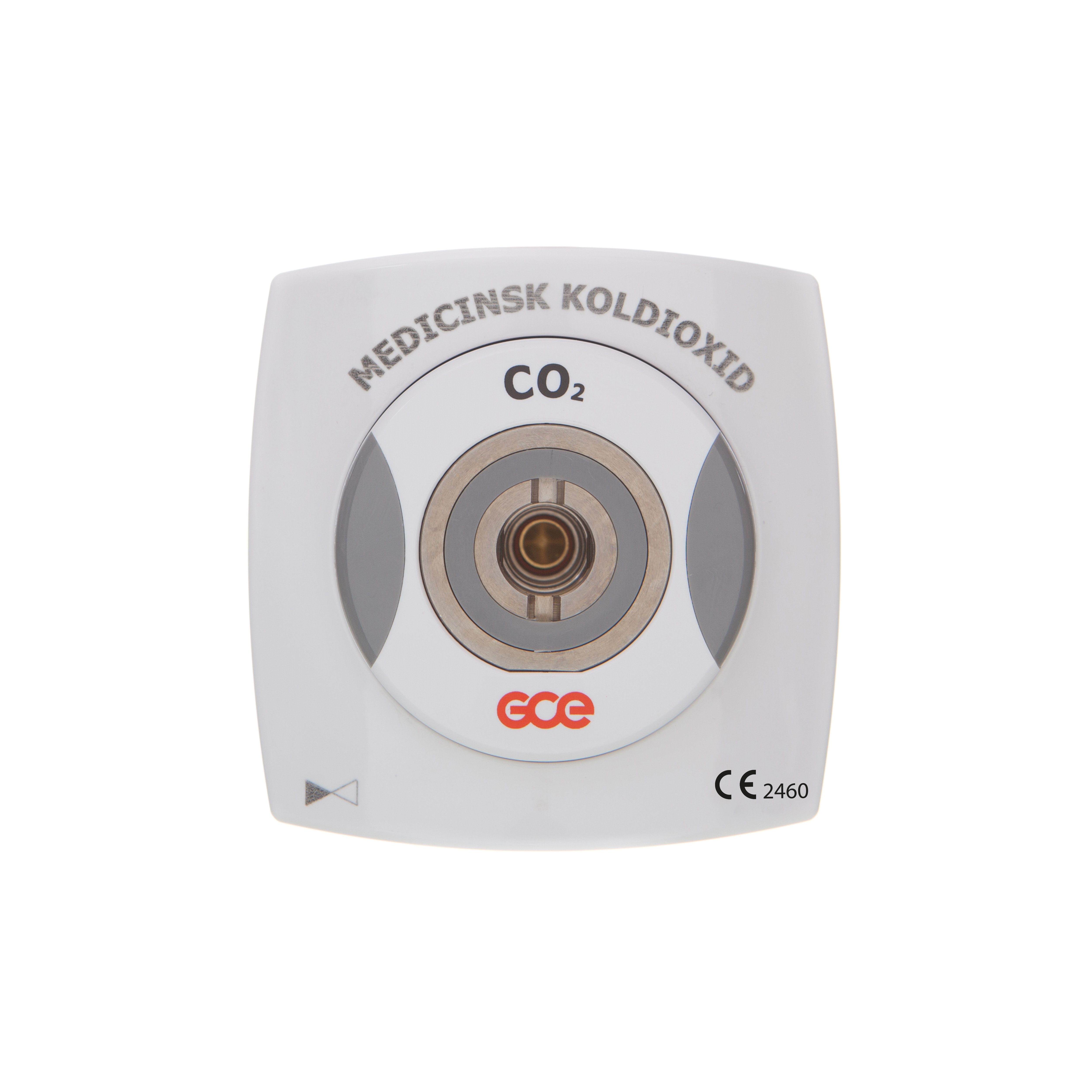

0732200077 CO2 – RECESSED SE Pipe ∅ 10 MEDICINSK KOLDIOXID
0732200075 VAC – RECESSED SE Pipe ∅ 10 GAUTSUG
0732200079 UTL – RECESSED SE Pipe ∅ 10 GASUTLOPP
0732200080 O2 – EXPOSED SE Pipe ∅ 10 ANDNINGSOXYGEN
0732200083 N2O – EXPOSED SE Pipe ∅ 10 LUSTGAS
0732200081 AIR – EXPOSED SE Pipe ∅ 10 ANDNINGSLUFT
0732200085 AIR-800 – EXPOSED SE Pipe ∅ 10 INSTRUMENTLUFT
0732200084 CO2 – EXPOSED SE Pipe ∅ 10 MEDICINSK KOLDIOXID

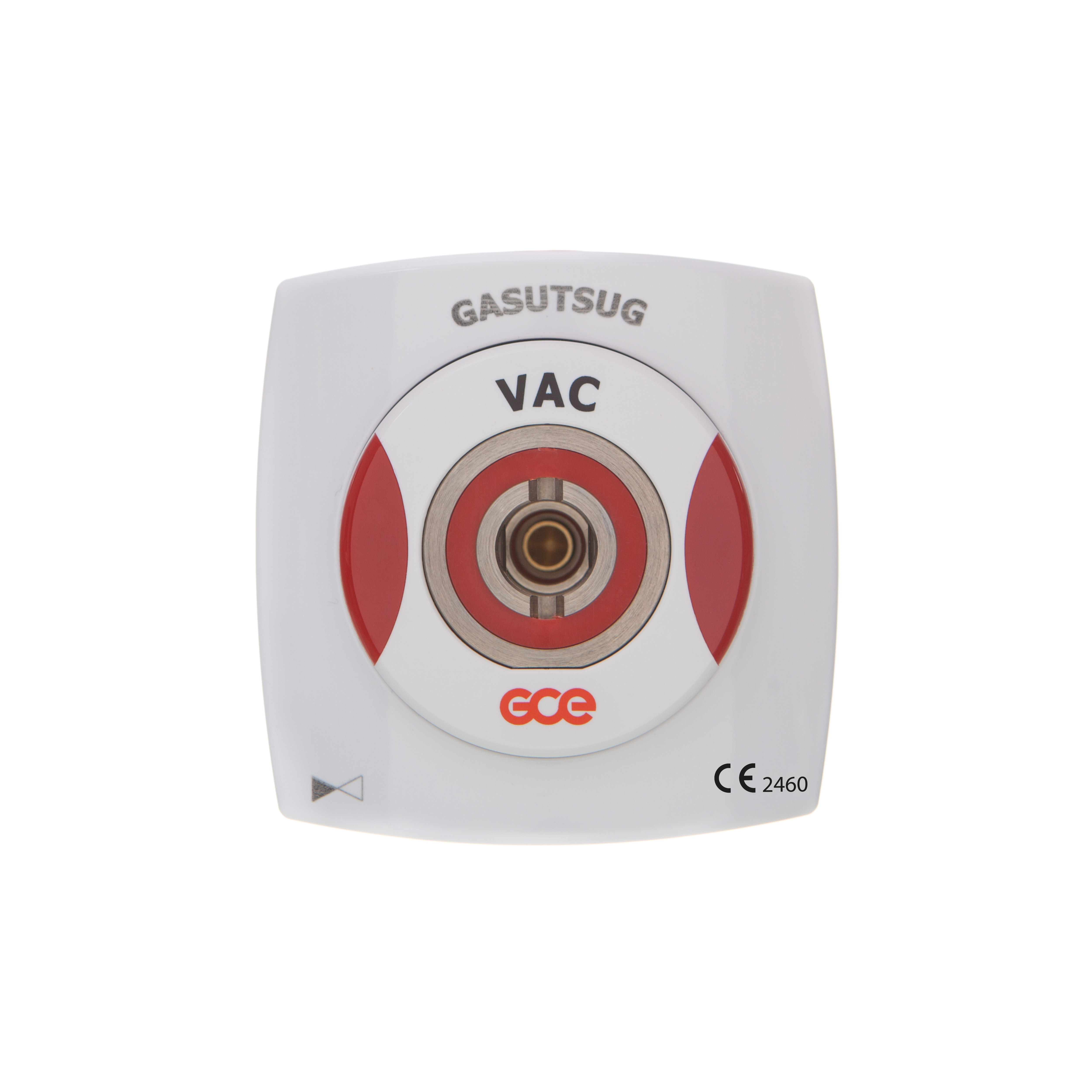

0732200053 VAC – EXPOSED SE Pipe ∅ 10 GASUTSUG
0732200086 UTL – EXPOSED SE Pipe ∅ 10 GASUTLOPP
0732200111 O2 – BHU SE Pipe ø 8  ANDNINGSOXYGEN
0732200112 AIR – BHU SE Pipe ø 8  ANDNINGSLUFT
0732200113 AIR-800 – BHU SE Pipe ø 8  INSTRUMENTLUFT
0732200114 AR – BHU SE Pipe ø 8  ARGON
0732200115 CO2 – BHU SE Pipe ø 8  MEDICINSK KOLDIOXID
0732200116 N2 – BHU SE Pipe ø 8  NITROGEN
0732200117 N2O – BHU SE Pipe ø 8  LUSTGAS
0732200118 VAC – BHU SE Pipe ø 8  GASUTSUG
0732200170 O2 – PEN SE HN ø 8  ANDNINGSOXYGEN

For other configurations (DK, FI, NO) please contact Product Support.

MediUnit SS leaflet EN

TECHNICAL DATA

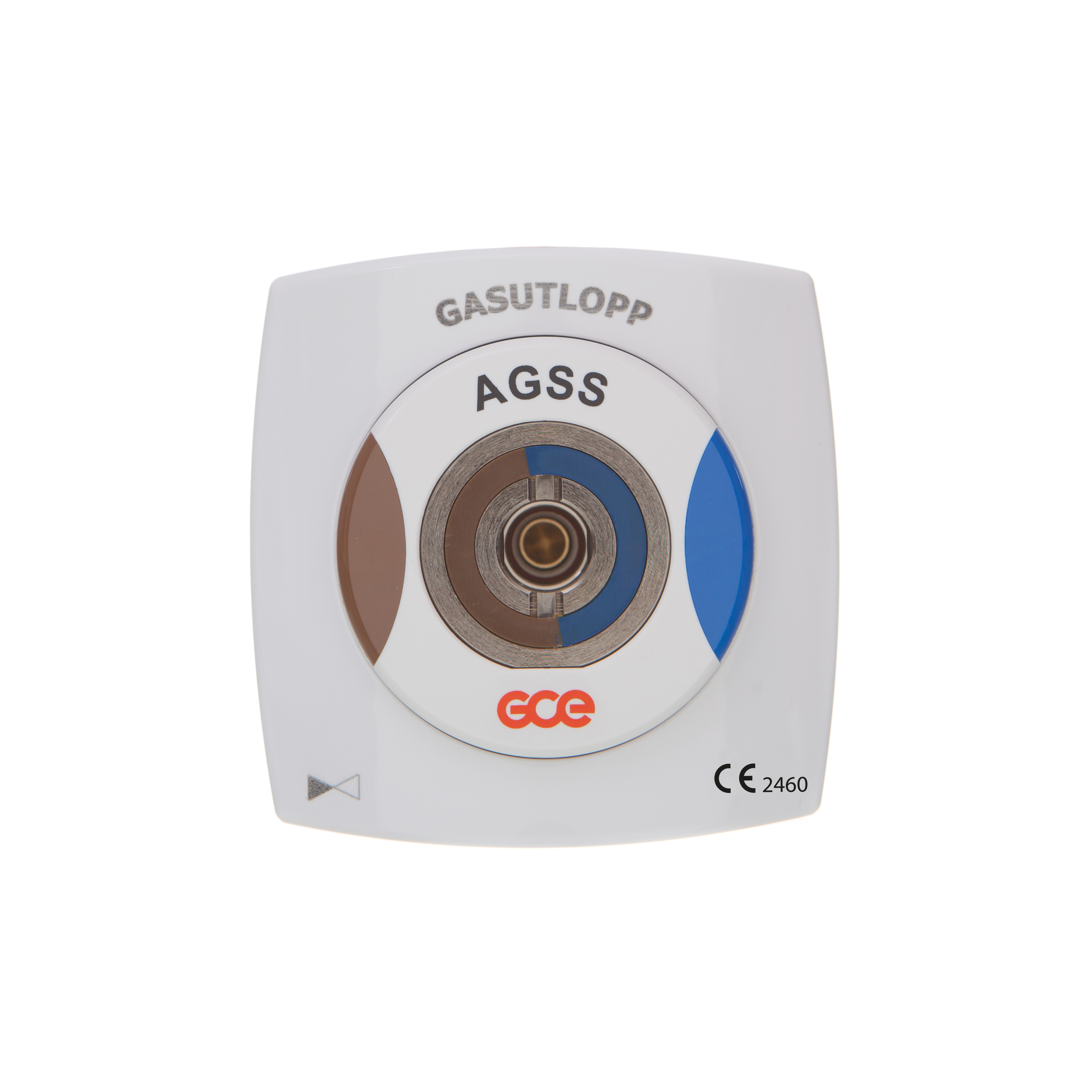

Gases: O2, N2O, Air, Air-800, CO2, N2, Ar, AGSS, VAC

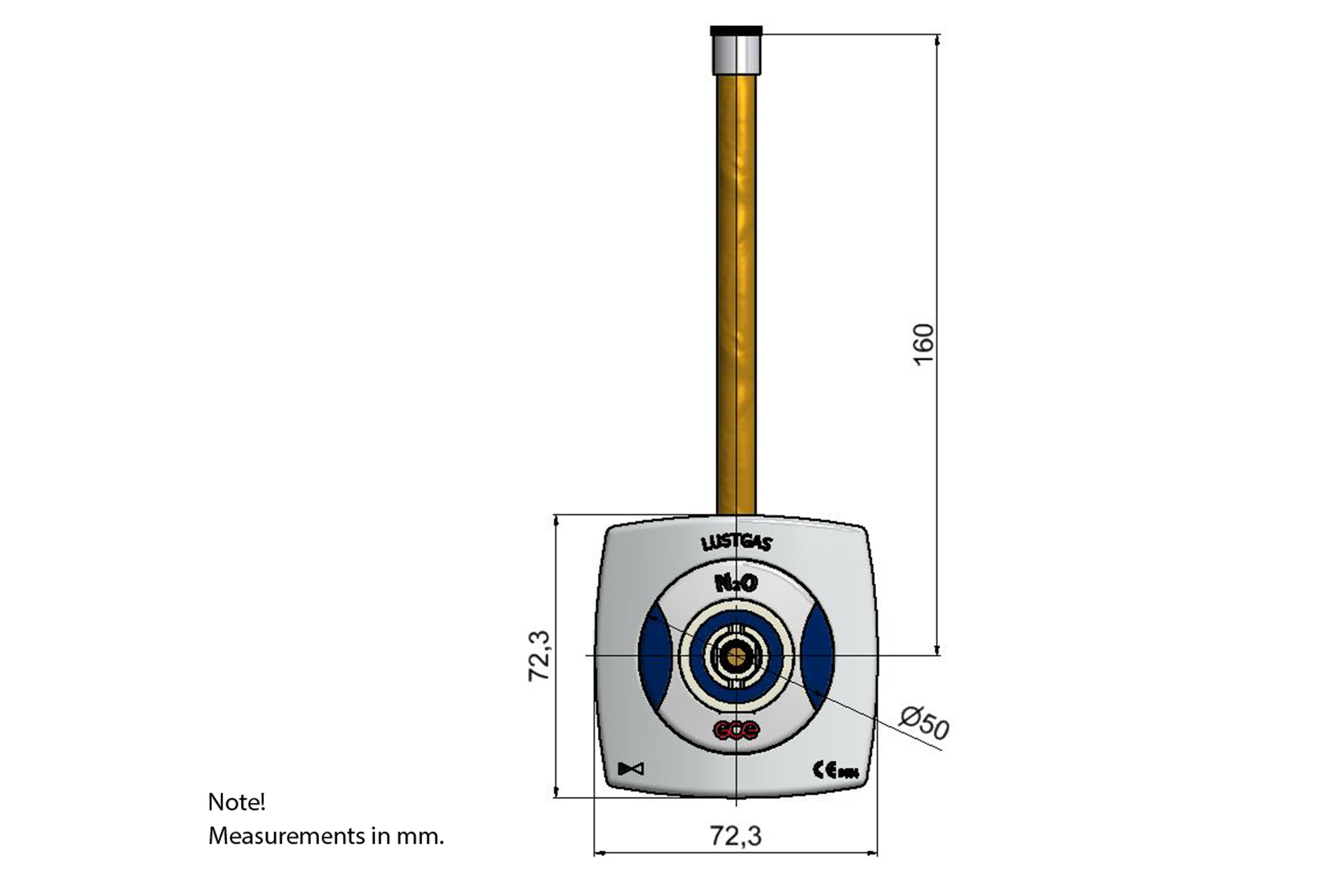

Dimensions:
Height: 73 mm
Width: 73 mm
Depth: 63 mm
Working pressure: 4–5 bar (breathing gases)
7–10 bar (instrumental gases)
(-0,4)–(-0,9) bar (vacuum)
Maximum pressure: 20 bar
Regulatory status:

Complies with Medical Directive 93/42/EEC

Complies with EN ISO 7396-1
(Central Gas Supply systems)

Complies with EN ISO 9170-1
(Terminal units)

Complies with SS 8752430
(SS gas specific connections)

present SIS HB 370 and HTM 02-01
