druvaTEC 100m3 Manifold - Manual changeover - Single stage

MTMH0MSS | MTMHEMSS | MTMHSMSS –> option shut-off valve at inlet

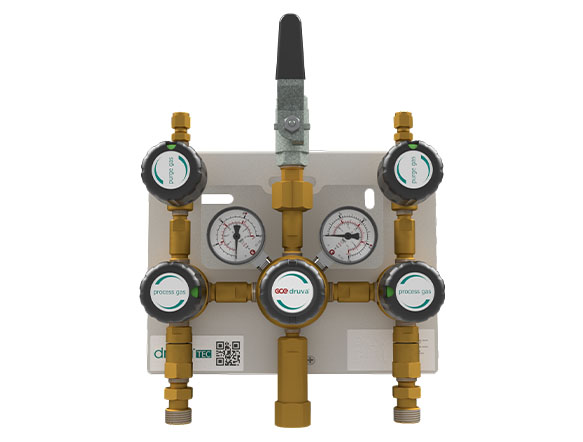

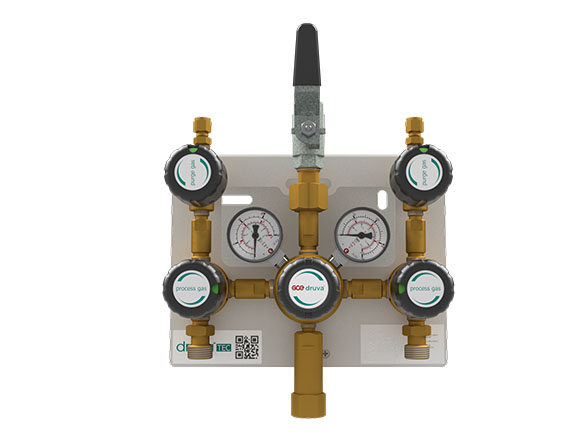

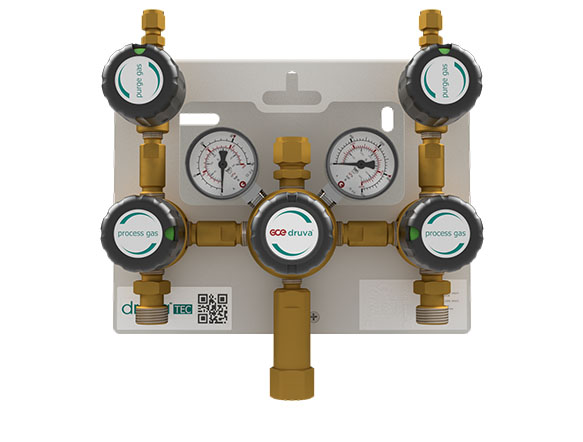

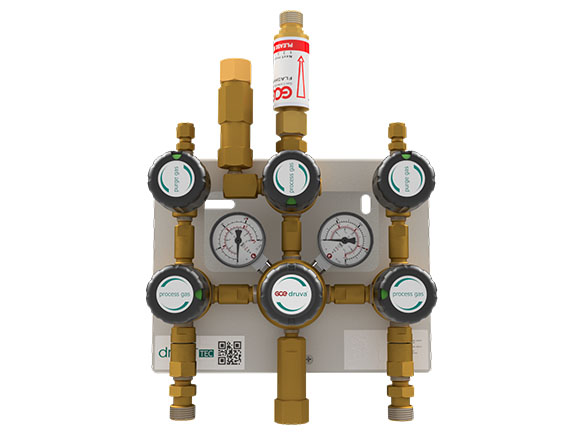

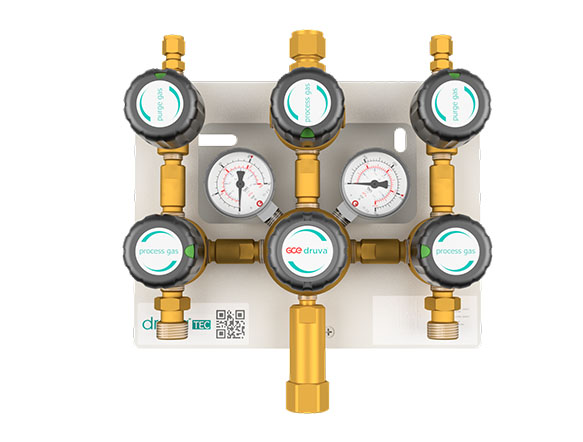

MTMH0MSP | MTMHEMSP
| MTMHSMSP –> option process gas purging at inlet

H0 version with FKM seal
HE version with EPDM seal
HS version with SST valve & EPDM seal

Gas Type for MTMHxMSS: industrial, inert, flammable, oxidizing gases and gas mixtures.
Not suitable for Acetylene, corrosive and/or toxic gases and their mixtures.

Gas Type for MTMHxMSP: inert, flammable, oxidizing gases and gas mixtures up to gas purity 5.0
Not suitable for Acetylene, corrosive and/or toxic gases and their mixtures.



TECHNICAL DATA - MANIFOLDS

Working temperature: -40°C to +60°C
Inlet pressure: 60 | 200 | 300 bar
Outlet pressure: 10 | 20 | 40 | 100 bar (adjustable)
Nominal flow: 100 m³/h (N2) in accordance with ISO 7291 at 20 bar outlet pressure and 41 bar inlet pressure

For further technical details see data sheets.

Direct link to druva product configurator





Technical Datasheets Top

Download Technical Datasheets

Acrobat Logo DATA-MTMHxMSP_EN.pdf Acrobat Logo DATA-MTMHxMSS_EN.pdf
Technical Drawings Top

Download Technical Drawings

Acrobat Logo MTMH0MSS.pdf Acrobat Logo MTMH0MSP.pdf
Downloads Top

Additional Downloads for this Product

Acrobat Logo Instructions for use-MTMHXMS.pdf
