PROTÉE 432 - REGULATOR WITH BALANCED VALVE (SECOND STAGE REGULATOR)

Regulator for medium and low pressure. Thanks to their balance valve the PROTÉE are insensitive to the variations of the outlet pressure. They enable the distribution of all non corrosive gas (except oxygen: contact GCE).

APPLICATION

  • Second stage regulation for a propane cistern
  • Medium pressure network supply
  • Medium pressure burner supply
  • Oven inert
  • Security network

PRODUCT ADVANTAGES

  • Watertightness in case of bad weather
  • All components comfortably accessible
  • Easy and fast dismantling
  • Simple and heavy-duty
  • Low closing pressure
  • Low pressure balanced valve
  • Removable encapsulated valve

PROTÉE 432-N

Art. Nr.
Connection Gas

Max.inlet pressure bar (psi)

Outlet pressure
bar (psi)
Flow air Nm3/h
Flow propane kg/h
 I101303 Flanged DN 50 N, M, P 8 (120) 0,25-0,35 (4-5)  750-820  1160-1270
I101324 Flanged DN 50 N, M, P 8 (120) 0,1-0,3 (2-4)  600-800  930-1240
I101325 Flanged DN 50 N, M, P 8 (120) 0,3-0,5 (4-7)  800-950  1240-1470
I101326 Flanged DN 50 N, M, P 8 (120) 0,5-1  (7-15)  950-1300 1470-2015


SPARE PARTS

Maintenance kit for models with spring used with non-corrosive gas.

Art. Nr.
Model Contents
I291286 PROTÉE 432-N O-rings, 1 main diaphragm, 1 encapsulated valve, 2 diaphragms and clip rings for event hole
I291256

Previous model of PROTÉE 432-N

complete regulating valves, 1 main diaphragm, 2 diapragms and clip rings for event hole, 1 encapsulated valve


TECHNICAL DATA

Max. inlet pressure: 8 bar
Material: Cast iron body
Connection: Inlet and outlet with flange DN 50 PN 40
Operating temperature range: from -20 to + 60°C

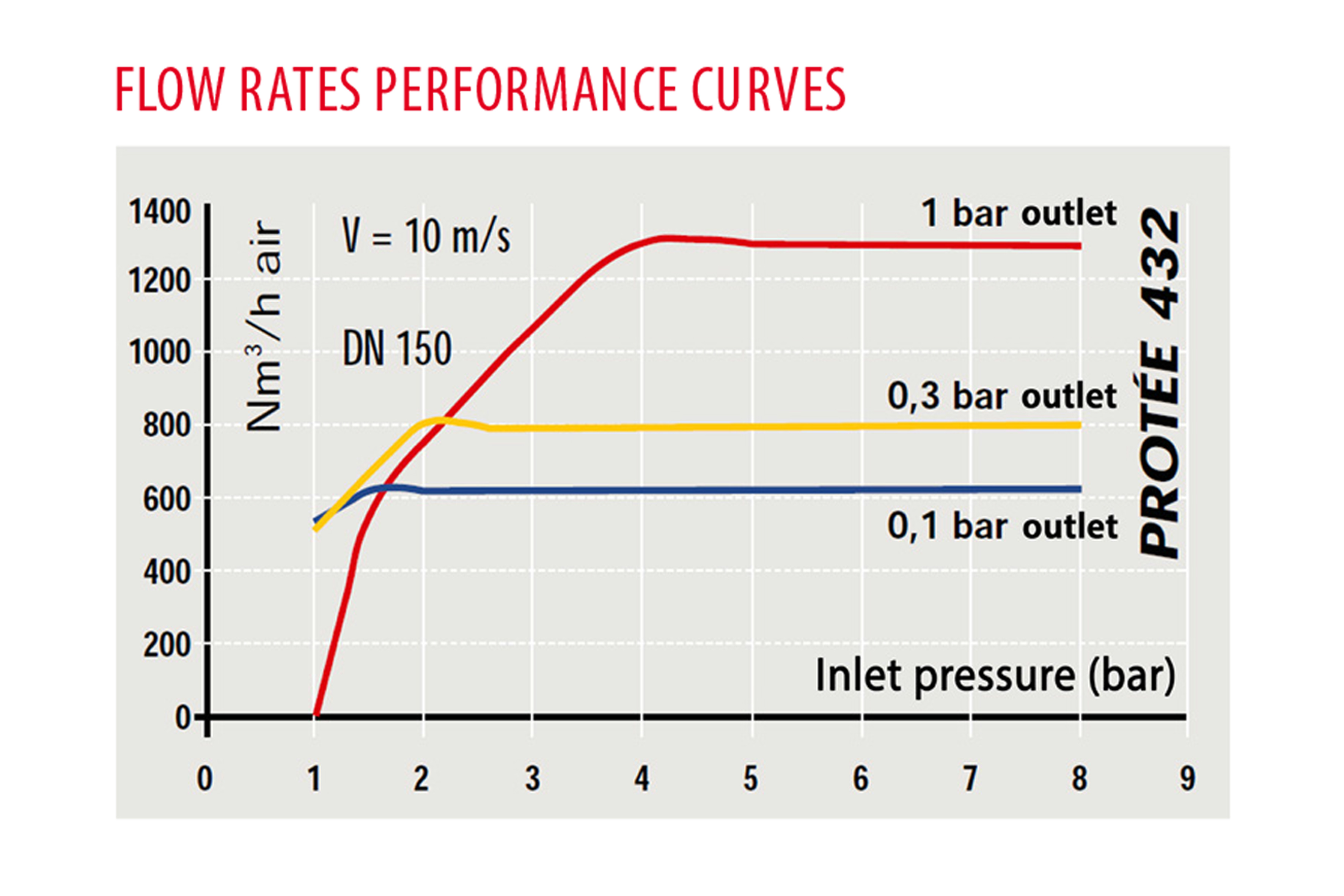

Technical Datasheets Top

Download Technical Datasheets

Technical Drawings Top

Download Technical Drawings
