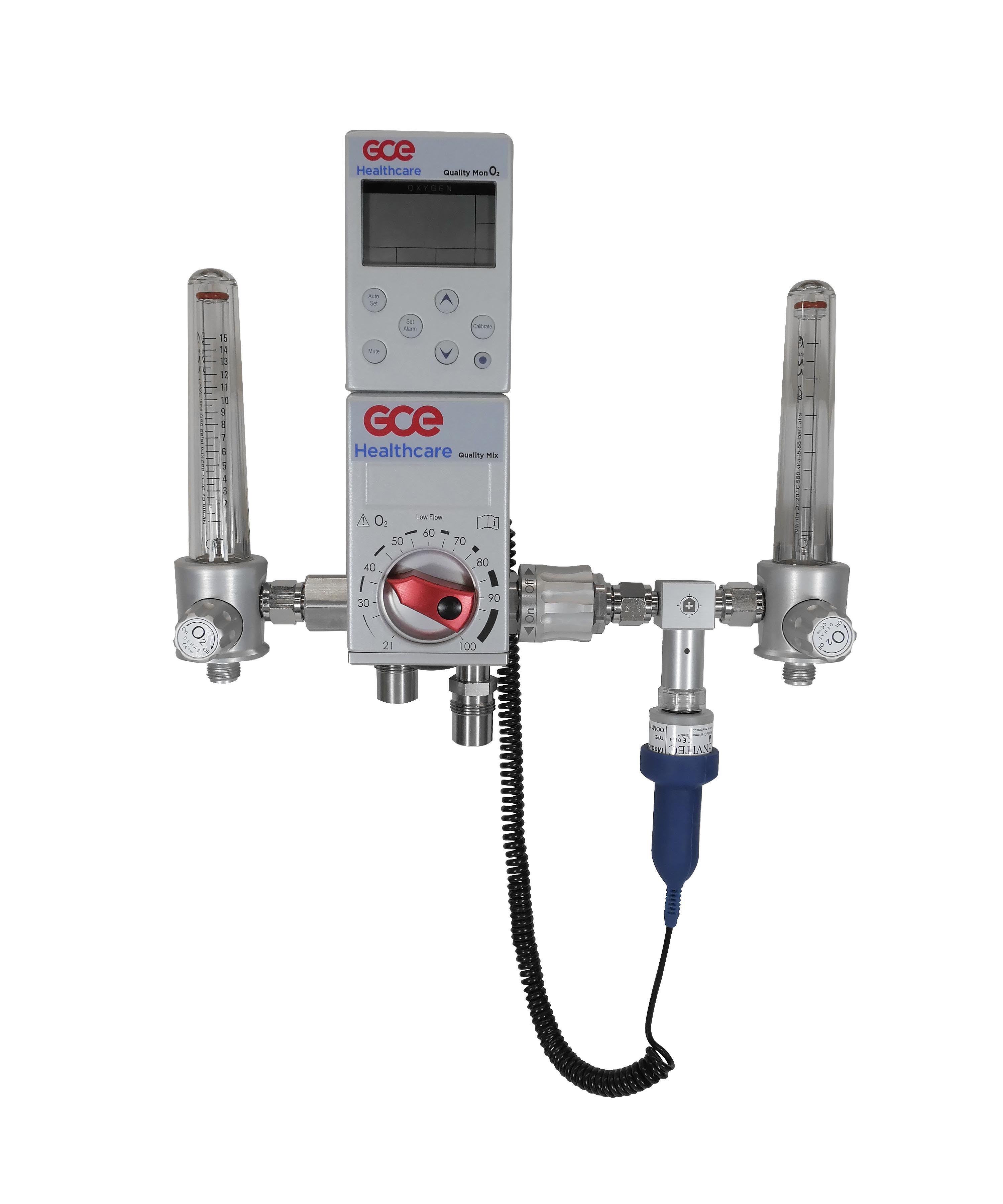

QUALITY MIX BLENDER

Whole medical range is available on

Quality Mix provides a continuous and precise mixture of medical Air and Oxygen for infants, children and adults. The exact O2 concentration is easy to adjust and an optional bleed switch enables very low gas consumption, even with flow rates of less than 3 l/pm.

  • The oxygen concentration can be set easily and accurately between a range of 21 % and 100 %.
  • A Pressure Alarm sounds if there is any interruption or pressure drop in the gas supply system.
  • A robust metal housing protects the device from damage, especially under tough clinical conditions.
  • Alarm limits can be set to ensure the corresponding oxygen concentration.
  • The delivered oxygen concentration can be displayed on the optional oxygen monitor.

735100001233 Quality Mix Blender leaflet EN

TECHNICAL DATA

Blender Type: High Flow Low Flow
Main flow outlet (l/min): 15-120 3-30
Auxillary flow (l/min): 2-100 0-30
Max. combined flow - both outlets (l/min): >120 >30
Bleed flow at 3,4 bar (l/min): <13 <3
Emergency flow (in the event that Air or O² supply failing) (l/min): <85 <15
Pressure drop at inlet pressure from 3,1 to 5,2 bar with a flow rate of 10l/min / 30l/min at 60%FI O2 <0,21 <0,14
Alarm sounds when supply pressure drops (bar):
   Without regulator module: on 3,3 | off 4,2 on 3,3 | off 4,2
   With regulator module: on 2,3 | off 3,2 on 2,3 | off 3,2
Alarm volume: >80dB at a distance of 30 cm
Setting range for oxygen concentration: 21-100 %
Gas inlet pressure: 4,5±0,5 bar: air and Odifferential should be with 0,7 bar
Accuracy of mixed gas (FIO2): ± 3% oxygen
Connection types: DISS inlets and outlets for O2 and/or NIST inlets for air and O2
Dimensions (LxWxH): 130×165×122 mm
Weight: 1600g
Operating temperature: +5°C to + 40°C
Storage temperature: -20°C to + 60°C
Humidity: Max 95% non-condensing humidity

* All blenders will be delivered in a carton box 42×42×32 cm (L×B×H) with compartments for the manuals and all ordered accessories.
