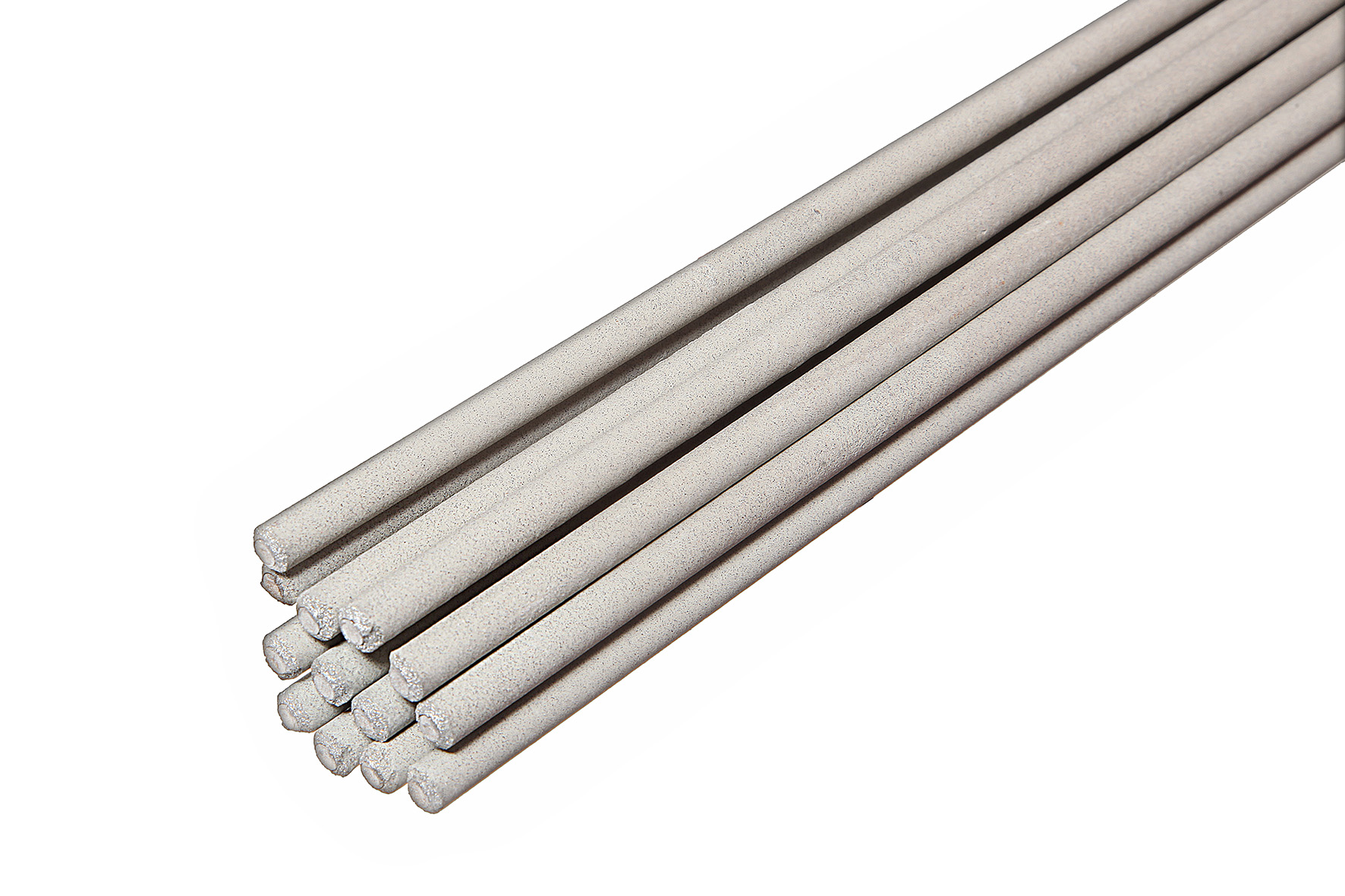

STAINLESS STEEL 316L RUTILE-BASIC ELECTRODES

STAINLESS STEEL RUTILE ELECTRODE

It is a Rutile-basic electrode, providing a weld metal in low carbon austenitic stainless steel (316L). Used for welding of 18/8/3 austenitic stainless steels and cladded steels. It provides excellent resistance to corrosion. Smooth welding. Easy slag removal.

WELDABLE STEEL RANGE:
18/8/3 type stainless steels (316L) and similar grades.

MAIN APPLICATION:
Chemical and petrochemical industries, shipbuilding, tanks, pipes, heat exchangers, food industry.

ADVANTAGES:

  • Low carbon universal stainless steel
  • Excellent corrosion resistance
  • Excellent handling for welders
  • Coating with very low moisture absorption

STANDARDS:

  • AWS A5.4: E316L-16
  • ISO 3581-A: E 19 12 3L R 32

TECHNICAL DATA

Typical Weld Metal Composition (%): Fe:
(base)
C:
<0,03
Si:
0,8
Mn:
0,7
Cr:
18,5
Ni:
12

Mo:
2,7

All Weld Metal Mechanical Properties: Rp 0,2: > 400 MPa

Rm: > 560 MPa

A5: > 35%
Electrode polarity: Positive
Output Circuit Voltage (OCV): ∼ 70 V



Art. Nr. ∅ × Length
(mm)
Pcs/pack kg/pack Packs/box
E310101S 1,6 × 250 235 1,5 1
E310102S 2,0 × 300 145 1,7 1
E310103S 2,5 × 350 90 2,0 1
E310104S 3,2 × 350 55 1,9 1



Art. Nr. ∅ × Length
(mm)
Pcs/pack kg/pack Packs/box
E220105S 2,5 × 350 15 0,330 1
E220106S 3,2 × 350 10 0,350 1
