STAINLESS STEEL DIAPHRAGM VALVES
SPECIAL FEATURES
- Testing in accordance with standard EN ISO 10297:2014
- High Purity Gas and up to 6.0 HP grade useable
- Easy to open and close
- Internally electro polished 316L Stainless Steel
- Electro-polished
- Seat: PCTFE
- REACH 1907/2006 a RoHS 2015/863 compliance
- Inlet and outlet options available
- Burst Disk available
- 10 years Service Life
735100001563 Stainless Steel diaphragm valves leaflet EN

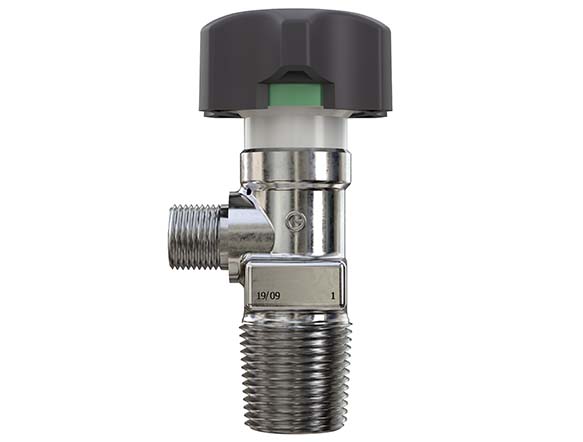

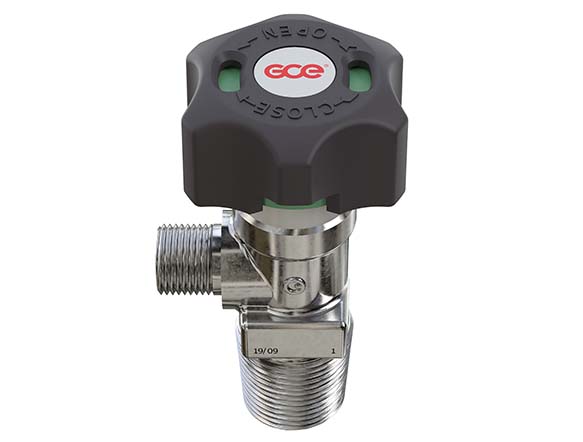

STAINLESS STEEL DIAPHRAGM VALVE
WITH 90-DEGREE HANDWHEEL
A new diaphragm valve allows the valve to be open with only 90 degree rotation of handwheel is often used for highly toxic, corrosive gases.
- Clear visibility of ON/OFF status
- Positive click position affirmation in open and closed positions
- Controlled opening of diaphragm
- Suitable for cylinder cap
- 90 degree handwheel
- An electrostatic chargeable test for the plastic handwheel is available
- Personalized logo cap available
TECHNICAL DATA
| ON/OFF status: | ON-green/OFF-red |
| Inlets: | 17E, 25E and 3/4" ngt |
| Outlets: | BS341-14, BS341-15, DIN477-1, DIN477-6, DIN477-14, CGA320, CGA330, CGA540, CGA660 or per customer specification |
| Diaphragm: | Hastelloy C |
| Material: | 316L stainless steel |
| Seat: | PCTFE |
| Finish: | Electro-polished |
| Operating temperature range: | -20 to +65°C |
| Transporting temperature range: | -40 to +65°C |
| Working pressure: | 200 bar |
| Handwheel: | 90 degree |

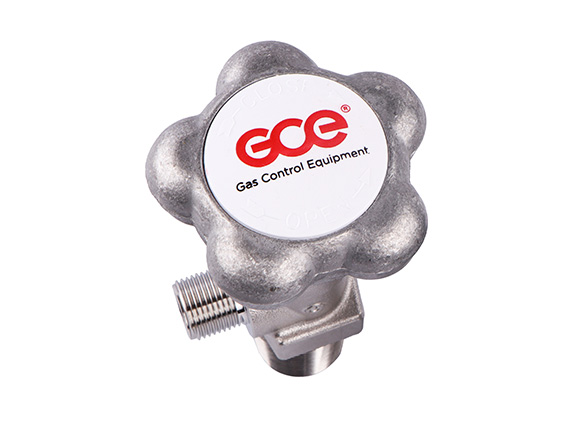

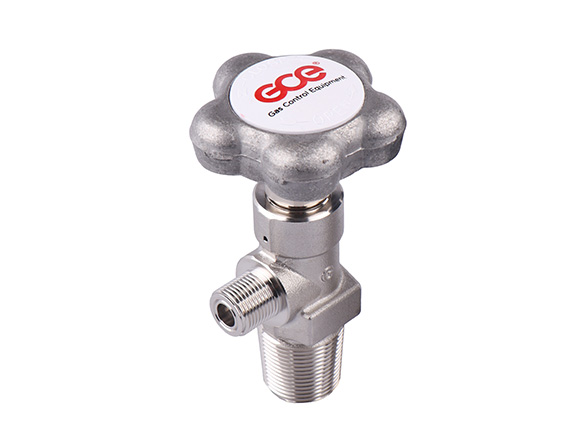

STAINLESS STEEL DIAPHRAGM VALVE
WITH STANDARD ROTATION HANDWHEEL
A new diaphragm valve with a standard metal rotation handwheel often used for robust applications.
- Handwheel options
- Transportable cylinders
- Suitable for cylinder cap
- Personalized logo cap available
- Suitable for Oxygen Service
TECHNICAL DATA
| Inlets: | 25E |
| Outlets: | BS341-14, BS341-15, DIN477-1, DIN477-6, DIN477-14, CGA320, CGA330, CGA540, CGA660 or per customer specification |
| Diaphragm: | Hastelloy C |
| Material: | 316L stainless steel |
| Seat: | PCTFE |
| Finish: | Electro-polished |
| Operating temperature range: | -20 to +65°C |
| Transporting temperature range: | -40 to +65°C |
| Working pressure: | 200 bar |
| Handwheel: | standard rotation |
GAS LIST - MATERIAL COMPATIBILITY
| Gas | Valve body - 316L Stainless Steel |
PCTFE seat |
| Acetylene |  |
|
| Ammonia | |
|
| Argon | |
|
| Butadiene | |
|
| Butane | |
|
| Butylene | |
|
| Carbon dioxide | |
|
| Carbon monoxide | |
|
| Chlorine | |
|
| Compressed Air | |
|
| Ethane | |
|
| Ethylene/Ethen | |
|
| Helium | |
|
| Hydrogen | |
|
| Hydrogen Chloride | |
|
| Hydrogen Sulfide | |
|
| Krypton | |
|
| Mehtane | |
|
| Neon | |
|
| Nitrogen | |
|
| Nitrous Oxide | |
|
| Propane | |
|
| Propene | |
|
| Sulfur dioxide | |
|
| Sulfur hexafluoride | |
|
| Synthetic Air | |
|
| Tetrafluoromethane | |
|
| Xenon | |
|
