STLMIN

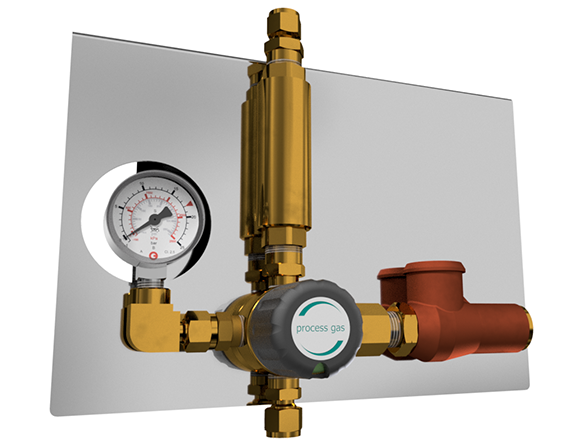

Safety and maintenance panels for industrial gas supply systems - STLMIN

DRUVATEC LOW - FLOW RANGE - MINIMAL - VERSION

for industrial, inert, flammable, oxidizing gases and gas mixtures. Not usable for corrosive or toxic gases and gas mixtures.

SPECIAL FEATURES:

On a Safety and Maintenance Panel, both safety-related components and maintenance-related systems of a central, industrial gas supply are combined.

SAFETY RELATED COMPONENTS:

  • safety device with multiple functions for flammable, oxidizing gases
  • safety relief valve designed and adjusted based on worst case scenario measurements of DruvaTEC Low Flow manifold regulators
  • pressure indication port for monitoring of pipeline pressure, gauges are exchangeable without disassembly of the panel

PANEL CONSISTS OF TWO PLATES

  • Easy installation of ground plate without weight of complete safety and maintenance panel
  • Simple hang front plate including safety and maintenance panel
  • Fixing front plate by only one bolt

TECHNICAL DATA

Nominal working pressure rates: 10; 20; 40 bar
Maximal allowable working pressure: 11,5; 22; 53 bar
Nominal flow rate: 20 m3/h (at 20 bar)
Test after production:

100% functionality

100% seat leakage test

100% pressure test

Technical Datasheets Top

Download Technical Datasheets

Acrobat Logo STLMIN.pdf
