MEDISELECT® II
Group Number: 3211Whole medical range is available on
High pressure regulator for use with medical gas cylinders equipped with a medical cylinder valve.

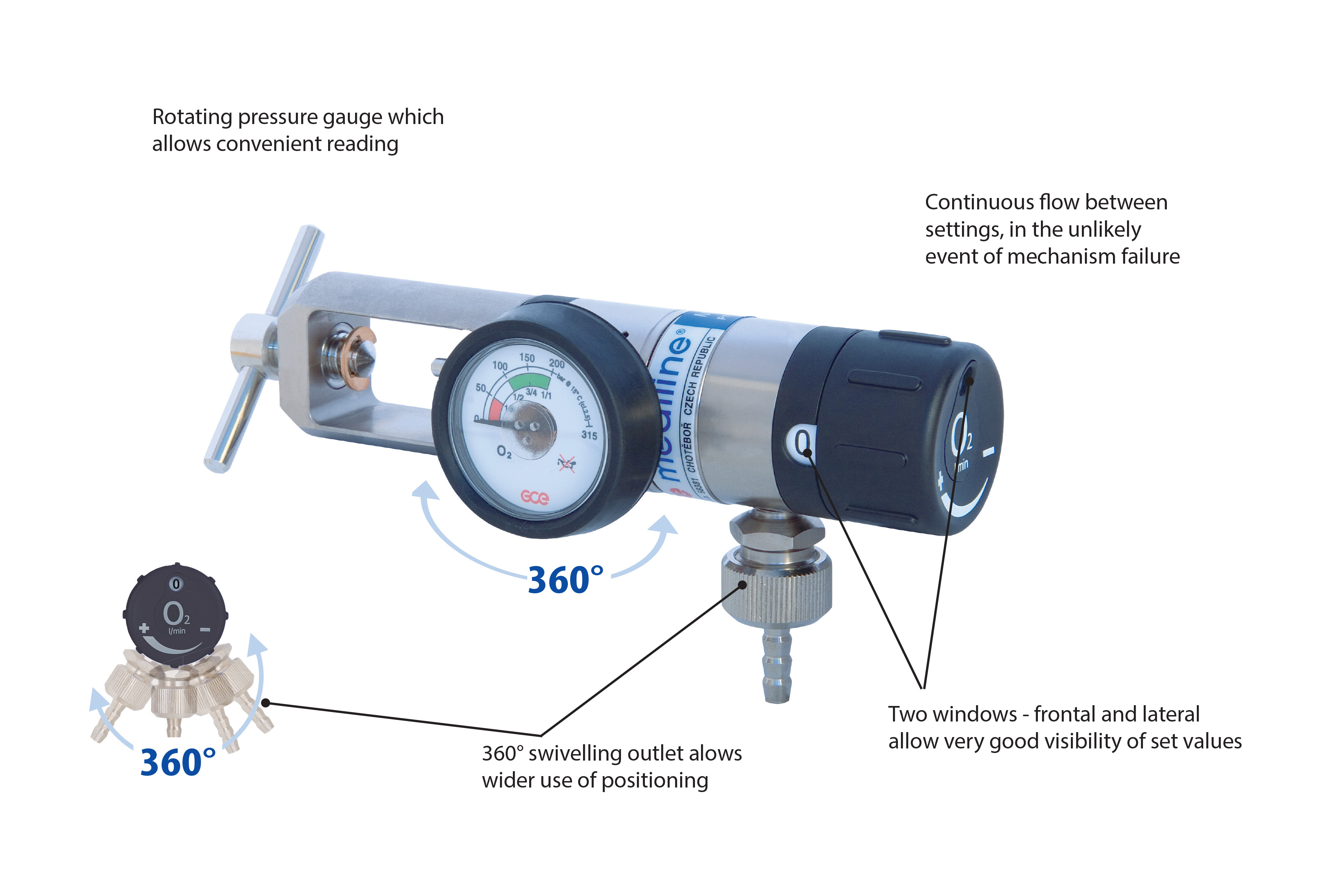

- Regulator with flow selector.
- Rotating pressure gauge which allows convenient reading
- 360° swivelling outlet – it enables better orientation of the nasal cannula or oxygen mask towards the patient (preventing from twisting)
- Innovative self centering flow setting device with continuous flow between settings. In the unlikely event of indent mechanism failure, the patient will still be supplied by medicinal gas
- Lateral and frontal reading of flow settings
- Higher number of flow disc holes increases treatment options. Extra flow setting of 25 l/min on the traditional 15 l/min variant, allows use in resuscitation
- The additional 7 l/min is intended for nebulization
735100000404 MediSelect II leaflet EN
TECHNICAL DATA
| Gas: | O2, Air, N2O, CO2, O2/N2O. Xe |
| Inlet pressure: | Up to 300 bar |
| Outlet pressure: | 4 bar |
| Flow ranges*: | |
| 0 to 2 l/min: | 0/ 0,1 / 0,2 / 0,3 / 0,4 / 0,5 / 0,6 / 0,7 / 0,8 / 1 / 1,5 / 2 |
| 0 to 3 l/min | 0/ 1/64 / 1/32 / 1/16 / 1/8 / 1/4 / 1/2 / 3/4 / 1 / 1,5 / 2 / 3 |
| 0 to 6 l/min: | 0/ 0,25 / 0,5 / 0,75 / 1 / 1,5 / 2 / 2,5 / 3 / 4 / 5 / 6 |
| 0 to 25 l/min: | 0 / 1 / 2 / 3 / 4 / 5 / 6 / 7 / 9 / 12 / 15 / 25 |
| Inlet connection: | According to national standards |
| Outlet connection: |
9/16 UNF, M12×1,25, G3/8, G1/4 with hose nipple |
| Body material: | Nickel-plated brass |
| Control knob: | Polyamide |
| O-rings: | EPDM |
| Filter: | Sintered bronze |
| Gauge cover: | TPE (thermoplastic elastomer) |
| Regulatory status: |
Complies with Medical Devices Directive 93/42/EEC |
| Classification: | Class IIb |
| Manufacturer: | GCE, s.r.o, Žižkova 381, 583 01 Chotěboř, CZ |
THERAPY FLOW REGULATOR RANGE
| Art. Nr. | Description |
| 0720252 | MediSelect II (0,2,4 l/min) O2, Bullnose Inlet Connection, 137 bar |
| 0720247 | MediSelect II (0,1,2,3,4,5,6,7,9,12,15,25 l/min) O2, Bullnose Inlet Connection, 137 bar |
| 0720296 | MediSelect II (0,1,2,3,4,5,6,7,9,12,15,25 l/min) O2, Bullnose Inlet Connection, 200 bar |
| 0720246 | MediSelect II (0,1,2,3,4,5,6,7,9,12,15,25 l/min) O2, Pin Index Inlet Connection, 137 bar |
| 0720297 | MediSelect II (0,1,2,3,4,5,6,7,9,12,15,25 l/min) O2, Pin Index Inlet Connection, 200 bar |
| 0720128 | MediSelect II (0,1,2,3,4,5,6,7,9,12,15,25 l/min) O2, Pin Index Inlet Connection, 200 bar |
| 0724221 | MediSelect II (0,1,2,3,4,5,6,7,9,12,15 l/min) O2, Pin Index Inlet Connection, 200 bar |
| 0720265 | MediSelect II (0,1,2,3,4,5,6,7,9,12,15 l/min) Air, Pin Index Inlet Connection, 200 bar |
| 0720133 | MediSelect II (0,1,2,3,4,5,6,7,9,12,15,25 l/min) CO2, Pin Index Inlet Connection, 60 bar |
THERAPY FLOW & QUICK RELEASE CONNECTOR REGULATOR RANGE
| Art. Nr. | Description |
| 0720249 | MediSelect II (0,1,2,3,4,5,6,7,9,12,15,25 l/min) Bullnose Inlet Connection fitted with Single BS5682 Quick Release Connector, 137 bar |
| 0720310 | MediSelect II (0,1,2,3,4,5,6,7,9,12,15,25 l/min) Bullnose Inlet Connection fitted with Single BS5682 Quick Release Connector, 200 bar |
| 0720248 | MediSelect II (0,1,2,3,4,5,6,7,9,12,15,25 l/min) Pin Index Inlet Connection fitted with Single BS5682 Quick Release Connector, 137 bar |
| 0720309 | MediSelect II (0,1,2,3,4,5,6,7,9,12,15,25 l/min) Pin Index Inlet Connection fitted with Single BS5682 Quick Release Connector, 200 bar |
| 0720302 | MediSelect II (0,1,2,3,4,5,6,7,9,12,15,25 l/min) O2, Pin Index Inlet Connection, 200 bar |
