CYLINDER REGULATOR FMD PRIOR

Group Number: 4200

Double-stage, for inert gases and gas mixtures. Gas purity up to 5.0. Inlet pressure 230 bar / 3300 psi and outlet pressure range 0,05 - 10 bar / 0,7- 145 psi.

The PRIOR is a double-stage cylinder regulator with the first stage preset and a second adjustable one to achieve a very constant pressure level independent of the inlet pressure level. This regulator is equipped with second stage bellows, which ensures high quality, outstanding performance and consistent outlet pressure.

APPLICATION

The cylinder regulator PRIOR is designed to combine excellent pressure stability, flow rate range, safety and gas tightness. Its ergonomic design makes it easy to operate and to set the required outlet pressure. The impressive performance qualifies this regulator especially for laboratory, laser, analytic and other applications, where precise and reliable pressure levels are needed.

  • Superior downstream pressure adjustment
  • Hand tightening nut for cylinder connection
  • Double-stage version for constant outlet pressure
  • Precise pressure level due to metal bellows
  • 100% helium leck-tested
Product Specification Top
Max Inlet Pressure 200 bar | 2900 psi
Max Outlet Pressure 1,5 = 0,05 - 1,5 bar (0,7 - 22 psi) | 4 = 0,1 - 4 bar (1,5-60 psi) | 10 = 0,5 - 10 bar (7 - 145 psi)
Body Material Type Brass chrome-plated
Inlet Connection Modular - check datasheet
Outlet Connection Modular - check datasheet
Technical Datasheets Top

Download Technical Datasheets

Acrobat Logo CYLINDER_REGULATOR_FMD_PRIOR.pdf

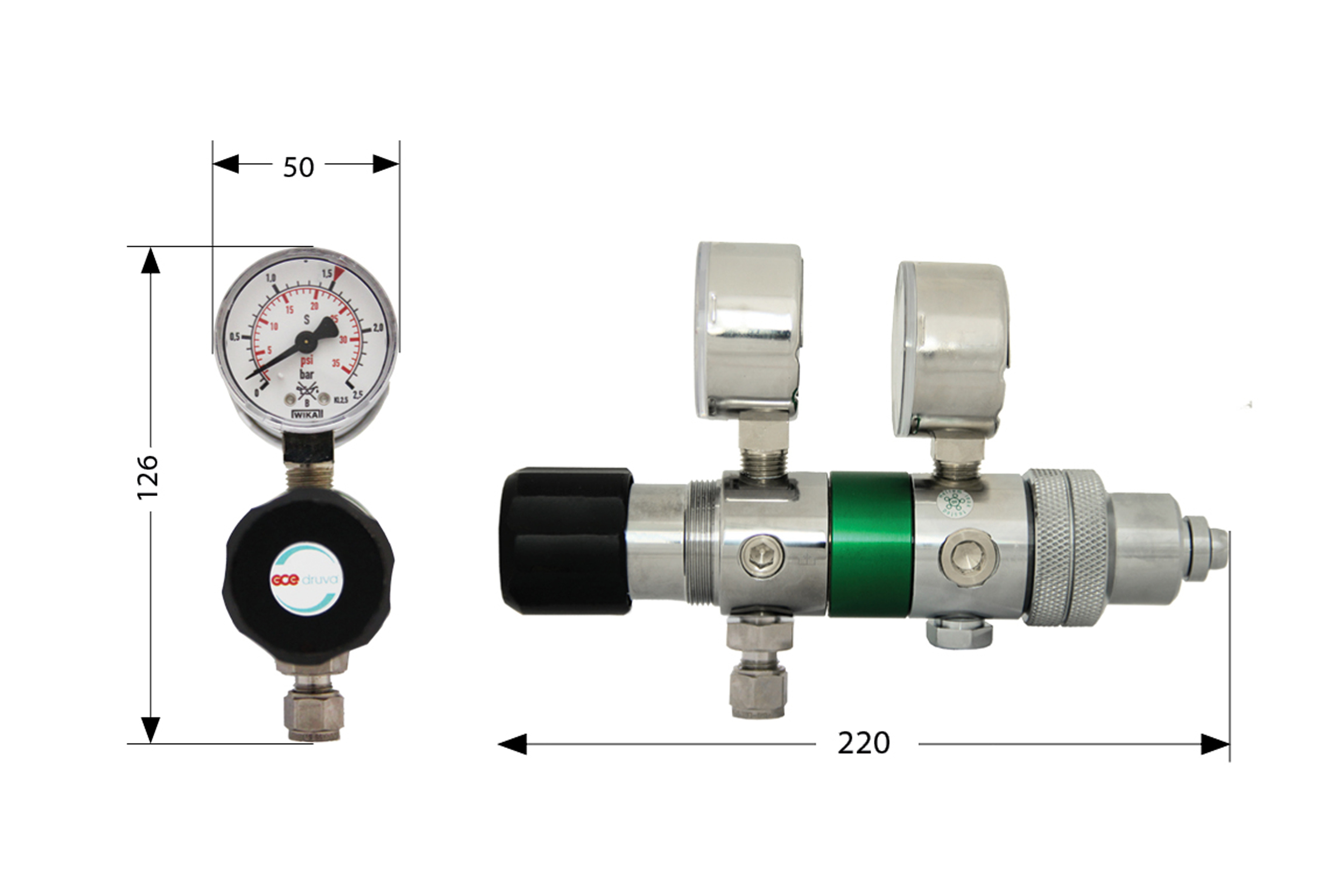

Technical Drawings Top

Download Technical Drawings

Downloads Top

Additional Downloads for this Product

Acrobat Logo Instruction_for_use_CXLLX_EN-DE.pdf
