SAFE-GUARD-5 / 5 FUNCTION FLASHBACK ARRESTOR

Group Number: 2821

The latest innovation from GCE the SAFE-GUARD-5 offers the maximum
level of protection required by ISO 5175-1 to prevent dangerous flashbacks
from reaching the regulator and cylinder supply sources.

FEATURES

There are so many conditions that can cause a flashback, the fitting a flashback arrestor is commonsense. This unit offers the highest level of safety.

  • Maximum number of safety features defined by ISO 5175-1
  • High visibility trip/reset lever coupled with quick acting reset even when pressurised
  • Angled inlet to minimise hose damage
  • 100% production flame tested for Flashback resistance
  • Inspection dates can be marked on product for easy reference

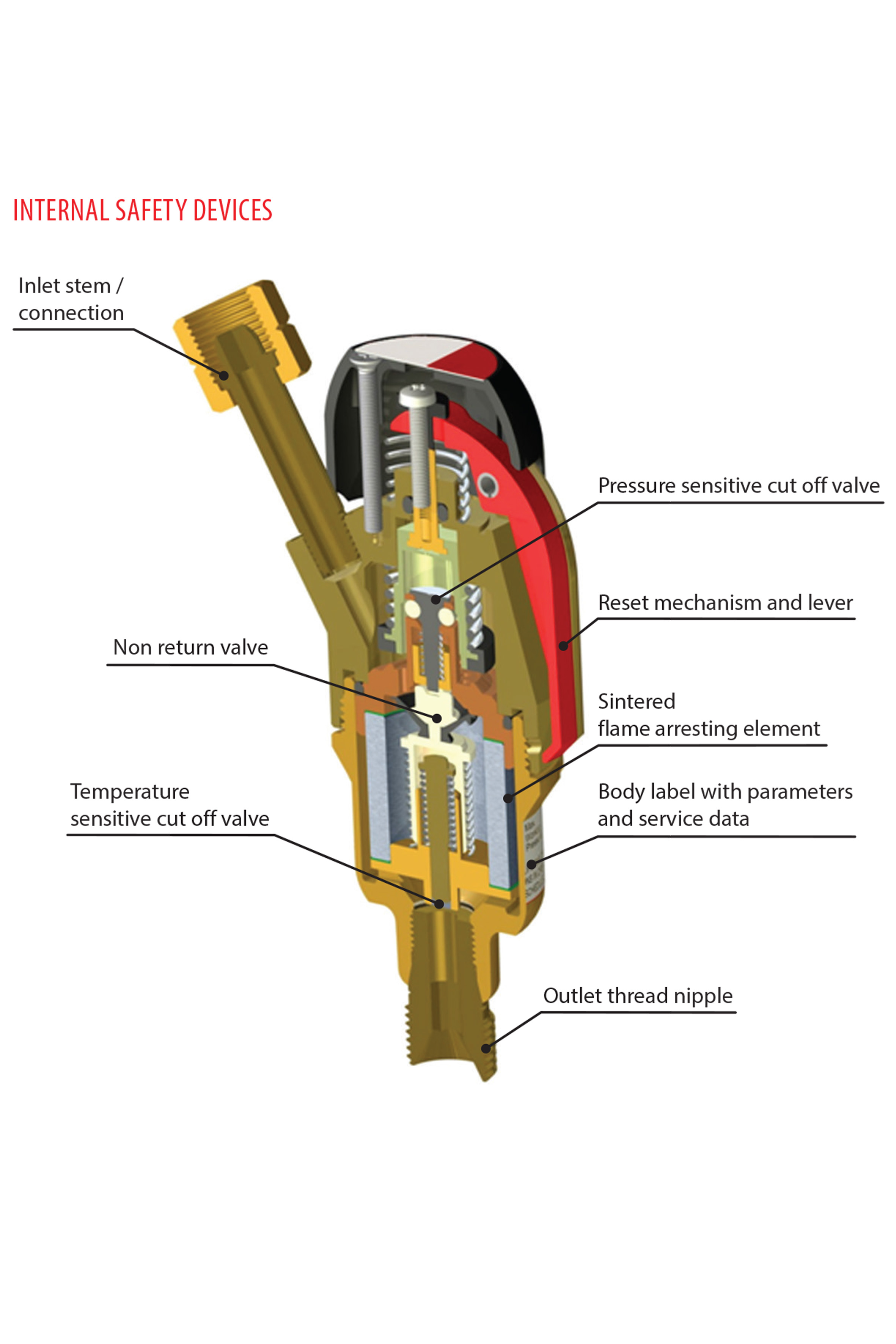

FUNCTIONS

  • Flame arresting element FA
  • Non return valve NV
  • Pressure sensitive cut off valve PV
  • Temperature sensitive cut off valve TV
  • Reset mechanism to clearly advise unit activation RM

TECHNICAL DATA

Right Hand


Oxygen: 10 bar
Left Hand
Acetylene: 1,5 bar
Hydrogen: 5 bar
Propane: 5 bar
Methane: 5 bar
Natural Gas: 5 bar
MPS: 5 bar
MAPP: 5 bar


Art. Nr. Gas Working pressure Inlet connection Outlet connection
0764456 A
M
P

1,5 bar

5 bar

5 bar

G 3/8”L Female G 3/8”L Male
0764461 A
M
P

1,5 bar

5 bar

5 bar

UNF 9/16” L Female UNF 9/16”L Male
0764464 A
M
P

1,5 bar

5 bar

5 bar

M 16L Female M 16L Male



Art. Nr. Gas Working pressure Inlet connection Outlet connection
0764457 O  10 bar G 3/8” Female G 3/8” Male
0764458 O   10 bar G 1/4” Female G 1/4” Male
0764462 O   10 bar UNF 9/16” Female UNF 9/16” Male
0764463 O   10 bar M 16 Female M 16 Male
