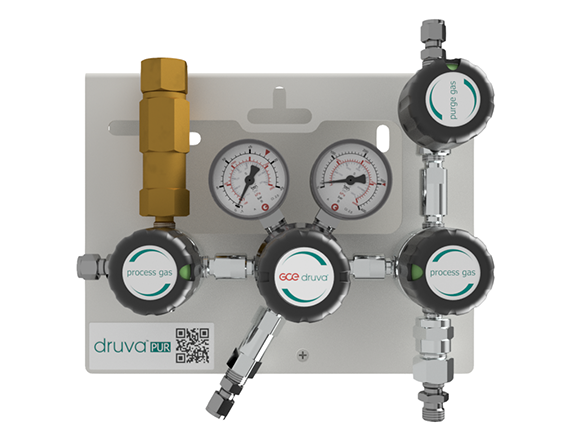

LOW FLOW RANGE - SINGLE STAGE - PROCESS GAS PURGING SYSTEM

MANIFOLD FOR PURE GAS SUPPLY SYSTEMS, Single source, Process gas purging system

The manifold used in gas supply systems for pure, inert, flammable, oxidizing gases and gas mixtures. not usable for corrosive and/or toxic gases and gas mixtures. Maximum gas purity is 6.0.

TECHNICAL SPECIFICATION

  • Manifold for one gas cylinder or bundle
  • Regulator and Valves - Hastelloy/Elgiloy diaphragm tighting system to atmosphere
  • Compact design
  • Excellent pressure adjustment
  • Valves - designed and approved in accordance with relevant sections of EN ISO 10297:2015 (including O2 - ignition test for the main valve)
  • Regulator - designed and approved regarding ISO7291 (including O2 - ignition test for brass chrome plated version)
  • A relief valve in the delivery pressure side
  • Available with a shut-off valve at the outlet, safety valve at outlet check valve at the inlet
  • Electrostatic chargeability test
    • Fulfils requirements according to DIN EN ISO 80079-36, IEC TS 60079-32-1 and German TRGS 727
    • Usable in EX-areas zones 1 and 2 for gases with explosion risk group I; IIA; IIB; IIC

SPECIAL FEATURES OF MANIFOLD

  • Splitted plates of the manifold
    • Separated mounting of the ground plate
    • Easy mounting of the manifold to ground plate and fix with one screw only
  • Front plate cutout for in-field gauge replacement

TECHNICAL DATA - MANIFOLD

Working temperature -20°C to +60°C
Material Brass chrome plated or Stainless steel
Material bracket Stainless steel
Flow nominal 20 m3/h (N2) according to ISO 7291 at 20 bar outlet pressure and 41 bar inlet pressure
Pressure rates manifold
  Max. inlet pressure 300 bar
  Delivery pressure 3/6/10/14/28/50/100/200 bar

Direct link to druva product configurator



Technical Datasheets Top

Download Technical Datasheets

Acrobat Logo MPLHXXSP_Brass_chrome_plated.pdf Acrobat Logo DATA-MSLHxXSP_EN.pdf
Technical Drawings Top

Download Technical Drawings

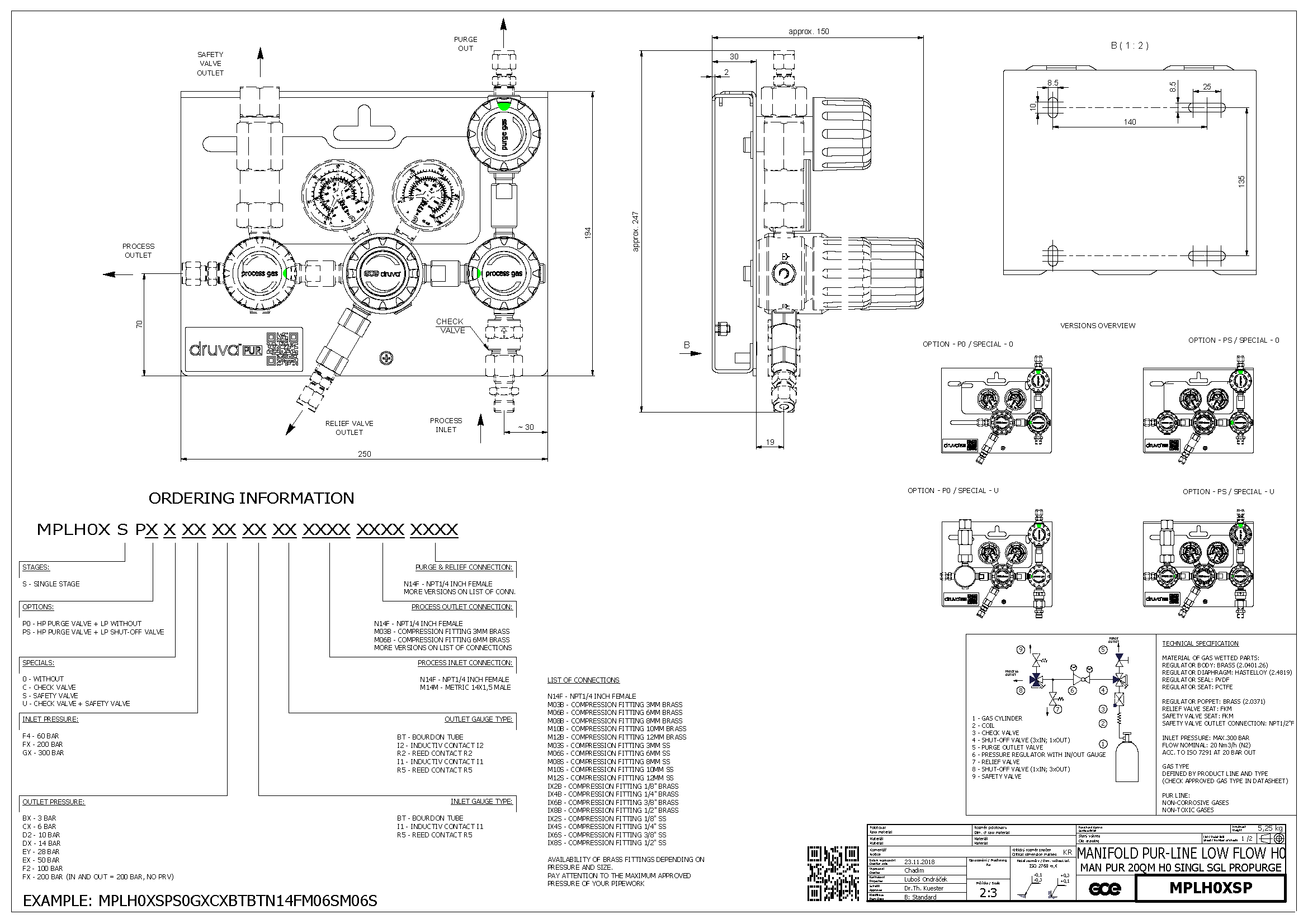

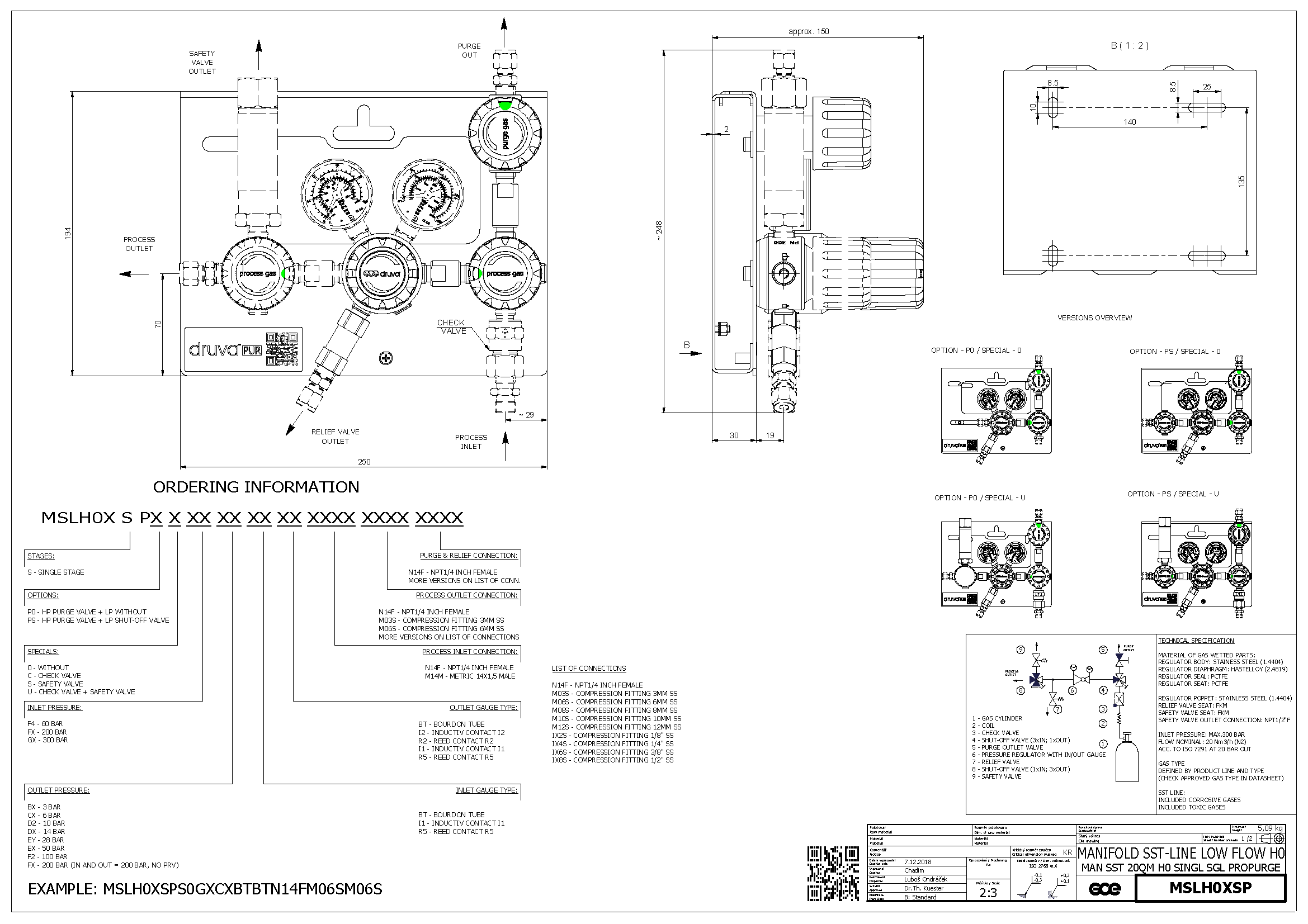

Acrobat Logo MPLH0XSP_drawings.pdf Acrobat Logo MPLHEXSP_drawings.pdf Acrobat Logo MSLH0XSP_drawings.pdf Acrobat Logo MSLHEXSP_drawings.pdf
Safety Top

Download Safety Documentation

Acrobat Logo IFU-MXLHXXS_rev002.pdf
