MEDIEJECT - NOT AVAILABLE

Group Number: 3312

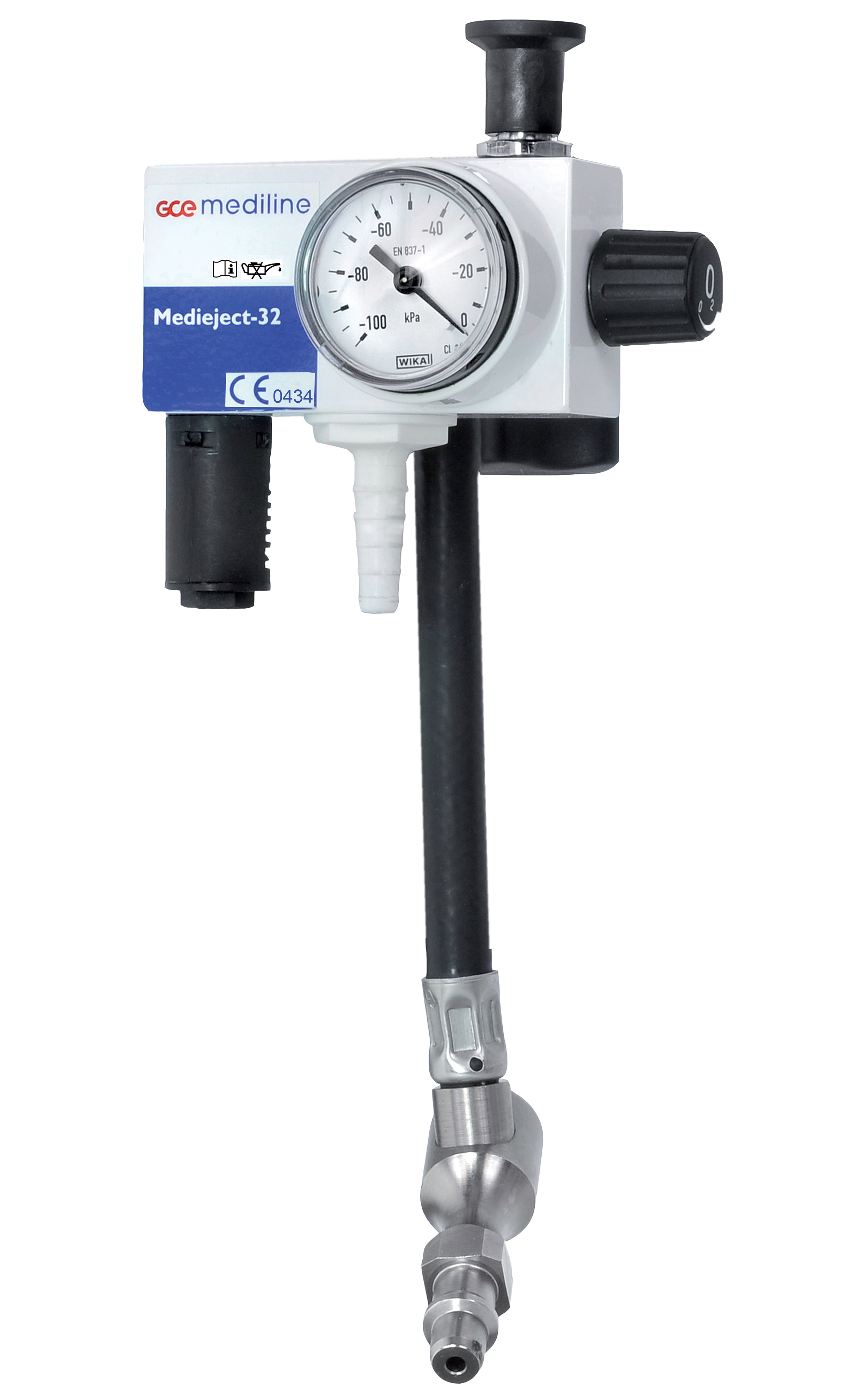

The suction ejector MediEject is a device creating vacuum by a venturi system. It is intended for all suction therapies.

ADVANTAGES

  • suitable for hospital systems without vacuum source

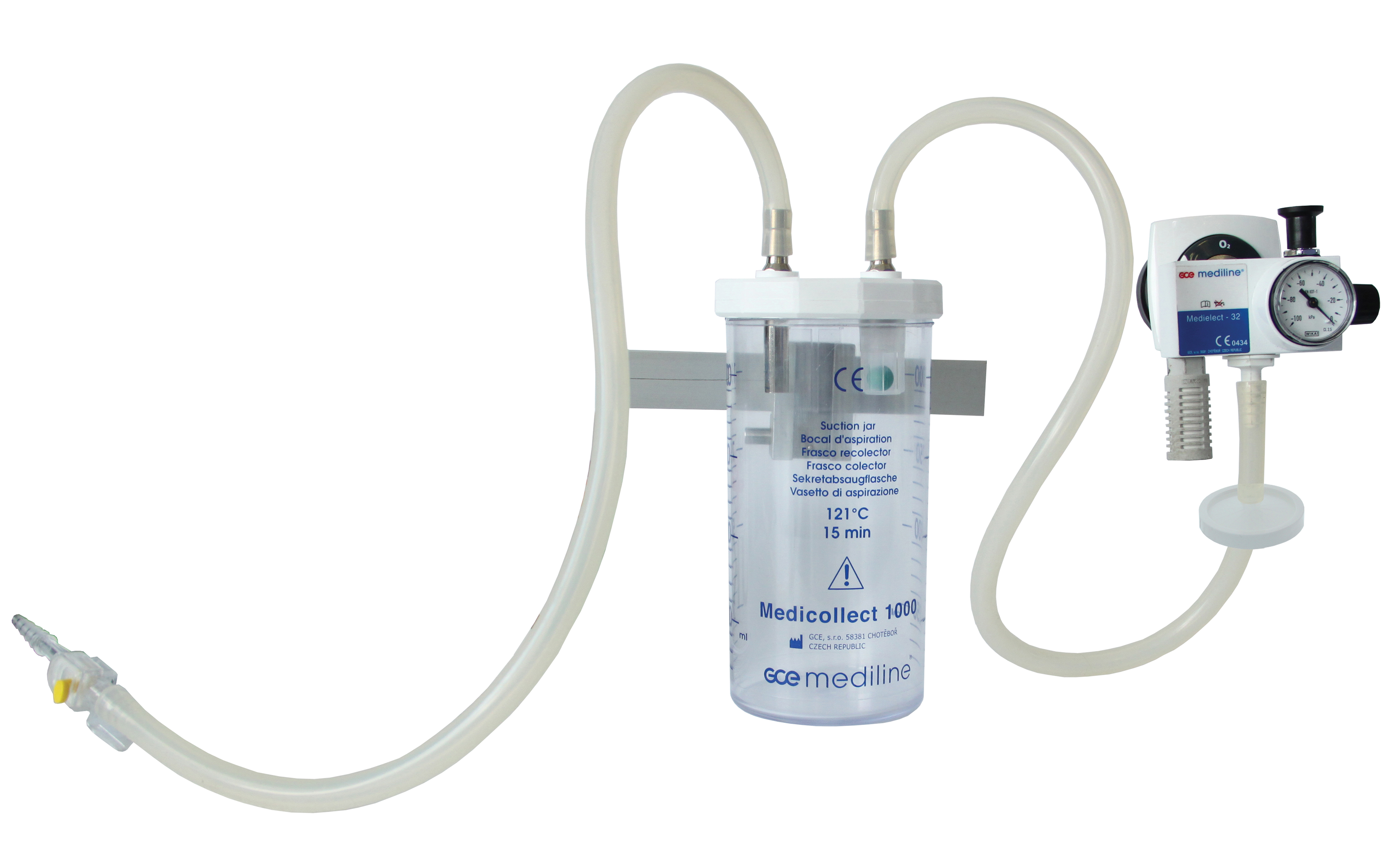

  • suitable for portable suction systems
  • low noise level
  • maximum suction effect is - 80 kPa (- 800 mbar)
  • available with probe connector or rail mounting version with a hose
  • suction effect is regulated with a needle valve

TECHNICAL DATA

ON-OFF function: ON: ON/OFF switch pulled

OFF: ON/OFF switch pushed
Max. inlet pressure: - 950 mbar
Max. suction flow: 25 l/min
Max. gas consumption: 38 l/min
Accuracy of gauge: ± 2,5 %
Inlet connection: According to the respective national standard
Outlet connection: Hose nipple

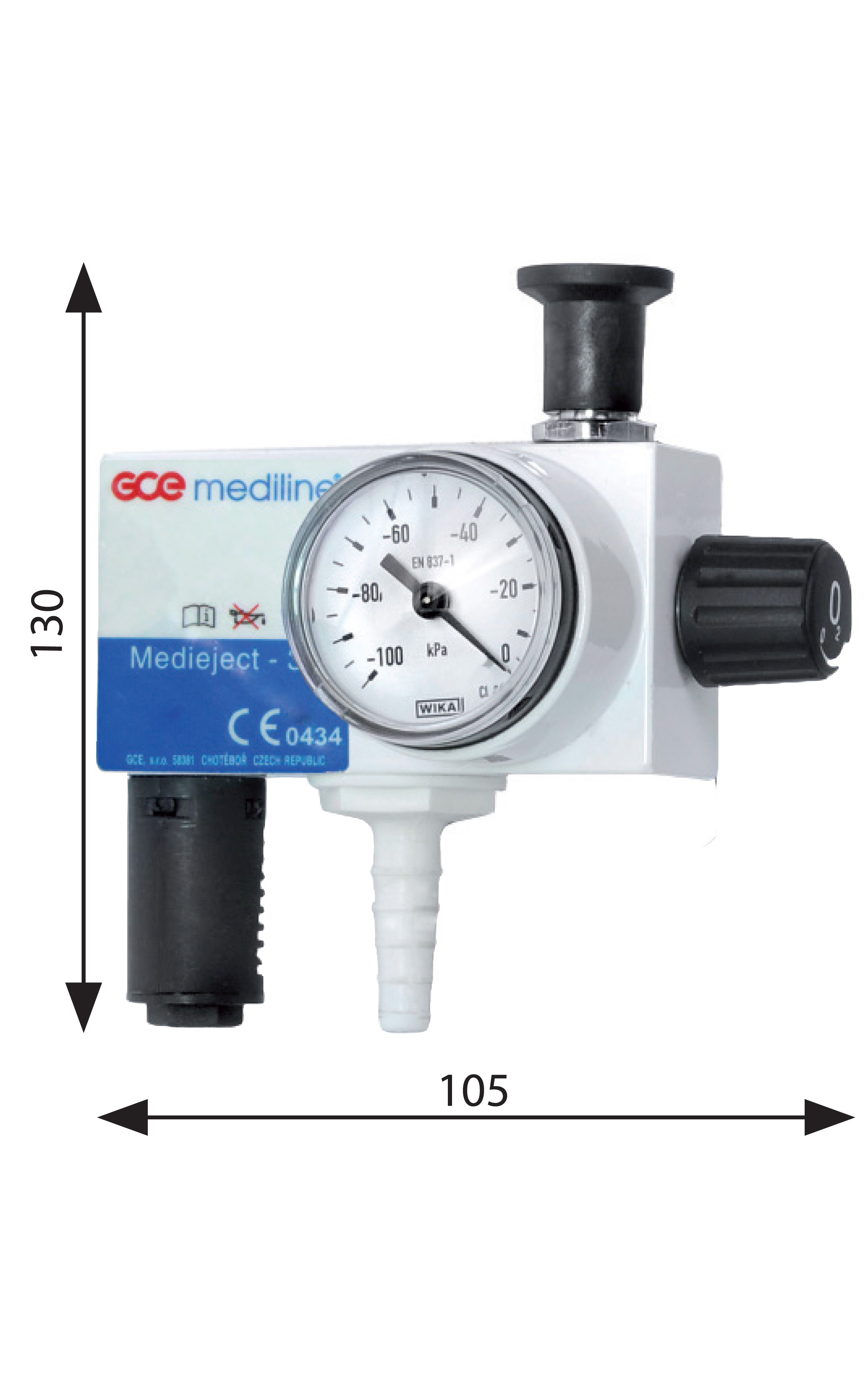

Body dimension:
Height: 130 mm
Width: 105 mm
Depth: 53 mm without connector
Weight: 0,370 - 0,450 kg (depending on probe type)
Temperature range:
Storage: - 40 °C to 60 °C
Operation: - 18 °C to 50 °C
Humidity: max 70 % RH
Regulatory status: Complies with medical devices directive 93/42/EEC.

Complies with EN 10079 - 3 (medical suction equipment).
Classification: Class IIa
Manufacturer: GCE, s.r.o, Žižkova 381
583 81 Chotěboř, CZ
Technical Drawings Top

Download Technical Drawings
