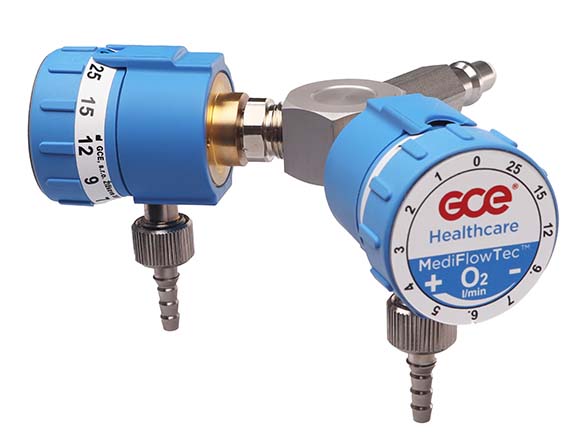

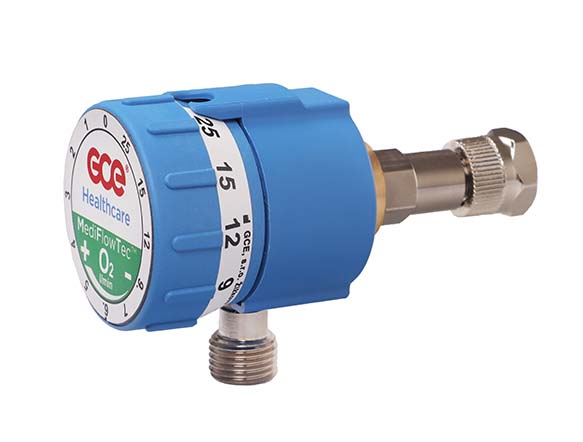

MediFlowTec™
Whole medical range is available on
MediFlowTec™ is providing innovative design of valve body and body guard connected with already existing GCE design features known from MediVital®, MediSelect®II and other GCE products.
MediFlowTec™ is an alternative for MediFlow Ultra or MediFlow which has less features but during development we highly focused on safety, robustness and flow accuracy.
A whole range of variants and approx 13 different country standards are available.
ADVANTAGES
- 2 /6 /15 /25 lpm version available
- Short unit, space saving in ambulances, 20 - 35 mm shorter than competitors' standouts
- Versions available: short, long, DY, NIST clamp, DY NIST clamp > 12 country standards and 2 different outlets
- 10 years lifetime, service free, field rep instruction available
- Full Flow scale visible (next flow values)
- MRI compatible
- Wide range, see list of variants
735100001580 MediFlowTec leaflet US
TECHNICAL DATA
| Gas: | O2, Air |
| Inlet pressure range: | 58 - 72 psi |
| Flow ranges: | 0 to 2 lpm 0 to 6 lpm 0 to 15 lpm 0 to 25 lpm |
| Inlet connection: | DISS, Ohmeda, Chemetron |
| Outlet connection: | 9/16"UNF, M12x1,25, G 3/8, G 1/4 with hose nipple |
| Body material: | Brass |
| Control knob: | Polyamide |
| O-rings: | EPDM |
| Filter: | Sintered bronze and stainless steel |
| Body dimensions: | |
| Width: | 1.25 inch |
| Height: | 6.3 inch |
| Depth: | 6.3 inch |
| Weight: | 280 g (without connector) |
| Temperature range: | |
| Storage: | -22/+140°F |
| Operation: | -22/+140°F |
| Regulatory status: | Complies with Medical Devices Directive 93/42/EEC Complies with EN 15002 (Low pressure regulators) Complies with Standard EN 1789 (Medical vehicles and their equipment) MRI compatible |
