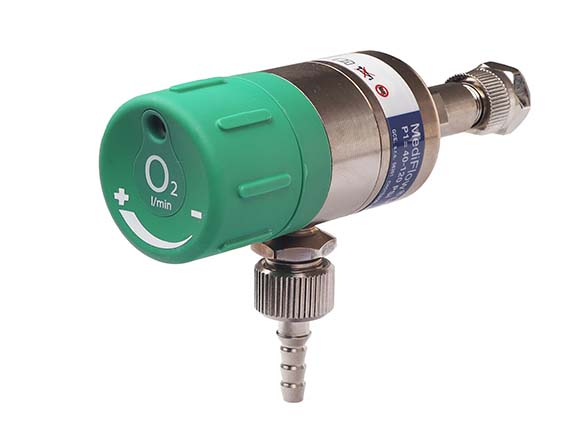

MEDIFLOW® ULTRA II
Group Number: 3324Whole medical range is available on

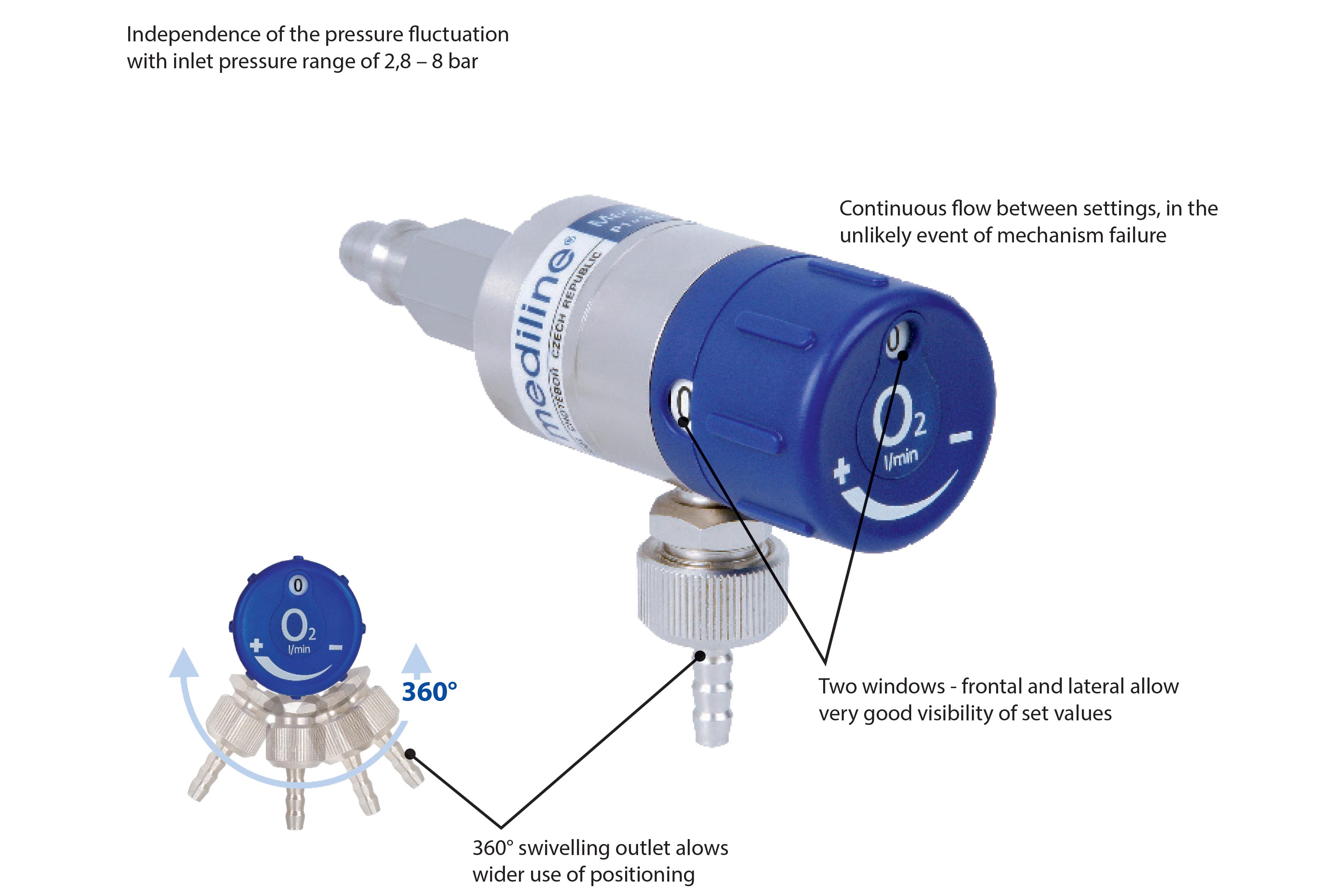

- Built-in regulator provides a very stable and precise flow, independent of the pressure in the medical central gas system or cylinder
- Innovative self centering flow setting device with continuous flow between settings. In the unlikely event of indent mechanism failure, the patient will still be supplied by medicinal gas.
- Lateral and frontal reading of flow settings
- 360° swivelling outlet – it enables better orientation of the nasal cannula or oxygen mask towards the patient (preventing from twisting)
- Higher number of flow disc holes increases treatment options. Extra flow setting of 25 l/min on the traditional 15 l/min variant, allows use in resuscitation. The additional 7 l/min is intended for nebulization.
- Ergonomic and streamlined design
735100001578 MediFlow Ultra II leaflet US
TECHNICAL DATA
| Inlet pressure range: | 40 - 120 psi |
| Max.outlet pressure: | 30 psi (without flow) |
| Flow ranges*: | |
| 0 to 25 l/min: | 0 / 1 / 2 / 3 / 4 / 5 / 6 / 7 / 9 / 12 / 15 / 25 |
| Inlet connection: | DISS. Ohmeda, Chemetron |
| Outlet connection: | 9/16 UNF; M12×1,25; G3/8; G1/4 with hose nipple |
| Body material: | Nickel-plated brass |
| Control knob: | Polyamide |
| O-rings: | EPDM |
| Filter: | Sintered bronze and stainless steel |
| Body dimensions: | |
| Diameter: | 1.5 inch |
| Length: | 3 inch |
| Weight: | 350 g |
| Regulatory status: | Complies with EN 10524-4 (Low pressure regulators) Complies with Standard EN 1789 (Medical vehicles and their equipment) |
*Flowrates expressed at 73.4 °F and 101,3 kPa
Product is not MRI compatible.
