MEDIMETER®
Group Number: 3321Whole medical range is available on

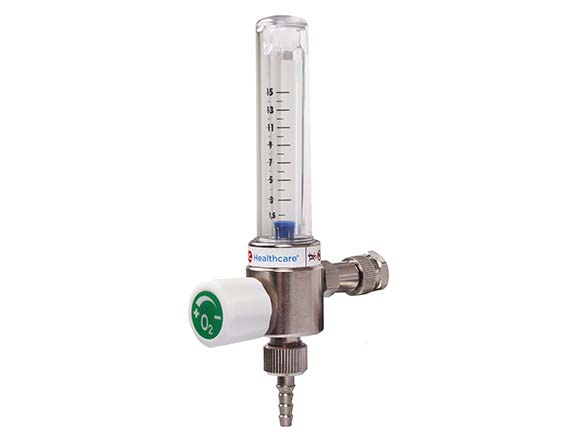

MediMeter® is a flowmeter intended for control and measurement air or oxygen flow which is administered to patients.
ADVANTAGES

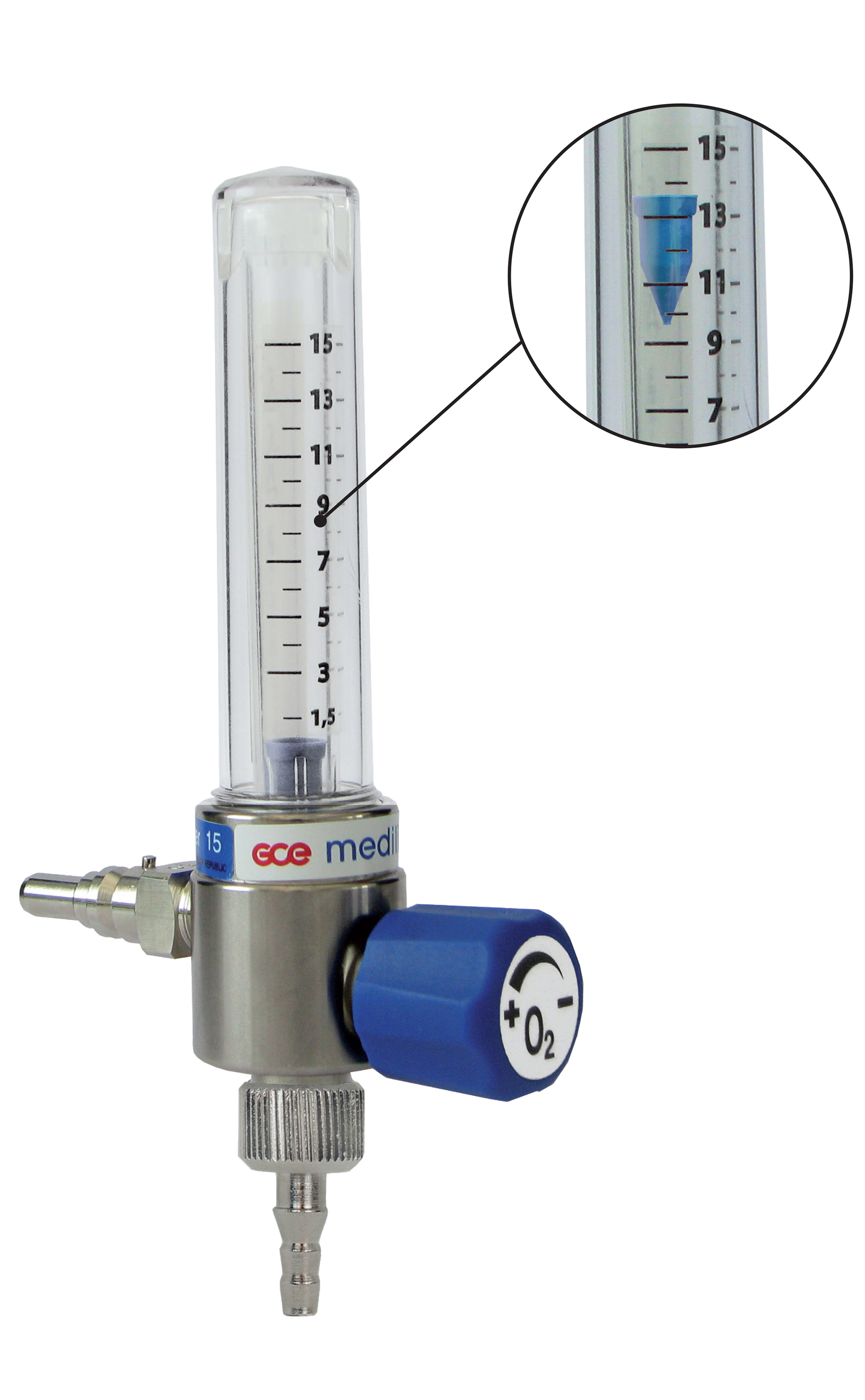

- Flat surface float allows easy and safe reading of flow values by the users
- Ergonomic desing, easy for cleaning

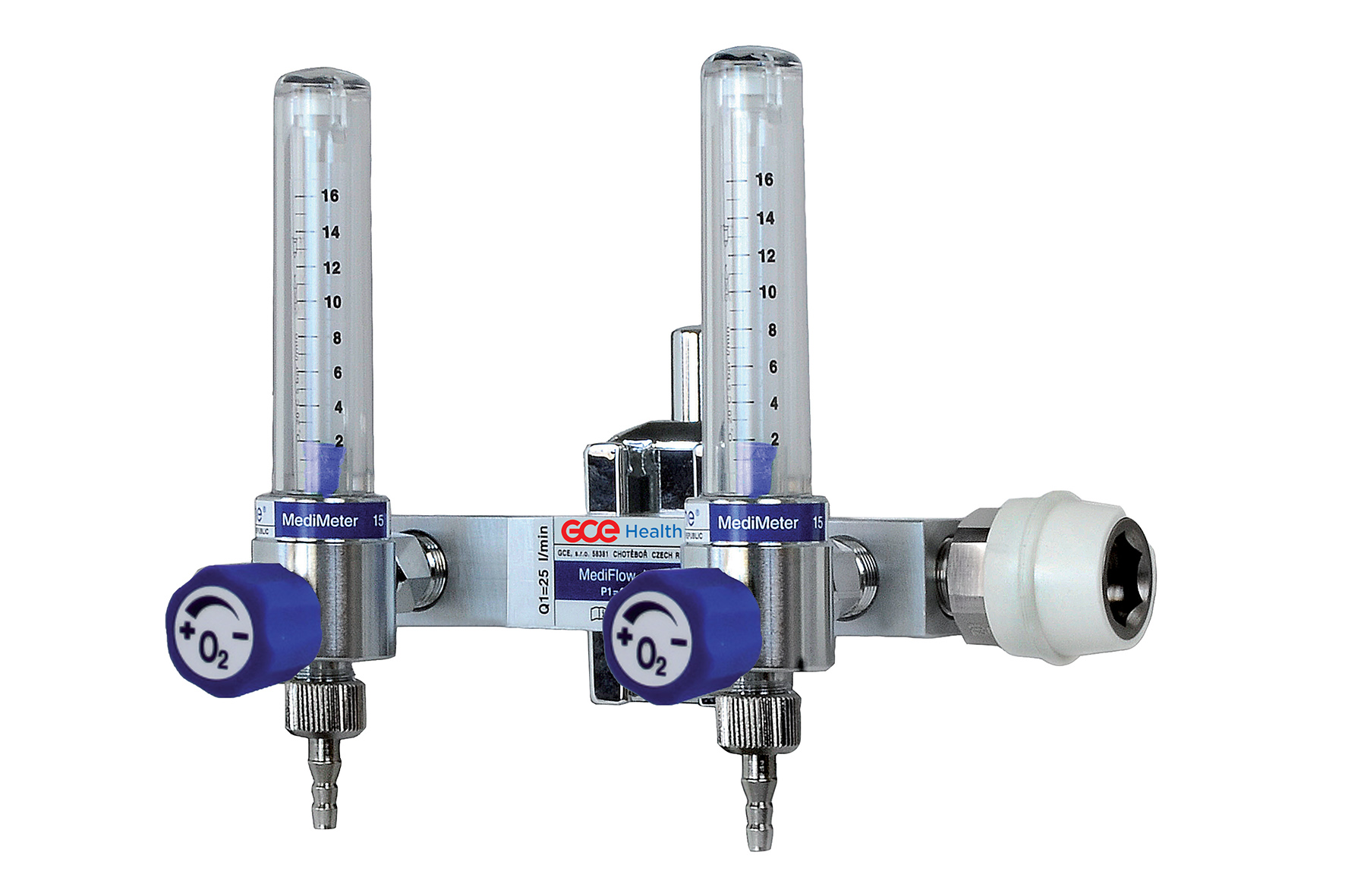

- Available with probe connector, rail mounting with a hose and twin versions
- Soft closing mechanism
- Resistant float against impact
- New scale - better reading of flow values
- Flows - 5, 15, 30, 60 lpm
735100001579 MediMeter leaflet US
TECHNICAL DATA
| Gas pressure: | O2; Air |
| Inlet pressure: | 50 psi |
| Flow ranges: |
0 - 5 l/min |
| Inlet connection: | DISS, Ohmeda, BSI, Chemetron |
| Outlet connection: | 9/16” UNF; M12×1,25; G3/8; G 1/4 (with hose nipple) |
| Body material: | Nickel-plated brass |
| O-rings: | EPDM |
| Control knob: | Polyamide |
| Body dimensions: | |
| Width: | 1.25 inch (32 mm) |
| Height: | 6.3 inch (160 mm) |
| Depth: | 2.4 inch (60 mm) |
| Weight: | 280 g (without connector) |
| Temperature range: | |
| Storage: | -22/+140 °F |
| Operation: | -4/+140 °F |
| Rail clamp 25 mm | Suitable for rails 25x10, 25x8 and 30x10mm |
| Rail clamp 50 mm | Suitable for 50x10mm rails |
| Regulatory status: | Complies with medical devices directive 93/42/EEC. Complies with EN 15 002 (Flow - metering devices for connection to terminal units). |
* Flowrates expressed at 73.4 °F and 101,3 kPa
Product is not MRI compatible.
