MEDICAL HIGH PRESSURE REGULATORS

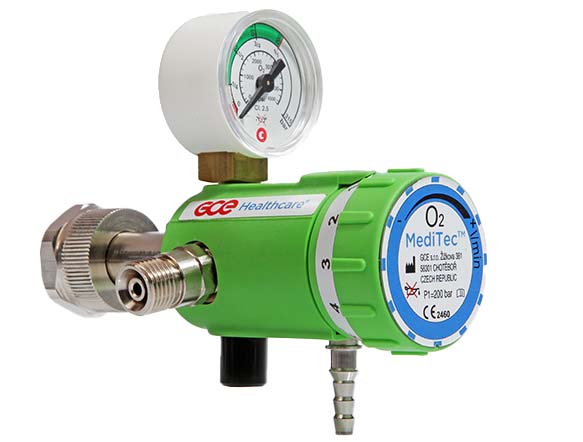

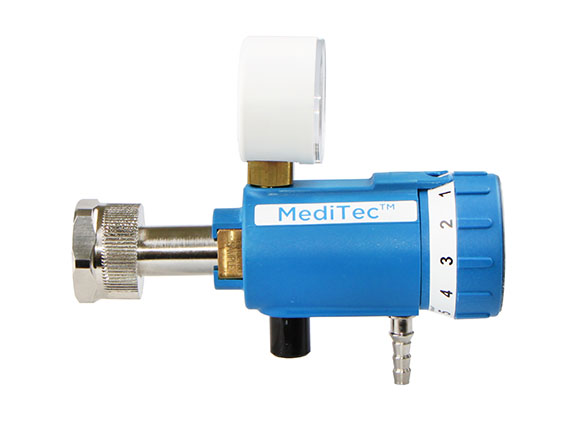

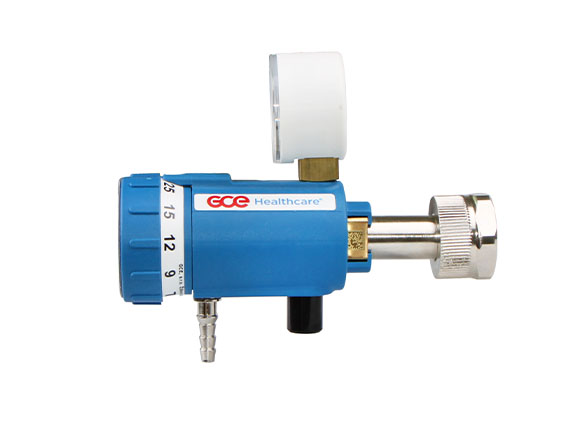

The new MediTec™ medical high pressure regulator is a blend of innovation and GCE's heritage in the manufacture of medical gas equipment. MediTec's simple, robust and ergonomic design includes a flow selector and option for quick connector, its plastic guard makes it easy to clean.
FEATURES
- Innovative self centering feature that allows flow of gas in the unlikely event that the device flow selector is placed between two settings

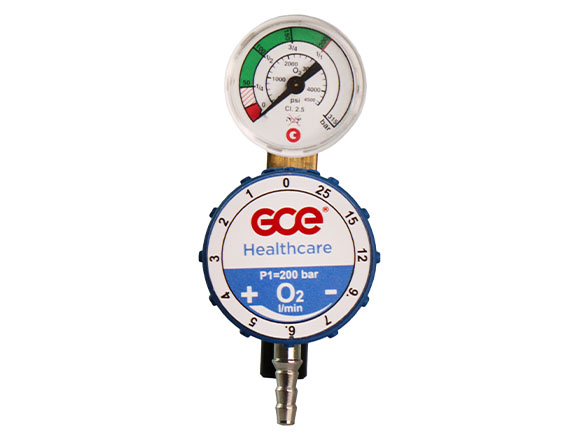

- Dual gauge scale - PSI and Bar
- Up to 25 l/min
- Service/No special maintenance or service, apart from the functional tests before use is needed
- Low weight
- Option for quick connector available
- Suitable for use in emergency resuscitation and nebulisation
- Meets the requirements of ISO EN 10524-1
735100001581 MediTec leaflet US
TECHNICAL DATA
| Gas: | O2, Air, N2O, CO2, O2/N2O | |
| Inlet pressure range: | Up to 3000 psi | |
| Nominal outlet pressure: | 50 psi | |
| Flow range: | 0 to 2 lpm | 0;0,1;0,2;0,3;0,4;0,5;0,6;0,7;0,8;1;1,5;2 |
| 0 to 6 lpm | 0;0,25;0,5;0,75;1;1,5;2;2,5;3;4;5;6 | |
| 0 to 15 lpm | 0;1;2;3;4;5;6;7;9;12;15 | |
| 0 to 25 lpm | 0;1;2;3;4;5;6;7;9;12;15;25 | |
| Inlet connection: | According to national standards (CGA 540, CGA 346, CGA 870 etc.) | |
| Outlet connection: | 9/16 UNF, M12x1,25, G3/8, G1/4 with hose nipple | |
| Body material: | Nickel palted brass | |
| Plastics: | Polyamide | |
| O-rings: | EPDM | |
| Filter: | Sintered bronze | |
| Regulatory status: | Complies with Medical Devices Directive 93/42/EEC Complies with EN ISO 10524-1 (Pressure regulators for use with medical gases) Complies with EN 1789 (Medical vehicles and their equipment - Road ambulances) |
|
| Classification: | Class IIb | |
| Manufacturer: | GCE, s.r.o, Žižkova 381, 583 81 Chotebor, CZ | |
* Flowrates expressed at 73.4°F and 101,3 kPa
Product is not MRI compatible
