MEDIVITOP®
Whole medical range is available on
Pressure regulator integrated with cylinder valve for use with medical gases.
EXTENDED SERVICE LIFE
- Service life time ensured by extended endurance and cycle testing
- Patented design of shut off valve integrated with flow control knob
- Latest technology highest shock resistant gauge
- Flow selector designed for optimal gas flow and patient safety
- Guard design provides maximum protection for the valve
USER FRIENDLY

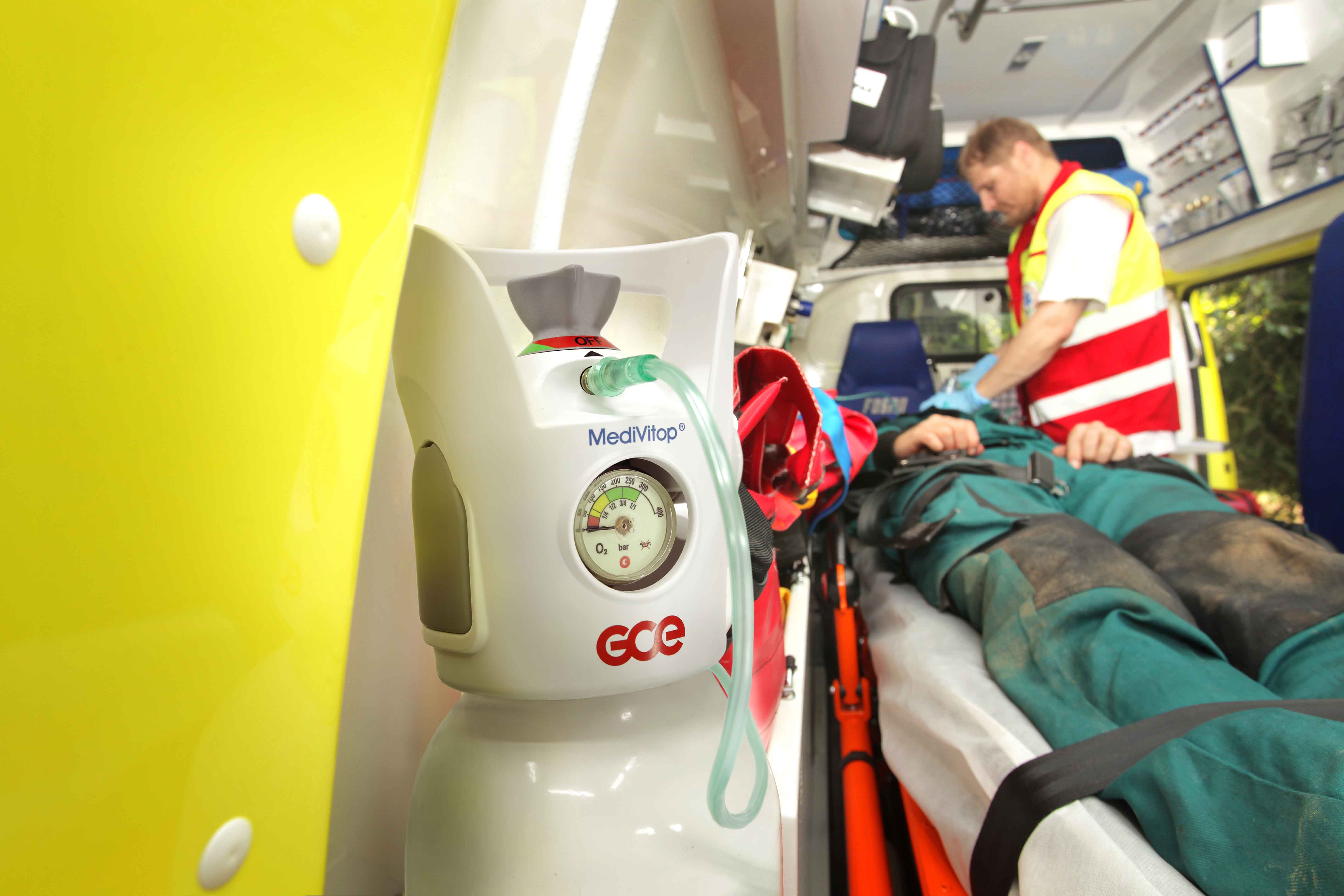

- Suitable for use in Homecare, Emergency and Hospital applications
- Easy read Flow Selector and Gauge
- Shut off valve with clear open/closed status colour coded marking
- Ergonomic guard design allows easy handling of the cylinder package by all users
- Compact design, weight 2,97 lb
- Easy clean guard material
HIGHEST SAFETY
- Testing in accordance with the following standards: EN ISO 10524-3, EN ISO 10297, ASTM G175 Pill test,
- In accordance with MDR (EU) 2017/745 and TPED 2010/35/EU
- Phthalate and Halogenated polymer free components
- MRI compatible up to Tesla 3
- For use with medical Oxygen, O2/N2O and Air up to 3000 psi working pressure
735100001431 MediVitop US leaflet
TECHNICAL DATA
| Gas: | O2, Air, O2/N2O |
| Inlet pressure: | Up to 3000 psi (207 bar) |
| Outlet pressure: | 52 psi to 80 psi - acc. to EN ISO 10524-3 (or per customer specification) |
| RPV closing: | >43,5 psi |
| PRV opening and re-closing: | >80 psi |
| Flow range: | 0-15 and 0-25 lpm |
| Materials: | Metallic parts (gas wetted): brass Elastomers: EPDM, silicon, PUR Plastics: PA66, PEEK Springs (gas wetted): CuBe2, CuSn6 |
| Dimensions: | Height: 6,89 inch; Width: 5,55 inch; Depth: 4,84 inch |
| Weight:* | 2,97 lb |
| Inlet stem: | Tapered or parallel threads (17E, 25E, M18×1,5 or per customer specification) |
| Filling port: | ISO 5145, or per customer specification |
| Regulatory status: | Complies with MDR (EU) 2017/745 Complies with TPED 2010/35/EU Complies with EN ISO 10524-3 Complies with EN ISO 10297 Complies with EN 1789 Complies with ASTM G175 Production in accordance with EN ISO 9001 and EN ISO 13485 |
| Classification: | IIb |
| Manufacturer: | GCE s.r.o., Žižkova 381, 583 01 Chotěboř, Czech Republic |
*Standard Combivalve (flow control unit 0 - 15 l/min, flow outlet, DIN quick coupling pressure outlet) with guard. All technical data are given for information only and are subject to modifications by the manufacturers.

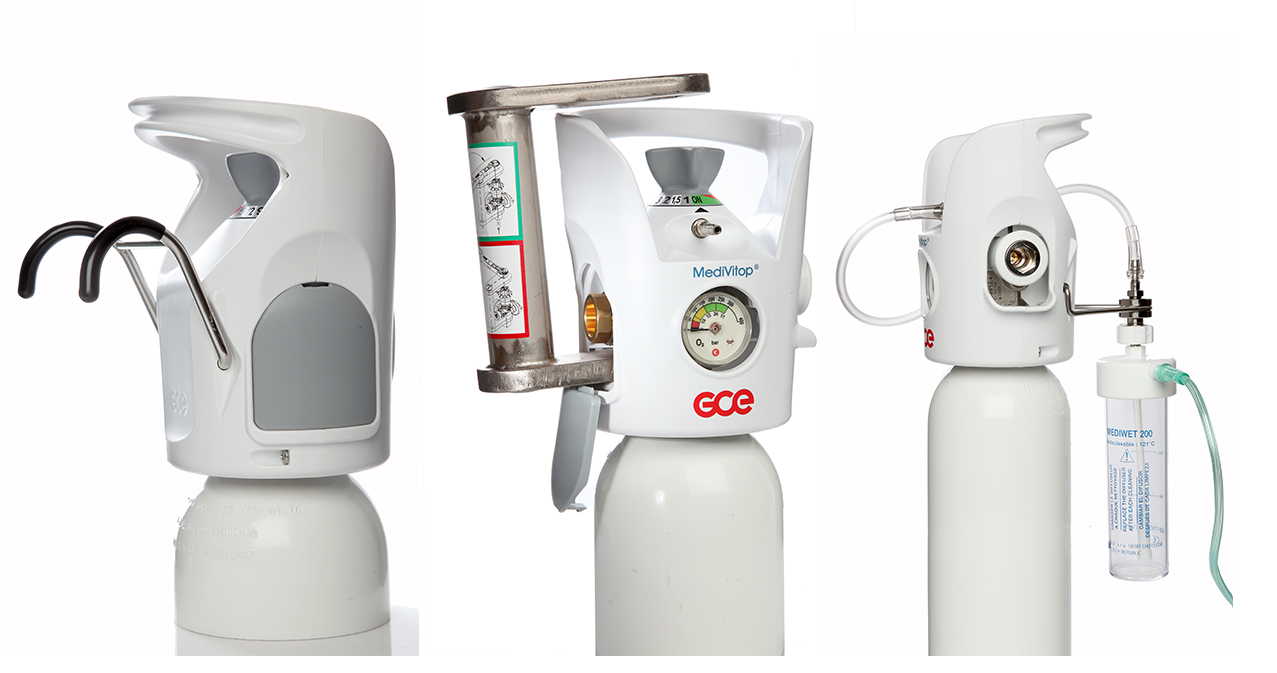

RELATED PRODUCTS
| Art. Nr. | Description |
| 0727421 | Bed hanger (10pcs) |
| 0727427 | Bed hanger with black plastic sleeves (10 pcs) |
| 0727418 | Humidifier holder 9/16 (10pcs) |
| 14112760 | Connecting hose for humidifier holder 40 cm (1 pc) |
| 0727422 | Valving tool (1pce) |
| on request | Filling adaptor |
