S100

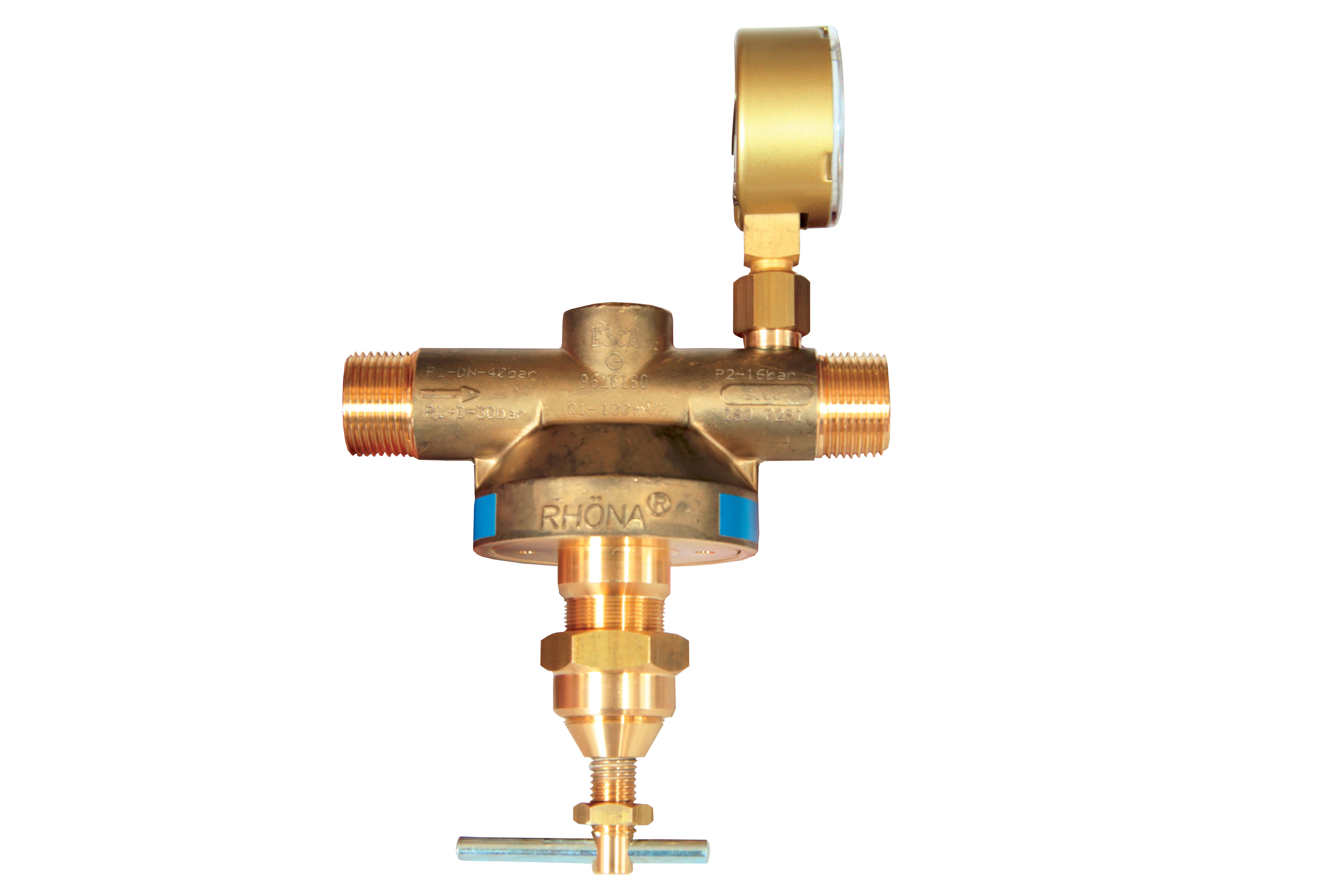

Group Number: 2722- Low pressure, high fl ow line regulator for oxygen, inert gases and fuel gases application.
- Regulator provides constant and stabile fl ow.
- Applications: Oxy-fuel processes, Gas pressure lines, Outlet points
- Adjustable outlet pressure.
- Inlet pressure up to 40 bar for inert gases and up to 30 bar for oxygen.
- Outlet pressure is adjustable up to 16 bar (see list of variants).

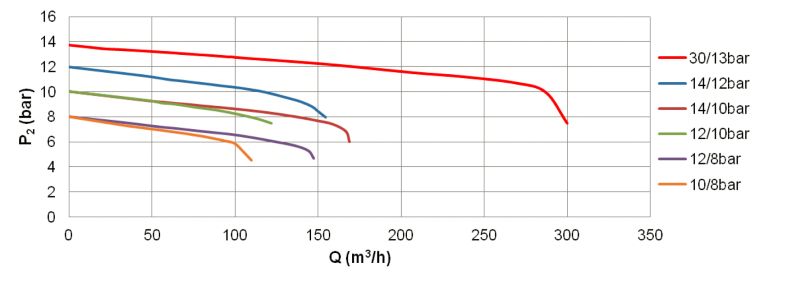

- Flow capacity up to 100 Nm3/h.
TECHNICAL DATA
| Body and bonnet material: | Brass |
| Diaphragm material: | EPDM, NBR |
| Seat sealing material: | Chloroprene |
| Inlet outlet connections material: | Brass |
| Maximal inlet pressure: | 40 bar (30 bar O) |
| Maximal outlet pressure: | 16 bar |
| Maximal flow capacity: | 100 Nm3/h (P2=16bar air) |
| Weight: | 1,2 kg |
| Ambient temperature range: | from -20°C to +60 °C |
