MEDIREG® II
Group Number: 3221Whole medical range is available on

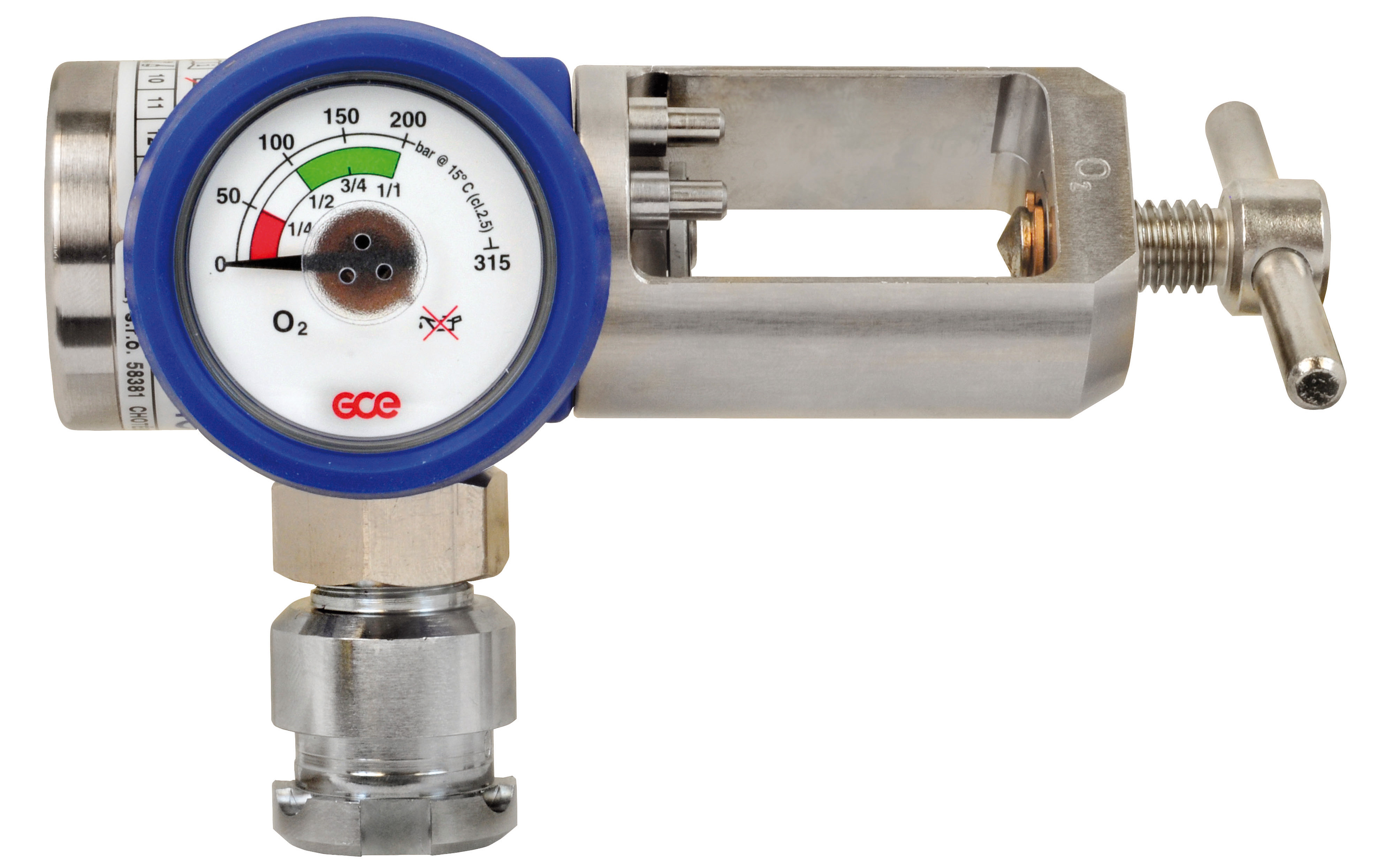

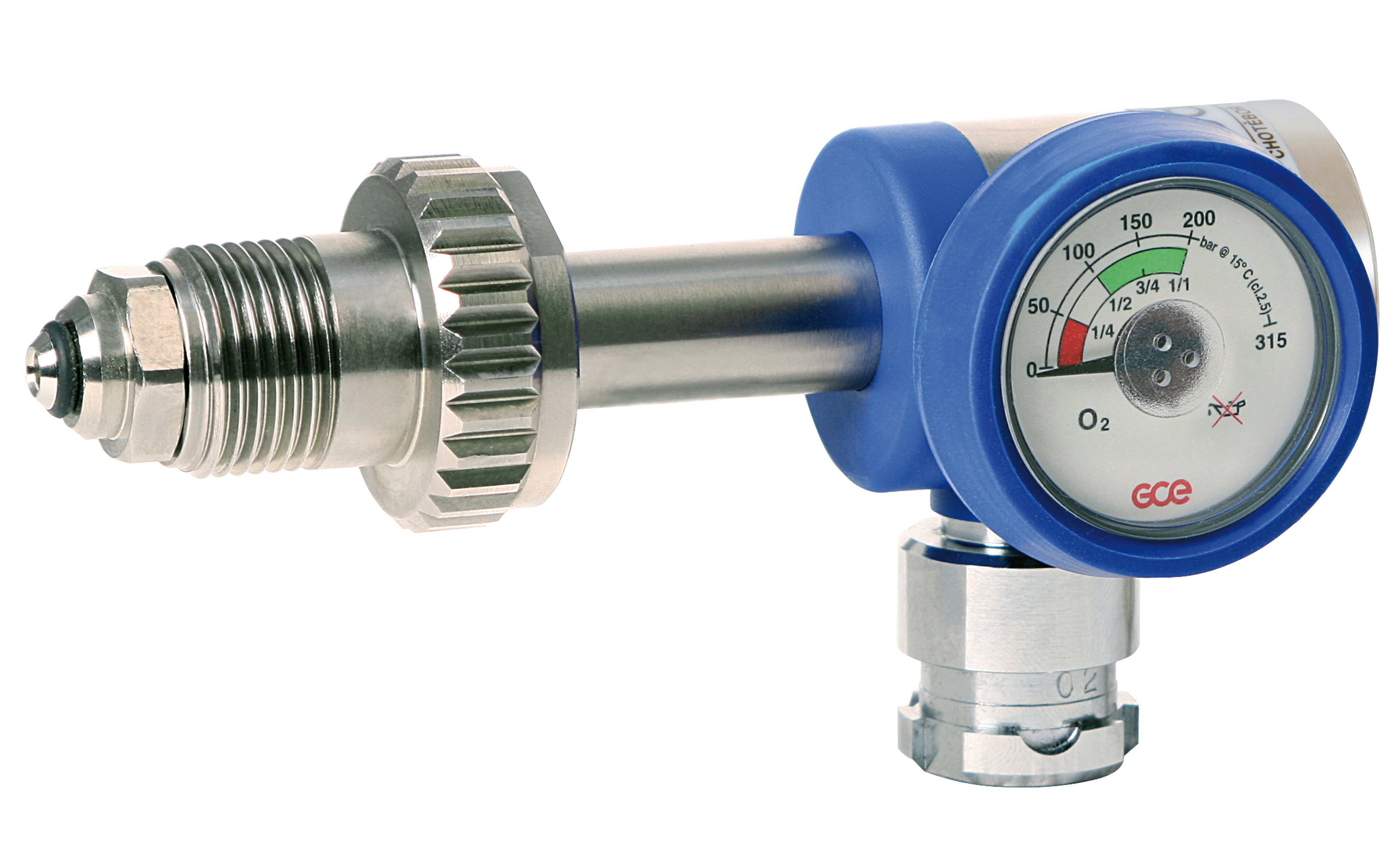

High pressure regulator for use with medical gas cylinders equipped with a medical cylinder valve.
- Regulator with pressure outlet, constantly adjusted flow or with flowmeter
- Rotating pressure gauge which allows convenient reading
- Ergonomic and streamlined design
- Easy cleaning surface
- Compact and user friendly
735100001577 MediSelect II leaflet US
TECHNICAL DATA
| Gas: | O2, Air, N2O, CO2, O2/N2O, Xe, Ar |
| Inlet pressure: | Up to 3000 psi |
| Outlet pressure: | 50 psi |
| Inlet connection: | According to national standards (CGA 540, CGA 346, CGA 870,...) |
| Pressure outlet: | DISS, Ohmeda, BSI, Chemetron, DIN, AFNOR, SS, CZ |
| Body material: | Nickel-plated brass |
| Control knob: | Polyamide |
| O-rings: | EPDM |
| Filter: | Sintered bronze |
| Gauge cover: | TPE (thermoplastic elastomer) |
| Regulatory status: |
Complies with Medical Devices Directive 93/42/EEC |
| Classification: |
Class IIb |

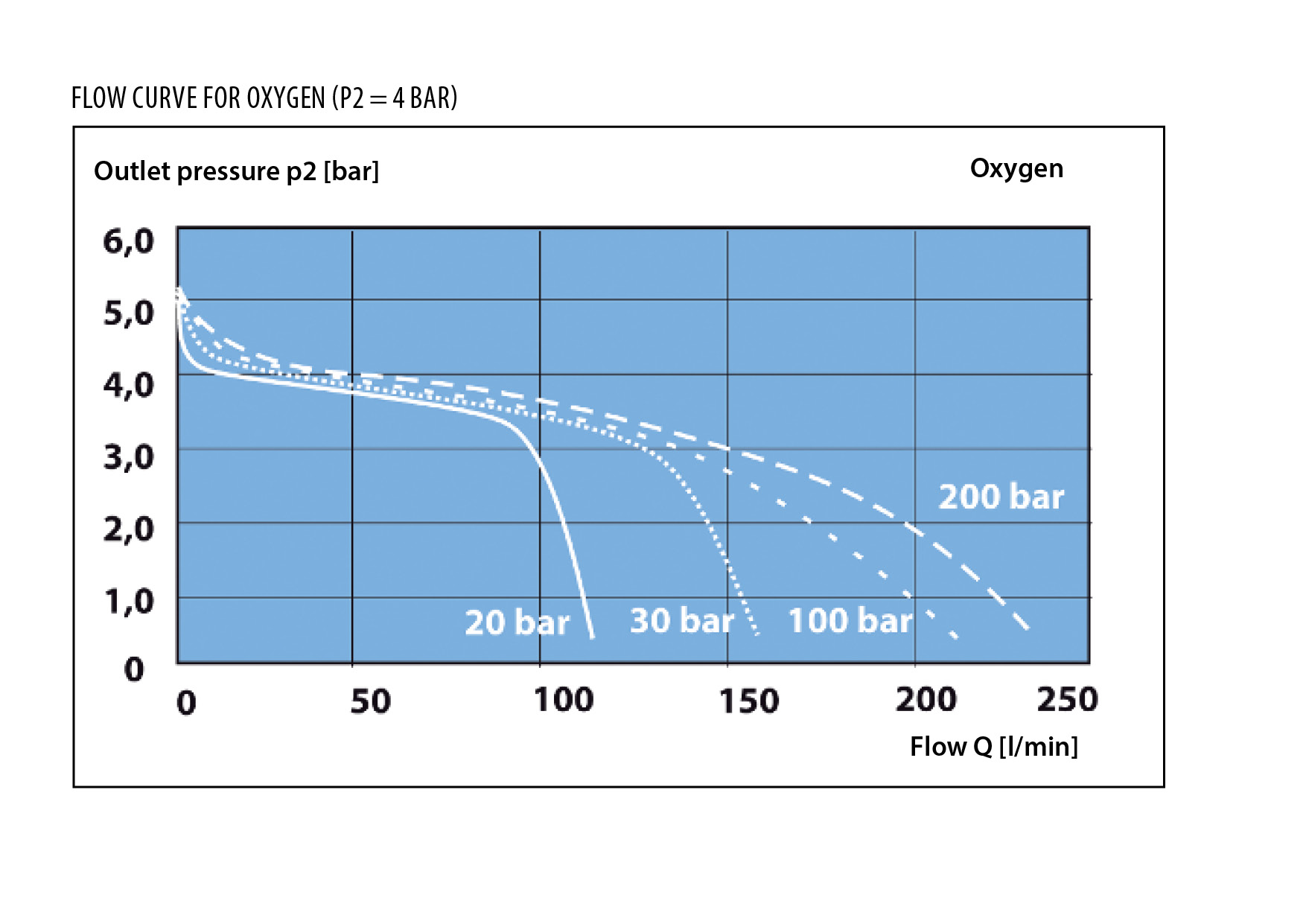

* Flowrates expressed at 73.4°F and 101,3 kPa
