MEDISELECT® II

Group Number: 3211

Whole medical range is available on

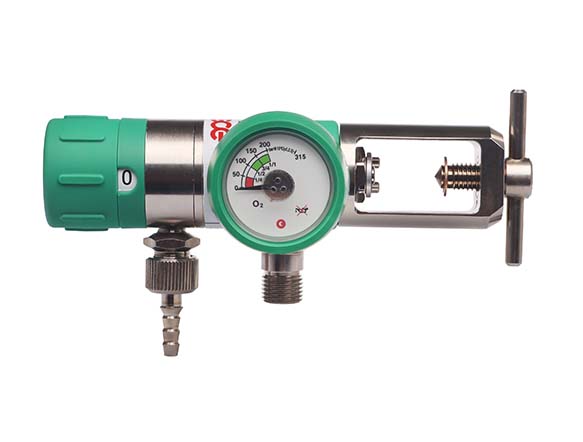

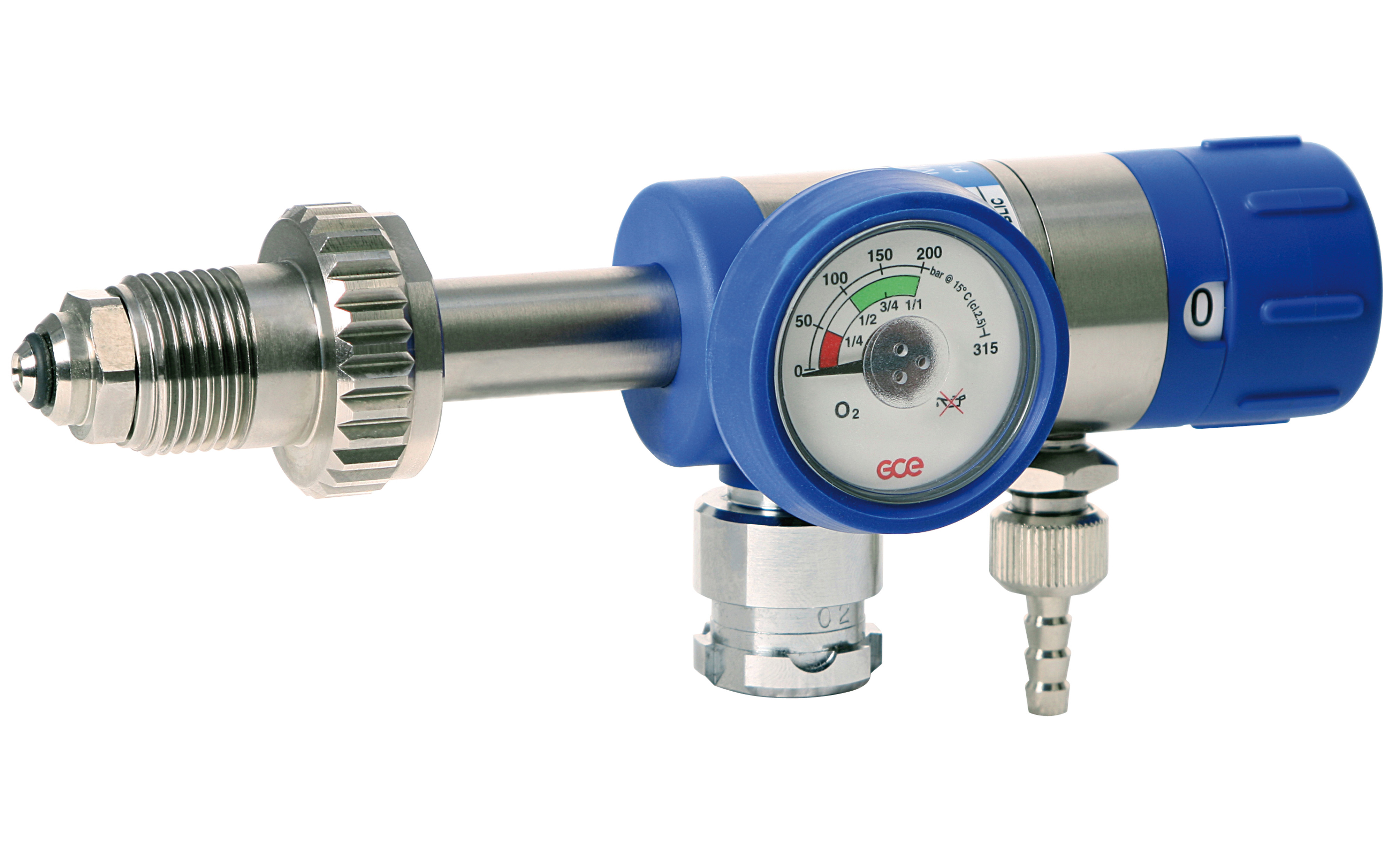

High pressure regulator for use with medical gas cylinders equipped with a medical cylinder valve.

Regulator with flow selector.
Rotating pressure gauge which allows convenient reading
360° swivelling outlet – it enables the better orientation of the nasal cannula or oxygen mask towards the patient (preventing from twisting)
Innovative self centering flow setting device with continuous flow between settings. In the unlikely event of indent mechanism failure, the patient will still be supplied by medicinal gas
Lateral and frontal reading of flow settings
The higher number of flow disc holes increases treatment options. Extra flow setting of 25 l/min on the traditional 15 l/min variant, allows use in resuscitation
The additional 7 l/min is intended for nebulization

Gas:	O₂, Air, N₂O, CO₂, O₂/N₂O, Xe
Inlet pressure:	Up to 3000 psi
Outlet pressure:	50 psi
*Flow ranges:**
0 to 2 l/min:	0/ 0,1 / 0,2 / 0,3 / 0,4 / 0,5 / 0,6 / 0,7 / 0,8 / 1 / 1,5 / 2
0 to 3 l/min:	0/ 1/64 / 1/32 / 1/16 / 1/8 / 1/4 / 1/2 / 3/4 / 1 / 1,5 / 2 / 3
0 to 6 l/min:	0/ 0,25 / 0,5 / 0,75 / 1 / 1,5 / 2 / 2,5 / 3 / 4 / 5 / 6
0 to 25 l/min:	0 / 1 / 2 / 3 / 4 / 5 / 6 / 7 / 9 / 12 / 15 / 25
Inlet connection:	According to national standards (CGA 540, CGA 346, CGA 870,...)
Outlet connection:	9/16 UNF, M12×1,25, G3/8, G1/4 with hose nipple
Pressure outlet	DISS, Ohmeda, BSI, Chemetron, DIN, AFNOR, SS, CZ
Body material:	Nickel-plated brass
Control knob:	Polyamide
O-rings:	EPDM
Filter:	Sintered bronze
Gauge cover:	TPE (thermoplastic elastomer)
Regulatory status:	Complies with Medical Devices Directive 93/42/EEC Complies with EN ISO 10524-1 (Pressure regulators for use with medical gases) Complies with EN 1789 (Medical vehicles and their equipment - Road ambulances)
Classification:	Class IIb

* Flowrates expressed at 73.4°F and 101,3 kPa
