APC (AUTOMATED PROCESS CONTROL)




FIT+ CATALOGUE

APC O3M Automatic Process Control with Operator Terminal

  • Cutting database for FIT+ three torches is stored in Operator Terminal
  • APC operator interface is integrated into Operator Terminal
  • Hassle free interface to CNC, only "Start Process" from CNC and "Ok to Move" from APC required
  • Optional "Change Speed" output to CNC for piercing process and reduce speed while moving over slag
  • Operator Terminal is based on 10" Windows Tablet
  • Operator Terminal Software can run on any Windows 7 or higher Operating Software


APC C3M Automatic Process Control, Operator Interface integrated into CNC

  • Cutting database for FIT+ three torches are implemented in machine control (CNC)
  • APC operator interface is embedded in CNC
  • APC with flexible fieldbus interface to connect to CNC (e.g. Modbus)
  • Hassle free interface to CNC, only "Start Process" from CNC and "Ok to Move" from APC required
  • Optional "Change Speed" output to CNC for piercing process and to reduce speed while moving over slag


BENEFITS

  • Higher productivity using best embedded cutting process
  • Consistent cutting quality using fully automatic process
  • Lower installation cost through fully integrated system
  • Highest cutting quality and productivity by using best components

FEATURES

  • Cutting process and database is integrated into APC system
  • Oxy-Fuel Cutting System with Cutting Torch, Gas Control,
  • Ignition, Height Sensing and Lifter all in one package
  • Fits on all carriages
  • Only requires oxygen and fuel gas connection
  • Gas hoses, valves, flash back arrestors are part of the package
  • Gas Controller mounted close to the torch
  • Works with all common CNC controllers on the market
  • Modular approach allows highest flexibility
  • Setting torch height in mm or inch
  • One Gas Controller per torch

APPLICATION FIELDS

  • Oxy-Fuel cutting machines for straight cutting of up to 300 mm sheets
  • Single or multi torch applications, one Gas Controller per torch
  • 100 % compatible with the IHT M 4000 PCS and
    M 4000 BAS plasma systems
  • Cut sheets up to 100 mm thickness when used with active height sensor and up to 300 mm with Splash Protector

CNC CONNECTIONS

  • In: Start Process
  • In: Manual Up / Down
  • In: Clearance Control Off
  • In: Calibrate
  • Out: Ok to Move
  • Out: Change Speed
  • Out: Error/Collision
  • Fieldbus
  • Power: 24 V DC













Item No. Description APC
O3M
APC
C3M
Position
140800 Gas Controller A
140801 Gas Hose Assembly (1,5 / 2,0 / 2,5 m) B
140802

M 4000 APC Basic Kit (Body, CU+, DIG Cable, Power Supply)

C
140810 Guiding rail kit APC 220+ mm D
140811 Guiding rail kit APC 350 mm D
 140812 Guiding rail kit APC 500 mm  ☑ D
 140110

Sensor Torch FIT+ three 220/45PMY DIG (Propane cutting torch with digital torch controller)

 ☑ E
 140111

Sensor Torch FIT+ three 220/45A DIG (Acetylene cutting torch with digital torch controller)

 ☑ E
 100196 Linear drive cable, IHT 7500-2-901 (10 / 20 / 30 m)  ☑ F
 140525 DIG Cable, RS485 (10 / 20 / 30 m)  ☑ F
 140820

Operator Terminal APC (Tablet, RS485-USB converter)

 ☑ G


ACCESSORIES

Item No. Description
140522 Heat Shield FIT+ three
140551 Splash Protector
F25910021 Start Kit FIT+ three PMY
F25910022 Start Kit FIT+ three A

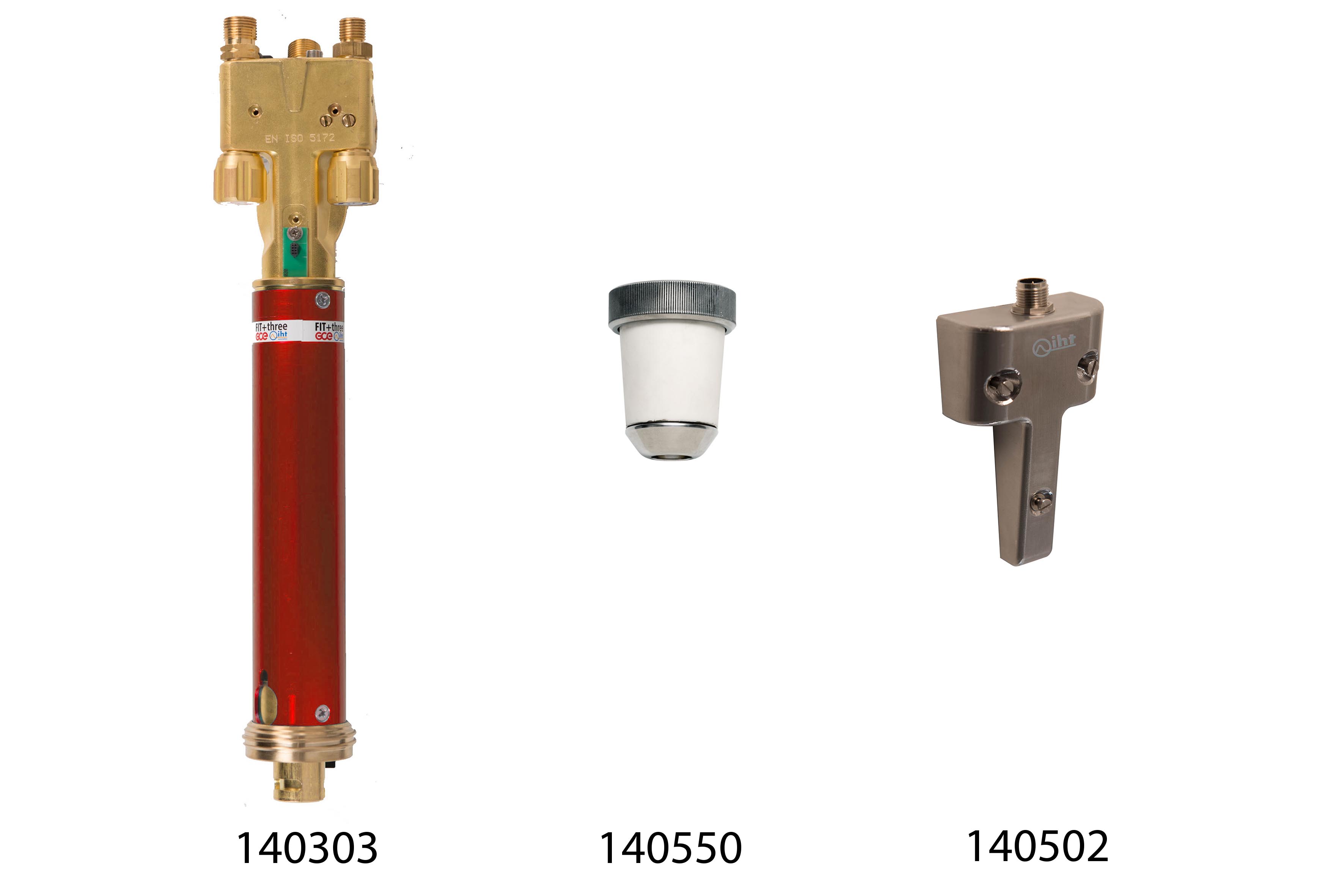

SPARE PARTS

Item No. Description
140303 Cutting Torch FIT+ three 220/45PMY red (without torch controller)
140304 Cutting Torch FIT+ three 220/45A red (without torch controller)
140502 FIT+ three Torch Controller DIG
140550 FIT+ three Clearance Sensor Kit



TOOLS

Item No. Description
100775 Clearance Sensor Tool
100778 Pin Tool



CONSUMABLES

Item No. Description
100773 Clearance Sensor type B 14/19
100774 O-Ring (5 pcs)
100780 Contact Pin (5 pcs)
Technical Datasheets Top

Download Technical Datasheets

Downloads Top

Additional Downloads for this Product

Acrobat Logo 735100001420_Cutting_parameters_FIT_PLUS_GCE_EN_REV6_web.pdf
