M 4000 FIT+ (HEIGHT CONTROL SYSTEM WITH FIT+ three)




FIT+ CATALOGUE

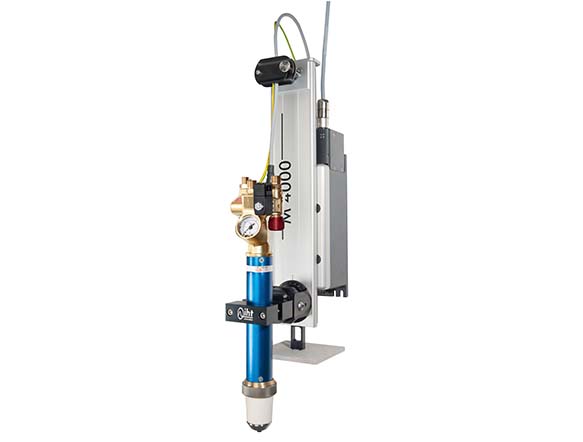

M 4000 FIT+ with integrated ignition and height control

Oxy-Fuel Height Control System with Cutting Torch and Integrated Ignition

  • Fully integrated Oxy-Fuel Cutting System with Cutting Torch,
  • Ignition, Height Sensing and Lifter all in one package
  • Fits on all carriages
  • Easy integration with the CNC controller
  • Works with all common CNC controllers on the market
  • Optional fi eldbus connectivity
  • Modular approach allows highest fl exibility
  • Selection of best components ensures high cutting quality and productivity

APPLICATION FIELDS

  • Oxy-Fuel cutting machines for straight cutting of up to 300 mm thick sheets
  • Single or multi torch applications
  • 100 % compatible with the IHT M 4000 PCS and M 4000 BAS plasma systems
  • Cut sheets up to 100 mm thickness when used with active height sensor and up to 300 mm with Splash Protector

CNC CONNECTIONS

  • In: Automatic, control of torch height On / Off
  • In: Clearance Setpoint (0-10 V), torch height setting during cutting process
  • In: Piercing Setpoint (0-10 V), torch height setting during piercing process
  • In: Ignite, start ignition command
  • In: Manual Up, manual torch movement
  • In: Manual Down, manual torch movement
  • Out: Error/Collision
  • Out: In Position, confi rmation of set position
  • Out: Upper Limit, highest possible point
  • Power: 24 V DC, use


In: = from CNC
Out: = to CNC











Item No. Description Position
140700 M 4000 FIT+ Basic kit A
140710 Guiding Rail kit 220+ B
140711 Guiding Rail kit 350 B
140712 Guiding Rail kit 500 B
100196L10 Linear Drive Cable, IHT 7500-2-901 (10 m) C
100196L20 Linear Drive Cable, IHT 7500-2-901 (20 m) C
100196L30 Linear Drive Cable, IHT 7500-2-901 (30 m) C
 140113

Sensor Torch FIT+ three 220/45PMY DIG (cutting torch with digital torch controller) red

D
140114

Sensor Torch FIT+ three 220/45A DIG (cutting torch with digital torch controller) red

D
140110

Sensor Torch FIT+ three 220/45PMY DIG (cutting torch with digital torch controller) blue

140111

Sensor Torch FIT+ three 220/45A DIG (cutting torch with digital torch controller) blue



ACCESSORIES

Item No. Description
140522 Heat Shield FIT+ three
140551 Splash Protector
F25910021 Start Kit FIT + three PMY
F25910022 Start Kit FIT + three A



SPARE PARTS

Item No. Description
140303 Cutting Torch FIT+ three 220/45PMY red (without torch controller) red
140304 Cutting Torch FIT+ three 220/45A red (without torch controller) red
140300 Cutting Torch FIT+ three 220/45PMY (without torch controller) blue
140301 Cutting Torch FIT+ three 220/45A (without torch controller) blue
140502 FIT+ three Torch Controller DIG
140550 FIT+ three Clearance Sensor Kit



TOOLS

Item No. Description
100775 Clearance Sensor Tool
100778 Pin Tool



CONSUMABLES

Item No. Description
100773 Clearance Sensor type B 14/19
100774 O-Ring (5 pcs)
100780 Contact Pin (5 pcs)
Technical Datasheets Top

Download Technical Datasheets

Downloads Top

Additional Downloads for this Product

Acrobat Logo 735100001420_Cutting_parameters_FIT_PLUS_GCE_EN_REV6_web.pdf
